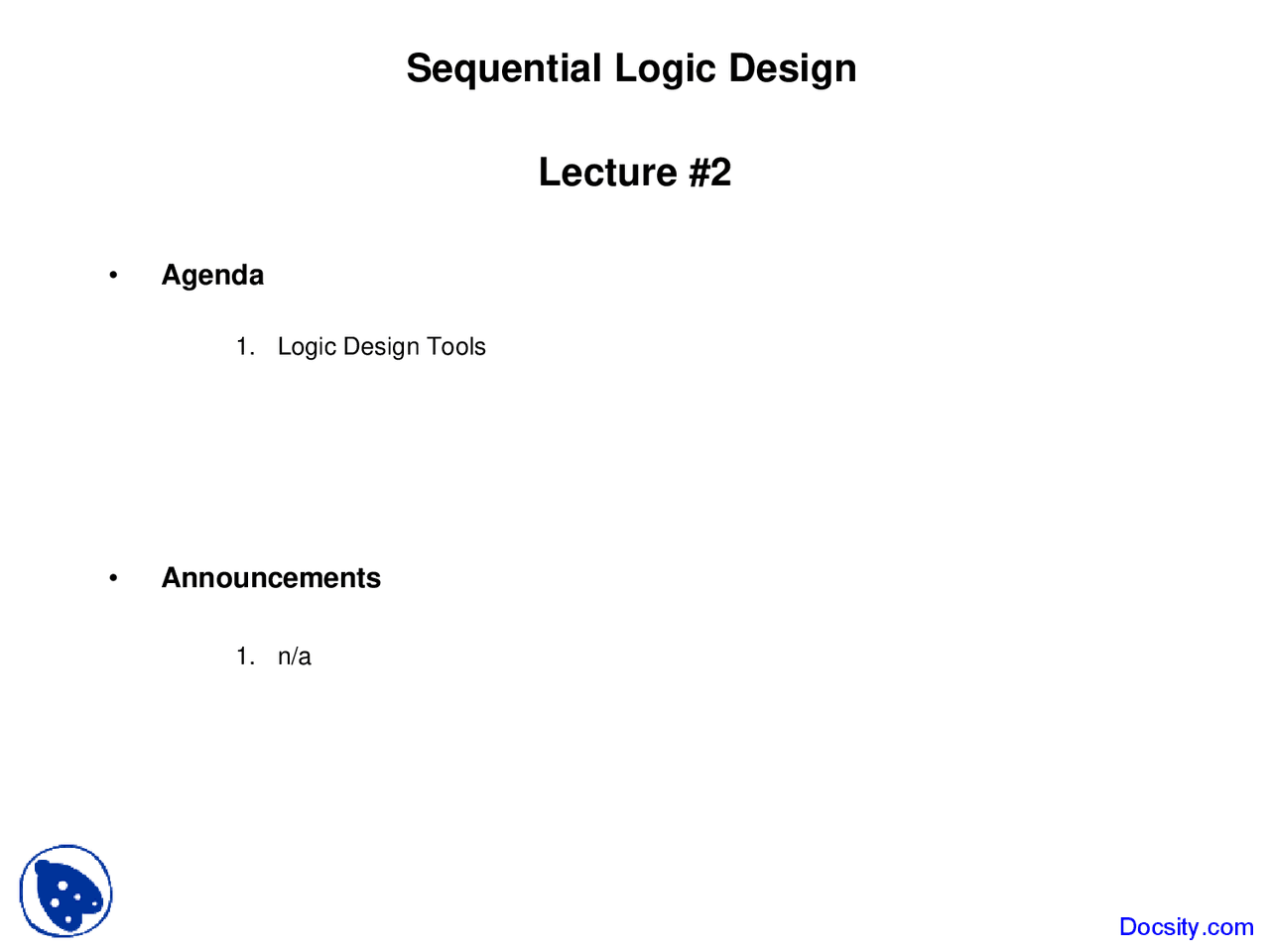

Sequential Logic Design

Lecture

• Agenda
  1. Logic Design Tools
• Announcements
  1. n/a

Logic Design Tools

• MS Visio
  • a generic drawing program.
  • industry is converging on this program for documentation.
  • has built in shape libraries, including analog/digital logic.
  • we’ll use it for this class to create clean schematics.

Logic Design Tools

• ModelSim (by Mentor Graphics)
  • an HDL Simulation (VHDL and Verilog)
  • widely used in industry
  • has color-coded text editing for keywords
  • has console for verification reporting
  • we’ll use for homework & before FPGA synthesis.

Logic Design Tools

• ModelSim (^) Simulation Waveform

Project Navigator

Console

Logic Design Tools

• Xilinx ISE
  • Integrated Software Environment (ISE)
  • Implementation tool
  • compile / simulate
  • synthesis
  • technology mapping
  • place and route
  • back annotation for post-route simulation and timing verification
  • can do similar simulation as in ModelSim
  • this is where we :
    • select FPGA to target
    • assign signal pins
    • set timing constraints
    • set placement constraints
    • set routing constraints
    • generate programming file
    • download file to FPGA, EEprom, or CPLD using the JTAG interface.

Logic Design Tools

• Xilinx ISE

Sources Window

Processes Window

Edit/View Window

Logic Design Tools

• Xilinx ISE

HDL or Schematic Entry

Routing Editor

Altera Quartus II Development Tool

New Project Wizard

Creation of new project

Choose device family and specific

device

Electronic Design Automation Tools

Quartus II display of created project

Processing>Start Compilation
