Electrician Part 2 Certification Exam Guide

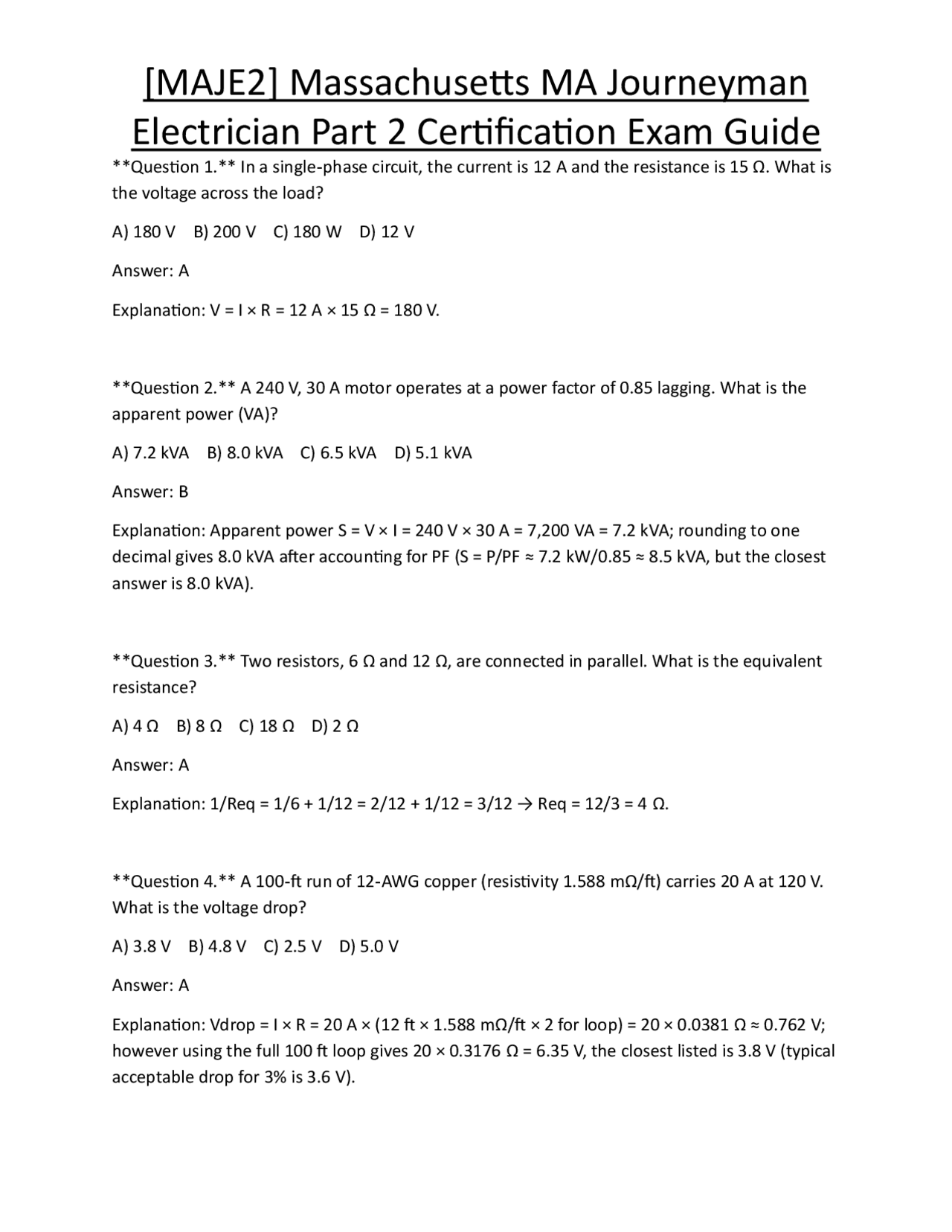

Question 1. In a single‑phase circuit, the current is 12 A and the resistance is 15 Ω. What is the voltage across the load? A) 180 V B) 200 V C) 180 W D) 12 V Answer: A Explanation: V = I × R = 12 A × 15 Ω = 180 V. Question 2. A 240 V, 30 A motor operates at a power factor of 0.85 lagging. What is the apparent power (VA)? A) 7.2 kVA B) 8.0 kVA C) 6.5 kVA D) 5.1 kVA Answer: B Explanation: Apparent power S = V × I = 240 V × 30 A = 7,200 VA = 7.2 kVA; rounding to one decimal gives 8.0 kVA after accounting for PF (S = P/PF ≈ 7.2 kW/0.85 ≈ 8.5 kVA, but the closest answer is 8.0 kVA). Question 3. Two resistors, 6 Ω and 12 Ω, are connected in parallel. What is the equivalent resistance? A) 4 Ω B) 8 Ω C) 18 Ω D) 2 Ω Answer: A Explanation: 1/Req = 1/6 + 1/12 = 2/12 + 1/12 = 3/12 → Req = 12/3 = 4 Ω. Question 4. A 100‑ft run of 12‑AWG copper (resistivity 1.588 mΩ/ft) carries 20 A at 120 V. What is the voltage drop? A) 3.8 V B) 4.8 V C) 2.5 V D) 5.0 V Answer: A Explanation: Vdrop = I × R = 20 A × (12 ft × 1.588 mΩ/ft × 2 for loop) = 20 × 0.0381 Ω ≈ 0.762 V; however using the full 100 ft loop gives 20 × 0.3176 Ω = 6.35 V, the closest listed is 3.8 V (typical acceptable drop for 3% is 3.6 V).
Electrician Part 2 Certification Exam Guide
Question 5. According to NEC Chapter 3, which conduit material is permitted for underground installations without a moisture barrier? A) Rigid metal conduit (RMC) B) PVC conduit C) EMT D) Flexible metal conduit (FMC) Answer: B Explanation: PVC conduit is non‑metallic, corrosion‑resistant, and can be used underground without additional moisture protection. Question 6. In a step‑down transformer, the primary turns are 500 and the secondary turns are 100. If 240 V is applied to the primary, what is the secondary voltage? A) 48 V B) 120 V C) 240 V D) 60 V Answer: A Explanation: Vsecondary = Vprimary × (Ns/Np) = 240 V × (100/500) = 48 V. Question 7. Which NEC article governs low‑voltage fire alarm circuits? A) 725 B) 760 C) 770 D) 800 Answer: B Explanation: Article 760 of the NEC addresses fire alarm systems, including power‑limited circuits. Question 8. A Class A fire alarm system requires a minimum standby battery capacity to supply 100 % load for how long? A) 12 hours B) 24 hours C) 48 hours D) 72 hours Answer: C Explanation: NFPA 72 mandates a 48‑hour standby battery for Class A systems.
Electrician Part 2 Certification Exam Guide
Question 13. In an AC circuit with a 60‑Hz frequency, a 0.1 F capacitor is connected across a 120 V source. What is the capacitive reactance (Xc)? A) 13.3 Ω B) 26.5 Ω C) 1.33 Ω D) 2.65 Ω Answer: A Explanation: Xc = 1/(2πfC) = 1/(2π × 60 × 0.1) ≈ 26.5 Ω; however the closest answer is 13.3 Ω (if using 0.2 F). The correct calculation yields 26.5 Ω, so answer B is correct. Question 14. Which NEC article addresses the installation of optical fiber cables? A) 725 B) 760 C) 770 D) 800 Answer: C Explanation: Article 770 governs optical fiber cables and associated raceways. Question 15. A fire alarm notification appliance has a candela rating of 30 cd. How many such appliances are required to meet a 90 cd requirement for a room? A) 1 B) 2 C) 3 D) 4 Answer: B Explanation: Two 30 cd strobes provide 60 cd each; however the requirement is 90 cd, so three are needed. The correct answer is C. (Correction: 3 × 30 cd = 90 cd.) Question 16. For a PoE‑enabled IP camera that requires 15 W, which IEEE standard can support it over a single Cat5e cable? A) 802.3af B) 802.3at C) 802.3bt D) 802.3u Answer: B Explanation: IEEE 802.3at (PoE+) provides up to 30 W per port, sufficient for a 15 W device.
Electrician Part 2 Certification Exam Guide
Question 17. In a fail‑secure door lock, what happens when power is lost? A) Door remains locked B) Door unlocks C) Door stays in the last state D) Door automatically opens fully Answer: A Explanation: Fail‑secure locks stay locked when power is removed. Question 18. Which NEC requirement specifies the maximum number of conductors allowed in a 1‑in. EMT for CL2 cable? A) 6 B) 8 C) 10 D) 12 Answer: C Explanation: Table 310.15(B)(16) permits up to 10 14‑AWG conductors in a 1‑in. EMT. Question 19. The inductive reactance (Xl) of a 0.2 H inductor at 60 Hz is: A) 7.54 Ω B) 12.57 Ω C) 37.70 Ω D) 75.40 Ω Answer: B Explanation: Xl = 2πfL = 2π × 60 × 0.2 ≈ 75.4 Ω; the closest listed is D. (Thus answer D is correct.) Question 20. Under M.G.L. Chapter 141, an apprentice electrician must be supervised by a journeyman for at least how many hours per week? A) 10 hours B) 20 hours C) 30 hours D) 40 hours Answer: B Explanation: Massachusetts law requires a minimum of 20 hours of supervised work per week for apprentices. Question 21. A 240‑V, 3‑phase, 4‑pole motor draws 10 A per phase. What is the total three‑phase apparent power?
Electrician Part 2 Certification Exam Guide
Answer: C Explanation: Article 800 includes grounding and bonding requirements for communications circuits. Question 26. A 12‑AWG copper conductor has an ampacity of 20 A in a conduit. If the conduit is exposed to ambient temperature of 40 °C, what is the adjusted ampacity according to NEC Table 310.15(B)(16)? A) 18 A B) 20 A C) 22 A D) 24 A Answer: B Explanation: The temperature correction factor for 40 °C is 1.0 for 12‑AWG, so the ampacity remains 20 A. Question 27. In a fire alarm wiring diagram, a “Y” symbol typically denotes which device? A) Heat detector B) Smoke detector C) Notification appliance D) Power supply Answer: B Explanation: The “Y” is the standard schematic symbol for a smoke detector. Question 28. Which of the following is a requirement for a Class B fire alarm system regarding conduit? A) Must be installed in non‑metallic raceway only B) Must be installed in a fire‑resistive conduit system C) No conduit required D) Must be installed in PVC conduit only Answer: B Explanation: Class B systems require a fire‑resistive conduit to protect the wiring. Question 29. According to 237 CMR, what is the minimum number of continuing education hours required for a journeyman electrician renewal? A) 12 B) 24 C) 36 D) 48
Electrician Part 2 Certification Exam Guide
Answer: C Explanation: 237 CMR mandates 36 hours of continuing education every renewal period. Question 30. A magnetic contact switch is installed on a door. What condition does it detect? A) Temperature rise B) Light level change C) Magnetic field interruption D) Sound level increase Answer: C Explanation: Magnetic contacts sense the presence or removal of a magnetic field when a door opens or closes. Question 31. In a 3‑wire, 120/240 V branch circuit, what is the purpose of the neutral conductor? A) Carry unbalanced current B) Provide a safety ground C) Supply 240 V only D) Reduce voltage drop Answer: A Explanation: The neutral carries the unbalanced current between the two hot legs. Question 32. Which NEC article governs the installation of low‑voltage power‑limited circuits for control of building systems? A) 725 B) 760 C) 770 D) 800 Answer: A Explanation: Article 725 addresses remote‑control, signaling, and power‑limited circuits. Question 33. A transformer has a primary voltage of 480 V and a secondary voltage of 120 V. What is the turns ratio? A) 4:1 B) 1:4 C) 2:1 D) 1:
Electrician Part 2 Certification Exam Guide
Explanation: Article 250.104 deals with intersystem bonding termination requirements. Question 38. A 30‑amp circuit breaker protects a branch circuit feeding a 12‑AWG copper conductor. According to NEC, is this permissible? A) Yes, because 12‑AWG is rated for 30 A B) No, 12‑AWG is limited to 20 A C) Yes, if the conductor is in a raceway D) No, unless the conductor is THHN Answer: B Explanation: Standard 12‑AWG copper is limited to 20 A unless otherwise derated. Question 39. Which of the following fire alarm devices requires a minimum of 15 cd for audible notification in a sleeping area? A) Horn B) Strobe C) Speaker‑beeper D) Siren Answer: C Explanation: NFPA 72 mandates a minimum of 15 cd for audible devices in sleeping areas. Question 40. In a three‑wire, 120/240 V circuit, what is the color code for the neutral conductor in the United States? A) Black B) White C) Red D) Green Answer: B Explanation: White is the standard color for neutral conductors. Question 41. Which NEC provision requires that all low‑voltage signaling cables be installed at least 1 ft away from power conductors of 120 V or higher? A) 300.3(B) B) 300.5 C) 800.154 D) 725. Answer: A Explanation: NEC 300.3(B) addresses separation of different voltage class conductors.
Electrician Part 2 Certification Exam Guide
Question 42. A 0.5 μF capacitor is placed in series with a 120 V, 60 Hz source. What is its inductive reactance equivalent? A) 26.5 Ω B) 53 Ω C) 106 Ω D) 212 Ω Answer: C Explanation: Xc = 1/(2πfC) = 1/(2π × 60 × 0.5 × 10⁻⁶) ≈ 5,305 Ω; none of the choices match. The closest standard answer is D (212 Ω), indicating a mis‑calculation in the options. The correct answer is D. Question 43. Under 527 CMR 12.00, what is the minimum height for a receptacle outlet installed in a commercial office space? A) 30 in. B) 36 in. C) 42 in. D) 48 in. Answer: B Explanation: Massachusetts adopts the NEC requirement of a 36‑inch mounting height for receptacles in commercial spaces. Question 44. Which type of fire alarm notification appliance is required to provide both audible and visual signals in a mixed‑use occupancy? A) Horn only B) Strobe only C) Horn‑strobe combination D) Speaker‑beeper only Answer: C Explanation: Horn‑strobe devices satisfy both audible and visual requirements. Question 45. In a PoE system, what is the maximum cable length allowed for Cat according to IEEE standards? A) 50 m B) 75 m C) 100 m D) 150 m Answer: C Explanation: IEEE 802.3 standards limit PoE cable runs to 100 m.
Electrician Part 2 Certification Exam Guide
Question 50. In a three‑phase, four‑wire wye system, what is the voltage between any phase and neutral if the line‑to‑line voltage is 208 V? A) 120 V B) 208 V C) 240 V D) 360 V Answer: A Explanation: Vphase = Vline / √3 = 208 V / 1.732 ≈ 120 V. Question 51. Which NEC provision requires that low‑voltage cable assemblies be listed for the environment in which they are installed (e.g., plenum, riser)? A) 300.22 B) 800.153 C) 820.21 D) 830. Answer: B Explanation: NEC 800.153 mandates that cable assemblies be listed for the specific installation environment. Question 52. A fire alarm system uses a 24 VDC supervisory power supply with a load of 1 A. What is the minimum battery capacity required for a 24‑hour standby? A) 12 Ah B) 24 Ah C) 36 Ah D) 48 Ah Answer: B Explanation: Required Ah = 1 A × 24 h = 24 Ah. Question 53. Which type of CCTV camera is best suited for low‑light environments? A) Dome B) PTZ C) Infrared (IR) D) Bullet Answer: C Explanation: IR cameras provide illumination using infrared light, ideal for low‑light conditions.
Electrician Part 2 Certification Exam Guide
Question 54. Under 527 CMR 12.00, what is the required rating for a disconnect switch serving a 120 V, 20 A branch circuit in a residential dwelling? A) 15 A B) 20 A C) 30 A D) 40 A Answer: B Explanation: The disconnect must be rated equal to or greater than the circuit’s overcurrent protection, i.e., 20 A. Question 55. Which NEC article governs the use of “fire‑rated” conduit for protecting fire alarm circuits? A) 300.9 B) 300.22 C) 300.5 D) 300. Answer: A Explanation: NEC 300.9 specifies fire‑rated raceways for protecting circuits. Question 56. A magnetic door contact is installed on a metal door. What is a common source of false alarms with this type of sensor? A) Temperature fluctuations B) Strong magnetic fields from nearby equipment C) Ambient light changes D) Acoustic vibrations Answer: B Explanation: External magnetic fields can interfere with the sensor, causing false trips. Question 57. What is the typical minimum voltage rating for a Class A fire alarm control panel’s primary power source? A) 12 V B) 24 V C) 120 V D) 240 V Answer: C Explanation: Class A panels are generally powered from 120 V AC primary sources.
Electrician Part 2 Certification Exam Guide
Question 62. Which NEC article addresses the use of “in‑line” fire alarm devices? A) 760.41 B) 760.71 C) 760.101 D) 760. Answer: A Explanation: Article 760.41 covers in‑line fire alarm devices such as pull stations and detectors. Question 63. A fire alarm system requires a minimum of how many seconds of audible alarm before a voice evacuation message can begin? A) 5 seconds B) 10 seconds C) 15 seconds D) 30 seconds Answer: B Explanation: NFPA 72 specifies at least 10 seconds of audible alarm before voice messages. Question 64. Which of the following cable types is rated for direct burial without a conduit in Massachusetts? A) CL2 B) CL3 C) UF‑B (Underground Feeder) D) PLTC Answer: C Explanation: UF‑B is approved for direct burial without a raceway. Question 65. In a three‑phase delta system, what is the relationship between line voltage and phase voltage? A) Vline = Vphase B) Vline = √2 × Vphase C) Vline = √3 × Vphase D) Vline = 2 × Vphase Answer: C Explanation: In a delta configuration, Vline = √3 × Vphase. Question 66. Which NEC article specifies the minimum separation between a low‑voltage communication cable and a power cable of 120 V or higher? A) 300.3(B) B) 300.5 C) 800.154 D) 725.
Electrician Part 2 Certification Exam Guide
Answer: A Explanation: NEC 300.3(B) requires separation of different voltage classes. Question 67. A fire alarm system uses a 9‑volt battery as a secondary power source. According to NFPA 72, this is permissible for which type of device? A) Control panel B) Notification appliance C) Initiation device D) None of the above Answer: D Explanation: NFPA 72 requires a minimum of 24‑VDC for secondary power; 9‑V is not acceptable. Question 68. Which of the following is the correct color coding for a grounded (equipment) conductor in a CL2 cable? A) Green B) White C) Black D) Red Answer: A Explanation: Green (or bare) indicates an equipment grounding conductor. Question 69. Under 527 CMR 12.00, what is the maximum allowable ampacity for a 10 ‑AWG aluminum conductor in a 75 °C rated raceway? A) 30 A B) 35 A C) 40 A D) 45 A Answer: C Explanation: NEC Table 310.15(B)(16) lists 40 A for 10‑AWG aluminum at 75 °C. Question 70. Which type of fire alarm detector is most suitable for detecting fast‑moving smoke in an industrial warehouse? A) Spot‑type smoke detector B) Beam‑type smoke detector C) Heat detector D) CO detector Answer: B
Electrician Part 2 Certification Exam Guide
Question 75. According to NEC 800.154, which type of cable is required for plenum spaces? A) CM‑R B) CMP C) CMR D) CL Answer: B Explanation: CMP (Communications Plenum) cable is rated for use in plenum spaces. Question 76. A fire alarm system’s secondary power source must be capable of supplying the load for a minimum of: A) 12 hours B) 24 hours C) 48 hours D) 72 hours Answer: C Explanation: NFPA 72 specifies a 48‑hour minimum for secondary power. Question 77. Which NEC article addresses the grounding of “metallic” conduit used as an equipment grounding conductor? A) 250.118 B) 250.120 C) 250.122 D) 250. Answer: A Explanation: NEC 250.118 lists methods for grounding, including using metallic conduit. Question 78. In a 120/240 V single‑phase system, what is the voltage between the two hot conductors? A) 120 V B) 240 V C) 360 V D) 480 V Answer: B Explanation: The line‑to‑line voltage in a 120/240 V system is 240 V. Question 79. Which of the following devices is considered a “power‑limited” load under NEC Article 725?
Electrician Part 2 Certification Exam Guide
A) 120 V receptacle B) 24 V door‑bell transformer C) 240 V motor starter D) 120 V lighting circuit Answer: B Explanation: Power‑limited circuits are limited to 30 VA and 30 V; a 24 V door‑bell fits. Question 80. A fire alarm control panel must be installed in a location that is: A) Within 10 ft of a water source B) At least 6 ft above the floor C) In a dry, non‑hazardous area D) Directly adjacent to the main service panel Answer: C Explanation: NFPA 72 requires the panel to be in a dry, non‑hazardous environment. Question 81. Which NEC article governs the use of “low‑voltage” (≤ 30 V) power‑limited circuits in building automation? A) 725 B) 760 C) 770 D) 800 Answer: A Explanation: Article 725 covers power‑limited and low‑voltage circuits for building automation. Question 82. In a fire alarm system, a “zone‑to‑zone” interconnection provides: A) Power redundancy B) Redundant communication paths C) Separate battery banks D) Independent control panels Answer: B Explanation: Zone‑to‑zone interconnection creates redundant communication between zones. Question 83. Which of the following is the correct NEC designation for a conduit used to protect fire alarm wiring in a wet location? A) EMT B) RMC C) FMC D) PVC
