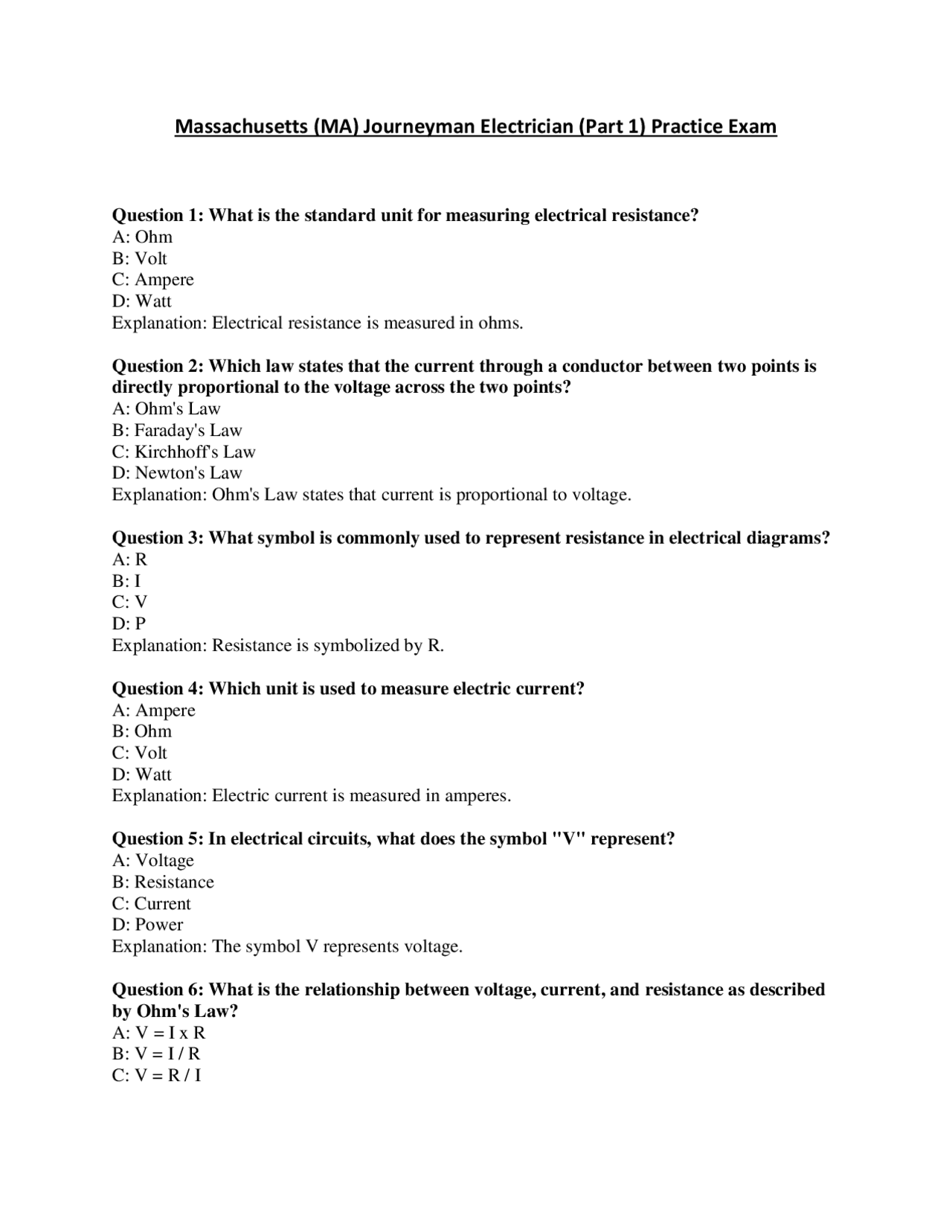

Massachusetts (MA) Journeyman Electrician (Part 1) Practice Exam
Question 1: What is the standard unit for measuring electrical resistance? A: Ohm B: Volt C: Ampere D: Watt Explanation: Electrical resistance is measured in ohms. Question 2: Which law states that the current through a conductor between two points is directly proportional to the voltage across the two points? A: Ohm's Law B: Faraday's Law C: Kirchhoff's Law D: Newton's Law Explanation: Ohm's Law states that current is proportional to voltage. Question 3: What symbol is commonly used to represent resistance in electrical diagrams? A: R B: I C: V D: P Explanation: Resistance is symbolized by R. Question 4: Which unit is used to measure electric current? A: Ampere B: Ohm C: Volt D: Watt Explanation: Electric current is measured in amperes. Question 5: In electrical circuits, what does the symbol "V" represent? A: Voltage B: Resistance C: Current D: Power Explanation: The symbol V represents voltage. Question 6: What is the relationship between voltage, current, and resistance as described by Ohm's Law? A: V = I x R B: V = I / R C: V = R / I
D: V = I + R
Explanation: Ohm's Law is V = I x R. Question 7: What electrical unit is used to measure power? A: Watt B: Volt C: Ampere D: Ohm Explanation: Power is measured in watts. Question 8: Which instrument is used to measure voltage? A: Voltmeter B: Ammeter C: Ohmmeter D: Wattmeter Explanation: A voltmeter measures voltage. Question 9: Which component stores electrical energy in an electric field? A: Capacitor B: Resistor C: Inductor D: Transformer Explanation: A capacitor stores electrical energy in an electric field. Question 10: What does the term 'AC' stand for in electrical systems? A: Alternating Current B: Actual Current C: Absolute Current D: Available Current Explanation: AC stands for Alternating Current. Question 11: What does 'DC' stand for in electrical systems? A: Direct Current B: Discrete Current C: Dynamic Current D: Dual Current Explanation: DC stands for Direct Current. Question 12: What type of diagram is commonly used to show electrical circuits? A: Schematic diagram B: Flowchart C: Bar graph D: Pie chart Explanation: Schematic diagrams are used to represent electrical circuits.
B: Voltage C: Resistance D: Current Explanation: Power is the rate of energy consumption, measured in watts. Question 20: What type of current is typically used for household power supply? A: Alternating Current B: Direct Current C: Pulsating DC D: Transient Current Explanation: Household power is typically AC. Question 21: Which symbol represents current in electrical formulas? A: I B: V C: R D: P Explanation: Current is represented by I. Question 22: What does the term 'circuit' refer to in electrical systems? A: A complete path for current flow B: A measure of energy C: A type of resistor D: A voltage regulator Explanation: A circuit is a complete path for current. Question 23: Which device converts AC to DC? A: Rectifier B: Inverter C: Transformer D: Regulator Explanation: A rectifier converts alternating current to direct current. Question 24: What does electrical service equipment typically include? A: Service entrance conductors, disconnects, and meters B: Light bulbs and switches C: Only wiring D: Only circuit breakers Explanation: Electrical service equipment includes entrance conductors, disconnects, and meters. Question 25: Which component provides the physical connection between the electrical utility and the building's wiring system? A: Service entrance B: Distribution panel C: Outlet box
D: Junction box Explanation: The service entrance connects the utility supply to the building. Question 26: What is the primary purpose of a service disconnect? A: To safely disconnect power for maintenance B: To increase voltage C: To measure electrical load D: To store electrical energy Explanation: A service disconnect allows safe disconnection of power. Question 27: Which conductor is responsible for carrying current from the utility to the service equipment? A: Service entrance conductor B: Branch circuit conductor C: Grounding conductor D: Neutral conductor Explanation: Service entrance conductors carry current from the utility to the equipment. Question 28: What role does the meter play in an electrical service? A: It measures the amount of electrical energy consumed B: It controls the voltage C: It stores energy D: It disconnects power Explanation: The meter measures electrical consumption. Question 29: What is one of the key responsibilities of service equipment installation? A: Ensuring proper grounding and bonding B: Increasing electrical load C: Decreasing wire size D: Adding extra circuits Explanation: Proper installation ensures correct grounding and bonding. Question 30: Which component provides overcurrent protection in the service equipment? A: Circuit breaker B: Light fixture C: Outlet D: Switch Explanation: Circuit breakers protect against overcurrent in service equipment. Question 31: How is the service entrance typically connected to the building's electrical panel? A: Through the main disconnect B: Directly to individual circuits C: Through extension cords D: Via remote control Explanation: The service entrance is connected through the main disconnect.
B: To generate electricity C: To act as a transformer D: To measure current Explanation: Service masts support conductors in overhead installations. Question 39: Which part of the service equipment is responsible for preventing electrical fires? A: Overcurrent protection devices B: Light bulbs C: Wiring insulation D: Service mast Explanation: Overcurrent protection devices help prevent electrical fires. Question 40: What ensures that service equipment is installed in accordance with code requirements? A: Compliance with local and national electrical codes B: Personal preference C: Manufacturer recommendations only D: Random inspection Explanation: Following code requirements ensures safe installations. Question 41: What is a common consequence of improper service equipment installation? A: Increased risk of electrical shock and fire B: Lower energy bills C: Enhanced electrical performance D: Reduced conductor size Explanation: Improper installation raises safety hazards. Question 42: What is the role of a neutral conductor in a service entrance? A: To carry unbalanced current B: To conduct ground faults only C: To increase circuit resistance D: To isolate circuits Explanation: The neutral conductor carries unbalanced current. Question 43: What is the primary purpose of grounding in electrical systems? A: To provide a safe path for fault current B: To increase voltage C: To improve efficiency D: To store energy Explanation: Grounding provides a safe path for fault current. Question 44: Which component is commonly used as a grounding electrode? A: Ground rod B: Fuse C: Switch
D: Capacitor Explanation: A ground rod is a common grounding electrode. Question 45: What is bonding in electrical systems? A: Connecting all non-current carrying metal parts together B: Isolating electrical circuits C: Increasing resistance D: Connecting live wires Explanation: Bonding ensures all metal parts are electrically connected. Question 46: Why is proper bonding important? A: To eliminate potential differences and reduce shock risk B: To increase voltage levels C: To slow current flow D: To bypass overcurrent devices Explanation: Bonding reduces shock hazards by equalizing potential differences. Question 47: Which conductor is used to connect grounding electrodes to the electrical system? A: Grounding electrode conductor B: Hot conductor C: Neutral conductor D: Phase conductor Explanation: The grounding electrode conductor connects the electrode. Question 48: What is the typical material for grounding electrodes? A: Copper or galvanized steel B: Plastic C: Aluminum foil D: Rubber Explanation: Copper or galvanized steel is commonly used for grounding electrodes. Question 49: In which scenarios is bonding especially critical? A: In areas with exposed metal surfaces B: In non-metallic enclosures C: In isolated circuits D: In battery-powered systems Explanation: Bonding is critical where metal surfaces are accessible. Question 50: What does the term 'ground fault' refer to? A: An unintentional electrical path between a power source and a grounded surface B: An intentional electrical connection C: A type of circuit breaker D: A properly bonded circuit Explanation: A ground fault is an unintended electrical path to ground.
B: Isolation C: Segregation D: Amplification Explanation: Equalization ensures uniform electrical potential. Question 58: How often should grounding connections be inspected? A: Regularly, according to code B: Only during installation C: Annually without exception D: Never Explanation: Regular inspections ensure effective grounding. Question 59: What is the most common type of conduit used in residential wiring? A: Electrical Metallic Tubing (EMT) B: Rigid Metal Conduit (RMC) C: PVC Conduit D: Flexible Metal Conduit (FMC) Explanation: EMT is commonly used in residential wiring. Question 60: Which wiring method provides the highest level of protection? A: Rigid Metal Conduit B: Cable Tray C: NM Cable D: Non-metallic Sheathed Cable Explanation: Rigid Metal Conduit provides high physical protection. Question 61: What does box fill calculation ensure? A: That conductors and devices do not exceed the electrical box capacity B: That the box is completely full C: That no wires are used D: That the box is only for decorative purposes Explanation: Box fill calculations ensure safety and compliance. Question 62: Which of the following is a type of wiring device? A: Switch B: Transformer C: Capacitor D: Resistor Explanation: Switches are common wiring devices. Question 63: What does NM cable stand for? A: Non-metallic sheathed cable B: Non-modular cable C: Neutral metallic cable D: New metallic cable Explanation: NM cable stands for non-metallic sheathed cable.
Question 64: Which wiring method is preferred for damp or wet locations? A: Rigid or PVC conduit B: NM cable C: Flexible metal conduit without protection D: Open wiring Explanation: Conduit methods are preferred in wet conditions. Question 65: What is the purpose of a junction box? A: To house electrical connections and splices B: To generate electricity C: To function as a power source D: To measure voltage Explanation: Junction boxes protect and contain electrical splices. Question 66: How is conductor sizing determined? A: Based on current load and installation conditions B: Based solely on color C: Randomly selected D: Based on aesthetic appeal Explanation: Sizing depends on current load and environment. Question 67: What is a common wiring device used to control lighting? A: Wall switch B: Transformer C: Circuit breaker D: Fuse Explanation: Wall switches control lighting circuits. Question 68: Which wiring method is typically used in hazardous locations? A: Rigid Metal Conduit B: NM cable C: Open wiring D: Flexible cable Explanation: Rigid Metal Conduit is preferred in hazardous areas. Question 69: What does the term 'ampacity' refer to in wiring installations? A: The maximum current a conductor can carry B: The length of the conductor C: The voltage drop D: The physical strength of the cable Explanation: Ampacity is the current carrying capacity of a conductor. Question 70: What is the significance of conductor insulation? A: It prevents short circuits and protects against electrical hazards B: It increases current flow C: It acts as a conductor
Question 77: What does overcurrent protection for motors prevent? A: Excess current that could damage the motor B: Under-voltage conditions C: Regular operation D: Reduced friction Explanation: Overcurrent protection prevents motor damage from excess current. Question 78: What is the primary difference between single-phase and three-phase motors? A: The number of alternating currents used B: The physical size C: The color D: The type of insulation Explanation: Single-phase motors use one AC phase, while three-phase motors use three. Question 79: Which factor influences motor efficiency? A: Load conditions B: Color of the motor C: Brand name only D: Installation location without load consideration Explanation: Efficiency is influenced by load conditions and design. Question 80: What is the term for the resistance to motion in a motor's operation? A: Friction B: Capacitance C: Inductance D: Voltage drop Explanation: Friction is the resistance encountered in motion. Question 81: How does proper motor grounding contribute to safety? A: It ensures fault currents are safely directed to ground B: It increases operating temperature C: It decreases efficiency D: It eliminates the need for disconnects Explanation: Proper grounding provides a safe fault current path. Question 82: Which parameter is critical when selecting a motor for an application? A: Horsepower rating B: Voltage drop only C: Color D: Physical appearance Explanation: Horsepower rating determines motor suitability for an application. Question 83: What is a common type of overcurrent protection for motors? A: Thermal overload relay B: Dimmer switch C: Timer switch
D: Voltage regulator Explanation: Thermal overload relays protect motors from overcurrent. Question 84: Which device may be used to provide variable speed control in a motor application? A: Variable frequency drive (VFD) B: Standard switch C: Fixed resistor D: Transformer only Explanation: VFDs allow variable speed control. Question 85: What is the effect of underloading a motor for prolonged periods? A: Reduced efficiency and potential overheating B: Increased power consumption C: Enhanced performance D: No effect Explanation: Underloading can lead to inefficiency and overheating. Question 86: Which standard code section often addresses motor installations and protection? A: NEC articles specific to motors B: Building insulation codes C: Plumbing codes D: Fire codes exclusively Explanation: NEC articles provide guidelines for motor installations. Question 87: What is the primary function of a transformer? A: To change the voltage level in an electrical circuit B: To store electrical energy C: To measure current D: To convert AC to DC Explanation: Transformers adjust voltage levels. Question 88: Which type of transformer is commonly used in residential applications? A: Distribution transformer B: Instrument transformer C: Isolation transformer D: Autotransformer Explanation: Distribution transformers are common in residences. Question 89: What does transformer efficiency refer to? A: The ratio of output power to input power B: The size of the transformer C: The color of the transformer D: The voltage rating Explanation: Efficiency is the ratio of output to input power.
C: Overloading the transformer D: Ignoring lockout-tagout procedures Explanation: Proper de-energizing and grounding ensure safety. Question 97: Which of the following affects a transformer's thermal performance? A: Ambient temperature B: Wire color C: Frequency of inspection D: Installation date Explanation: Ambient temperature influences thermal performance. Question 98: What is the purpose of transformer tap changers? A: To adjust the voltage ratio B: To disconnect the transformer C: To change the insulation type D: To alter physical dimensions Explanation: Tap changers adjust voltage output. Question 99: How can transformer losses be categorized? A: Core losses and copper losses B: Thermal and mechanical losses C: Insulation and conductor losses D: Voltage and current losses Explanation: Losses are generally core and copper. Question 100: Which code section primarily governs transformer installations? A: NEC articles on transformers B: Plumbing codes C: Fire codes exclusively D: Building codes only Explanation: NEC provides guidelines for transformer installations. Question 101: What distinguishes a dry-type transformer from an oil-filled transformer? A: Cooling method and insulation B: The number of windings only C: The voltage only D: The installation location only Explanation: Cooling method and insulation differ between types. Question 102: What defines a low-voltage electrical system? A: Operating at voltages typically less than 50 volts B: Operating at over 1000 volts C: Operating only in high-rise buildings D: Operating at standard household voltages Explanation: Low-voltage systems operate at voltages below about 50 volts.
Question 103: What is a common application of low-voltage distribution systems? A: Security and fire alarm systems B: High-power industrial machinery C: Main residential power supply D: High voltage transmission Explanation: Low-voltage systems are used in alarm and security applications. Question 104: Which wiring method is typically used in low-voltage installations? A: Cables with appropriate insulation for low voltages B: Rigid metal conduit only C: Open wiring D: Underground high-voltage cable Explanation: Special low-voltage cables are used. Question 105: What is an advantage of low-voltage systems? A: Increased safety due to lower risk of shock B: Higher energy transmission C: Reduced system control D: Increased installation cost Explanation: Lower voltage reduces shock risk. Question 106: What is a common standard for low-voltage wiring in residential applications? A: 24 volts for doorbells and thermostats B: 120 volts for lighting C: 240 volts for outlets D: 480 volts for motors Explanation: Low-voltage systems often use 24 volts. Question 107: Which device is often used to regulate low-voltage circuits? A: Transformer or step-down converter B: High-voltage breaker C: Overhead conductor D: Standard switch Explanation: Transformers regulate low-voltage circuits. Question 108: What is the role of a low-voltage distribution panel? A: To organize and distribute low-voltage power B: To increase system voltage C: To store high voltage energy D: To disconnect high-voltage lines Explanation: The panel organizes low-voltage distribution. Question 109: Which installation location is common for low-voltage systems? A: Commercial buildings for data and communications B: Only outdoors
Question 116: Which material is often used for low-voltage wiring insulation? A: PVC or similar polymers B: Bare copper C: Steel D: Aluminum foil Explanation: PVC insulation is common in low-voltage cables. Question 117: What characterizes electrical installations in hazardous locations? A: The presence of flammable or explosive substances B: The presence of excess water only C: High voltage only D: Outdoor location only Explanation: Hazardous locations have flammable or explosive materials. Question 118: In special occupancies, why is strict adherence to electrical code essential? A: To ensure safety and mitigate unique risks B: To reduce costs only C: To allow for flexibility in installations D: It is not necessary Explanation: Strict code adherence mitigates unique risks. Question 119: Which special occupancy often requires additional grounding measures? A: Health care facilities B: Residential kitchens C: Standard offices D: Garages only Explanation: Health care facilities require enhanced grounding. Question 120: What type of equipment might require special installation considerations in elevators? A: Motor controllers and disconnects B: Light bulbs only C: Standard outlets D: Decorative fixtures Explanation: Elevators need specialized equipment like motor controllers. Question 121: What does the term 'classified location' refer to? A: Areas classified based on the presence of hazardous substances B: Areas with high security C: Areas with no electrical installations D: Areas used for storage only Explanation: Classified locations are determined by hazardous material presence. Question 122: What is a key consideration when installing electrical equipment in health care facilities? A: Redundancy and reliability
B: Aesthetic design only C: Minimal insulation D: Ignoring backup systems Explanation: Health care facilities require redundant and reliable systems. Question 123: Which installation practice is critical in hazardous locations? A: Using explosion-proof or intrinsically safe devices B: Using standard devices without modification C: Installing devices outdoors D: Ignoring special codes Explanation: Explosion-proof devices are critical in hazardous areas. Question 124: How does proper equipment grounding benefit special occupancies? A: It enhances safety by ensuring all equipment remains at a common potential B: It reduces operational efficiency C: It increases installation costs significantly D: It eliminates the need for overcurrent devices Explanation: Proper grounding equalizes potential for safety. Question 125: What is the purpose of isolating special occupancy circuits from general circuits? A: To reduce interference and improve safety B: To lower installation complexity C: To decrease system reliability D: To simplify maintenance Explanation: Isolation reduces interference and enhances safety. Question 126: Which special occupancy might require dedicated emergency power systems? A: Hospitals B: Residential homes C: Retail stores D: Warehouses Explanation: Hospitals require dedicated emergency power. Question 127: What type of wiring method is often used in special occupancy areas to meet code requirements? A: Conduit wiring B: Open wiring C: Flexible cable without protection D: Non-metallic cable in hazardous areas Explanation: Conduit wiring meets stringent code requirements in special occupancies. Question 128: Why is regular inspection critical in special occupancy installations? A: To ensure compliance with enhanced safety standards B: To reduce energy consumption
