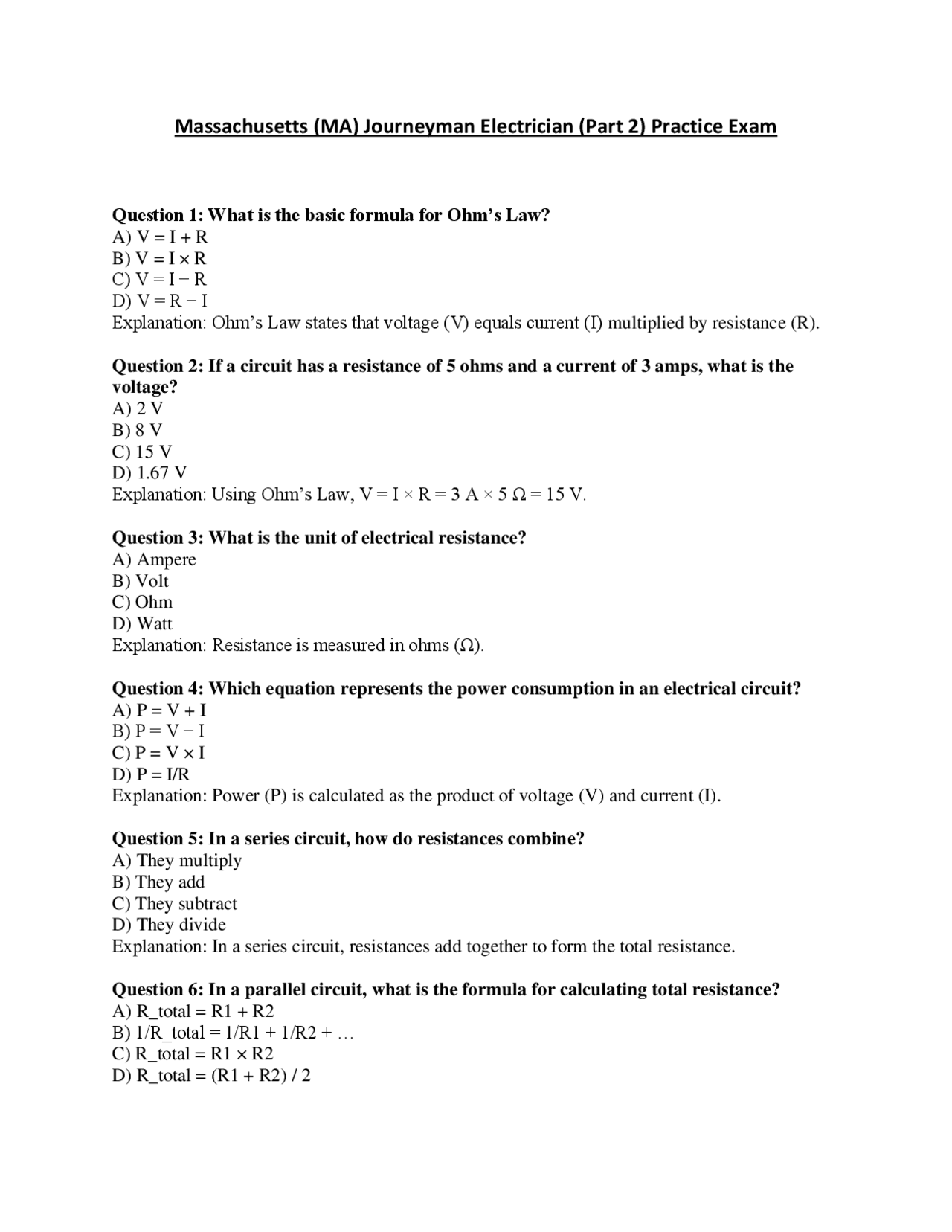

Massachusetts (MA) Journeyman Electrician (Part 2) Practice Exam
Question 1: What is the basic formula for Ohm’s Law? A) V = I + R B) V = I × R C) V = I − R D) V = R − I Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R). Question 2: If a circuit has a resistance of 5 ohms and a current of 3 amps, what is the voltage? A) 2 V B) 8 V C) 15 V D) 1.67 V Explanation: Using Ohm’s Law, V = I × R = 3 A × 5 Ω = 15 V. Question 3: What is the unit of electrical resistance? A) Ampere B) Volt C) Ohm D) Watt Explanation: Resistance is measured in ohms (Ω). Question 4: Which equation represents the power consumption in an electrical circuit? A) P = V + I B) P = V − I C) P = V × I D) P = I/R Explanation: Power (P) is calculated as the product of voltage (V) and current (I). Question 5: In a series circuit, how do resistances combine? A) They multiply B) They add C) They subtract D) They divide Explanation: In a series circuit, resistances add together to form the total resistance. Question 6: In a parallel circuit, what is the formula for calculating total resistance? A) R_total = R1 + R B) 1/R_total = 1/R1 + 1/R2 + … C) R_total = R1 × R D) R_total = (R1 + R2) / 2
Explanation: For resistors in parallel, the reciprocal of the total resistance equals the sum of the reciprocals of each individual resistance. Question 7: What is the main effect of increasing resistance in a circuit while keeping voltage constant? A) Increase in current B) Decrease in current C) No change in current D) Increase in power Explanation: According to Ohm’s Law, increasing resistance while keeping voltage constant decreases the current. Question 8: Which quantity remains constant in a series circuit? A) Voltage B) Current C) Resistance D) Power Explanation: In a series circuit, the same current flows through every component. Question 9: What does the term “load” refer to in electrical circuits? A) The energy source B) The resistance provided by a component C) The device that consumes electrical power D) The insulating material Explanation: A load is any device or component that consumes electrical power in a circuit. Question 10: How is electrical efficiency typically calculated? A) Output power/input power × 100% B) Input power/output power × 100% C) Voltage/current × 100% D) Resistance/current × 100% Explanation: Efficiency is calculated as the ratio of output power to input power, multiplied by 100 percent. Question 11: What symbol is most commonly used to represent a resistor in electrical schematics? A) A zigzag line B) A straight line C) A circle D) A triangle Explanation: Resistors are typically represented by a zigzag line in electrical diagrams. Question 12: In a schematic, what does a dashed line usually indicate? A) A power supply B) A hidden or optional connection C) A solid conductor
Explanation: A visual inspection helps identify obvious signs of damage or loose connections before further testing. Question 19: Which instrument is primarily used to measure voltage? A) Ammeter B) Voltmeter C) Ohmmeter D) Wattmeter Explanation: A voltmeter is used to measure the voltage across components in a circuit. Question 20: What is the primary purpose of a circuit breaker in an electrical system? A) To increase voltage B) To limit current flow C) To provide a controlled path for current D) To protect the circuit from overload Explanation: Circuit breakers are designed to protect electrical circuits from damage by interrupting the current flow in case of overload or short circuit. Question 21: How is power loss in a circuit typically calculated? A) P_loss = I²R B) P_loss = V²R C) P_loss = IR² D) P_loss = V/I Explanation: Power loss due to resistance is calculated using the formula P_loss = I²R. Question 22: In a parallel circuit with two resistors of 20 Ω and 30 Ω, what is the approximate total resistance? A) 50 Ω B) 12 Ω C) 24 Ω D) 10 Ω Explanation: The total resistance for parallel resistors is given by 1/R_total = 1/20 + 1/30, which results in approximately 12 Ω. Question 23: What is the function of a capacitor in an electrical circuit? A) To amplify signals B) To store and release energy C) To rectify AC to DC D) To limit current Explanation: Capacitors store electrical energy and can release it when needed, often used for filtering and timing applications. Question 24: When analyzing an electrical schematic, what does a double line usually represent? A) A battery B) A transformer
C) A high voltage line D) A ground connection Explanation: A double line can represent specific components like transformers or bus bars depending on the schematic’s legend. Question 25: Which of the following formulas correctly calculates the current in a circuit? A) I = V + R B) I = V − R C) I = V × R D) I = V/R Explanation: Current (I) is calculated by dividing voltage (V) by resistance (R). Question 26: What is the significance of the color coding on electrical wires? A) They indicate the wire’s age B) They denote the electrical resistance C) They indicate the function and safety (such as hot, neutral, ground) D) They represent the manufacturer Explanation: Color coding on wires is used to identify their function and ensure safety in installations. Question 27: How do you determine the efficiency of an electrical motor if the input power is 2000 W and output power is 1600 W? A) 80% B) 60% C) 100% D) 40% Explanation: Efficiency is calculated as (output power/input power) × 100, so (1600/2000)× = 80%. Question 28: What does a schematic symbol that looks like a zigzag with an arrow typically indicate? A) A variable resistor B) A fuse C) A potentiometer D) A capacitor Explanation: A zigzag with an arrow usually represents a potentiometer, which is an adjustable resistor. Question 29: Which of the following is a common safety standard for electrical wiring in Massachusetts? A) NEC with local amendments B) IEC only C) ISO standards only D) No standards apply Explanation: Massachusetts follows the National Electrical Code (NEC) along with specific local amendments.
Explanation: Diodes allow current to pass in one direction, providing rectification and protection against reverse polarity. Question 36: If a circuit is designed for 120 V and 60 Hz, what does 60 Hz indicate? A) The current frequency B) The voltage multiplier C) The resistance rating D) The power consumption Explanation: The frequency (60 Hz) indicates the number of cycles per second of the alternating current. Question 37: Which material is most commonly used for electrical wiring due to its high conductivity? A) Aluminum B) Copper C) Iron D) Steel Explanation: Copper is favored for electrical wiring because of its excellent conductivity and reliability. Question 38: When calculating voltage drop across a long conductor, which factor is NOT typically considered? A) Conductor material B) Conductor length C) Ambient temperature D) Frequency of the current Explanation: Frequency is generally not a primary factor in calculating voltage drop; material, length, and temperature are more critical. Question 39: In troubleshooting, what does a “no continuity” reading indicate? A) A complete circuit B) An open circuit C) A short circuit D) A high resistance path Explanation: A “no continuity” reading suggests that the circuit is broken or open, interrupting the flow of current. Question 40: What is one common cause of a short circuit in wiring installations? A) Overloading the circuit B) Damaged insulation allowing conductors to touch C) High resistance components D) Low voltage supply Explanation: Damaged insulation can cause conductors to come into contact, creating a short circuit.
Question 41: How does a fuse protect an electrical circuit? A) By increasing current flow B) By permanently closing the circuit C) By melting when excessive current flows D) By regulating voltage Explanation: A fuse melts and breaks the circuit when too much current flows, protecting the circuit from damage. Question 42: What does the term “ampacity” refer to in electrical systems? A) The voltage rating of a conductor B) The maximum current a conductor can carry safely C) The resistance of a conductor D) The frequency rating of a conductor Explanation: Ampacity is the maximum amount of current a conductor can carry without exceeding its temperature rating. Question 43: In a parallel circuit, if one branch is open, what happens to the total circuit current? A) It increases B) It decreases C) It remains the same D) It becomes zero Explanation: When one branch in a parallel circuit is open, the total current decreases because one of the available paths for current is lost. Question 44: What is the purpose of using a transformer in an electrical system? A) To change the voltage level B) To change the frequency C) To store electrical energy D) To rectify current Explanation: Transformers are used to step-up or step-down voltage levels in AC circuits. Question 45: Which of the following is a common symbol for a battery in electrical schematics? A) A single long line B) A pair of parallel lines of different lengths C) A zigzag line D) A circle with a plus sign Explanation: Batteries are typically shown as a pair of parallel lines of differing lengths, indicating the positive and negative terminals. Question 46: What does the term “load calculation” refer to in electrical design? A) Estimating the weight of equipment B) Calculating the electrical power demand C) Determining cable length D) Measuring voltage drop
Question 52: Which instrument measures electrical current directly? A) Ammeter B) Voltmeter C) Ohmmeter D) Thermometer Explanation: An ammeter is used to measure the current flowing through a circuit. Question 53: How is the energy consumption (in watt-hours) of a device calculated if it runs at 100 W for 5 hours? A) 500 Wh B) 105 Wh C) 100 Wh D) 5 Wh Explanation: Energy consumption is calculated as power multiplied by time, so 100 W × 5 h = 500 Wh. Question 54: Which calculation is necessary to determine the proper fuse rating for a circuit? A) Calculating the load’s total resistance B) Calculating the circuit’s maximum current C) Determining the circuit’s capacitance D) Measuring the ambient temperature Explanation: Determining the circuit’s maximum current helps in selecting a fuse that will protect the circuit without nuisance tripping. Question 55: In a circuit diagram, what does the symbol for an open switch look like? A) A closed line B) Two disconnected contacts C) A zigzag line D) A circle with an X Explanation: An open switch is typically shown as two contacts that are not connected, indicating an open circuit. Question 56: What is the effect of adding a resistor in parallel to a circuit branch? A) Increases overall resistance B) Decreases overall resistance C) Leaves overall resistance unchanged D) Increases the voltage Explanation: Adding a resistor in parallel decreases the overall resistance of that branch of the circuit. Question 57: What is the key factor in determining the wire gauge needed for a circuit? A) The color of the wire B) The current-carrying capacity (ampacity) C) The length of the wire only D) The voltage drop alone
Explanation: The wire gauge is chosen primarily based on the required ampacity to safely carry the current. Question 58: When testing for voltage, why is it important to use a properly rated voltmeter? A) To ensure the device is calibrated B) To match the voltage range of the circuit and prevent damage C) To measure resistance accurately D) To change the current flow Explanation: Using a voltmeter with an appropriate voltage range prevents damage to the instrument and ensures accurate measurements. Question 59: Which property of a conductor affects its ability to carry current efficiently? A) Its density B) Its color C) Its conductivity D) Its shape Explanation: A conductor’s conductivity determines how efficiently it can carry electrical current. Question 60: When designing an electrical layout from a schematic, what is a critical consideration? A) The aesthetic appearance of the wires B) The proper routing of conductors to avoid interference and ensure safety C) The brand of the electrical components D) The temperature of the room Explanation: Proper conductor routing is essential to avoid interference, minimize voltage drop, and ensure compliance with safety standards. Question 61: In Massachusetts, which document must electricians adhere to aside from the NEC? A) Federal Trade Regulations B) Local building codes and Massachusetts-specific amendments C) ISO 9001 standards D) International Electrical Standards Explanation: Massachusetts electricians must comply with both the NEC and local building codes, including state-specific amendments. Question 62: What does the term “ampacity” specifically refer to in wire selection? A) The flexibility of the wire B) The maximum current the wire can safely handle C) The cost of the wire D) The insulation color Explanation: Ampacity is the maximum current a wire can safely conduct without overheating.
C) A circuit that has no ground connection D) A circuit that uses wireless signals Explanation: A looped circuit often provides a redundant path or feedback loop within the design. Question 69: What is the importance of labeling circuits on an electrical panel? A) It enhances the appearance of the panel B) It facilitates troubleshooting and safe maintenance C) It increases the voltage capacity D) It reduces power consumption Explanation: Proper labeling helps technicians quickly identify circuits during troubleshooting and maintenance. Question 70: Which property is critical when selecting materials for high-voltage applications? A) Thermal expansion B) Dielectric strength C) Color consistency D) Weight Explanation: Dielectric strength is the ability of an insulating material to withstand high voltages without breaking down. Question 71: What does the term “short circuit” refer to in electrical troubleshooting? A) An intentional open circuit B) An accidental low-resistance connection between two points C) A high-resistance fault D) A circuit operating at low voltage Explanation: A short circuit is an unintended connection that creates a path of low resistance, causing excessive current flow. Question 72: In Massachusetts, what is a key focus of the state-specific electrical code amendments? A) Reducing installation time B) Enhancing safety standards and environmental considerations C) Lowering material costs D) Increasing wiring color options Explanation: Massachusetts amendments to the NEC focus on enhancing safety standards and addressing local environmental concerns. Question 73: What is the role of a conduit in electrical installations? A) To increase voltage B) To protect and route electrical wiring C) To act as a switch D) To store energy Explanation: Conduits provide physical protection and organization for electrical wiring.
Question 74: Which tool is used to test the continuity of a circuit in troubleshooting? A) Oscilloscope B) Continuity tester or multimeter C) Wattmeter D) Thermometer Explanation: A continuity tester or multimeter is used to check if a circuit is complete or if there is a break. Question 75: What does the “load center” refer to in electrical installations? A) The location where energy is generated B) The distribution panel that houses circuit breakers C) The main wiring conduit D) The ground rod Explanation: The load center, or breaker panel, distributes electrical power to various circuits in a building. Question 76: When performing circuit calculations, which factor does NOT affect voltage drop? A) Conductor length B) Conductor material C) Ambient light D) Conductor cross-sectional area Explanation: Ambient light has no effect on voltage drop in a conductor. Question 77: What is the purpose of using a clamp meter during electrical testing? A) To measure resistance only B) To measure current without disconnecting the circuit C) To measure capacitance D) To measure voltage without contact Explanation: Clamp meters measure current by clamping around a conductor without requiring a break in the circuit. Question 78: In a circuit using multiple components, what is the purpose of a junction box? A) To amplify signals B) To protect and secure electrical connections C) To reduce current D) To convert voltage Explanation: Junction boxes safely contain and protect electrical connections and splices. Question 79: What does “NEC” stand for in the electrical industry? A) National Energy Code B) National Electrical Code C) National Engineering Council D) National Equipment Certification Explanation: NEC stands for National Electrical Code, which sets the standards for safe electrical design and installation.
Explanation: The state licensing board guidelines specify continuing education requirements for licensed electricians in Massachusetts. Question 86: What is one of the critical factors in selecting a transformer for a specific application? A) Its physical size only B) Its voltage rating and power capacity C) Its color and shape D) Its mounting type Explanation: The voltage rating and power capacity are essential to ensure the transformer meets the needs of the application. Question 87: Which symbol in a schematic typically represents an inductor? A) A zigzag line B) A series of loops or coils C) A pair of parallel lines D) A rectangle Explanation: Inductors are usually depicted as a series of loops or coils in schematic diagrams. Question 88: When calculating current using Ohm’s Law, which of the following values is divided by resistance? A) Voltage B) Power C) Capacitance D) Frequency Explanation: To find current, the voltage is divided by the resistance. Question 89: What is the effect on current when additional parallel paths are added to a circuit? A) Current decreases overall B) Current remains constant C) Overall current increases D) Voltage increases Explanation: Adding parallel paths generally increases the overall current draw from the source. Question 90: What is the primary role of a circuit schematic in electrical design? A) To provide a cost estimate B) To visually represent the connections and functions of components C) To indicate the installation timeline D) To show the building’s layout Explanation: Schematics visually represent how electrical components are connected and function together. Question 91: Which property is essential when choosing insulation materials for electrical wiring? A) Thermal conductivity
B) Dielectric strength C) Magnetic permeability D) Ductility Explanation: Dielectric strength is crucial as it determines the insulation’s ability to withstand high voltages without breaking down. Question 92: In troubleshooting, what does an “open circuit” indicate? A) Excessive current flow B) A break in the circuit preventing current flow C) A short circuit condition D) Proper circuit functionality Explanation: An open circuit means there is a break somewhere, stopping the flow of current. Question 93: Which electrical component is most commonly used for overcurrent protection? A) Resistor B) Circuit breaker C) Capacitor D) Transformer Explanation: Circuit breakers are specifically designed to protect circuits from overcurrent conditions. Question 94: How is the total resistance of three resistors in parallel calculated? A) Sum all resistances B) Inverse of the sum of the reciprocals of each resistor C) Multiply all resistances D) Average the resistances Explanation: The total resistance in parallel is calculated by taking the reciprocal of the sum of the reciprocals of each resistor’s value. Question 95: Which of the following is a key requirement for electrical materials under Massachusetts codes? A) They must be the cheapest available B) They must meet specific safety and performance standards C) They must be imported D) They must be painted red Explanation: Materials must meet strict safety and performance standards as outlined in state codes and regulations. Question 96: What is the function of an arc fault circuit interrupter (AFCI)? A) To detect and interrupt arc faults B) To boost voltage C) To store energy D) To measure resistance Explanation: An AFCI is designed to detect arc faults and interrupt the circuit to prevent electrical fires.
D) A current that flows in an open circuit Explanation: Inrush current is the brief surge of current experienced when power is initially applied to a circuit. Question 103: In a circuit, what is the primary purpose of a resistor in series with a light- emitting diode (LED)? A) To increase brightness B) To limit current and protect the LED C) To convert AC to DC D) To change the color of the LED Explanation: A resistor in series with an LED limits the current to prevent damage to the LED. Question 104: When selecting materials for outdoor electrical installations, which factor is most critical? A) UV resistance and weatherproofing B) Electrical conductivity only C) Flexibility D) Weight Explanation: Outdoor materials must be weatherproof and UV-resistant to ensure longevity and safety. Question 105: Which of the following is a primary function of a grounding electrode system? A) To provide backup power B) To safely dissipate fault currents into the earth C) To store electrical energy D) To amplify signals Explanation: A grounding electrode system safely directs fault currents into the earth, reducing shock hazards. Question 106: In Massachusetts, which of the following is a requirement for obtaining a Journeyman Electrician license? A) A minimum number of documented work hours and passing a state exam B) Only a written test C) An apprenticeship without any exam D) No specific requirements Explanation: Massachusetts requires documented work experience and successful completion of a state examination for licensure. Question 107: What is the significance of a “lockout/tagout” procedure in electrical maintenance? A) It speeds up repairs B) It ensures that circuits are de-energized during maintenance for safety C) It increases circuit efficiency D) It records energy consumption
Explanation: Lockout/tagout procedures are essential to prevent accidental energizing of circuits during maintenance, ensuring worker safety. Question 108: Which component is used to smooth out the ripples in a rectified DC power supply? A) Transformer B) Filter capacitor C) Inductor D) Resistor Explanation: A filter capacitor is used to reduce voltage fluctuations, providing a smoother DC output. Question 109: What does “voltage drop” in a circuit refer to? A) The increase in voltage along a conductor B) The reduction in voltage as current travels through a resistance C) The moment when voltage reaches zero D) The measurement of current Explanation: Voltage drop is the loss of voltage that occurs as electrical energy is dissipated by resistance in a conductor. Question 110: Which of the following best describes a “branch circuit”? A) A circuit that originates from a main panel and supplies power to specific outlets or fixtures B) A circuit used for lighting only C) A circuit that connects two batteries D) A circuit with no protective devices Explanation: A branch circuit extends from the main distribution panel to supply power to various devices or outlets. Question 111: In circuit calculations, if two resistors (8 Ω and 12 Ω) are connected in series, what is the total resistance? A) 20 Ω B) 4 Ω C) 96 Ω D) 14 Ω Explanation: In series, resistances add directly: 8 Ω + 12 Ω = 20 Ω. Question 112: When reading an electrical blueprint, what is typically indicated by a dashed line? A) A permanent conductor B) A hidden or future installation C) A high-power circuit D) The main supply line Explanation: Dashed lines often indicate components or wiring that is hidden from view or scheduled for future installation.
