CSE543 Computer (and Network) Security - Fall 2007 - Professor Jaeger

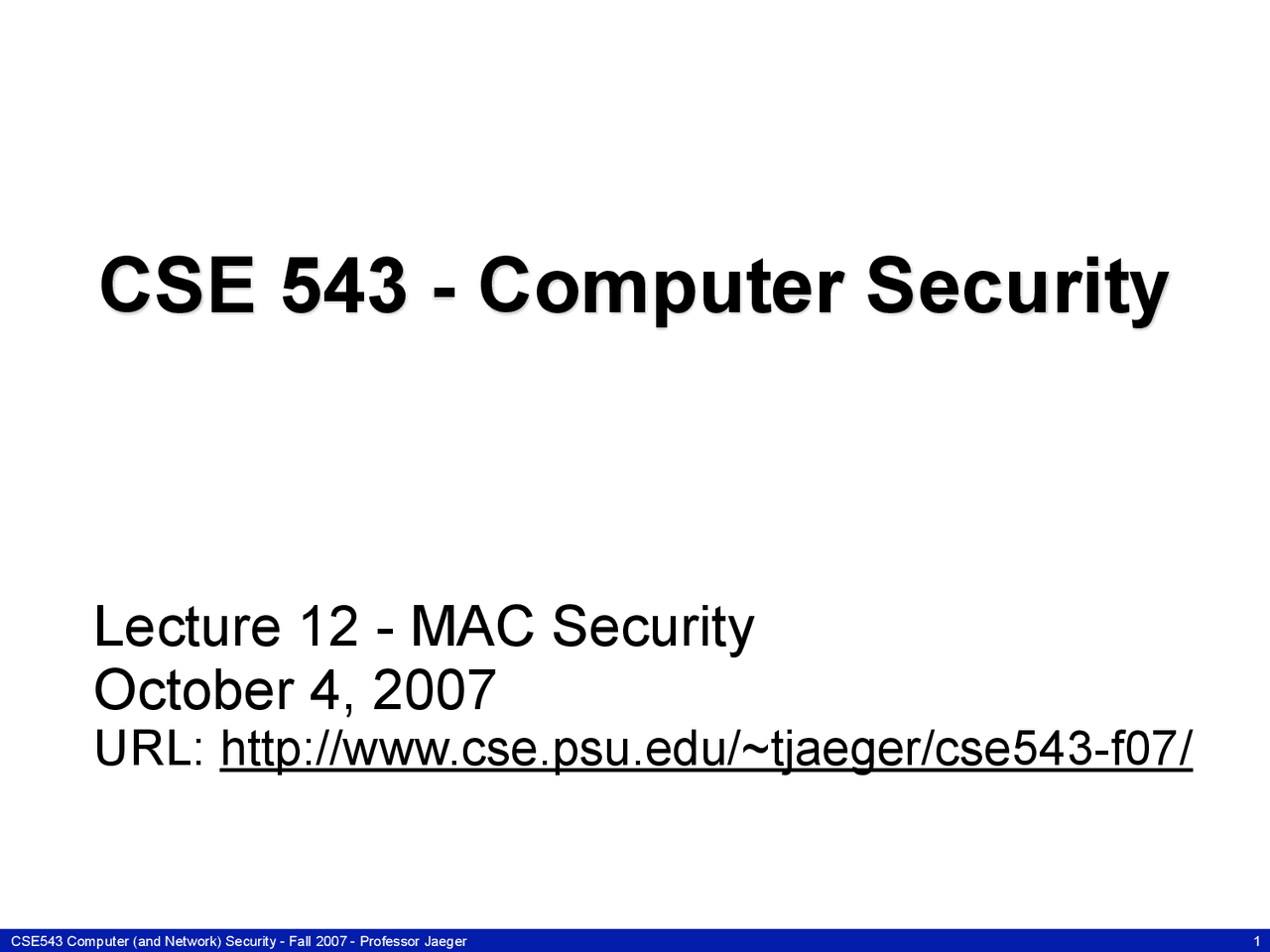

CSE 543 - Computer Security

Lecture 12 - MAC Security

October 4, 2007

URL: http://www.cse.psu.edu/~tjaeger/cse543-f07/

1

CSE543 Computer (and Network) Security - Fall 2007 - Professor Jaeger

Mandatory Access Control

Is about administration

Policy is defined and fixed for the system

• Users cannot modify policy

• More importantly, users’ processes cannot modify policy

So, what should the policy be?

2

CSE543 Computer (and Network) Security - Fall 2007 - Professor Jaeger

MAC Systems

Major Effort: Multics

Multiprocessing system -- developed many

OS concepts

• Including security

Begun in 1965

• Development continued into the mid-70s

Used until 2000

Initial partners: MIT, Bell Labs, GE/Honeywell

Subsequent proprietary system,

SCOMP , became the basis for secure

operating systems design

4

CSE543 Computer (and Network) Security - Fall 2007 - Professor Jaeger

Multics Goals

Secrecy

Multilevel security

Integrity

Rings of protection

Reference Monitoring

Mediate segment access, ring

crossing

Resulting system is

considered a high point in

secure system design

5

Evaluating Policy

Access is allowed if

subject clearance level >= object sensitivity level and

object categories ⊇ subject categories ( read down )

Q: What would write-up be?

Hence,

Bob: CONF., {INTEL}) Charlie: TS, {CRYPTO, NUC, INTEL}) Alice: (SEC., {CRYTPO, NUC}) DocA: (CONFIDENTIAL, {INTEL}) DocB: (SECRET, {CRYPTO}) DocC: (UNCLASSIFIED , {NUC})

Protection Rings

• Successively less-privileged “domains”
• Example: Multics (64 rings in theory, 8 in practice)
• Modern CPUs support 4 rings
  • Use 2 mainly: Kernel and user
• Intel x86 rings
  • Ring 0 has kernel
  • Ring 3 has application code Kernel

Intel Protection Ring Rules

• Each Memory Segment has a privilege level (ring number)
• The CPU has a Current Protection Level (CPL) - Level of the segment where instructions are being read
• Program can read/write in segments of lower level than CPL - kernel can read/write user space - user cannot read/write kernel - why not?

Ring 0 Ring 3 Protection Ring Rules

• Program cannot call code of higher privilege directly - Gate is a special memory address where lower-privilege code can call higher - Enables OS to control where applications call it (system calls) Gate No gate

Multics Interpretation (con’t)

• Also different procedure segments
  • with call brackets : (c1, c2)
    • c1 <= c
  • and access brackets (a1, a2)
  • Rights to execute code in a new procedure segment
    • r < a1: access permitted with ring-crossing fault
    • a1 <= r <= a2 = c1: access permitted and no fault
    • a2 < r <= c2: access permitted through a valid gate
    • c2 < r: access denied
• What’s it mean?
  • case 1: ring-crossing fault changes procedure’s ring
    • increases from r to a
  • case 2: keep same ring number
  • case 3: gate checks args, decreases ring number
• Target code segment defines the new ring

Examples

• Process in ring 3 accesses data segment
  • access bracket: (2, 4)
  • What operations can be performed?
• Process in ring 5 accesses same data segment
  • What operations can be performed?
• Process in ring 5 accesses procedure segment
  • access bracket (2, 4)
  • call bracket (4, 6)
  • Can call be made?
  • How do we determine the new ring?
  • Can new procedure segment access the data segment above?

Multics Vulnerability Analysis

• Detailed security analysis covering
  • Hardware
  • Software
  • Procedural features (administration)
• Good news
  • Design for security
  • System language prevents buffer overflows
    • Defined buffer sizes
  • Hardware features prevent buffer overflows
    • Addressing off segment is an error
    • Stack grows up
  • System is much smaller than current UNIX systems
• Vulnerability analysis found flaws that were fixed
  • Multics attained a B2 evaluation (MAC system)

Vulnerabilities Found

• Not mentioned in this paper
• Hardware
  • Indirect addressing -- incomplete mediation
    • Check direct, but not indirect address
  • Mistaken modification introduced the error
• Software
  • Ring protection (done in software)
    • Argument validation was flawed
    • Certain type of pointer was handled incorrectly
  • Master mode transfer
    • For performance, run master mode program (signaler) in user ring
    • Development assumed trusted input to signaler -- bad combo
• Procedural
  • Trap door insertion goes undetected

Dime-a-Dozen

• Everyone started building secure operating environments
• Some from scratch
  • GEMSOS (security kernel)
  • PSOS (design only)
  • Adept-50 (High water mark)
  • KSOS (emulate UNIX interface)
• Many based on the OS’s of the day
  • KVM/370 (VM/370)
  • UCLA Secure UNIX (UNIX)
  • DEC OS (VAX/VMS)
• None particularly took hold
  • GEMSOS is still in business (Aesec)
