You will have the entire class period to work on this exam. The exam is closed book, closed notes.
There are five questions, each is worth 4 points.
Name: ______________________________________________________
LoginID: ____________________________________________________

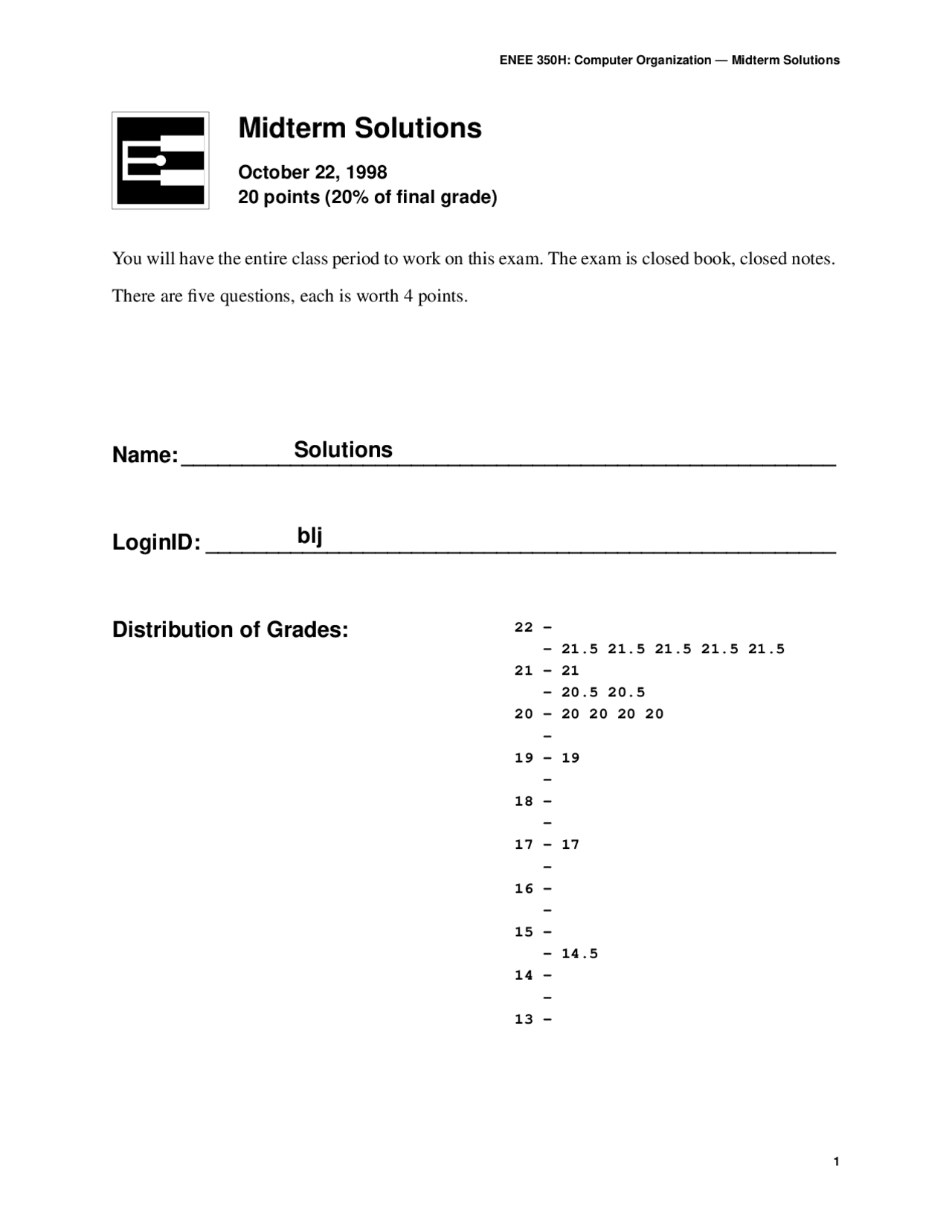

Midterm Solutions
October 22, 1998
20 points (20% of final grade)
Solutions
blj
Distribution of Grades: 22 -
- 21.5 21.5 21.5 21.5 21.
- 20.5 20.
- 14.
- Writing assembly code
A. Translate the following C code to assembly. You do not have to declare .fills for a , b , and c.
int a, b, c;
do { if (b != c) { a++; } else { b++; } c = a & b; /* c = a AND b */ } while (a < b);
B. Translate the following C code to assembly. You do not have to declare .fills for s1 , s2 , or cp.
char s1[], s2[]; char *cp;
cp = s1; while (*cp != ‘\0’) { *s2 = *cp; cp++; }
C. (extra credit)
Create a code fragment to perform the following:
signed int x; /* these two variables are not held in memory; / unsigned char c; / they are held in registers (assume $1 and $2) */
x = (int)c;
loop: bne $b, $c, bNEc addi $a, $a, 1 jump endif bNEc: addi $b, $b, 1 endif: and $c, $a, $b blt $a, $b, loop
lw $s, addr.s2($0) lw $c, addr.s1($0) loop: lbu $1, 0($c) # load-byte-unsigned beq $1, $0, out sbu $1, 0($s) addi $c, $c, 1 jump loop out: ...
addr.s1: .fill s addr.s2: .fill s
andi $1, $2, 0x00FF # move c into x, make sure the top bits are zero
- Interpreting machine code
A. Interpret the following block of LC-998 machine code. The numbers are hexadecimal, and
you can assume that they are loaded into memory starting at address 0.
bd 4406 bd 4407 bd c 7fff 000a 5808 24e 2490 a
B. What does this code do?
0: 0100 1000 0000 1001 — lw 2 0 9 1: 0100 0100 0000 0101 — lw 1 0 5 2: 1011 1101 0000 0000 — jalr 7 2 3: 0100 0100 0000 0110 — lw 1 0 6 4: 1011 1101 0000 0000 — jalr 7 2 5: 0100 0100 0000 0111 — lw 1 0 7 6: 1011 1101 0000 0000 — jalr 7 2 7: 1100 0000 0000 0000 — halt 8: 0111 1111 1111 1111 — .fill 0x7fff (or sw 7 7 -1) 9: 0000 0000 0000 1010 — .fill 10 10: 0101 1000 0000 1000 — lw 6 0 8 11: 0010 0100 1110 0000 — nand 1 1 6 12: 0010 0100 1001 0000 — nand 1 1 1 13: 1010 0011 1000 0000 — jalr 0 7
this code performs three jumps to a subroutine that zeroes out the top bit of the number, then the program halts. the numbers that the program loads and sends to the subroutine are actually instructions.
- Processor performance
You have two processors, X and Z, with the following characteristics. X is a single-cycle
processor (an entire instruction executes in a single cycle), Z divides each instruction execution
into multiple cycles with dedicated data paths (it is not bus-based). They execute the same
instruction set (LC-998). Assume that our implementation has the following timing
characteristics:
- Cache read/write: 32 ns - Register file read/write: 17 ns - ALU operation: 23 ns
Z is not bus-based, but it only has one ALU, therefore its PC-increment happens at the end of each
instruction, after all other computation has finished. For JALR’s timing, assume that you can read
and write to the register file simultaneously (which is normally the case).
Assume we execute 100,000,000 instructions with the following distribution of instruction types:
- R-type: 35% - beq: 27% - jalr: 13% - lw: 16% - sw: 9%
A. Compare the execution times of the two processors.
B. Suppose that we redesigned Z so that the PC-increment could be overlapped in the next-to-last
cycle of each instruction, so long as that cycle didn’t already use the ALU? For example, the
next-to-last cycle of the R-type instructions uses the register file—the PC increment can use
the ALU at the same time without conflict. How do the processors X and Z´ compare?
R-type: IC -> RF -> ALU -> RF BEQ: IC -> RF -> ALU JALR: IC -> RF read/write LW: IC -> RF -> ALU -> DC -> RF SW: IC -> RF -> ALU -> DC
Tx = time for LW = 121 ns Tz = worst-case of any stage = ALU = 32 ns
R-type: IC -> RF -> ALU -> RF ... ALU BEQ: IC -> RF -> ALU ... ALU JALR: IC -> RF read/write LW: IC -> RF -> ALU -> DC -> RF ... ALU SW: IC -> RF -> ALU -> DC ... ALU
Machine X: Machine Z:
Execution time = TIC
Ex = Tx * Ix * Cx = (121 * 10 -9) * (10^8 ) * (1) = 12.1 sec Ez = Tz * Iz * Cz = (32 * 10-9) * (10^8 ) * (4.5) = 14.4 sec
CPI for machine Z = (0.35 * 5) + (0.27 * 4) + (0.13 * 2) + (0.16 * 6) + (0.09 * 5) = 4.
Ez/Ex = 14.4/12.1 = 1.19 ... X is roughly 19% faster than Z
R-type: IC -> RF -> ALU -> RF/ALU BEQ: IC -> RF -> ALU ... ALU JALR: IC -> RF read/write LW: IC -> RF -> ALU -> DC -> RF/ALU SW: IC -> RF -> ALU -> DC/ALU
Machine Z’:
Ez’ = Tz’ * Iz’ * Cz’ = (32 * 10-9) * (10^8 ) * (3.9) = 12.5 sec
CPI for Z’ = (0.35 * 4) + (0.27 * 4) + (0.13 * 2) + (0.16 * 5) + (0.09 * 4) = 3.
Ez’/Ex = 12.5/12.1 = 1.03 ... X is roughly 3% faster than Z’
- State machines
A. (extra credit)
How does a state machine work?
B. Construct a finite state machine that has four states and two input values (a single input that is
either 0 or 1). On each cycle, the state machine should output its state value. If the input is
zero, the state should return to zero. On every cycle in which the input value is non-zero, the
state machine should advance to the next numerical state. From state 3, either input should
return the state machine to the state 0. Show a truth table and resulting FSM. You can use the
same PLA notation as in the appendix example if you like.
INPUTS OUTPUTS
STATE IN OUT
New
State
A state machine is just a register feeding through some logic back into itself.
The next state is completely dependent on the present state and input values.
STATE
OUT-msb OUT-lsb
IN
New-State-msb New-State-lsb
- Appendix A — LC-998 Instruction-Set Architecture
There are 4 machine-code instruction formats: R-type, I-type, J-type, and O-type.
The following table describes the different opcodes.
Mnemonic
Name and
Format
Opcode
(binary)
Assembly
Format
Action
add
Add
R-type
000 add rA rB rC
Add contents of regB with regC,
store result in regA.
nand
Nand
R-type
001 nand rA rB rC
Nand contents of regB with regC,
store results in regA.
lw
Load word
I-type
010 lw rA rB imm
Load value from memory into regA.
Memory address is formed by adding
immediate with contents of regB.
sw
Store word
I-type
011 sw rA rB imm
Store value from regA into memory.
Memory address is formed by adding
immediate with contents of regB.
beq
Branch if
equal
I-type
100 beq rA rB imm
If the contents of regA and regB are the
same, branch to the address
PC+1+immediate, where PC is the
address of the beq instruction.
jalr
Jump-and-
link-register
J-type
101 jalr rA rB
Branch to the address in regB.
Store PC+1 into regA, where PC is the
address of the jalr instruction.
halt
Halt
O-type
110 halt
Halt the machine; do nothing and
announce that the machine has stopped.
nop
No-op
O-type
111 nop Do nothing for this cycle.
opcode reg A reg B reg C 0
3 bits 3 bits 3 bits 3 bits 4 bits R-type:
opcode reg A reg B signed immediate (-64 to 63)
3 bits 3 bits 3 bits 7 bits I-type:
opcode reg A reg B 0
3 bits 3 bits 3 bits 7 bits J-type:
opcode 0
3 bits 13 bits O-type:
Bit: 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Bit: 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
- Appendix B. — PLA example
Here is an example PLA based on the following truth table:
INPUT OUTPUT
INPUT
OUT-msb OUT-lsb
