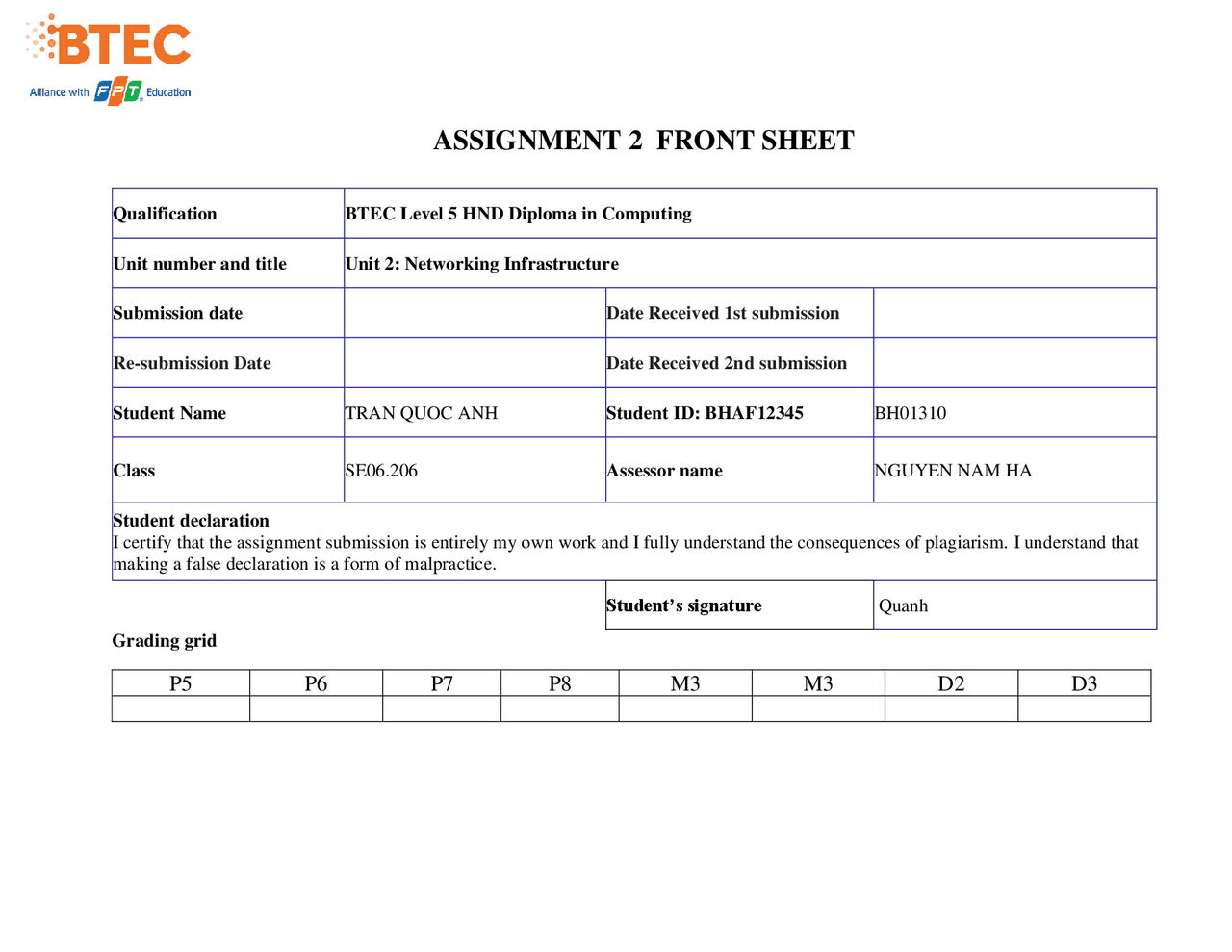

ASSIGNMENT 2 FRONT SHEET
Qualification BTEC Level 5 HND Diploma in Computing
Unit number and title Unit 2: Networking Infrastructure
Submission date Date Received 1st submission
Re-submission Date Date Received 2nd submission
Student Name TRAN QUOC ANH Student ID: BHAF12345 BH
Class SE06.206 Assessor name NGUYEN NAM HA
Student declaration
I certify that the assignment submission is entirely my own work and I fully understand the consequences of plagiarism. I understand that
making a false declaration is a form of malpractice.
Student’s signature Quanh
Grading grid
P5 P6 P7 P8 M3 M3 D2 D
❒ Summative Feedback: ❒ Resubmission Feedback:
Grade: Assessor Signature: Date:
Signature & Date:
I. INTRODUCTION
This project will present and contrast the logical and physical designs. The demands of the client for
network design are the main issue discussed and presented. A local educational institution is using the
system, which has 35 staff PCs, three printers, and 50 lab computers with dynamic IP addresses. In response
to that request, a physical design, an IP address table, and a logical design will all be provided. The
development of a test strategy and assessment of this network system will be followed by the presentation
of a remedy for the shortcomings. We'll provide both the overall device results table and the network design
II. BODY
A. Provide a logical/physical design of the networked system with
clear explanation and addressing table.
1. The difference between logical and physical design
a) Physical design
As the name suggests, the physical installation components make up the physical network design. The
hardware upon which a network's architecture is constructed is the physical configuration of the network.
Switches, laptops, desktop computers, routers, cables, and connecting wires make up a physical network
design.
Figure 1 : Physical design
We need to implement and meet the requirements of the project:
People: 200 students, 15 teachers, 12 marketing and administration staff, 5 higher managers including the
academic heads and the program managers, and 3 computer network administrators.
Resources: 50 student lab computers, 35 staff computers, and 3 printers.
Building: 3 floors, all computers, and printers are on the ground floor apart from the IT labs – one lab
located on the first floor, and another located on the second floor.
The first step in creating a network is to determine which network devices would be required. These
gadgets must accurately reflect consumer needs and reduce expenses. The following needs are frequently
present when users are constructing a network system.
Any project, but particularly those involving computer systems, needs a solid list of user requirements to
be successful. Because they do not accurately explain what the system should perform, here is where many
initiatives fall short. In reality, many systems have just been allocated a delivery date, a spending limit, and
an ill-defined task.
Cost The network devices in the system must completely satisfy the user's demands and be able to grow
the system depending on the amount of cash the user requires. To ascertain the density of network devices
in the system, network designers also require real surveys.
Security is always a crucial problem for every network. Monitoring of all systems and networks is required
to safeguard the underlying network architecture from unwanted access, data theft, or destruction. Examine
activity records for irregularities. Building an antimalware system into the network of the company is also
crucial for security.
Management capabilities: the network system can only be operated effectively if it is well managed. The
management ability should ensure the following contents:.
Fault Management: The ability to detect errors occurring on the network.
Configuration Management: the ability to manage the configuration of the device. This management
capability includes configuration file management, device statistics, and software management as well as
configuration changes.
Administration capability: the ability to manage, test, and control the overall system from an intermediary
perspective.
Performance Management: Ability to collect information from the device, transmission line, display the
device's usage status.
Security Management: Ability to manage, set up, and monitor anomalies in the network.
3. Logical design of the network system
a) Logical design diagram
Figure 3 : Logical design diagram
b) Explanation
The above design uses 1 Multilayer Switch to connect 4 switch for 3 floor are ground, 1st^ and 2nd^ floor,
including the Staff PC, Student, Teacher, Manager and Marketing PC. In ground floor, have staff room and
use 2 2960-24 switch for 1 PC for staff and 2 PC for student and teacher. In 1st^ and 2nd^ floor design manager
and marketing with 2960-24 switch. To connect to sever use 2960-24 switch. Connect to cloud with 2 router.
5. IP address table of the network devices Device Name IP address Description Subnet Mark Vlan Staff 10.255.8.9 Ground floor 255.255.255. Vlan Student 10.255.6.9 Ground floor 255.255.255. Vlan Teacher 10.255.5.6 Ground floor 255.255.255. Vlan Manager 10.255.7.3 1 st^ floor 255.255.255. Vlan Teacher 10.255.4.8 2 nd^ floor 255.255.255. WEB Server 10.255.100.2 Ground floor 255.255.255. DNS Server 10.255.100.3 Ground floor 255.255.255. DHCP Server 10.255.100.4 Ground floor 255.255.255. Email Server 10.255.100.5 Ground floor 255.255.255. Router 0 192.168.12.254 1 st^ floor 255.255.255.
B. Evaluate the design to meet the requirements.
1. Design review Evaluate the design of the network With the design as shown in P5, there are 3 floor for staff, student, teacher, manager, marketing The staff has 1 pc, 1 for student, 1 for teacher, 1 for manager and 1 for marketing 2. Advantages and disadvantages of network design based on user requirements
Advantages
Devices in the floor are closely linked and quickly share data.
Simple design easy to maintain.
Disadvantages
Weak security.
Just use for small place.
Some of the solutions:
Adding more switches can also reduce congestion and free up bandwidth for other things.
Upgrading the security system.
3. Suggestions for future development
Proposed future development. When there are more students, we can open more student rooms install more
PC and switch. Because of the development of more rooms and computers, it is also necessary to upgrade
the security to a high level. We need more reversers to improve security.
4. Test Plan
- The network is managed by Vlan, each department uses a separate IP range.
- End user's computer gets dynamic IP assigned by DHCP.
- Computers with different VLANs can ping each other.
- Computers that can access the internet.
- Computer that can accessful facebook web.
C. Implement a networked system based on a prepared design
1. Equipment installation in practice
To install the devices, we need 1 computer for student, 4 computer for staff, teacher, manager, marketing
to be able to connect the machines together we need 5 switch
Computer for student
CPU: Core i7 10300
RAM: 32gb corsair
HDD: 1tb
VGA: GTX 2660
Operating system: windows 11
Review: the computer is at an average price but meets all the learning needs of students. very good for learning and entertainment. The machine has an expansion slot that can upgrade more graphics cards (VGA Card) to handle better graphics
Computer for teacher
Switch
Includes 24 ports
For transmission rate 10/100/1000 on the port.
Use 220v power supply
Fixed memory: CPU ARMv7 800 MHz, DRAM 512 MB
256 MB fast memory
10/100 Mbps network management assignment (RJ-45)
Forward capacity 68.5 Mpps
Serial tape capacity 50Mbps
Signal device with 24 port sockets and LED lights to support the observation
Review: For fast, accurate, stable transmission speed. Simple interface, easy to manage and monitor, help
businesses optimize information management and efficient division of work. With practical applications
such as the ability to split LAN, spanning tree, port trucking, features of Cisco IOS. Absolute information
security, low power consumption.
Figure 6 : My router
Cable
Cable Length: 6 feet
Cable Type: Ethernet
Compatible Devices: Router, Modem
Connector Type: RJ
Gauge:
Review: The double shielded Cat8 Ethernet cable is super-efficient in reducing EMI/RFI Interference and
provides the highest fidelity for long-distance data transmission. With upgraded PVC, Cat8 is waterproofed
& anti-corrosion and more durable & flexible for heavy-duty work. Can be buried directly. Suitable for both
outdoor and indoor use.
2. Step to set up
Step 1:
Rename router: R
Figure 7 : My Cacble
Set ip for router
Figure 9 : Set ip router
Rename multilayer switch: Switch
Figure 10 : Rename multilayer switch
Set ip for switch and configure trunking
Figure 11 : Set ip for switch and configure trunking
Step 2:
Configure Router, set ip route.
Figure 12 : Set ip Router R
Ip routing in Multilayer switch
Figure 16 : Ip routing in Multilayer switch
Step 4:
On Switch (Switch1, Switch2, Switch3, Switch4 ) configure vlan trunking protocol.
Figure 17 :Configuration for Switch
