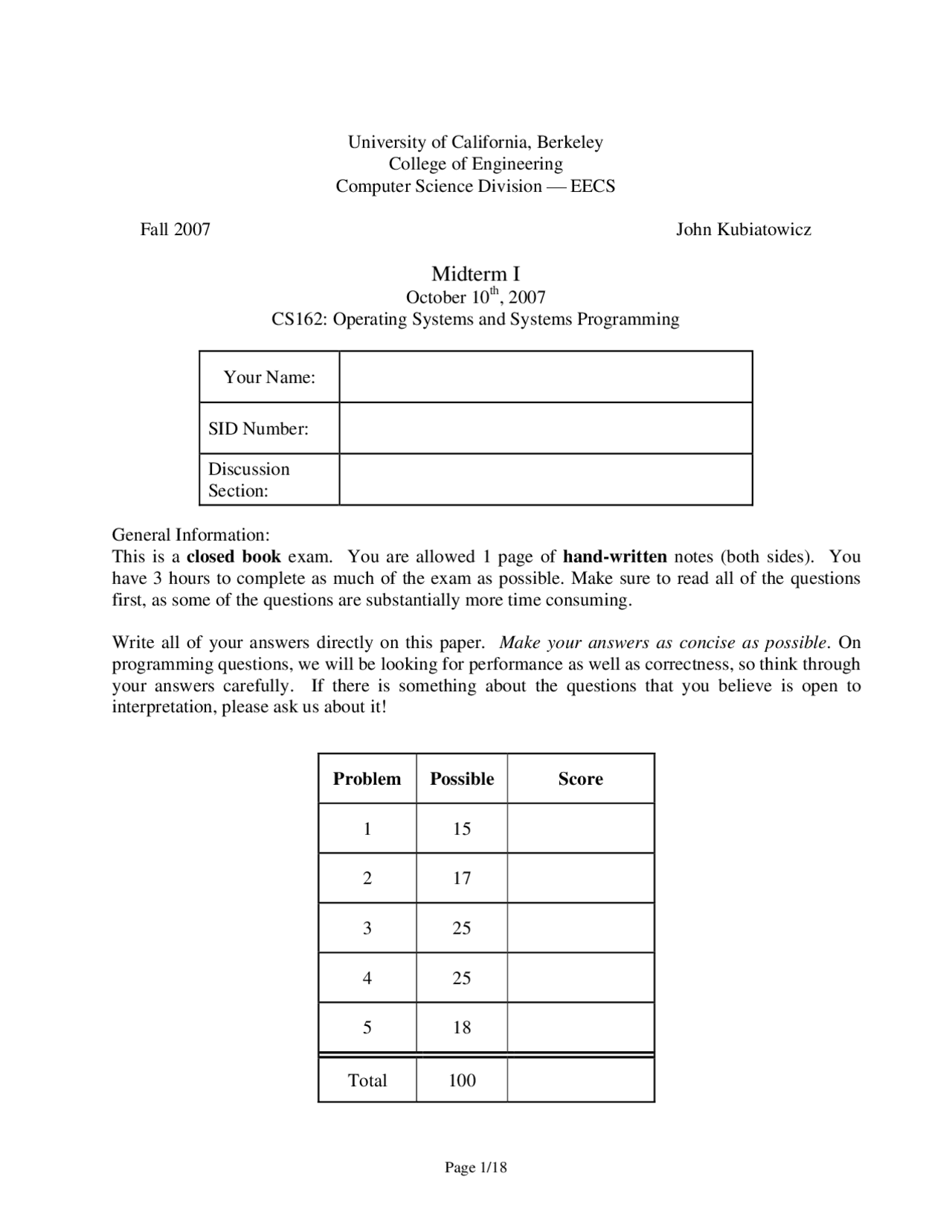

University of California, Berkeley College of Engineering Computer Science Division ⎯ EECS
Fall 2007 John Kubiatowicz
Midterm I
October 10th, 2007 CS162: Operating Systems and Systems Programming
Your Name:
SID Number:
Discussion Section:
General Information: This is a closed book exam. You are allowed 1 page of hand-written notes (both sides). You have 3 hours to complete as much of the exam as possible. Make sure to read all of the questions first, as some of the questions are substantially more time consuming.
Write all of your answers directly on this paper. Make your answers as concise as possible. On programming questions, we will be looking for performance as well as correctness, so think through your answers carefully. If there is something about the questions that you believe is open to interpretation, please ask us about it!
Problem Possible Score
Total 100
[ This page left for π ]
Problem 1d[2pts]: Which company was the first to develop a workstation with a mouse and overlapping windows?
Problem 1e[2pt]: What is a thread-join operation?
Problem 1f[2pts]: True or False: When designing a multithreaded application, you must use synchronization primitives to make sure that the threads do not overwrite each other’s registers. Explain.
Problem 1g[2pts]: True or False: A system that provides segmentation without paging puts holes in the physical address space, forcing the operating system to waste physical memory. Explain.
Problem 2: Multithreading [17 pts]
Consider the following two threads, to be run concurrently in a shared memory (all variables are shared between the two threads):
Thread A Thread B for (i=0; i<5; i++) { x = x + 1; }
for (j=0; j<5; j++) { x = x + 2; }
Assume a single-processor system, that load and store are atomic, that x is initialized to 0 before either thread starts , and that x must be loaded into a register before being incremented (and stored back to memory afterwards). The following questions consider the final value of x after both threads have completed.
Problem 2a[2 pts]: Give a concise proof why x≤ 15 when both threads have completed.
Problem 2b[4 pts]: Give a concise proof why x≠ 1 when both threads have completed.
Problem 2c[3pts]: Suppose we replace ‘ x = x+2 ’ in Thread B with an atomic double increment operation atomicIncr2(x) that cannot be preempted while being executed. What are all the possible final values of x? Explain.
Problem 3: Hoare Scheduling [25pts]
Assume that you are programming a multiprocessor system using threads. In class, we talked about two different synchronization primitives: Semaphores and Monitors. In this problem, we are going to implement Monitors with Hoare scheduling by using Semaphores
The interface for a Semaphore is as follows: public class Semaphore { public Semaphore(int initialValue) { /* Create and return a semaphore with initial value: initialValue / … } public P() { / Call P() on the semaphore / … } public V() { / Call V() on the semaphore */ } } As we mentioned in class, a Monitor consists of a Lock and one or more Condition Variables. The interfaces for these two types of objects are as follows:
public class Lock { public class CondVar { public Lock() { public CondVar(Lock lock) { /* Create new Lock / / Creates a condition variable … associated with Lock lock. / } … } public void Acquire() { public void Wait() { / Acquire Lock / / Block on condition variable ’/ … … } } public void Release() { public void Signal() { / Release Lock / / Wake one thread (if it exists) */ … … } } } }
Problem 3a[3pts]: What is the difference between Mesa and Hoare scheduling for monitors? Focus your answer on what happens during the execution of Signal(). Hint: Mesa scheduling requires all conditional wait statements to be wrapped in “while” loops (see 3b).
Problem 3b[2pts]: When programming with a Mesa-scheduled monitor, the programmer must enclose all conditional wait operations with a while loop like this:
while (condition unsatisfied) C.Wait();
What might happen if they did not do this? How might this happen?
Problem 3c[2pts]: Explain why a Hoare-scheduled monitor allows the programmer to replace the “while” statement in (3b) with an “if”.
Problem 3d[3pts]: Assume that we implement a Hoare-scheduled monitor with semaphores. Clearly, we will need one semaphore to implement mutual exclusion. Further, e ach condition variable will utilize a semaphore to hold its queue of sleeping threads. Give at least 3 reasons why the following implementation of wait() and signal() is incorrect:
wait() { CVSemi.p(); } signal() {CVSemi.v(); }
Problem 3g[6pts]: Show how to implement the Condition Variable class for a Hoare-schedule monitor using Semaphores (and your HoareLock class from 3f). Be very careful to consider the semantics of signal() as discussed in your answers to (3a) and (3c). Hint: consider what happens when (1) you signal without a waiting thread and (2) signal with a waiting thread. You may need to refer to methods and/or variables within the lock object. Also, remember that the Semaphore interface does not allow querying of the size of its waiting queue; you may need to track this yourself. None of the methods should require more than five lines.
public class HoareCondVar { Semaphore SCondVar = null;
public HoareCondVar(HoareLock lock) {
} public void Wait() {
} public void Signal() {
} }
Problem 4: Deadlock [25pts]
Problem 4a[3pts]: What is the difference between deadlock, livelock, and starvation?
Problem 4b[2pts]: Suppose a thread is running in a critical section of code, meaning that it has acquired all the locks through proper arbitration. Can it get context switched? Why or why not?
Problem 4c[3pts]: What is priority donation and why is it important? Under what circumstances would an operating system need to implement priority donation?
Problem 4d[3pts]: Does a cyclic dependency always lead to deadlock? Explain
Problem 4f[3pts]: In its general form, the Banker’s algorithm makes multiple passes through the set of resource takers (think of the deadlock detection algorithm on which it is based). Explain why this particular application allows the BankerCheck method to implement the Banker’s algorithm by taking a single pass though the Lawyers’ allocations.
Problem 4g[3pts]: Implement the BankerCheck method of the BankerTable Object. This method should implement the Banker’s algorithm: return true if the given Lawyer can be granted one additional chopstick without taking the system out of a SAFE state. Do not blindly implement the Banker’s algorithm: this method only needs to have the same external behavior as the Banker’s algorithm for this application. This method can be written with as few as 7 lines. We will give full credit for a solution that takes a single pass through the lawyers, partial credit for a working solution, and no credit for a solution with more than 10 lines. Note that this method is part of the BankerTable Object and thus has access to local variables of that object…
boolean BankerCheck(int Lawyer) { /*
- This method implements the bankers algorithm for the
- multi-armed laywer problem. It should return true if the
- given lawyer can be granted one chopstick. */
} }
[ This page intentionally left blank ]
Problem 5e[5pts]: Here is a table of processes and their associated arrival and running times.
Process ID Arrival Time CPU Running Time Process 1 0 5 Process 2 4 5 Process 3 2 1 Process 4 7 2 Process 5 8 3
Show the scheduling order for these processes under 3 policies: First Come First Serve (FCFS), Shortest-Remaining-Time-First (SRTF), Round-Robin (RR) with timeslice quantum = 1. Assume that context switch overhead is 0 and that new RR processes are added to the head of the queue and new FCFS processes are added to the tail of the queue.
Time Slot FCFS SRTF RR
0 1 2 3 4 5 6 7 8 9
Problem 5f[3pts]: For each process in each schedule above, indicate the queue wait time. Note that wait time is the total time spend waiting in queue (all the time in which the task is not running).
Scheduler Process 1 Process 2 Process 3 Process 4 Process 5
FCFS wait SRTF wait RR wait
Problem 5g[2pts]: Assume that we could have an oracle perform the best possible scheduling to reduce average wait time. What would be the optimal average wait time, and which of the above three schedulers would come closest to optimal? Explain.
