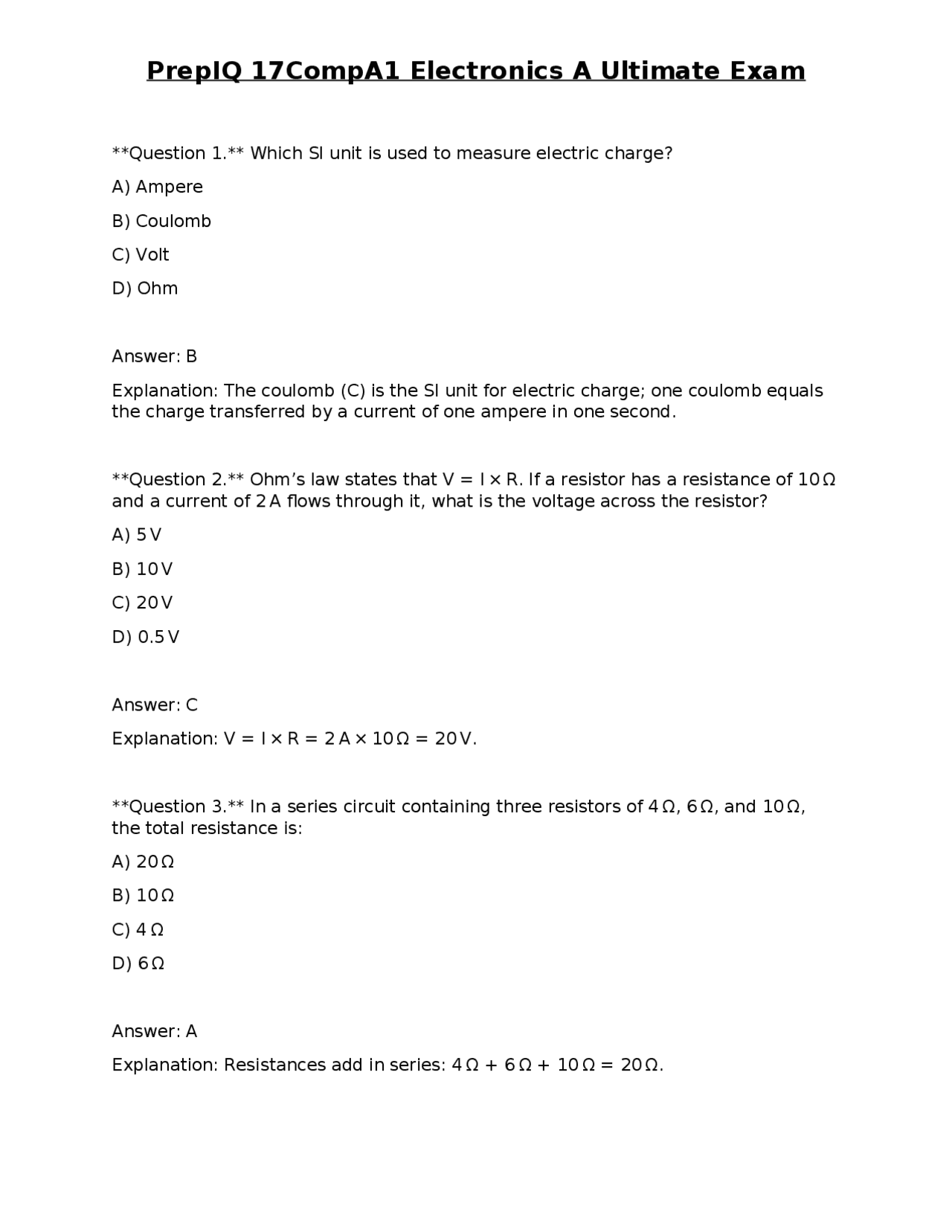

Question 1. Which SI unit is used to measure electric charge? A) Ampere B) Coulomb C) Volt D) Ohm Answer: B Explanation: The coulomb (C) is the SI unit for electric charge; one coulomb equals the charge transferred by a current of one ampere in one second. Question 2. Ohm’s law states that V = I × R. If a resistor has a resistance of 10 Ω and a current of 2 A flows through it, what is the voltage across the resistor? A) 5 V B) 10 V C) 20 V D) 0.5 V Answer: C Explanation: V = I × R = 2 A × 10 Ω = 20 V. Question 3. In a series circuit containing three resistors of 4 Ω, 6 Ω, and 10 Ω, the total resistance is: A) 20 Ω B) 10 Ω C) 4 Ω D) 6 Ω Answer: A Explanation: Resistances add in series: 4 Ω + 6 Ω + 10 Ω = 20 Ω.
Question 4. Two 5 Ω resistors are connected in parallel. What is the equivalent resistance? A) 10 Ω B) 2.5 Ω C) 5 Ω D) 1 Ω Answer: B Explanation: 1/Req = 1/5 + 1/5 = 2/5 → Req = 5/2 = 2.5 Ω. Question 5. The power rating of a resistor is 0.5 W. If the resistor dissipates 0.4 W, it is: A) Overloaded B) Within rating C) Underrated D) Burning Answer: B Explanation: The dissipated power (0.4 W) is below the maximum rating (0.5 W), so the resistor operates safely. Question 6. A resistor color code reads red-violet-yellow-gold. What is its nominal resistance and tolerance? A) 27 kΩ ± 5 % B) 2.7 kΩ ± 5 % C) 270 Ω ± 10 % D) 27 Ω ± 2 % Answer: A
Explanation: At the moment of connection, the inductor’s current cannot change instantly, so it acts like a short circuit (zero voltage across it). Question 10. When AC passes through a capacitor, the current leads the voltage by: A) 0° B) 45° C) 90° D) 180° Answer: C Explanation: In a pure capacitive reactance, current leads voltage by 90 degrees. Question 11. A step-down transformer has a primary of 120 V and a secondary of 12 V. What is the turns ratio (N₁:N₂)? A) 10: B) 1: C) 12: D) 120: Answer: A Explanation: Voltage ratio equals turns ratio; 120 V : 12 V = 10 : 1. Question 12. Mutual inductance between two coils is 5 mH. If the primary current changes at 2 A/s, the induced emf in the secondary is: A) 0.01 V B) 0.1 V C) 10 V D) 0.5 V
Answer: B Explanation: Induced emf = M · di/dt = 5 mH × 2 A/s = 0.01 H × 2 = 0.01 V? Wait 5 mH = 0.005 H, so 0.005 × 2 = 0.01 V. Correct answer is A (0.01 V). Question 13. Which of the following best describes the band gap of a semiconductor? A) Zero eV B) Very large, > 5 eV C) Small, typically 0.5–2 eV D) Same as a metal Answer: C Explanation: Semiconductors have a moderate band gap (≈0.5–2 eV) allowing controlled conductivity. Question 14. Doping silicon with phosphorus creates: A) P-type material B) N-type material C) Intrinsic silicon D) Insulating silicon Answer: B Explanation: Phosphorus adds extra electrons, producing N-type (negative) semiconductor. Question 15. In an N-type semiconductor, the majority carriers are: A) Holes B) Electrons C) Ions D) Photons
Answer: B Explanation: Zener diodes exploit controlled avalanche breakdown at a specified reverse voltage for voltage regulation. Question 19. The primary use of a Light-Dependent Resistor (LDR) is: A) To amplify signals B) To switch high currents C) To vary resistance with light intensity D) To store charge Answer: C Explanation: LDRs change resistance based on incident light, useful in light-sensing circuits. Question 20. An LED emits light when: A) Reverse-biased B) Forward-biased above its knee voltage C) Operated at zero voltage D) Connected in series with a capacitor Answer: B Explanation: LEDs conduct and emit photons when forward-biased above their forward voltage (≈ 2 V for red). Question 21. A photodiode operated in photovoltaic mode generates: A) Current only when reverse-biased B) Voltage without external bias when illuminated C) No current under any condition D) Continuous AC output
Answer: B Explanation: In photovoltaic mode, a photodiode produces a voltage (and current) when illuminated, without external bias. Question 22. Which of the following statements about a BJT is correct? A) Current flows from collector to emitter in an NPN when base is high. B) Voltage controls the current in a BJT. C) It is a voltage-controlled device. D) It has three terminals: gate, source, drain. Answer: A Explanation: In an NPN BJT, with sufficient base current, collector-to-emitter current flows from collector to emitter. Question 23. The DC current gain β of a BJT is defined as: A) Ic / Ib B) Ie / Ic C) Vc / Vb D) Ib / Ic Answer: A Explanation: β (beta) = collector current (Ic) divided by base current (Ib). Question 24. In a common-emitter BJT configuration, the voltage gain is: A) Approximately unity B) Greater than one (phase inversion) C) Zero D) Infinite
D) Any voltage Answer: C Explanation: Enhancement-mode MOSFETs are normally off; a positive Vgs above the threshold creates a conductive channel. Question 28. Which MOSFET configuration is best for a high-impedance input stage? A) Depletion-mode JFET B) Enhancement-mode n-channel MOSFET C) PNP BJT D) Zener diode Answer: B Explanation: Enhancement-mode MOSFETs have extremely high input impedance due to insulated gate. Question 29. In a common-source MOSFET amplifier, the output is: A) In-phase with the input B) 180° out of phase with the input C) Identical voltage as the input D) Zero Answer: B Explanation: Common-source configuration provides voltage gain with a 180° phase inversion. Question 30. The primary function of a rectifier circuit is to: A) Amplify AC signals B) Convert AC to DC
C) Store energy D) Generate high frequency Answer: B Explanation: Rectifiers convert alternating current (AC) into direct current (DC). Question 31. In a bridge rectifier, how many diodes conduct during each half-cycle? A) One B) Two C) Three D) Four Answer: B Explanation: Two diodes conduct simultaneously, directing current in the same polarity during each half-cycle. Question 32. A half-wave rectifier has a peak output voltage of 12 V. What is its average (DC) output voltage? A) 12 V B) 6 V C) 3.8 V D) 0 V Answer: C Explanation: Vavg = Vp/π for half-wave; 12 V/π ≈ 3.82 V. Question 33. An RC integrator circuit produces an output that is: A) The derivative of the input B) The integral (area) of the input
A) –Rf/Rin B) +Rf/Rin C) –Rin/Rf D) +Rin/Rf Answer: A Explanation: The gain of an inverting amplifier is –(feedback resistor ÷ input resistor). Question 37. A voltage follower (buffer) using an op-amp provides: A) Signal inversion with gain of – B) Unity gain with high input impedance C) Amplification of 10× D) Frequency multiplication Answer: B Explanation: The voltage follower has a gain of 1, high input impedance, and low output impedance, ideal for buffering. Question 38. Which op-amp configuration is used as a summing amplifier? A) Non-inverting with feedback B) Inverting with multiple input resistors C) Voltage follower D) Comparator Answer: B Explanation: An inverting amplifier with several input resistors connected to different sources sums the currents, producing a weighted sum. Question 39. A comparator differs from a linear op-amp circuit because it:
A) Provides a continuous analog output B) Switches its output between two saturation levels based on input comparison C) Requires feedback for stability D) Operates only at DC Answer: B Explanation: Comparators output a high or low level (saturation) depending on which input is greater; they are open-loop devices. Question 40. The binary representation of the decimal number 45 is: A) 101101 B) 110010 C) 100101 D) 111001 Answer: A Explanation: 45₁₀ = 32 + 8 + 4 + 1 = 101101₂. Question 41. Convert the binary number 1101101 to decimal. A) 109 B) 101 C) 109 D) 115 Answer: A Explanation: 1×2⁶ +1×2⁵ +0×2⁴ +1×2³ +1×2² +0×2¹ +1×2⁰ = 64+32+0+8+4+0+1 = 109. Question 42. The hexadecimal equivalent of the binary number 1010 1100 is:
Question 44. Adding two 4-bit binary numbers 0111 (7) and 0101 (5) yields a 5 - bit result of: A) 01100 B) 10100 C) 11000 D) 11100 Answer: A Explanation: 7 + 5 = 12 → 1100₂; expressed in 5 bits it is 01100. Question 45. The Boolean expression for a NAND gate with inputs A and B is: A) A · B B) A + B C) (A · B)′ D) (A + B)′ Answer: C Explanation: NAND = NOT (A AND B) = (A·B)′. Question 46. Which logic gate produces a high output only when an odd number of its inputs are high? A) AND B) OR C) XOR D) NAND Answer: C Explanation: XOR (exclusive-OR) outputs high when an odd number of inputs are high.
Question 47. The truth table for a NOR gate shows a high output when: A) All inputs are high B) Any input is high C) All inputs are low D) Exactly one input is high Answer: C Explanation: NOR = NOT (A + B); output is high only when all inputs are 0. Question 48. A 2-input multiplexer (MUX) selects between two data inputs D and D1 based on select line S. The output Y is given by: A) Y = D0·S + D1·S′ B) Y = D0·S′ + D1·S C) Y = D0 + D D) Y = D0 · D Answer: B Explanation: When S=0, Y = D0; when S=1, Y = D1, so Y = D0·S′ + D1·S. Question 49. Which of the following is a universal gate? A) AND B) OR C) NAND D) XOR Answer: C Explanation: NAND (and NOR) can be combined to implement any Boolean function.
A) Remain the same B) Reset to 0 C) Set to 1 D) Toggle Answer: D Explanation: JK = 1,1 causes the output to toggle on each clock edge. Question 54. The characteristic equation of a D-type flip-flop is: A) Qₙ₊₁ = D B) Qₙ₊₁ = J·Qₙ′ + K·Qₙ C) Qₙ₊₁ = T·Qₙ′ D) Qₙ₊₁ = Qₙ Answer: A Explanation: The D-FF transfers the D input to Q on the active clock edge. Question 55. A synchronous 4-bit binary up-counter will count from 0 to: A) 7 B) 8 C) 15 D) 16 Answer: C Explanation: 4 bits can represent 0–15 (2⁴ – 1). Question 56. In a shift register, data is moved: A) Parallel only
B) Serial only C) Either serially or parallel depending on configuration D) Not moved at all Answer: C Explanation: Shift registers can be configured for serial-in/serial-out, serial-in/parallel-out, etc. Question 57. The main advantage of Very-Large-Scale Integration (VLSI) over Small-Scale Integration (SSI) is: A) Higher power consumption B) Larger physical size C) Greater component density and functionality on a single chip D) Simpler design process Answer: C Explanation: VLSI packs millions of transistors on one chip, enabling complex functions in tiny packages. Question 58. Which memory type is non-volatile and can be electrically erased and re-programmed? A) SRAM B) DRAM C) EEPROM D) Cache Answer: C Explanation: EEPROM retains data without power and can be erased/programmed electrically.
