Designer Ultimate Exam

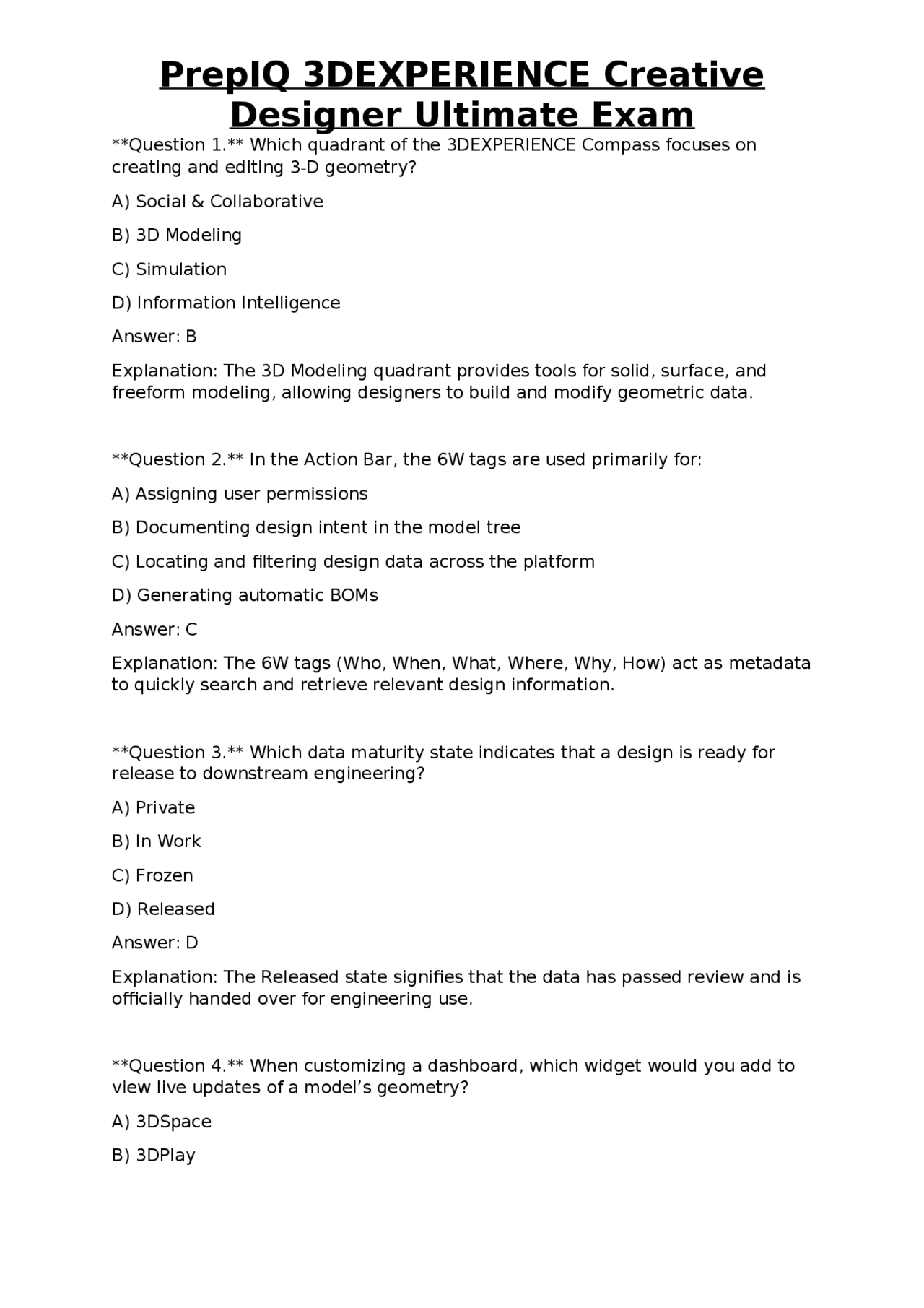

Question 1. Which quadrant of the 3DEXPERIENCE Compass focuses on creating and editing 3-D geometry? A) Social & Collaborative B) 3D Modeling C) Simulation D) Information Intelligence Answer: B Explanation: The 3D Modeling quadrant provides tools for solid, surface, and freeform modeling, allowing designers to build and modify geometric data. Question 2. In the Action Bar, the 6W tags are used primarily for: A) Assigning user permissions B) Documenting design intent in the model tree C) Locating and filtering design data across the platform D) Generating automatic BOMs Answer: C Explanation: The 6W tags (Who, When, What, Where, Why, How) act as metadata to quickly search and retrieve relevant design information. Question 3. Which data maturity state indicates that a design is ready for release to downstream engineering? A) Private B) In Work C) Frozen D) Released Answer: D Explanation: The Released state signifies that the data has passed review and is officially handed over for engineering use. Question 4. When customizing a dashboard, which widget would you add to view live updates of a model’s geometry? A) 3DSpace B) 3DPlay
Designer Ultimate Exam
C) 3DSwym D) 3DMap Answer: B Explanation: 3DPlay provides an interactive view of a model within a dashboard, showing geometry changes in real time. Question 5. The “Reserve/Unreserve” function is essential for: A) Locking a file so no one else can view it B) Preventing simultaneous edits that could cause data conflicts C) Archiving old versions of a part D) Exporting a model to a neutral format Answer: B Explanation: Reserving a design element ensures exclusive edit rights, avoiding merge conflicts when multiple users work on the same object. Question 6. In CATIA Natural Sketch, the Sketch Tracer tool is used to: A) Generate NURBS surfaces automatically B) Import raster images as reference sketches in 3-D space C) Create parametric constraints between sketch entities D) Convert 2-D sketches into 3-D wireframes Answer: B Explanation: Sketch Tracer allows designers to bring in JPG or PNG images and align them within the 3-D environment for ideation. Question 7. “Ideation in 3D” differs from traditional sketching because: A) It forces all sketches onto the XY plane B) Curves are drawn directly on 3-D surfaces, not limited to a single plane C) It only supports wireframe geometry D) It automatically generates manufacturing drawings Answer: B Explanation: Ideation in 3D enables freehand drawing on any orientation, facilitating early concept development in spatial context.
Designer Ultimate Exam
D) Are limited to mechanical parts Answer: B Explanation: Sub-D modeling mimics sculpting clay, enabling designers to craft smooth, ergonomic forms without complex constraints. Question 12. Which primitive is most suitable as a starting point for a ergonomic handheld device? A) Sphere B) Box C) Cylinder D) Torus Answer: A Explanation: A sphere provides a smooth, rounded base that can be refined into ergonomic contours using subdivision tools. Question 13. The Robot (Compass) tool in Imagine & Shape primarily provides: A) Texturing capabilities B) Direct manipulation of vertices, edges, and faces in 3-D space C) Automatic mesh generation for finite element analysis D) Parameter-driven design tables Answer: B Explanation: The Robot (Compass) is a 3-D manipulator that translates, rotates, and scales geometry interactively. Question 14. Applying a Bevel operation on a subdivision mesh primarily affects: A) The overall volume of the part B) The sharpness of selected edges while preserving smoothness elsewhere C) The mesh’s UV coordinates D) The part’s material properties Answer: B Explanation: Bevel adds a controlled edge profile, creating a defined edge without breaking the surrounding smooth surface.
Designer Ultimate Exam
Question 15. Weighting a vertex in a Sub-D model is used to: A) Change the material density of the part B) Influence how much that vertex moves during subdivision, controlling local curvature C) Assign a priority for rendering order D) Lock the vertex against any transformation Answer: B Explanation: Vertex weighting determines the influence on the final smooth surface, allowing designers to create sharper or softer regions. Question 16. Which operation creates a mirrored copy of a mesh across a central plane? A) Extrude B) Symmetry C) Offset D) Fillet Answer: B Explanation: Symmetry (or Mirroring) duplicates geometry on the opposite side of a defined plane, ensuring design consistency. Question 17. G1 continuity between two surfaces ensures: A) Only that the surfaces meet at a point (positional) B) That the surfaces share a common tangent direction at the join C) That curvature is identical across the seam D) That the surfaces have identical UV mapping Answer: B Explanation: G1 continuity guarantees a smooth transition with matching tangents, eliminating visual seams. Question 18. Zebra striping is a visualization technique used to assess: A) Mesh density B) Surface continuity and smoothness
Designer Ultimate Exam
Question 22. Projection of a sketch onto an existing surface is useful for: A) Reducing file size B) Creating geometry that follows the curvature of the target surface C) Exporting to STL format D) Generating a Bill of Materials Answer: B Explanation: Projecting adapts the sketch to the underlying surface, ensuring that new features conform to existing geometry. Question 23. The “Boundary” command in surface generation is used to: A) Create a solid from a surface B) Close a gap between open edges while maintaining tangency constraints C) Generate a mesh for analysis D) Apply a material to a face Answer: B Explanation: Boundary fills an open contour, producing a surface that respects specified continuity. Question 24. When creating a loft, the designer must provide: A) Only a single profile curve B) At least two cross-section profiles and a guiding spine (optional) C) A solid body to loft from D) A mesh grid for interpolation Answer: B Explanation: Lofting interpolates between two or more profiles, optionally guided by a spine to control shape. Question 25. Which material from the CATIA Material Library would you apply to represent a carbon-fiber bicycle frame? A) Aluminum Alloy B) Carbon Fiber C) Transparent Glass
Designer Ultimate Exam
D) PVC Plastic Answer: B Explanation: The Carbon Fiber preset includes appropriate reflectivity and anisotropic properties matching the real material. Question 26. High Dynamic Range Image (HDRI) environments are primarily used to: A) Define mechanical tolerances B) Provide realistic lighting and reflections for renders C) Store version history of a part D) Generate 2-D drawings automatically Answer: B Explanation: HDRI maps deliver accurate illumination and environmental reflections, enhancing visual realism. Question 27. Adjusting the focal length of a camera in Live Rendering affects: A) The mesh resolution B) The field of view, creating a wide-angle or telephoto effect C) The material’s specular value D) The part’s weight calculation Answer: B Explanation: Focal length determines how much of the scene is captured and the perspective distortion. Question 28. Depth of field (DoF) in a rendered scene is used to: A) Increase the polygon count of the model B) Blur objects outside the focus plane, mimicking photographic effect C) Export a 3-D PDF file D) Generate a surface normal map Answer: B Explanation: DoF simulates camera focus, making foreground sharp and background blurred for visual emphasis.
Designer Ultimate Exam
D) STEP AP
Answer: C Explanation: Ray-traced renders exported as high-resolution images (e.g., JPEG or PNG) capture the final visual quality. Question 33. Turntable animations are typically generated by: A) Manually rotating the part in a video editor B) Defining a circular camera path around a stationary model and rendering frames sequentially C) Exporting the model to a CAD-CAM system D) Using the 3DEXPERIENCE console to record user actions Answer: B Explanation: The turntable animation rotates the camera (or model) around a fixed axis, producing a smooth showcase video. Question 34. In a Design-to-Engineering handover, the most critical data to transfer is: A) Sketch colors B) Fully defined geometry with proper constraints and version control C) User interface layout preferences D) Social collaboration comments only Answer: B Explanation: Engineers require precise, constrained geometry and reliable versioning to proceed with analysis and manufacturing. Question 35. Concurrent Engineering in 3DEXPERIENCE is facilitated by: A) Locking the entire project to a single user B) Using “Reserve/Unreserve” and versioning to allow multiple designers to work on separate components simultaneously C) Exporting all data to local files before editing D) Disabling the collaborative spaces feature Answer: B Explanation: Reserving components and maintaining version history enables parallel work while preventing conflicts.
Designer Ultimate Exam
Question 36. Which compass quadrant would you use to run a kinematic simulation of a moving assembly? A) Social & Collaborative B) 3D Modeling C) Simulation D) Information Intelligence Answer: C Explanation: The Simulation quadrant hosts tools for motion analysis, finite element analysis, and other performance evaluations. Question 37. The “Private” data maturity state is best described as: A) Data that is publicly available to all users in the project B) A locked state preventing any edits C) A draft version visible only to its owner or selected collaborators D) A final, immutable release version Answer: C Explanation: Private data is a personal workspace where designers can experiment without affecting the shared project. Question 38. Which widget would you add to a dashboard to monitor the status of ongoing design tasks? A) 3DPlay B) 3DSpace Task Tracker C) 3DSwym Chat D) 3DMap Viewer Answer: B Explanation: The Task Tracker widget displays task progress, assignments, and deadlines, helping manage workflow. Question 39. When importing a raster image for sketch tracing, which of the following is essential for accurate positioning? A) Setting the image resolution to 72 DPI
Designer Ultimate Exam
Answer: B Explanation: Creasing tells the Sub-D algorithm to preserve the edge’s sharpness, preventing it from being rounded. Question 43. The term “G0 continuity” refers to: A) Positional continuity – surfaces meet at a common point B) Tangential continuity – matching surface normals C) Curvature continuity – identical second derivatives D) Color continuity – same material mapping Answer: A Explanation: G0 ensures that surfaces are connected without gaps, but does not guarantee smoothness. Question 44. Zebra analysis is most effective for detecting: A) Texture mapping errors B) G1 or G2 continuity issues such as visible bumps or ripples C) Incorrect part numbers in the BOM D) Missing constraints in a sketch Answer: B Explanation: Zebra strips reveal variations in surface slopes, making it easy to spot deviations from smooth continuity. Question 45. In a generative shape design workflow, “Projection and Intersection” are used to: A) Create a mesh for CFD analysis B) Derive new geometry based on the spatial relationship between existing objects C) Export a model to a neutral format D) Generate a 2-D drawing automatically Answer: B Explanation: Projection maps curves onto surfaces, while intersection finds common geometry, both essential for building complex shapes.
Designer Ultimate Exam
Question 46. Which of the following best describes a “Fill” operation? A) Adding material to a solid body to increase its mass B) Closing a hole in a surface by generating a planar face that respects surrounding continuity C) Applying a texture to a surface D) Converting a mesh to a NURBS surface Answer: B Explanation: Fill creates a surface patch that caps an opening, often preserving tangential continuity with adjacent faces. Question 47. To achieve realistic reflections on a metallic part, you should: A) Increase the part’s opacity to 0% B) Use a high-gloss material from the library and pair it with an HDRI environment C) Disable all lighting in the scene D) Apply a matte texture instead of a metal one Answer: B Explanation: Metallic surfaces need high specular reflectivity, and an HDRI provides accurate environmental reflections. Question 48. Which camera setting would you adjust to create a shallow depth of field effect, blurring background objects? A) Aspect Ratio B) Focal Length C) Aperture (f-stop) value – lower numbers increase blur D) Near Clip Plane Answer: C Explanation: A larger aperture (smaller f-stop number) reduces depth of field, producing a pronounced background blur. Question 49. The “Real-time vs. Ray-tracing” decision is primarily based on: A) The number of users in the collaborative space B) The need for speed (real-time) versus photorealistic quality (ray-tracing)
Designer Ultimate Exam
Explanation: The Symmetry tool automatically mirrors geometry across a defined plane, maintaining consistency. Question 53. When using the “Weight” attribute on a vertex, a higher weight value will: A) Make the vertex move less during subdivision, preserving sharpness B) Increase the vertex’s mass for simulation purposes C) Change the vertex color to red D) Remove the vertex from the mesh Answer: A Explanation: Higher weight restricts the vertex’s influence, keeping edges sharper after subdivision. Question 54. The “Layer” feature in Natural Sketch is analogous to layers in: A) Mechanical drawing sheets B) Photo-editing software, allowing selective visibility and editing C) Simulation result plots D) Material libraries Answer: B Explanation: Layers let users organize strokes, hide/show subsets, and manage complex sketches similar to graphic design tools. Question 55. Which of the following best describes a “Conic” in the context of wireframe construction? A) A closed planar polygon B) A curve defined by a quadratic equation (e.g., circle, ellipse, parabola, hyperbola) C) A mesh of triangles D) A parametric solid body Answer: B Explanation: Conics are standard mathematical curves used to define precise shapes in wireframe modeling. Question 56. In a loft operation, the “Guide” (spine) curve primarily controls:
Designer Ultimate Exam
A) The material properties of the lofted surface B) The path and curvature that the intermediate sections follow between profiles C) The color of the lofted surface D) The final thickness of the loft Answer: B Explanation: The spine guides the transition between profiles, shaping the loft’s flow. Question 57. Which analysis tool would you use to verify that a freeform surface has no abrupt changes in curvature? A) Zebra Stripes B) Porcupine Curvature C) Mesh Density Checker D) Assembly Interference Detector Answer: B Explanation: Porcupine vectors highlight curvature magnitude and direction, making it easy to spot sharp transitions. Question 58. The “Reserve” command is automatically released when: A) The user logs out of the platform B) The user clicks “Unreserve” or the system times out due to inactivity C) Another user edits the same object D) The part reaches the Released state Answer: B Explanation: Unreserve frees the lock, allowing others to edit; some systems also auto-release after a defined idle period. Question 59. In the 3DEXPERIENCE Compass, which quadrant provides tools for managing product data, versioning, and lifecycle? A) Social & Collaborative B) 3D Modeling C) Simulation D) Information Intelligence
Designer Ultimate Exam
Question 63. Which of the following best describes “G2 continuity”? A) Only positional match B) Matching tangents (first derivative) C) Matching curvature (second derivative) for a smooth transition without visual bumps D) Matching texture coordinates across surfaces Answer: C Explanation: G2 continuity ensures that curvature is continuous, producing the smoothest possible join between surfaces. Question 64. To quickly evaluate the visual impact of a new material on a model, you would: A) Change the part’s color in the 3DPlay widget only B) Apply the material from the library and enable real-time rendering with HDRI lighting C) Export the model to a spreadsheet D) Run a finite element analysis on the part Answer: B Explanation: Applying the material and using real-time rendering with proper lighting instantly shows how it looks. Question 65. Which of the following statements about “Symmetry” in Sub-D modeling is true? A) It only works on planar surfaces B) It creates a mirrored copy but does not maintain edge weighting across the plane automatically C) It permanently locks the mirrored side, preventing further edits D) It automatically creates a new material for the mirrored side Answer: B Explanation: Symmetry mirrors geometry, but edge weights and creases may need manual adjustment to retain intended sharpness.
Designer Ultimate Exam
Question 66. In the context of collaborative design, the “Social & Collaborative” quadrant primarily provides: A) Advanced simulation solvers B) Tools for discussion, task management, and activity feeds C) Direct mesh editing capabilities D) Material property libraries Answer: B Explanation: This quadrant focuses on communication, project planning, and social interaction among team members. Question 67. Which option best describes the purpose of a “Task Tracker” widget on a dashboard? A) To visualize the 3-D geometry of a part B) To monitor progress, deadlines, and responsibility assignments for design activities C) To edit sketch layers D) To render HDRI environments Answer: B Explanation: The widget aggregates task information, helping users stay aware of project status. Question 68. When a designer wants to create a smooth transition between a cylindrical shaft and a filleted head using Sub-D, which operation is most appropriate? A) Extrude the cylinder then add a Bevel on the junction B) Apply a Crease to the cylinder’s edge C) Use a Sweep with a circular profile along a curved path D) Insert a Mesh Grid and manually move vertices Answer: A Explanation: Extruding the cylinder provides the base, and a bevel adds a smooth, rounded transition to the head. Question 69. The “Boundary Fill” command differs from “Fill” in that it: A) Requires a closed loop of edges to define the region to be filled
