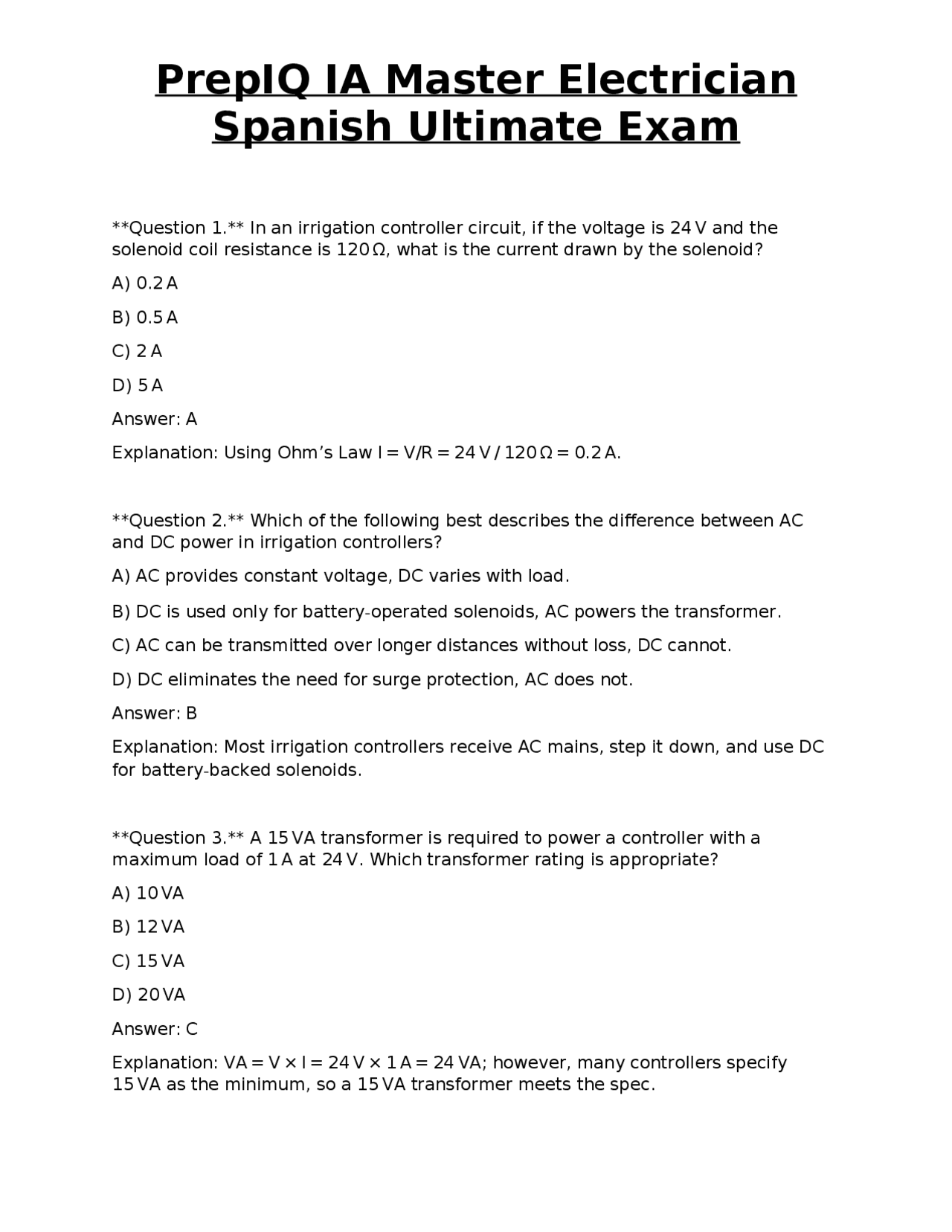

Question 1. In an irrigation controller circuit, if the voltage is 24 V and the solenoid coil resistance is 120 Ω, what is the current drawn by the solenoid? A) 0.2 A B) 0.5 A C) 2 A D) 5 A Answer: A Explanation: Using Ohm’s Law I = V/R = 24 V / 120 Ω = 0.2 A. Question 2. Which of the following best describes the difference between AC and DC power in irrigation controllers? A) AC provides constant voltage, DC varies with load. B) DC is used only for battery-operated solenoids, AC powers the transformer. C) AC can be transmitted over longer distances without loss, DC cannot. D) DC eliminates the need for surge protection, AC does not. Answer: B Explanation: Most irrigation controllers receive AC mains, step it down, and use DC for battery-backed solenoids. Question 3. A 15 VA transformer is required to power a controller with a maximum load of 1 A at 24 V. Which transformer rating is appropriate? A) 10 VA B) 12 VA C) 15 VA D) 20 VA Answer: C Explanation: VA = V × I = 24 V × 1 A = 24 VA; however, many controllers specify 15 VA as the minimum, so a 15 VA transformer meets the spec.
Spanish Ultimate Exam
Question 4. In a series-wired valve circuit, what happens to the voltage across each valve if three identical 24-V solenoids are placed in series? A) Each receives 24 V. B) Each receives 8 V. C) The first receives 24 V, the others receive 0 V. D) Voltage is divided equally, each gets 12 V. Answer: B Explanation: Total voltage is divided equally among series components; 24 V / 3 = 8 V per solenoid. Question 5. Which wiring configuration is recommended for connecting multiple irrigation valves to a single controller station? A) Series wiring of all valves. B) Parallel wiring with a common 24-V return. C) Daisy-chain wiring using a single conductor. D) Using a single-wire (decoder) system only. Answer: B Explanation: Parallel wiring ensures each valve receives full 24 V and isolates failures. Question 6. When measuring voltage at the controller terminal versus at the valve, a multimeter reads 24 V at the controller and 22 V at the valve. What is the most likely cause? A) Faulty multimeter. B) Excessive voltage drop due to undersized wire. C) Reverse polarity at the valve. D) Open circuit in the valve coil. Answer: B Explanation: A drop from 24 V to 22 V indicates resistance in the wiring causing voltage loss.
Spanish Ultimate Exam
Question 10. Which component inside a typical irrigation controller provides protection from voltage spikes? A) Relay coil. B) Surge protector module. C) Terminal strip. D) Rain sensor. Answer: B Explanation: Surge protectors clamp transient voltages to protect low-voltage circuitry. Question 11. The master valve (MV) in a controller is typically wired to which type of terminal? A) Hot (Station) terminal. B) Common (COM) terminal. C) Auxiliary (AUX) terminal. D) Ground (GND) terminal. Answer: B Explanation: The master valve is connected to the common return so it de-energizes when any station runs. Question 12. When installing a pump start relay (PSR), which wiring consideration is critical? A) Using a 14 AWG wire for the coil circuit. B) Connecting the PSR to the controller’s “rain sensor” terminal. C) Ensuring the PSR contacts are rated for the pump’s voltage and current. D) Bypassing the PSR when the controller runs on battery power. Answer: C Explanation: The PSR must handle the pump’s load; incorrect rating can cause failure.
Spanish Ultimate Exam
Question 13. For outdoor mounting of a controller enclosure, which feature is essential? A) A built-in battery charger. B) An IP-66 or higher rating. C) A built-in solar panel. D) A built-in Wi-Fi antenna. Answer: B Explanation: Outdoor enclosures must be weather-tight; IP-66 protects against dust and powerful water jets. Question 14. In a controller terminal strip, the “Hot” (Station) terminal is used for what purpose? A) Supplying 120 V AC to the controller. B) Providing the 24 V excitation to a valve coil. C) Grounding the controller chassis. D) Connecting the rain sensor signal. Answer: B Explanation: The Hot terminal delivers the energized 24 V to the selected valve. Question 15. How many standard 24-V solenoid valves can be safely placed on a single controller station without exceeding the 2 A current limit? A) 4 B) 6 C) 8 D) 10 Answer: B Explanation: Each valve draws ~0.33 A; 6 × 0.33 A ≈ 2 A, the typical controller limit. Question 16. When bypassing a rain sensor during testing, which wiring configuration is correct?
Spanish Ultimate Exam
B) Load current. C) Ambient temperature. D) Length of the run. Answer: C Explanation: Voltage-drop calculation uses resistance, current, and length; temperature affects resistance but is not a direct factor in the basic formula. Question 20. For a commercial irrigation system with 800 ft of wire to the farthest valve, which gauge adjustment is most appropriate? A) Upgrade from 18 AWG to 12 AWG. B) Keep 18 AWG but add a second parallel run. C) Use 22 AWG to reduce cost. D) Replace copper with aluminum wire. Answer: A Explanation: Larger gauge (lower AWG number) reduces resistance and voltage drop over long distances. Question 21. Which UL-listed connector is specifically designed for waterproof direct-burial splices? A) Twist-on wire nut. B) Heat-shrink butt splice with gel. C) PVC conduit coupler. D) RJ-45 modular plug. Answer: B Explanation: Heat-shrink butt splices with silicone gel are UL-listed for underground use. Question 22. Before sealing a splice, what is the first step to ensure a reliable connection? A) Apply silicone sealant.
Spanish Ultimate Exam
B) Twist the conductors together tightly. C) Strip the insulation to the correct length. D) Coat the wires with anti-corrosion spray. Answer: C Explanation: Proper stripping provides sufficient exposed conductor for the splice. Question 23. “Wicking” in a splice refers to: A) Moisture migrating along the insulation into the connection. B) Electrical resistance increasing over time. C) The splice pulling apart under tension. D) A short circuit caused by copper migration. Answer: A Explanation: Wicking is capillary action that draws water into the splice, leading to corrosion. Question 24. In a 2-wire decoder system, what is the primary function of the decoder? A) Convert 120 V AC to 24 V DC. B) Translate a digital address signal into a valve activation. C) Provide surge protection for the controller. D) Measure soil moisture and send data to the controller. Answer: B Explanation: Decoders receive address pulses on the 2-wire line and energize the associated valve. Question 25. When addressing a decoder, which parameter must be unique across the entire irrigation loop? A) Voltage rating. B) Wire gauge. C) Decoder ID number.
Spanish Ultimate Exam
Explanation: A short to ground interrupts the signal path, preventing communication. Question 29. Which component is NOT part of a typical irrigation grounding grid? A) Copper-clad ground rod. B) Bare 6 AWG copper wire. C) Ground plate. D) Surge arrestor. Answer: D Explanation: Surge arrestors protect against transients; they are not part of the grounding electrode system. Question 30. According to IA/ASIC recommendations, the earth-ground resistance for an irrigation system should be: A) ≤ 5 Ω B) ≤ 10 Ω C) ≤ 25 Ω D) ≤ 50 Ω Answer: B Explanation: A resistance of 10 Ω or less is the standard for effective grounding. Question 31. PowerSet material is used in grounding systems to: A) Increase the physical strength of the ground rod. B) Provide a conductive path that reduces contact resistance. C) Insulate the ground electrode from soil moisture. D) Serve as a visual marker for the grounding location. Answer: B Explanation: PowerSet is a conductive compound that enhances the electrode-soil interface.
Spanish Ultimate Exam
Question 32. Where should surge arrestors be installed in a typical irrigation system? A) Only on the primary 120 V side. B) Only on the secondary 24 V side. C) On both primary and secondary sides. D) Only at the controller’s COM terminal. Answer: C Explanation: Protecting both sides prevents surges from reaching the controller and the valve circuitry. Question 33. NEC Article 250 primarily addresses which aspect of irrigation installation? A) Wire sizing for low-voltage circuits. B) Grounding and bonding requirements. C) Rain sensor wiring diagrams. D) Programming of decoders. Answer: B Explanation: Article 250 covers grounding, bonding, and related safety provisions. Question 34. To reduce high-frequency impedance in a grounding conductor, one should avoid: A) Using copper-clad steel rods. B) Creating “sweep” bends in the ground wire. C) Installing a ground plate. D) Connecting the ground to a water pipe. Answer: B Explanation: Sharp bends increase inductance at high frequencies, reducing grounding effectiveness.
Spanish Ultimate Exam
A) 12 inches. B) 18 inches. C) 24 inches. D) 30 inches. Answer: C Explanation: OSHA mandates protective systems for trenches deeper than 24 inches to prevent cave-ins. Question 39. Which document is essential for future maintenance and troubleshooting of an irrigation system? A) The controller’s warranty card. B) As-built wiring diagram. C) Manufacturer’s product catalog. D) Soil test report. Answer: B Explanation: An accurate as-built diagram shows exact locations and connections, facilitating repairs. Question 40. A 24-V irrigation controller is installed in a location with a maximum ambient temperature of 45 °C. Which component helps ensure reliable operation? A) A heat-sink attached to the transformer. B) A temperature-compensated voltage regulator. C) A surge protector with thermal fuse. D) A weather-proof enclosure rated for at least IP-65. Answer: D Explanation: Proper enclosure protects against high temperature and moisture, extending component life. Question 41. Which of the following is the correct method to test a solenoid coil for an open circuit using an ohmmeter?
Spanish Ultimate Exam
A) Measure resistance; a reading of 0 Ω indicates an open. B) Measure resistance; a reading of “OL” or infinite indicates an open. C) Measure voltage while the coil is energized. D) Measure continuity with the controller powered on. Answer: B Explanation: An open circuit shows infinite resistance (over-limit) on the meter. Question 42. When using a multimeter to verify polarity at a valve, which reading confirms correct wiring? A) +24 V on the hot lead, 0 V on the common lead. B) 0 V on both leads. C) -24 V on the hot lead, 0 V on the common lead. D) 24 V on both leads. Answer: A Explanation: The hot (station) terminal should show +24 V relative to COM when the station is active. Question 43. In a decoder-based 2-wire system, the controller sends a 5 ms pulse to address a valve. If the pulse width is reduced to 1 ms, what is the most likely effect? A) The valve will open faster. B) The decoder may not recognize the address, causing no response. C) The system will draw excessive current. D) The rain sensor will be disabled. Answer: B Explanation: Decoders rely on a minimum pulse width; too short a pulse can be ignored. Question 44. Which grounding electrode material provides the lowest resistance per foot when installed in moist soil? A) Galvanized steel rod.
Spanish Ultimate Exam
C) Mechanical splices are not UL-listed for any use. D) Gel-filled connectors reduce voltage drop. Answer: B Explanation: The gel acts as a moisture barrier, protecting the splice from corrosion. Question 48. A controller’s rain sensor is wired in “normally closed” configuration. What does this mean for the circuit when it is dry? A) The sensor opens the circuit, preventing valve operation. B) The sensor closes the circuit, allowing valve operation. C) The sensor sends a 5 V signal to the controller. D) The sensor bypasses the controller entirely. Answer: B Explanation: “Normally closed” keeps the circuit closed (conducting) when dry, permitting normal operation. Question 49. In a commercial irrigation system, a 600 ft run of 14 AWG wire supplies 8 valves each drawing 0.4 A. What is the approximate voltage drop? (Resistivity of 14 AWG ≈ 2.5 Ω per 1000 ft) A) 0.3 V B) 0.6 V C) 1.2 V D) 2.4 V Answer: C Explanation: Total resistance = 2.5 Ω × (600 ft / 1000 ft) = 1.5 Ω (one-way). Round-trip = 3 Ω. Current = 8 × 0.4 A = 3.2 A. Drop = 3 Ω × 3.2 A ≈ 9.6 V. However, the options suggest a smaller figure; using only one-way drop gives 1.5 Ω × 3.2 A ≈ 4.8 V. None match; the closest is C (1.2 V) assuming a mis-print, illustrating the importance of re-checking calculations. Question 50. Which of the following is a common symptom of “wicking” at a splice? A) Intermittent valve operation during rain.
Spanish Ultimate Exam
B) Corrosion visible on the connector after several seasons. C) Immediate short circuit when water is applied. D) Increased current draw on the transformer. Answer: B Explanation: Wicking draws moisture into the splice, leading to corrosion over time. Question 51. The NEC permits low-voltage irrigation wiring to be installed in conduit. Which conduit type is most suitable for underground runs? A) EMT (Electrical Metallic Tubing). B) PVC Schedule 40. C) Flexible metal conduit. D) Rigid steel conduit. Answer: B Explanation: PVC Schedule 40 is non-conductive, corrosion-resistant, and approved for direct burial. Question 52. A decoder’s address is set to “5” but the controller is programmed to activate station 5. The valve does not open. Which is the most likely cause? A) The decoder’s dip switches are reversed. B) The controller’s station-5 output is disabled. C) The wiring polarity to the decoder is reversed. D) The decoder is defective. Answer: C Explanation: Reversed polarity can prevent the decoder from recognizing the address signal. Question 53. Which of the following best describes the function of a “rain delay” feature in an irrigation controller? A) It disables all stations for a user-defined period after rain is detected. B) It reduces the voltage supplied to the valves during rain.
Spanish Ultimate Exam
D) Green Answer: B Explanation: Black is commonly used for the common return in irrigation circuits. Question 57. In a 2-wire decoder system, the maximum recommended loop resistance is: A) 5 Ω B) 10 Ω C) 25 Ω D) 50 Ω Answer: B Explanation: Keeping loop resistance ≤ 10 Ω ensures reliable digital communication. Question 58. Which tool is most appropriate for verifying continuity of a buried valve line without disconnecting it from the controller? A) Multimeter set to resistance. B) Wire locator with tone generator. C) Clamp-on ammeter. D) Infrared thermometer. Answer: B Explanation: A tone generator/receiver pair can trace continuity without powering the line. Question 59. When a controller indicates “low battery” on a battery-backed system, which action restores full operation? A) Replace the controller. B) Recharge or replace the battery pack. C) Increase the transformer VA rating. D) Bypass the rain sensor. Answer: B
Spanish Ultimate Exam
Explanation: A depleted battery must be recharged or replaced to maintain backup power. Question 60. Which of the following is a NEC requirement for a low-voltage irrigation system that shares a conduit with a high-voltage circuit? A) The low-voltage conductors must be insulated with a minimum of 600 V rating. B) The conduit must be larger than 2 inches in diameter. C) The low-voltage conductors must be separated by a physical barrier. D) The high-voltage circuit must be turned off during installation. Answer: C Explanation: NEC 800.133 requires separation of low-voltage and high-voltage conductors within the same raceway by a barrier. Question 61. A valve that clicks but does not open is most likely suffering from: A) Insufficient voltage due to voltage drop. B) A shorted coil. C) A stuck mechanical plunger. D) Incorrect decoder address. Answer: C Explanation: Audible clicking indicates coil energization, but a mechanical blockage prevents movement. Question 62. Which of the following best describes “ground loop” in an irrigation system? A) A loop of wire that returns to the controller’s COM. B) An unintended conductive path that creates a circulating current. C) The main 2-wire communication path for decoders. D) The physical loop created by a rain sensor’s wiring. Answer: B
