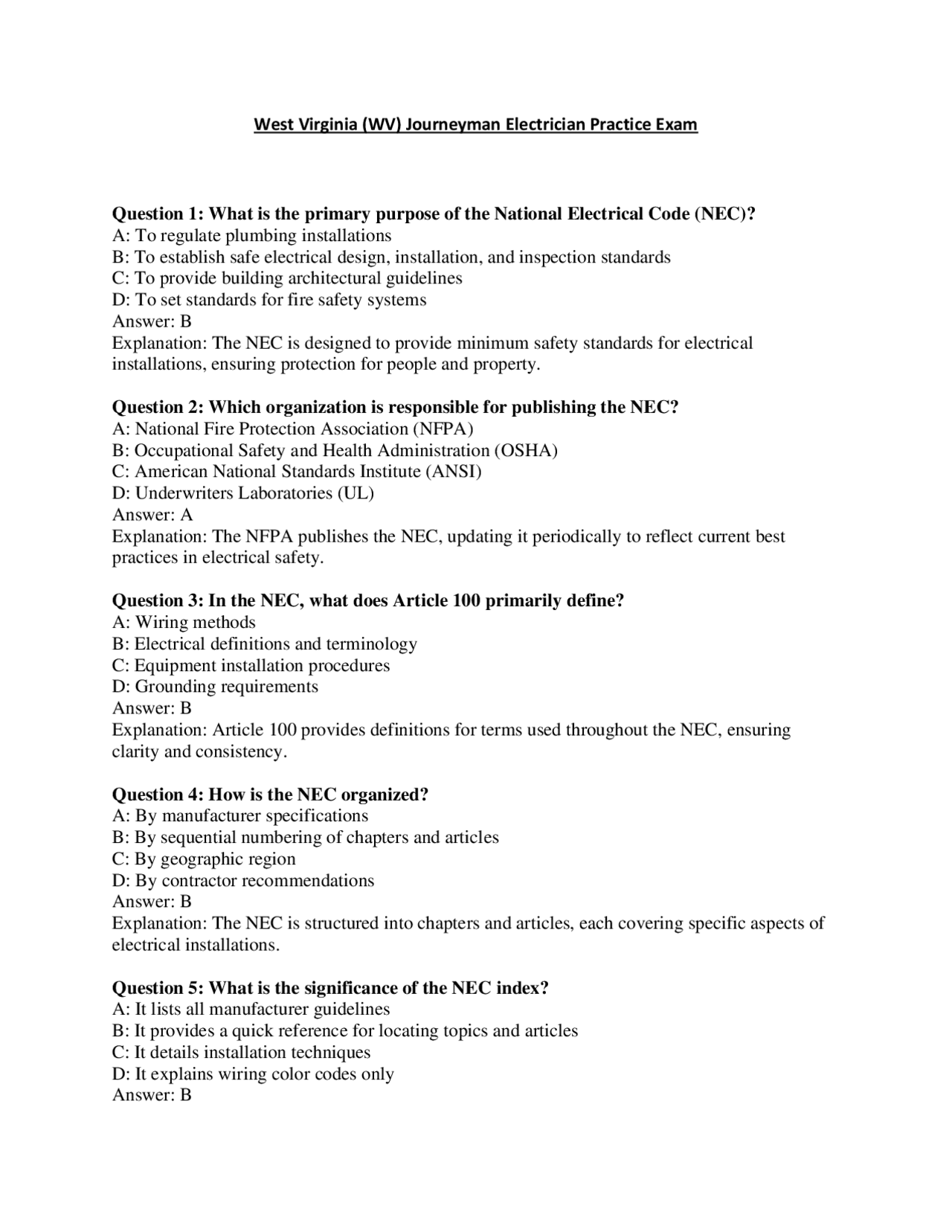

West Virginia (WV) Journeyman Electrician Practice Exam Question 1: What is the primary purpose of the National Electrical Code (NEC)? A: To regulate plumbing installations B: To establish safe electrical design, installation, and inspection standards C: To provide building architectural guidelines D: To set standards for fire safety systems Answer: B Explanation: The NEC is designed to provide minimum safety standards for electrical installations, ensuring protection for people and property. Question 2: Which organization is responsible for publishing the NEC? A: National Fire Protection Association (NFPA) B: Occupational Safety and Health Administration (OSHA) C: American National Standards Institute (ANSI) D: Underwriters Laboratories (UL) Answer: A Explanation: The NFPA publishes the NEC, updating it periodically to reflect current best practices in electrical safety. Question 3: In the NEC, what does Article 100 primarily define? A: Wiring methods B: Electrical definitions and terminology C: Equipment installation procedures D: Grounding requirements Answer: B Explanation: Article 100 provides definitions for terms used throughout the NEC, ensuring clarity and consistency. Question 4: How is the NEC organized? A: By manufacturer specifications B: By sequential numbering of chapters and articles C: By geographic region D: By contractor recommendations Answer: B Explanation: The NEC is structured into chapters and articles, each covering specific aspects of electrical installations. Question 5: What is the significance of the NEC index? A: It lists all manufacturer guidelines B: It provides a quick reference for locating topics and articles C: It details installation techniques D: It explains wiring color codes only Answer: B
Explanation: The NEC index is an essential tool for quickly locating articles and topics within the code. Question 6: Which section of the NEC typically covers wiring methods? A: Chapter 1 B: Chapter 2 C: Chapters 3 and 4 D: Chapter 5 Answer: C Explanation: Chapters 3 and 4 of the NEC detail wiring methods and materials, including installation practices and protective measures. Question 7: What does the NEC require regarding grounding? A: Grounding is optional in residential installations B: Grounding is required only for high-voltage circuits C: Grounding must be provided for safety to prevent electric shock D: Grounding is recommended only for outdoor circuits Answer: C Explanation: Grounding is a critical safety requirement under the NEC to help protect against electrical shock and equipment damage. Question 8: How frequently is the NEC updated? A: Every year B: Every three years C: Every five years D: Every ten years Answer: B Explanation: The NEC is typically updated every three years to incorporate new safety information and technological advances. Question 9: What role do tables in the NEC play? A: They list contractor contact information B: They provide conversion factors, conductor ampacities, and installation requirements C: They are used to display building codes D: They show manufacturer discounts Answer: B Explanation: Tables in the NEC are used to present essential data such as conductor ampacities and other installation factors in an easily accessible format. Question 10: What type of information is provided in NEC article annotations? A: Detailed construction blueprints B: Supplementary guidance and clarification on code requirements C: Contractor marketing materials D: Historical background on the NEC Answer: B
Explanation: States may adopt amendments to the NEC to tailor the national standards to meet local environmental, climatic, or safety needs. Question 16: What is an effective way to navigate the NEC index? A: Skimming through each chapter sequentially B: Using the index to look up specific topics and article numbers C: Relying on memory only D: Ignoring the index and using online forums Answer: B Explanation: The index is a critical tool for quickly finding relevant articles and topics, which is especially useful during inspections or troubleshooting. Question 17: What type of information is typically included in NEC tables? A: Pricing information for electrical supplies B: Conductor sizes, ampacities, and installation parameters C: Personal opinions of inspectors D: Weather data for installation areas Answer: B Explanation: NEC tables provide vital technical data, such as conductor ampacities and derating factors, which are essential for safe and compliant installations. Question 18: How does the NEC help ensure electrical safety? A: By offering optional best practices B: By setting minimum installation standards and safety requirements C: By focusing solely on energy efficiency D: By eliminating the need for inspections Answer: B Explanation: The NEC’s minimum standards are designed to protect people and property by reducing the risk of electrical hazards. Question 19: What is the difference between mandatory and advisory language in the NEC? A: Mandatory language indicates required practices, while advisory language offers recommendations B: There is no difference C: Advisory language must be followed strictly D: Mandatory language is only for inspectors Answer: A Explanation: The NEC distinguishes between requirements that are legally enforceable (mandatory) and those that are recommendations (advisory) to guide safe practices. Question 20: How does the NEC guide installations in wet locations? A: It requires all conductors to be non-metallic B: It provides specific guidelines on materials, protection, and installation methods to prevent moisture-related hazards C: It only offers guidelines for indoor use
D: It exempts wet locations from grounding requirements Answer: B Explanation: The NEC includes provisions that address the unique challenges of wet environments to ensure electrical safety and performance. Question 21: What are the implications of non-compliance with the NEC? A: No consequences are involved B: It can lead to safety hazards, failed inspections, and legal penalties C: It results in immediate license revocation D: It only affects aesthetic aspects of the installation Answer: B Explanation: Failure to comply with NEC standards can result in dangerous installations, failed inspections, and potential legal consequences. Question 22: How does the NEC address energy efficiency? A: By mandating the use of only incandescent lighting B: By providing guidelines for energy-saving practices in electrical installations C: By ignoring energy consumption factors D: By focusing solely on high voltage systems Answer: B Explanation: While safety is the primary concern, the NEC also includes provisions that promote energy-efficient practices in electrical design and installation. Question 23: Which NEC article provides guidelines for electrical continuity? A: Article 110 B: Article 250 C: Article 300 D: Article 400 Answer: B Explanation: Article 250 of the NEC addresses grounding and bonding, ensuring proper electrical continuity throughout the system. Question 24: How does the NEC assist inspectors during an electrical inspection? A: It provides a checklist of aesthetic standards B: It serves as a reference guide for verifying compliance with safety standards C: It offers marketing materials for contractors D: It only applies to new installations Answer: B Explanation: Inspectors use the NEC as an authoritative guide to check that all installations meet established safety standards. Question 25: What is the importance of understanding NEC symbols? A: They are used for decorative purposes only B: They provide a universal language for conveying electrical information quickly C: They are optional and not widely recognized D: They only appear in international codes
Explanation: Electrical power is calculated by multiplying voltage by current (P = V × I), indicating the rate of energy consumption. Question 31: In a series circuit, how does current behave? A: It splits equally among all components B: It remains constant throughout the circuit C: It varies randomly D: It doubles at each junction Answer: B Explanation: In a series circuit, the same current flows through each component, making the current constant throughout the circuit. Question 32: In a parallel circuit, how is voltage distributed? A: Voltage is divided among the branches B: Voltage is zero in each branch C: Each branch receives the full source voltage D: Voltage doubles across each branch Answer: C Explanation: In parallel circuits, each branch experiences the full voltage of the source, though the current may vary among branches. Question 33: What is the relationship between current and resistance according to Ohm’s Law? A: Current is independent of resistance B: Current increases as resistance increases C: Current decreases as resistance increases D: Current remains constant regardless of resistance Answer: C Explanation: Ohm’s Law indicates that for a given voltage, increasing resistance will decrease the current in a circuit. Question 34: On what factors does electrical power depend? A: Only on voltage B: Only on resistance C: On both voltage and current D: On temperature exclusively Answer: C Explanation: Electrical power depends on both voltage and current, as expressed in the formula P = V × I. Question 35: How is energy efficiency generally calculated in electrical circuits? A: By comparing the output power to the input power B: By measuring the resistance only C: By summing the voltages in the circuit D: By counting the number of circuit components Answer: A
Explanation: Energy efficiency is evaluated by comparing the useful output power to the total input power, indicating how well a system uses energy. Question 36: What is the primary function of a resistor in a circuit? A: To increase voltage B: To store electrical energy C: To limit or control current flow D: To generate power Answer: C Explanation: Resistors are used to limit and control the flow of electrical current within a circuit. Question 37: How do capacitors function in electrical circuits? A: By converting AC to DC B: By storing and releasing electrical energy C: By providing a constant current D: By reducing voltage spikes permanently Answer: B Explanation: Capacitors store electrical energy temporarily and release it when needed, which helps smooth out voltage fluctuations. Question 38: What is inductance in electrical circuits? A: The ability to store energy in a magnetic field B: The conversion of AC to DC C: The resistance to current flow D: The measurement of electrical power Answer: A Explanation: Inductance is the property of a conductor by which a change in current generates a voltage in itself or another conductor due to its magnetic field. Question 39: How does a transformer primarily work? A: By converting electrical energy into mechanical energy B: By stepping voltage up or down through electromagnetic induction C: By storing energy in capacitors D: By acting as a resistor Answer: B Explanation: A transformer uses electromagnetic induction to change voltage levels, stepping voltage up or down based on the needs of the circuit. Question 40: What is the primary purpose of a circuit breaker? A: To regulate voltage fluctuations B: To protect circuits from overcurrent by interrupting the flow C: To provide a constant electrical supply D: To increase circuit efficiency Answer: B Explanation: Circuit breakers are safety devices that automatically interrupt the flow of current in the event of an overload or short circuit, preventing damage and hazards.
Question 46: What is the significance of the power factor in AC circuits? A: It indicates the energy lost as heat B: It measures the efficiency of power usage by comparing real power to apparent power C: It is only applicable in DC circuits D: It determines the voltage output Answer: B Explanation: The power factor measures how effectively electrical power is being converted into useful work output, with a lower factor indicating inefficiencies. Question 47: How is a short circuit defined in electrical systems? A: A condition where resistance is extremely high B: A condition where current bypasses the intended load due to a low-resistance path C: A circuit that is open and incomplete D: A condition with high impedance Answer: B Explanation: A short circuit occurs when a low-resistance path unintentionally bypasses the circuit’s load, often resulting in excessive current flow. Question 48: What happens when there is an open circuit in an electrical system? A: Current flows normally B: There is an interruption in the current flow C: Voltage increases dramatically D: Resistance becomes zero Answer: B Explanation: An open circuit creates a break in the path, stopping the flow of current and preventing the circuit from functioning. Question 49: What is the primary function of a fuse in an electrical circuit? A: To regulate voltage levels B: To provide continuous power C: To interrupt current flow when excessive current is detected D: To store electrical energy Answer: C Explanation: Fuses protect circuits by melting and breaking the circuit when current exceeds safe levels, preventing potential damage or fire. Question 50: How do series and parallel circuits differ? A: In series circuits, voltage is divided; in parallel circuits, current is divided B: In series circuits, current is divided; in parallel circuits, voltage is divided C: Both circuits operate identically D: Only series circuits use resistors Answer: A Explanation: In a series circuit, the same current flows through each component with voltage divided among them, whereas in parallel circuits each branch receives the full source voltage while the current is divided.
Question 51: What is the primary purpose of conduit in wiring installations? A: To serve as a decorative cover B: To protect and route electrical wiring C: To increase electrical resistance D: To conduct electricity directly Answer: B Explanation: Conduit is used to protect and guide wiring, preventing physical damage and exposure to environmental hazards. Question 52: Which wiring method is typically used in exposed areas where physical protection is minimal? A: Rigid metal conduit B: Non-metallic sheathed cable (NM cable) C: Underground feeder cable D: Armored cable only Answer: B Explanation: NM cable is commonly used in indoor, exposed areas where additional physical protection is not required by code. Question 53: What is the purpose of using raceways in electrical installations? A: To display wiring schematics B: To conceal and protect conductors C: To increase circuit impedance D: To reduce installation costs by eliminating grounding Answer: B Explanation: Raceways provide a structured channel for electrical conductors, protecting them from damage and organizing wiring systems. Question 54: Which wiring method offers the most physical protection against damage? A: Exposed wiring B: Conduit systems C: Non-metallic sheathed cable D: Flexible cords Answer: B Explanation: Conduit systems enclose wiring in a robust metal or plastic tube, offering superior protection from physical damage. Question 55: What material is commonly used for conduits in outdoor applications? A: Plastic only B: Aluminum exclusively C: Rigid metal conduit (RMC) D: Non-metallic cable Answer: C Explanation: Rigid metal conduit is often used outdoors due to its durability and resistance to environmental factors.
Question 61: How does proper cable sizing affect electrical performance? A: It reduces installation time only B: It ensures the cable can safely carry the intended current without overheating C: It is only important for aesthetic reasons D: It increases the voltage beyond safe limits Answer: B Explanation: Correct cable sizing ensures that conductors can safely handle the load, reducing the risk of overheating and energy loss. Question 62: What is the role of support and protection in wiring systems? A: To allow wires to move freely B: To prevent physical damage and maintain safe installation conditions C: To reduce the conductor’s cross-sectional area D: To simplify circuit design Answer: B Explanation: Proper support and protection prevent damage to wiring, ensuring that installations remain secure and compliant with safety standards. Question 63: What is a key consideration when selecting wiring methods for an installation? A: The color of the wiring B: Environmental conditions and mechanical protection requirements C: The brand of the wiring only D: The number of outlets required Answer: B Explanation: Environmental factors and the need for mechanical protection are essential considerations when choosing appropriate wiring methods. Question 64: How does the installation environment influence wiring method selection? A: It determines the color of the conductors B: It dictates whether additional protection such as conduit or cable trays is necessary C: It affects only the electrical calculations D: It is not considered in the selection process Answer: B Explanation: The physical environment, including exposure to moisture, chemicals, or mechanical impact, guides the choice of wiring methods and protective measures. Question 65: What is the purpose of using flexible conduit in wiring installations? A: To provide a decorative element B: To allow for movement and ease of installation in areas with vibration or frequent adjustments C: To permanently fix wires in a rigid position D: To reduce overall electrical resistance Answer: B Explanation: Flexible conduit accommodates movement and vibration, making it ideal for installations where rigid conduit may be impractical.
Question 66: How do raceways contribute to fire safety in electrical installations? A: By increasing the current flow B: By containing and protecting conductors, reducing the risk of exposed wiring igniting C: By eliminating the need for circuit breakers D: By creating open spaces around wiring Answer: B Explanation: Raceways protect wiring from damage and help contain potential electrical fires by keeping conductors organized and shielded. Question 67: What are the benefits of using non-metallic sheathed cable in installations? A: It is highly flexible and resistant to extreme temperatures B: It is easier to install in residential settings and generally cost-effective C: It always requires additional conduit D: It provides superior protection in industrial environments Answer: B Explanation: Non-metallic sheathed cable is popular in residential wiring due to its ease of installation, flexibility, and cost efficiency. Question 68: How is wiring typically secured to prevent movement? A: By leaving it loose in the conduit B: By using appropriate clamps, straps, or cable ties according to code requirements C: By using adhesive tape only D: By relying on gravity Answer: B Explanation: Securing wiring with clamps, straps, or cable ties is essential to prevent movement that could lead to wear or damage over time. **Question 69: What is the function of cable trays in electrical installations? A: To increase circuit impedance B: To provide an organized pathway for routing and supporting multiple cables C: To replace conduit in all applications D: To serve as decorative covers Answer: B Explanation: Cable trays help manage and support large bundles of cables, keeping them organized and accessible for maintenance and inspections. Question 70: How is moisture resistance typically achieved in wiring materials? A: By using materials rated for wet locations and protective coverings B: By increasing the conductor size C: By installing wiring without insulation D: By using non-metallic cables exclusively Answer: A Explanation: Wiring materials used in moist or wet environments are specifically rated and designed with protective coverings to prevent deterioration and electrical hazards.
Question 76: What is the primary purpose of an electrical panelboard? A: To serve as a decorative element B: To distribute electrical power to various circuits and house protective devices C: To generate electrical power D: To measure voltage only Answer: B Explanation: An electrical panelboard distributes power to different circuits in a building and houses circuit breakers or fuses to protect against overcurrent. Question 77: How should manufacturer instructions be followed during equipment installation? A: They can be ignored if local codes are met B: They must be followed precisely to ensure safety and proper equipment function C: They are optional guidelines only D: They are only suggestions for optimal performance Answer: B Explanation: Adhering to manufacturer instructions is critical to ensure that equipment operates safely and within its designed parameters. Question 78: What is an essential safety consideration when installing electrical equipment? A: Installing equipment in dark colors B: Ensuring that equipment is properly grounded and installed according to code C: Using the cheapest available components D: Ignoring manufacturer recommendations Answer: B Explanation: Proper grounding and adherence to installation guidelines are fundamental to preventing electrical hazards and ensuring long-term equipment reliability. Question 79: How often should electrical equipment undergo maintenance? A: Only when a malfunction occurs B: Periodically, as recommended by the manufacturer and code requirements C: Maintenance is unnecessary if the equipment is new D: Every ten years regardless of condition Answer: B Explanation: Regular maintenance according to manufacturer and code recommendations helps ensure ongoing safety and reliability of electrical equipment. Question 80: What is the significance of proper labeling on electrical devices? A: It is purely for aesthetic purposes B: It helps identify circuits, components, and ensures correct operation and maintenance C: It is only needed for high-voltage equipment D: It is used only in industrial settings Answer: B Explanation: Proper labeling assists in troubleshooting, repairs, and ensures that safety protocols are followed by clearly identifying circuit functions and components.
Question 81: How does equipment grounding enhance safety in electrical installations? A: It increases the circuit’s resistance B: It provides a safe path for fault currents, reducing shock hazards C: It is used only for monitoring energy usage D: It prevents the need for circuit breakers Answer: B Explanation: Equipment grounding creates a low-resistance path to earth, ensuring that fault currents are safely directed away from people and sensitive equipment. Question 82: What is a common cause of equipment failure in electrical installations? A: Overuse of non-conductive materials B: Improper installation and lack of regular maintenance C: Excessive labeling D: Following manufacturer instructions Answer: B Explanation: Equipment failure is often linked to installation errors and inadequate maintenance, both of which can compromise performance and safety. Question 83: How do manufacturers ensure the reliability of electrical devices? A: Through rigorous testing, quality control, and adherence to industry standards B: By reducing the cost of production C: By eliminating all safety features D: By relying solely on field repairs Answer: A Explanation: Manufacturers employ extensive testing and quality assurance processes to produce reliable devices that meet or exceed industry standards. Question 84: What role does insulation play in electrical equipment? A: It increases current flow B: It prevents electrical shock and protects internal components C: It serves as a decorative element D: It is used only in outdoor equipment Answer: B Explanation: Insulation is essential for safety, preventing accidental contact with live components and protecting equipment from environmental damage. Question 85: How does proper ventilation benefit electrical devices? A: It reduces energy consumption B: It dissipates heat and prevents overheating of equipment C: It allows dust accumulation D: It increases the device’s weight Answer: B Explanation: Adequate ventilation helps maintain safe operating temperatures by removing excess heat, thereby prolonging equipment life and ensuring safe performance.
Question 91: How do surge protectors function in electrical systems? A: They store energy for later use B: They absorb and dissipate transient voltage spikes to protect equipment C: They increase the overall voltage D: They convert AC to DC Answer: B Explanation: Surge protectors shield sensitive electronics by absorbing transient voltage spikes, thereby preventing damage. Question 92: What is the significance of equipment ratings in electrical installations? A: They indicate the manufacturer’s country of origin B: They specify the maximum operating parameters and ensure compatibility with system requirements C: They are used solely for marketing D: They refer to the aesthetic quality of the equipment Answer: B Explanation: Equipment ratings inform installers of the voltage, current, temperature, and environmental limits, ensuring safe and reliable operation. Question 93: How does thermal protection in electrical devices work? A: It increases the operating temperature B: It shuts down or limits performance when excessive heat is detected C: It improves the color of the device D: It has no effect on device safety Answer: B Explanation: Thermal protection mechanisms detect overheating and can shut down the device or reduce its performance to prevent damage or fire. Question 94: What role do fuses play in an electrical system? A: They provide continuous high current B: They protect circuits by melting when current exceeds safe levels C: They store energy D: They regulate voltage levels Answer: B Explanation: Fuses are designed to melt and break the circuit if the current exceeds predetermined levels, thereby protecting equipment and preventing fire. Question 95: How can improper installation lead to equipment hazards? A: By ensuring higher energy efficiency B: By creating loose connections, improper grounding, or overloading, which can lead to fires or electrocution C: It only affects the installation time D: It has no real impact on safety Answer: B Explanation: Improper installation can compromise electrical integrity, increasing the risk of dangerous conditions such as short circuits and fires.
Question 96: What is the purpose of equipment grounding conductors? A: To insulate the equipment B: To provide a safe path for fault currents, reducing shock risks C: To increase the resistance in the circuit D: To serve as a backup power supply Answer: B Explanation: Equipment grounding conductors connect electrical devices to the earth, ensuring that fault currents are safely diverted away from users. Question 97: How do regular maintenance practices improve the longevity of electrical devices? A: They reduce the need for grounding B: They identify and remedy wear or faults before they lead to major failures C: They increase energy consumption D: They have no significant effect on longevity Answer: B Explanation: Routine maintenance detects early signs of wear or damage, allowing for timely repairs that extend equipment life and ensure safety. Question 98: What is a typical inspection procedure for electrical equipment? A: A visual examination followed by testing of key components for functionality and safety B: A solely aesthetic review C: An inspection conducted only during emergencies D: A process that ignores manufacturer guidelines Answer: A Explanation: Inspections involve both visual assessments and functional tests to verify that equipment operates safely and in accordance with codes and standards. Question 99: How does environmental exposure affect electrical devices? A: It only changes the device’s color B: It can accelerate wear, corrosion, and compromise insulation integrity C: It increases energy efficiency D: It has no effect if installed indoors Answer: B Explanation: Exposure to moisture, chemicals, and temperature extremes can degrade electrical components and insulation, impacting performance and safety. Question 100: Why is it important to follow national standards in equipment installation? A: They are suggestions that can be ignored B: They ensure a baseline of safety, reliability, and performance across installations C: They only apply to commercial projects D: They focus solely on aesthetic consistency Answer: B Explanation: National standards, such as those in the NEC, provide essential guidelines that help protect property and lives through safe and consistent installation practices.
