Electrician Exam

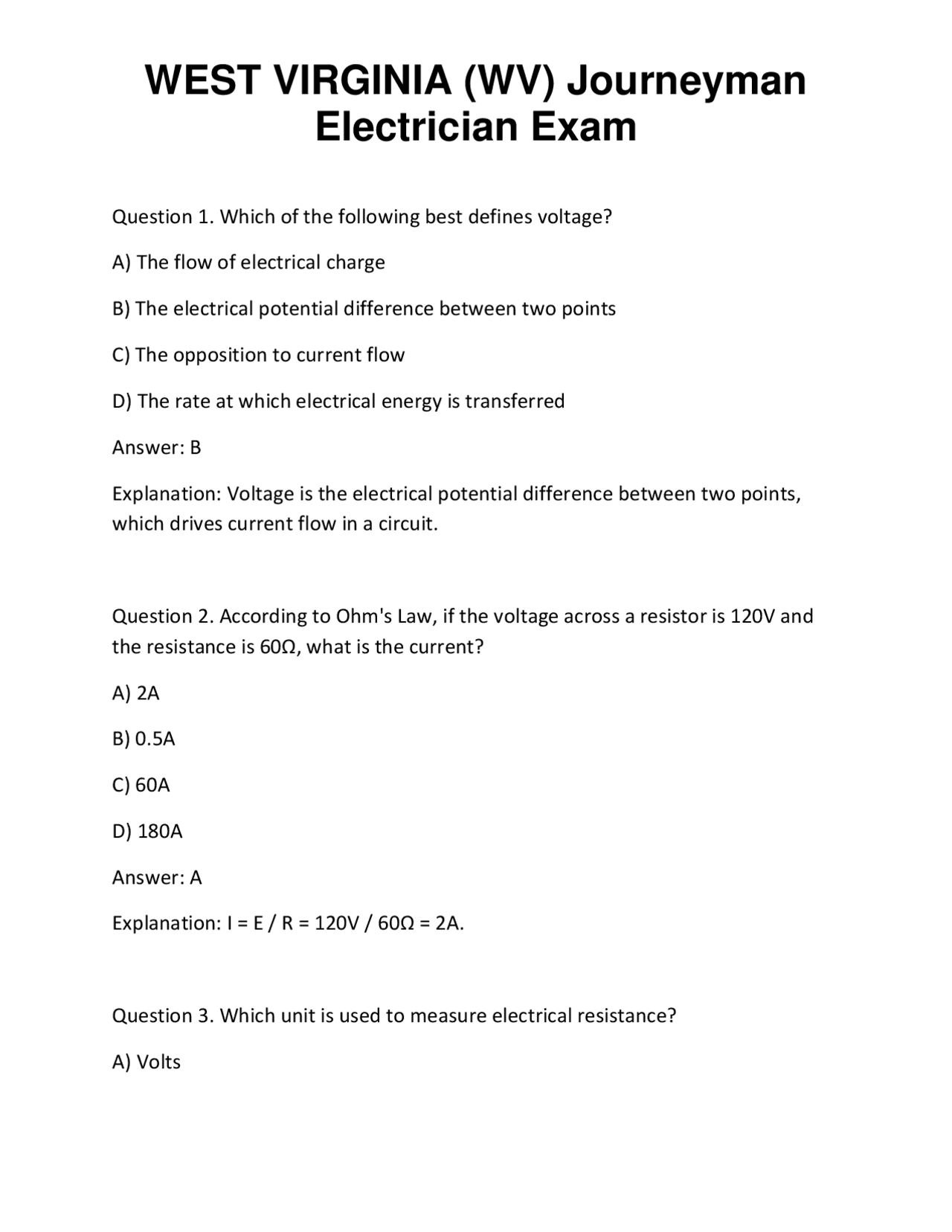

Question 1. Which of the following best defines voltage? A) The flow of electrical charge B) The electrical potential difference between two points C) The opposition to current flow D) The rate at which electrical energy is transferred Answer: B Explanation: Voltage is the electrical potential difference between two points, which drives current flow in a circuit. Question 2. According to Ohm's Law, if the voltage across a resistor is 120V and the resistance is 60Ω, what is the current? A) 2A B) 0.5A C) 60A D) 180A Answer: A Explanation: I = E / R = 120V / 60Ω = 2A. Question 3. Which unit is used to measure electrical resistance? A) Volts
Electrician Exam
B) Amperes C) Ohms D) Watts Answer: C Explanation: Resistance is measured in Ohms (Ω). Question 4. Power in an electrical circuit can be calculated using which of the following formulas? A) P = E / I B) P = E × I C) P = R / E D) P = I / R Answer: B Explanation: Power is calculated as P = E × I, representing voltage times current. Question 5. In a series circuit, which of the following is true about total resistance? A) It is the sum of individual resistances B) It is the reciprocal of the sum of resistances C) It remains constant regardless of the number of resistors
Electrician Exam
Explanation: For a purely resistive load, voltage and current are in phase, meaning 0° phase difference. Question 8. What is the primary difference between AC and DC circuits? A) AC current flows in one direction; DC alternates direction B) AC current periodically reverses; DC flows in one direction C) AC uses only transformers; DC does not D) AC is only used in homes; DC is only used in batteries Answer: B Explanation: AC (Alternating Current) periodically reverses direction; DC (Direct Current) flows in one constant direction. Question 9. Which device converts electrical energy into a magnetic field and is often used to control circuits? A) Resistor B) Inductor C) Relay D) Capacitor Answer: C Explanation: A relay uses an electromagnet to control a circuit by converting electrical energy into magnetic energy.
Electrician Exam
Question 10. The basic principle of electromagnetic induction involves which of the following? A) Voltage induced by a change in magnetic flux B) Resistance caused by magnetic fields C) Capacitance stored in a coil D) Resistance reduction in a magnetic field Answer: A Explanation: Electromagnetic induction occurs when a change in magnetic flux induces voltage in a conductor. Question 11. Which component stores electrical energy in an electric field? A) Inductor B) Capacitor C) Resistor D) Transformer Answer: B Explanation: A capacitor stores electrical energy in an electric field between its plates.
Electrician Exam
A) Steel-toed boots B) Insulated gloves and face shield C) Safety glasses only D) Hard hat only Answer: B Explanation: Insulated gloves and face shields protect against electrical shocks and arcs when working on live circuits. Question 15. What is the primary hazard associated with arc flash? A) Electromagnetic interference B) Sudden release of intense heat and light C) Electromagnetic radiation D) Mechanical injury from equipment movement Answer: B Explanation: Arc flash releases intense heat, light, and pressure, posing serious burn and injury risks. Question 16. According to NEC 2020, which term describes the accessible parts of equipment that can be reached without tools or difficulty? A) Accessible B) Readily accessible
Electrician Exam
C) Qualified D) Approved Answer: B Explanation: "Readily accessible" means parts can be reached quickly without tools or significant effort. Question 17. Which of the following is a requirement for service entrance conductors? A) They must be insulated with rubber only B) They must be sized based on calculated load C) They can be run without support if underground D) They do not require overcurrent protection Answer: B Explanation: Service entrance conductors must be sized according to calculated load and NEC requirements. Question 18. Which conductor material is most commonly used for residential wiring? A) Aluminum B) Copper C) Steel
Electrician Exam
Answer: C Explanation: PVC conduit is non-metallic, corrosion-resistant, and suitable for outdoor and harsh environments. Question 21. When installing NM cable (NM-B), the NEC requires it to be supported at intervals not exceeding: A) 12 inches B) 18 inches C) 24 inches D) 36 inches Answer: C Explanation: NM cable must be supported at intervals not exceeding 24 inches to prevent sagging and damage. Question 22. Which of the following is a typical application for a GFCI device? A) Lighting circuits in living rooms B) Outdoor receptacles and bathrooms C) Main service panels D) Overcurrent protection for motors Answer: B
Electrician Exam
Explanation: GFCIs are required in outdoor receptacles and bathrooms to protect against ground-faults. Question 23. When selecting overcurrent protection for a motor, the NEC recommends sizing the breaker at: A) 125% of the motor's full load current B) 100% of the motor's full load current C) 80% of the motor's full load current D) 150% of the motor's full load current Answer: A Explanation: The NEC recommends overcurrent devices be sized at 125% of the motor's full load current to accommodate starting currents. Question 24. Which of the following is a primary purpose of grounding in electrical systems? A) To prevent overloads B) To provide a low-resistance path to earth for fault currents C) To increase voltage levels D) To reduce power consumption Answer: B Explanation: Grounding provides a low-resistance path for fault currents, enhancing safety and equipment protection.
Electrician Exam
Question 27. Which of the following best describes the purpose of the NEC article 250? A) Wiring methods B) Overcurrent protection C) Grounding and bonding D) Lighting Answer: C Explanation: Article 250 of the NEC covers grounding and bonding requirements to ensure electrical safety. Question 28. Which device is used to interrupt a circuit when a ground-fault is detected? A) Circuit breaker B) GFCI C) Fuse D) Contactor Answer: B Explanation: GFCIs detect ground-faults and trip instantly to prevent shocks and electrical hazards. Question 29. Which wiring method uses flexible cables designed for easy movement and connection?
Electrician Exam
A) Rigid conduit B) Flexible cord or cable C) EMT conduit D) Underground wiring Answer: B Explanation: Flexible cords and cables are designed for applications requiring movement and flexibility. Question 30. The NEC requires that conductors in raceways be supported and secured at intervals not exceeding: A) 4.5 feet B) 6 feet C) 10 feet D) 12 feet Answer: B Explanation: Conductors must be supported and secured at intervals not exceeding 6 feet to prevent strain and damage. Question 31. Which material is most commonly used for overhead service conductors? A) Aluminum
Electrician Exam
D) Not mandated by the NEC Answer: B Explanation: AFCIs are required in bedrooms and living areas to detect arcing faults that can cause fires. Question 34. In a residential service, the main disconnect must be located: A) Inside the main panel B) At the service entrance or within 5 feet of it C) In the garage only D) Near the meter socket Answer: B Explanation: The NEC requires the main disconnect to be located at the service entrance or within 5 feet. Question 35. Which type of conduit is most suitable for underground installations where corrosion resistance is required? A) EMT B) RMC C) PVC D) IMC Answer: C
Electrician Exam
Explanation: PVC conduit is corrosion-resistant, making it suitable for underground installations. Question 36. When calculating the load for a dwelling, the NEC applies which demand factor for the first 300W of general lighting load? A) 100% B) 75% C) 100% of the first 300W, then 75% thereafter D) 50% Answer: C Explanation: The NEC applies 100% of the first 300W of general lighting load, with reduced percentages for additional loads. Question 37. Which of the following is a key requirement for installing a motor control circuit? A) Use of a separate disconnecting means B) No overcurrent protection needed C) Use of flexible wiring only D) No grounding required Answer: A Explanation: Motor control circuits must have a disconnecting means for safety and compliance.
Electrician Exam
A) To switch lighting circuits manually B) To control high-power motors remotely C) To protect against overcurrent D) To provide surge suppression Answer: B Explanation: Contactors are used to remotely control high-power loads like motors and large equipment. Question 41. Which article of the NEC covers requirements for hazardous (classified) locations? A) 250 B) 500 C) 600 D) 700 Answer: B Explanation: Article 500 details the electrical requirements for hazardous locations. Question 42. When sizing a transformer, the NEC recommends selecting a KVA rating based on: A) The maximum load expected
Electrician Exam
B) The sum of all connected loads C) The system voltage only D) The conductor size Answer: A Explanation: Transformer size is based on the maximum load demand to ensure proper operation. Question 43. Which of the following best describes the RMS value in an AC circuit? A) The maximum instantaneous value B) The effective value representing equivalent DC power C) The phase angle between voltage and current D) The peak voltage Answer: B Explanation: RMS (Root Mean Square) value is the effective value of AC voltage or current, representing equivalent DC power. Question 44. The main purpose of bonding in electrical systems is to: A) Provide a low-resistance path for fault current B) Increase system voltage C) Reduce equipment size
