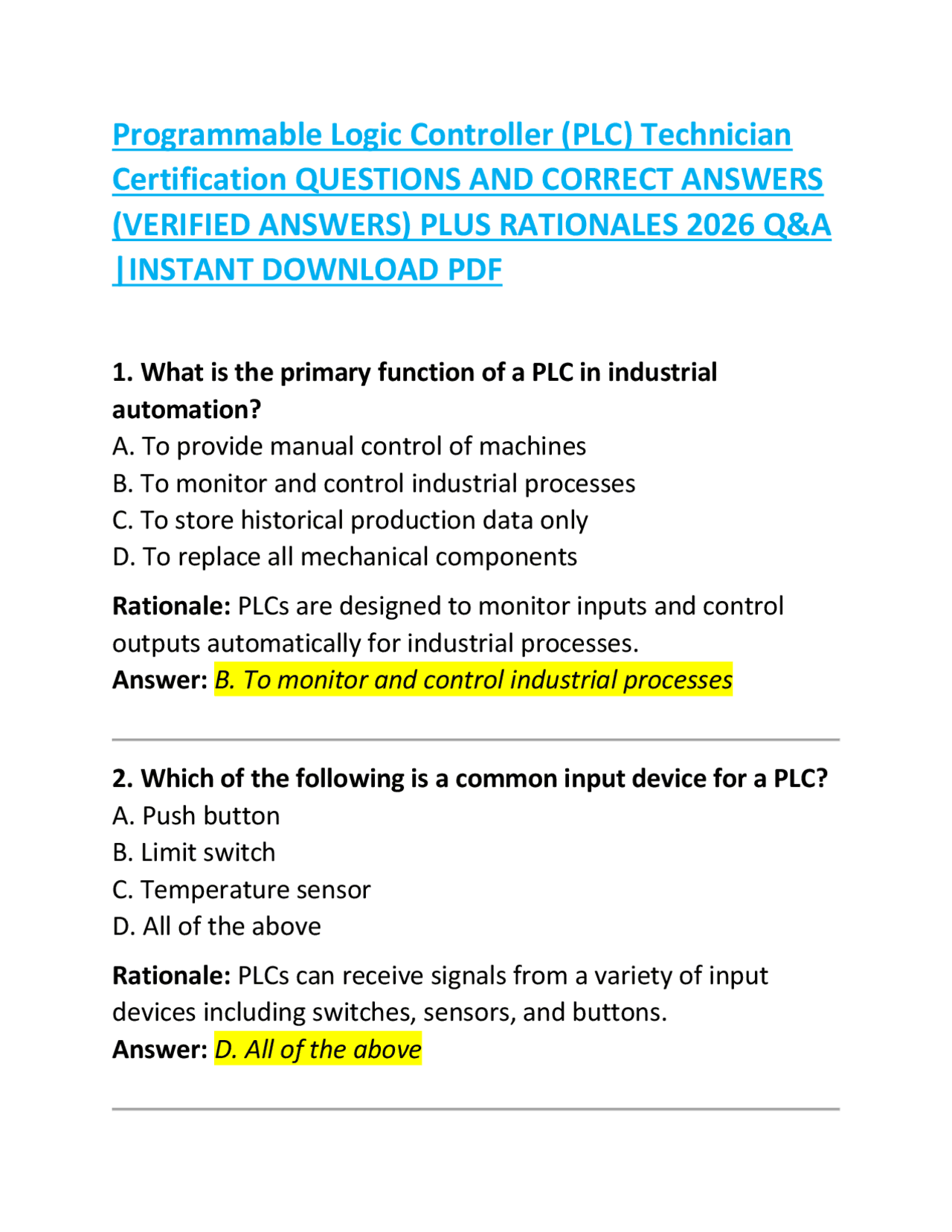

Programmable Logic Controller (PLC) Technician
Certification QUESTIONS AND CORRECT ANSWERS
(VERIFIED ANSWERS) PLUS RATIONALES 2026 Q&A
|INSTANT DOWNLOAD PDF
1. What is the primary function of a PLC in industrial automation? A. To provide manual control of machines B. To monitor and control industrial processes C. To store historical production data only D. To replace all mechanical components Rationale: PLCs are designed to monitor inputs and control outputs automatically for industrial processes. Answer: B. To monitor and control industrial processes 2. Which of the following is a common input device for a PLC? A. Push button B. Limit switch C. Temperature sensor D. All of the above Rationale: PLCs can receive signals from a variety of input devices including switches, sensors, and buttons. Answer: D. All of the above
3. Which of the following is considered a PLC output device? A. Indicator lamp B. Motor starter C. Solenoid valve D. All of the above Rationale: PLC outputs can control devices like lamps, motors, and valves based on program logic. Answer: D. All of the above 4. What type of programming language is most commonly used in PLCs? A. Ladder Logic B. Python C. C++ D. HTML Rationale: Ladder Logic is the industry-standard PLC programming language resembling electrical relay diagrams. Answer: A. Ladder Logic 5. Which of these is NOT a typical PLC scan operation step? A. Read inputs B. Execute program logic C. Update outputs D. Manufacture hardware
8. What is the purpose of a PLC’s scan cycle? A. To recharge the PLC battery B. To continuously read inputs, process logic, and update outputs C. To store production history D. To reset all devices Rationale: The scan cycle ensures the PLC continuously monitors and reacts to changing inputs. Answer: B. To continuously read inputs, process logic, and update outputs 9. Which of the following is a safety feature commonly implemented in PLCs? A. Emergency stop B. Overload protection C. Fault detection D. All of the above Rationale: PLCs often integrate multiple safety features to prevent equipment damage and ensure operator safety. Answer: D. All of the above 10. What is a “ladder rung” in PLC programming? A. A physical component of the PLC B. A line of logic representing a condition and its corresponding output
C. A type of sensor D. A memory module Rationale: Ladder rungs represent individual logic conditions and their results in a PLC program. Answer: B. A line of logic representing a condition and its corresponding output
11. Which of the following PLC types is used for small-scale automation? A. Modular PLC B. Compact PLC C. Rack-mounted PLC D. Distributed PLC Rationale: Compact PLCs are suitable for small applications with fewer I/O points. Answer: B. Compact PLC 12. What does “scan time” in a PLC refer to? A. Time to install the PLC B. Time taken to read inputs, execute program, and update outputs C. Time required to manufacture PLC hardware D. Time to power on the PLC Rationale: Scan time measures how quickly a PLC completes one full cycle of operation.
15. Which type of input does a PLC interpret as a digital signal? A. Continuous analog voltage B. On/Off switch state C. Temperature reading D. Pressure reading Rationale: Digital inputs represent binary states like ON or OFF, unlike analog signals. Answer: B. On/Off switch state 16. What is the function of an analog input module in a PLC? A. Convert digital signals to mechanical motion B. Convert real-world analog signals to digital values for the PLC C. Provide power to output devices D. Execute program logic Rationale: Analog input modules allow PLCs to read signals such as temperature, pressure, or flow. Answer: B. Convert real-world analog signals to digital values for the PLC 17. What is a “retentive memory” in PLCs? A. Memory that loses all data when power is removed B. Memory that retains data even when power is lost C. Memory used only for temporary calculations D. Memory used for communication
Rationale: Retentive memory stores values that must persist across power cycles. Answer: B. Memory that retains data even when power is lost
18. Which PLC programming software feature allows testing a program without hardware? A. Simulation B. Compilation C. Debugging D. Backup Rationale: Simulation allows programmers to test PLC logic virtually before deploying it. Answer: A. Simulation 19. Which of the following is a common troubleshooting step for a PLC system? A. Checking input signals B. Inspecting output devices C. Reviewing program logic D. All of the above Rationale: Effective troubleshooting involves checking inputs, outputs, and program logic systematically. Answer: D. All of the above
Rationale: Ladder logic scan describes the PLC reading each rung in order to evaluate and execute it. Answer: B. The sequential reading and execution of program rungs
23. In a PLC, what is a “timer” used for? A. Measuring elapsed time and controlling actions after delay B. Storing input values C. Providing continuous power D. None of the above Rationale: Timers delay or schedule actions in PLC programs. Answer: A. Measuring elapsed time and controlling actions after delay 24. What is a “counter” in PLC programming? A. A device to count the number of input events B. A memory module C. A timer D. A communication protocol Rationale: Counters track how many times a certain event occurs, triggering outputs when a preset value is reached. Answer: A. A device to count the number of input events
25. Which of the following describes an NPN sensor used in PLC inputs? A. Sourcing current to the input module B. Sinking current to the input module C. It acts as an analog sensor D. None of the above Rationale: NPN sensors “sink” current from the input module to ground when active. Answer: B. Sinking current to the input module 26. What is the primary role of a PLC communication module? A. Provide power to sensors B. Enable the PLC to communicate with other devices or networks C. Store program memory D. Control motor speed Rationale: Communication modules allow PLCs to interface with other PLCs, HMIs, and SCADA systems. Answer: B. Enable the PLC to communicate with other devices or networks 27. Which PLC programming element is used to prevent multiple outputs from energizing simultaneously? A. Latch B. Interlock
30. Which PLC programming function is used to store a value permanently even after power loss? A. Timer B. Latch/Set-Reset C. Counter D. Retentive memory instruction Rationale: Retentive instructions or memory allow values to persist across power cycles. Answer: D. Retentive memory instruction 31. Which type of PLC is best suited for large, complex industrial processes? A. Compact PLC B. Modular PLC C. Micro PLC D. Standalone PLC Rationale: Modular PLCs allow expansion with multiple I/O modules and are ideal for complex systems. Answer: B. Modular PLC 32. What does a “fail-safe” PLC design ensure? A. The PLC never stops scanning B. The system enters a safe state during faults
C. The program runs faster D. The outputs are always energized Rationale: Fail-safe design prevents equipment damage or accidents when errors occur. Answer: B. The system enters a safe state during faults
33. Which PLC instruction is used to execute different actions based on conditions? A. Timer B. Compare C. Conditional branch (IF/ELSE or MCR) D. Counter Rationale: Conditional branching allows logic to choose actions based on input or memory states. Answer: C. Conditional branch (IF/ELSE or MCR) 34. What does the term “scan rate” affect in a PLC system? A. System response speed to input changes B. PLC power consumption C. Physical size of the PLC D. Number of modules Rationale: Faster scan rates allow the PLC to detect and respond to changes more quickly. Answer: A. System response speed to input changes
C. The input voltage is too high D. The program was not compiled Rationale: Scan cycle errors occur when the PLC cannot complete its scan in the allotted time, affecting real-time control. Answer: A. The PLC fails to read inputs or update outputs within expected time
38. What does “PID” stand for in PLC process control? A. Proportional-Integral-Derivative B. Process Input Device C. Programmable Input Device D. Pulse Input Delay Rationale: PID controllers are used for precise control of process variables like temperature, pressure, or flow. Answer: A. Proportional-Integral-Derivative 39. Which type of PLC input module would you use for a 4– 20 mA signal? A. Digital input B. Analog input C. Relay input D. Counter input
Rationale: 4 – 20 mA signals are continuous analog values requiring an analog input module. Answer: B. Analog input
40. Which PLC programming element allows storing a value temporarily for use in calculations? A. Timer B. Register/Memory location C. Counter D. Latch Rationale: Registers or memory locations hold values temporarily for use in calculations and logic operations. Answer: B. Register/Memory location 41. Which of the following best describes a “latching relay” function in a PLC? A. It activates an output only while the input is ON B. It maintains an output state even after the input turns OFF C. It counts the number of input pulses D. It delays the output activation Rationale: Latching relays retain their state until reset, independent of the input signal. Answer: B. It maintains an output state even after the input turns OFF
Rationale: IEC 61131-3 defines PLC programming standards, including safety functions. Answer: A. IEC 61131- 3
45. Which device allows a PLC to control a motor with variable speed? A. Relay B. Variable Frequency Drive (VFD) C. Push button D. Limit switch Rationale: VFDs allow PLCs to adjust motor speed based on process requirements. Answer: B. Variable Frequency Drive (VFD) 46. What type of PLC instruction is used to compare two values? A. Timer instruction B. Compare instruction C. Counter instruction D. Latch instruction Rationale: Compare instructions evaluate conditions (equal, greater than, less than) for decision-making. Answer: B. Compare instruction
