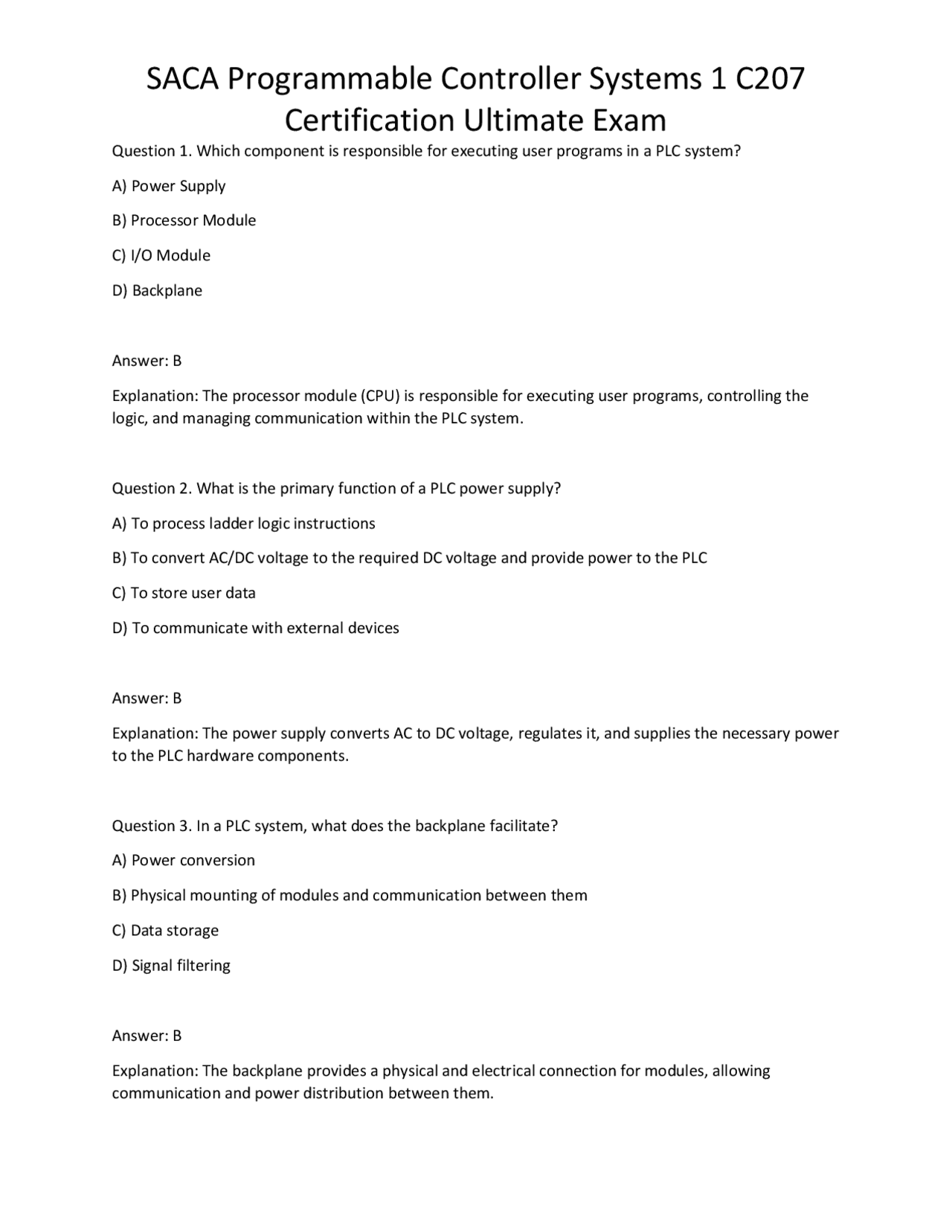

Question 1. Which component is responsible for executing user programs in a PLC system? A) Power Supply B) Processor Module C) I/O Module D) Backplane Answer: B Explanation: The processor module (CPU) is responsible for executing user programs, controlling the logic, and managing communication within the PLC system. Question 2. What is the primary function of a PLC power supply? A) To process ladder logic instructions B) To convert AC/DC voltage to the required DC voltage and provide power to the PLC C) To store user data D) To communicate with external devices Answer: B Explanation: The power supply converts AC to DC voltage, regulates it, and supplies the necessary power to the PLC hardware components. Question 3. In a PLC system, what does the backplane facilitate? A) Power conversion B) Physical mounting of modules and communication between them C) Data storage D) Signal filtering Answer: B Explanation: The backplane provides a physical and electrical connection for modules, allowing communication and power distribution between them.
Certification Ultimate Exam
Question 4. Which type of input module is used to interface with a proximity sensor? A) Discrete Input Module B) Analog Input Module C) Communication Module D) Power Supply Module Answer: A Explanation: Discrete input modules handle digital signals from devices like proximity sensors, switches, and pushbuttons. Question 5. When using sinking input circuits, the device is connected to which voltage? A) To the positive supply voltage B) To ground (0V) C) To the relay coil D) To the neutral line Answer: B Explanation: In sinking circuits, the device sinks current to ground when activated, completing the circuit to the negative terminal. Question 6. Which output device is commonly controlled by a PLC discrete output module? A) Thermocouple B) Solenoid valve C) Photoelectric sensor D) Signal generator Answer: B
Certification Ultimate Exam
Answer: B Explanation: The watchdog timer monitors the PLC processor for stalls or delays, ensuring reliable operation and system safety. Question 10. Which type of data organization in a PLC stores the current status of inputs and outputs? A) Data files B) Input/Output images C) Alarm logs D) Program memory Answer: B Explanation: Input and output images are memory areas that store the current status of all inputs and outputs during the scan cycle. Question 11. In PLC memory addressing, what is the difference between direct and symbolic addressing? A) Direct uses physical addresses; symbolic uses tags or names for easier reference B) Direct is faster; symbolic is slower C) Direct is only for outputs; symbolic is only for inputs D) There is no difference Answer: A Explanation: Direct addressing refers to specific memory addresses, while symbolic addressing uses tags or variable names for better readability. Question 12. Which symbol in ladder logic represents an Normally Open (NO) contact? A) XIC (Examine If Closed) B) XIO (Examine If Open) C) OTE (Output Energize) D) OTU (Output Unlatch)
Certification Ultimate Exam
Answer: A Explanation: XIC (Examine If Closed) represents a normally open contact that closes when the associated bit or input is true. Question 13. What does the Output Energize (OTE) instruction do in ladder logic? A) Reads input status B) Sets a bit or output coil to true (energized) C) Resets a timer D) Clears a memory location Answer: B Explanation: OTE turns on (energizes) an output or internal bit when its rung conditions are true. Question 14. Which instruction is used to latch an output in ladder logic? A) OTU (Unlatch) B) OTL (Output Latch) C) XIC (Examine If Closed) D) TON (Timer On-Delay) Answer: B Explanation: OTL (Output Latch) holds the output in an energized state until explicitly unlatched, maintaining the state even if rung conditions change. Question 15. How do internal bits function in PLC programming? A) They are used for physical outputs only B) They store temporary or internal logic states independent of physical I/O C) They are used to store data externally D) They control power supply
Certification Ultimate Exam
C) DN (Done) D) OV (Overflow) Answer: C Explanation: The DN (Done) bit is set when the timer has completed its preset time. Question 19. What distinguishes a retentive timer (RTO) from a non-retentive timer? A) RTO can accumulate time even if rung conditions go false; non-retentive resets when conditions go false B) RTO is faster than non-retentive timers C) RTO is used only for counters D) RTO cannot be reset Answer: A Explanation: RTO retains accumulated time across cycles until explicitly reset, unlike non-retentive timers which reset when conditions go false. Question 20. Which counter instruction counts upward in a PLC? A) CTD (Count Down) B) CTU (Count Up) C) RES (Reset) D) TON (Timer On-Delay) Answer: B Explanation: CTU increments its count each time the rung condition transitions from false to true. Question 21. What does the Counter Done (DN) bit signify? A) The count has reached the preset value B) The counter is disabled
Certification Ultimate Exam
C) The counter is counting downward D) An error has occurred Answer: A Explanation: The DN bit indicates that the counter has achieved its target count. Question 22. How is a Counter Reset (RES) instruction used? A) To initialize or reset the counter's current count to zero B) To decrement the count by one C) To set the count to maximum value D) To start counting Answer: A Explanation: RES clears the counter's current count, resetting it to zero or its initial state. Question 23. Which communication protocol is commonly used for PLC-to-PLC Ethernet communication? A) Modbus RTU B) Ethernet/IP C) Profibus D) DeviceNet Answer: B Explanation: Ethernet/IP is a widely used industrial Ethernet protocol for PLC communication. Question 24. What is a key advantage of online programming of PLCs? A) No risk of system disruption B) Ability to modify logic without stopping the process (with caution)
Certification Ultimate Exam
B) To prevent electrical noise and ensure safety C) To increase input voltage levels D) To facilitate communication protocols Answer: B Explanation: Proper grounding reduces electromagnetic interference and provides a safe reference for electrical signals. Question 28. Which PLC module type is used to interface with analog signals? A) Discrete Input Module B) Analog Input Module C) Communication Module D) Power Supply Module Answer: B Explanation: Analog input modules handle continuous signals such as temperature, pressure, or flow sensors. Question 29. What does the term "sourcing" refer to in PLC input circuits? A) The device provides current to the input device B) The device sinks current from the input device C) The device supplies power directly to the output D) The device sources external power only Answer: A Explanation: Sourcing circuits supply current to the input device, which then completes the circuit to ground. Question 30. Which type of I/O module provides the interface for digital signals?
Certification Ultimate Exam
A) Discrete I/O module B) Analog I/O module C) Communication module D) Power supply module Answer: A Explanation: Discrete I/O modules are designed for digital signals, either ON/OFF states. Question 31. What is the primary purpose of a PLC backplane? A) To provide physical support and electrical connections between modules B) To store program data C) To convert signals from analog to digital D) To regulate power supply Answer: A Explanation: The backplane physically supports modules and provides the communication pathways among them. Question 32. Which of the following is an example of a relay logic symbol in ladder diagrams? A) Normally Closed contact (XIC) B) Timer coil (TON) C) Output coil (OTE) D) All of the above Answer: D Explanation: All listed options are relay logic symbols used in ladder diagrams to represent various control elements. Question 33. What does the Examine If Open (XIO) instruction do?
Certification Ultimate Exam
A) Non-retentive timer (TON) B) Retentive timer (RTO) C) Off-Delay timer (TOF) D) On-Delay timer (TON) Answer: B Explanation: RTO retains accumulated time across cycles until explicitly reset, regardless of rung conditions. Question 37. What is the typical function of a Counter Up (CTU) in a manufacturing process? A) To count items moving past a sensor B) To reset system faults C) To delay process start D) To turn on alarms Answer: A Explanation: CTU increments its count with each occurrence, such as counting parts passing a sensor. Question 38. Which bit indicates that a counter has reached its preset count? A) DN (Done) B) OV (Overflow) C) UN (Underflow) D) EN (Enable) Answer: A Explanation: The DN bit signifies that the counter has achieved the target count. Question 39. In troubleshooting, what is the significance of LED indicators on PLC modules?
Certification Ultimate Exam
A) They show real-time status of power, communication, and faults B) They store program data C) They replace the need for software diagnostics D) They automatically fix errors Answer: A Explanation: LEDs provide visual cues about system health, power status, and communication errors for quick diagnostics. Question 40. Which protocol is primarily used for serial communication between PLC and peripherals? A) Ethernet/IP B) Modbus RTU C) PROFIBUS DP D) EtherCAT Answer: B Explanation: Modbus RTU is a common serial protocol for communication with peripherals over RS- 485 or RS-232. Question 41. When performing offline programming, what is a key limitation? A) Cannot test real-time interactions with live I/O B) Cannot access program files C) Cannot modify logic D) Cannot download programs to the PLC Answer: A Explanation: Offline programming doesn't interact with real-time hardware, so testing real-time responses requires online mode.
Certification Ultimate Exam
Question 45. What is the main purpose of implementing emergency stop (E-Stop) in a PLC-controlled system? A) To immediately shut down machinery for safety B) To reset the program memory C) To restart the process automatically D) To calibrate sensors Answer: A Explanation: An E-Stop provides a hardwired safety mechanism to immediately halt machinery in emergencies. Question 46. Which of the following is NOT a typical component of a PLC system? A) Processor module B) Power supply C) External hard drive D) I/O modules Answer: C Explanation: External hard drives are not standard components of PLC systems; they are used for data storage outside PLCs. Question 47. How does electromagnetic interference (EMI) affect PLC systems? A) Causes false signals or communication errors B) Increases processing speed C) Improves signal integrity D) Has no effect Answer: A
Certification Ultimate Exam
Explanation: EMI can induce noise in signals, leading to erroneous inputs or communication failures. Question 48. Which instruction would you use to reset a timer or counter in ladder logic? A) RES (Reset) B) TON (Timer On-Delay) C) CTU (Counter Up) D) OTE (Output Energize) Answer: A Explanation: RES is used to reset timers or counters to their initial state. Question 49. When configuring a PLC Ethernet/IP communication, what must be correctly set? A) IP addresses and subnet masks B) Baud rate and parity C) Data bits and stop bits D) Voltage levels Answer: A Explanation: Proper IP addressing and subnet configuration are essential for Ethernet/IP communication. Question 50. What does the "search and cross-reference" tool in PLC programming software assist with? A) Finding logic errors and tracing signal paths B) Uploading programs faster C) Increasing processor speed D) Generating ladder logic automatically Answer: A
Certification Ultimate Exam
Question 54. What is the primary function of the "Force" feature in PLC programming? A) To manually override input/output states for testing B) To automatically diagnose faults C) To reset the system D) To compile the program Answer: A Explanation: The Force feature allows operators to manually set inputs or outputs to simulate conditions or test logic. Question 55. Why is proper wiring and terminal connection critical in PLC systems? A) To ensure signal integrity and prevent faults B) To increase processing speed C) To reduce program complexity D) To enable online programming Answer: A Explanation: Correct wiring prevents noise, false signals, and hardware damage, ensuring reliable operation. Question 56. Which instruction is used in ladder logic to create a logical OR condition? A) Parallel contacts B) Series contacts C) Timer coil D) Counter coil Answer: A
Certification Ultimate Exam
Explanation: Parallel contacts in ladder logic represent an OR condition, where either contact being true will energize the rung. Question 57. What type of signal does an analog input module process? A) Continuous, variable signals like voltage or current B) Digital ON/OFF signals C) Serial data streams D) Power supply signals Answer: A Explanation: Analog input modules handle variable signals such as temperature, pressure, or flow rate. Question 58. In a PLC system, what is the significance of the "scan cycle"? A) It is the process by which the PLC reads inputs, executes logic, and updates outputs repeatedly B) It is a one-time initialization process C) It only occurs during power-up D) It is a diagnostic test run Answer: A Explanation: The scan cycle is continuous and essential for real-time control, repeating the sequence of reading inputs, processing logic, and updating outputs. Question 59. Which of the following is a common method for troubleshooting PLC hardware issues? A) Checking LED status indicators and wiring connections B) Running the program in a simulator only C) Ignoring communication errors D) Replacing all modules periodically Answer: A
