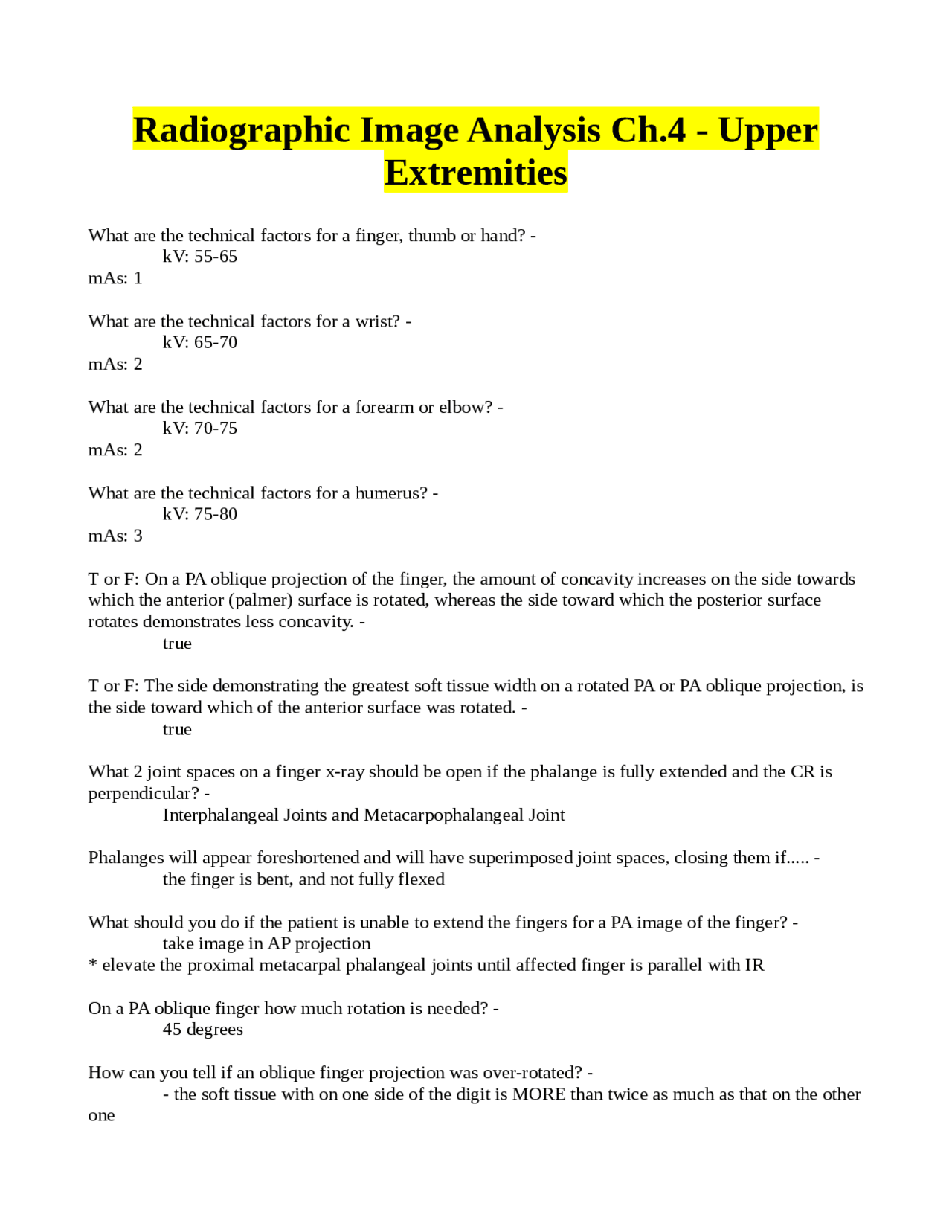

Radiographic Image Analysis Ch.4 - Upper
Extremities
What are the technical factors for a finger, thumb or hand? -
kV: 55-65
mAs: 1
What are the technical factors for a wrist? -
kV: 65-70
mAs: 2
What are the technical factors for a forearm or elbow? -
kV: 70-75
mAs: 2
What are the technical factors for a humerus? -
kV: 75-80
mAs: 3
T or F: On a PA oblique projection of the finger, the amount of concavity increases on the side towards
which the anterior (palmer) surface is rotated, whereas the side toward which the posterior surface
rotates demonstrates less concavity. -
true
T or F: The side demonstrating the greatest soft tissue width on a rotated PA or PA oblique projection, is
the side toward which of the anterior surface was rotated. -
true
What 2 joint spaces on a finger x-ray should be open if the phalange is fully extended and the CR is
perpendicular? -
Interphalangeal Joints and Metacarpophalangeal Joint
Phalanges will appear foreshortened and will have superimposed joint spaces, closing them if..... -
the finger is bent, and not fully flexed
What should you do if the patient is unable to extend the fingers for a PA image of the finger? -
take image in AP projection
* elevate the proximal metacarpal phalangeal joints until affected finger is parallel with IR
On a PA oblique finger how much rotation is needed? -
45 degrees
How can you tell if an oblique finger projection was over-rotated? -
- the soft tissue with on one side of the digit is MORE than twice as much as that on the other
one
