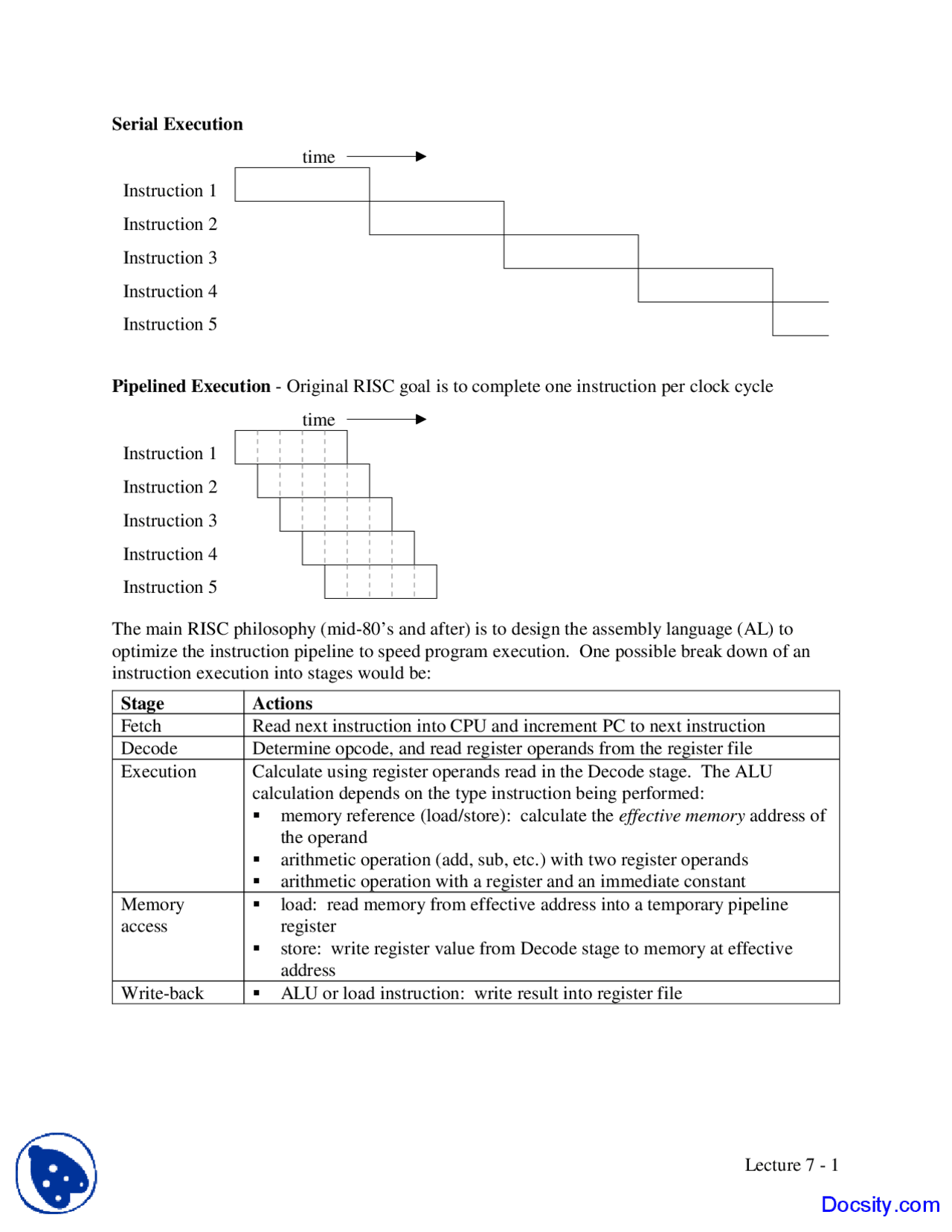

Serial Execution
Instruction 2 Instruction 3
Instruction 4 Instruction 5
Instruction 1
time
Pipelined Execution - Original RISC goal is to complete one instruction per clock cycle
Instruction 2 Instruction 3
Instruction 4 Instruction 5
Instruction 1
time
The main RISC philosophy (mid-80âs and after) is to design the assembly language (AL) to optimize the instruction pipeline to speed program execution. One possible break down of an instruction execution into stages would be:
Write-back ALU or load instruction: write result into register file
load: read memory from effective address into a temporary pipeline register store: write register value from Decode stage to memory at effective address
Memory access
Calculate using register operands read in the Decode stage. The ALU calculation depends on the type instruction being performed: memory reference (load/store): calculate the effective memory address of the operand arithmetic operation (add, sub, etc.) with two register operands arithmetic operation with a register and an immediate constant
Execution
Decode Determine opcode, and read register operands from the register file
Fetch Read next instruction into CPU and increment PC to next instruction
Stage Actions
Lecture 7 - 1
Docsity.com
Advanced Architectures - multiple instructions completed per clock cycle
- superpipelined (e.g., MIPS R4000)- split each stage into substages to create finer-grain stages
Instruction 2 Instruction 3
Instruction 4 Instruction 5
Instruction 1
time
- superscalar (e.g., Intel Pentium, AMD Athlon)- multiple instructions in the same stage of execution in duplicate pipeline hardware
Instruction 2 Instruction 3
Instruction 4 Instruction 5 Instruction 6
Instruction 1
time
Lecture 7 - 2
Docsity.com
- very-long-instruction-word, VLIW (e.g., Intel Itanium) - compiler encodes multiple operations into a long instruction word so hardware can schedule these operations at run-time on multiple functional units without analysis
Intel Itanium Interesting Features: Uses explicit parallel instruction computing (EPIC) from very-long-instruction-word (VLIW) architecture. In EPIC the compiler encodes multiple operations into a long instruction word so hardware can schedule these operations at run-time on multiple functional units without analysis, called static multiple-issue. On the Itanium, a three instruction bundle is read.
template field maps instruction slots to execution types (integer ALU, non-ALU integer, memory, floating-point, branch, and extended)
6 integer 11 1.5 GHz 221 810 1427 4 memory 3 branch 2 FP
Itanium 2 6
4 integer 9 0.8 GHz 25 379 701 2 memory 3 branch 2 FP
Itanium 6
SPEC
fp
SPEC
int
Transistors (millions)
Max. clock rate
Max. ops. per clock
Functional units
Max. instr. issue per clock
Processor
Provides hardware support for efficient procedure calls and returns -- large number of registers (128 general-purpose and 128 fl. pt. registers) with overlapping register windows
Itanium: first 32 registers for global variables and remaining 96 registers for local variables and parameters.
Lecture 7 - 4
Docsity.com
machine parallelism - the ability of the processor to take advantage of instruction-level parallelism. This is limited by: number of instructions that can be fetched and executed at the same time (# of parallel pipelines) ability of the processor to find independent instructions (the processor needs to look ahead of the current point of execution to locate independent instructions that can be brought into the pipeline and executed without hazards)
Limitations of superscalar - how much âinstruction-level parallelismâ (ILP) exists in the program. Independent instructions in the program can be executed in parallel, but not all can be.
true data dependency: SUB R1, R2, R3 ; R1 bR2 - R ADD R4, R1, R1 ; R4 bR1 + R Cannot be avoided by rearranging code
procedural dependency - cannot execute instructions after a branch until the branch executes
resource conflict / structural hazard - several instructions need same piece of hardware at the same time (e.g., memory, caches, buses, register file, functional units)
Three types of orderings:
- order in which instructions are fetched
- order in which instructions are executed (called instruction issuing )
- order in which instructions update registers and memory
The more sophisticated the processor, the less it is bound by the strict relationship between these orderings. The only real constraint is that the results match that of sequential execution.
Some Categories: a) In-order issue with In-order completion.
b) In-order issue with out-of-order completion
Problem: Output dependency / WAW dependency (Write-After-Write)
I1: R3 bR3 op R I2: R4 bR3 + 1 I3: R3 bR5 + 1 I4: R7 bR3 op R4 ; R3 value generated from I3 must be used
Lecture 7 - 5
Docsity.com
Example using Tomasuloâs Algorithm
6 5 4 3 2 1
Load Buffer
From Memory From Instruction Unit
Busy Tag^ Data F F F F F F
FP op.s queue
FP Registers
FP Adders
8
9
10
11
12
13
FP Multiplers
Store Buffer
To All Tags
Tag Data Tag Data Tag Data Tag Data
Common Data Bus
To Memory
Tag Data
LD F6, 34 (R2)
LD F2, 45 (R3)
MULTD F0,F2,F
SUBD F8, F6, F
DIVD F10,F0,F
ADDD F6, F8, F
(front)
(rear)
Reservation Stations
As instructions are issued, register specifiers for pending operands are renamed to names of reservation stations. When both operands are available and a functional unit is available, the instruction in the reservation station can be executed. When the result is available, it is put on the CDB with the reservation that produced it. All reservation stations waiting to use that result will update their operands simultaneously.
Operation:
Busy - indicates if current value in reg. 0 - available in reg. 1 - not avail. Tag - reservation that will supply register value.
7
Lecture 7 - 7
Docsity.com
Download and Read Appendix I of the Textbook from Stallings web-site:
Tomasulo's Algorithm is an example of dynamic scheduling. In dynamic scheduling the stages of the pipeline are split into three stages to allow for out-of-order execution:
- Issue - decodes instructions and checks for structural hazards. Instructions are issued in-order through a FIFO queue to maintain correct data flow. If there is not a free reservation station of the appropriate type, the instruction queue stalls.
- Read operands - waits until no data hazards, then read operands
- Write result - send the result to the CDB to be grabbed by any waiting register or reservation stations All instructions pass through the issue stage in order, but instructions stalling on operands can be bypassed by later instructions whose operands are available.
RAW hazards are handled by delaying instructions in reservation stations until all their operands are available.
WAR and WAW hazards are handled by renaming registers in instructions by reservation station numbers.
Load and Store instructions to different memory addresses can be done in any order, but the relative order of a Store and accesses to the same memory location must be maintained. One way to perform dynamic disambiguation of memory references, is to perform effective address calculations of Loads and Stores in program order in the issue stage. Before issuing a Load from the instruction queue, make sure that its effective address does not match the address of any Store instruction in the Store buffers. If there is a match, stall the instruction queue until, the corresponding Store completes. (Alternatively, the Store could forward the value to the corresponding Load ) Before issuing a Store from the instruction queue, make sure that its effective address does not match the address of any Store or Load instructions in the Store or Load buffers.
Lecture 7 - 8
Docsity.com
Branch prediction - usually used instead of delayed branching since multiple instructions need to execute in the delay slot causing problems related to instruction dependencies
Committing / Retiring Step - needed since instructions may complete out-of-order
Using branch prediction and speculative execution means some instructionsâ results need to be thrown out
Results held is some temporary storage and stores performed in order of sequential execution.
Lecture 7 - 10
Docsity.com
Pentium 4 Processor
^
80486 - CISC
^
Pentium
- some superscalar components- two separate integer execution units
^
Pentium Pro â Full blown superscalar ^
Subsequent models refine & enhance superscalar design
Lecture 7 - 11
Docsity.com
b) Trace cache (L1 cache) stores recently executed mico-opâsBTB uses dynamic branch prediction (a BHT) (4-bits used viaYehâs algorithm).
Static prediction used if not in BTB.
a) Fetch 64 bytes of Pentium 4 (CISC) instruction(s) from L2cache and decode instruction boundaries and translates Pentium4 (CISC) intructions into micro-opâs (RISC)
Lecture 7 - 13
Docsity.com
d) Drive delivers decoded instructions from the trace cache tothe rename/allocate module.
c) Pulls micro-ops from cache (or ROM microprogrammedcontrol unit for very complex instructions) in program sequenceorder
Lecture 7 - 14
Docsity.com
Up to 6 micro-ops can be dispatched per cycle.
Scheduler retrieves micro-ops from queues fordispatching/issuing for execution if all operands and executionunit are available.
Lecture 7 - 16
Docsity.com
Compute flags - N, Z, C, V to use an input to the branches
Execution units retrieve necessary integer and floating pointregisters
Lecture 7 - 17
