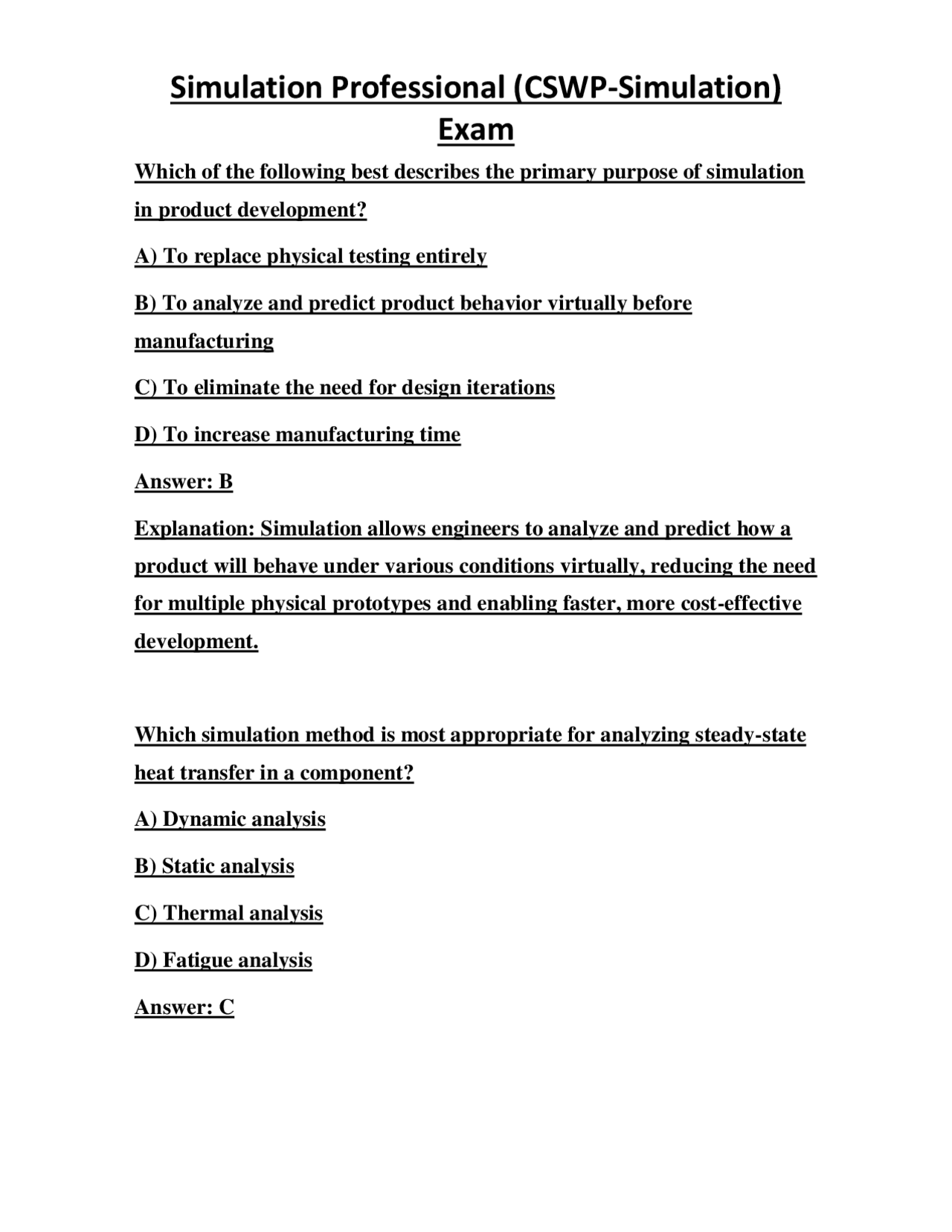

Exam
Which of the following best describes the primary purpose of simulation in product development? A) To replace physical testing entirely B) To analyze and predict product behavior virtually before manufacturing C) To eliminate the need for design iterations D) To increase manufacturing time Answer: B Explanation: Simulation allows engineers to analyze and predict how a product will behave under various conditions virtually, reducing the need for multiple physical prototypes and enabling faster, more cost-effective development. Which simulation method is most appropriate for analyzing steady-state heat transfer in a component? A) Dynamic analysis B) Static analysis C) Thermal analysis D) Fatigue analysis Answer: C
Exam
Explanation: Thermal analysis is used to evaluate steady-state or transient heat transfer in components, considering conduction, convection, and radiation effects. What is a key advantage of using Finite Element Analysis (FEA)? A) It simplifies complex geometries into manageable equations for stress and strain analysis B) It only applies to fluid flow problems C) It replaces the need for any physical testing D) It is only used for thermal simulations Answer: A Explanation: FEA discretizes complex geometries into finite elements, enabling detailed analysis of stress, strain, and other behaviors in structures under various loads. Which software tool is most commonly integrated with CAD for performing structural simulations? A) MATLAB B) SolidWorks Simulation C) ANSYS Fluent D) AutoCAD
Exam
Explanation: Simplifying the model by removing features that are irrelevant to the analysis helps improve mesh quality and reduces computational effort without compromising accuracy. Which parameter is most critical when setting the mesh density in a finite element analysis? A) The color of the mesh B) The number of nodes and elements C) The software version D) The material properties Answer: B Explanation: Mesh density affects the number of nodes and elements, which directly influences the accuracy and computational cost of the simulation; finer meshes typically yield more precise results. Which study type is most suitable for evaluating the deformation of a structure under a static load? A) Dynamic analysis B) Static analysis C) Fatigue analysis D) CFD analysis
Exam
Explanation: Static analysis evaluates the behavior of structures under steady, unchanging loads, including displacements and stress distributions. Which of the following best describes thermal analysis in SolidWorks Simulation? A) Analyzing how structures deform under dynamic loads B) Evaluating how heat is transferred and affects temperature distribution within a model C) Calculating the fatigue life of a component D) Simulating fluid flow around a structure Answer: B Explanation: Thermal analysis focuses on heat transfer mechanisms and resulting temperature distributions within the model, affecting material behavior and structural integrity. In fatigue analysis, what is primarily being predicted? A) The maximum temperature a component can withstand B) The lifespan of a part under cyclic loading conditions C) The static stress distribution D) The fluid flow speed around a part
Exam
Explanation: CFD simulates the movement of fluids like air or liquids around or through objects, providing insights into flow patterns, pressure drops, and heat transfer. Which of the following is an example of an optimization goal in simulation? A) To maximize structural weight B) To improve performance while reducing material usage C) To eliminate the need for boundary conditions D) To increase the complexity of the model unnecessarily Answer: B Explanation: Optimization aims to enhance design performance, often by reducing weight, cost, or material while maintaining or improving functionality. When is nonlinear analysis typically required? A) When deformations are small and behave linearly B) When large deformations or plasticity are involved C) Only for thermal problems D) For simple static stress calculations
Exam
Explanation: Nonlinear analysis is necessary when deformations are large, materials exhibit plastic behavior, or other nonlinear phenomena occur, as linear assumptions no longer hold. Which challenge is unique to simulating composite materials? A) Homogeneous material properties B) Layer orientations and failure modes C) Uniform thermal conductivity D) Simplified stress distribution Answer: B Explanation: Composite materials are anisotropic, with properties heavily influenced by layer orientations and complex failure modes, requiring specialized modeling techniques. In coupled thermal-structural analysis, what is being simulated? A) The fluid flow around a structure B) The interaction between heat transfer and structural deformation C) The static stress distribution only D) The chemical reactions within materials
Exam
Explanation: Validation involves comparing simulation outcomes to experimental or theoretical data to ensure the model accurately predicts real-world behavior. Which tool in SolidWorks is primarily used for post-processing simulation results? A) FeatureManager Design Tree B) Simulation Results Viewer C) Assembly Visualization Tool D) Part FeatureManager Answer: B Explanation: The Simulation Results Viewer allows users to visualize, analyze, and interpret output parameters such as stress contours, displacement plots, and flow patterns. How does designing for simulation differ from traditional design? A) It ignores manufacturability B) It incorporates simulation considerations early to ensure models are suitable for accurate analysis C) It avoids iterative testing D) It focuses only on aesthetic aspects
Exam
Explanation: Designing for simulation involves creating models that are simulation-friendly, with appropriate features and simplifications to produce reliable results. Why is iterative testing important in simulation? A) To fully automate the design process without human input B) To refine the design based on analysis results, improving performance and manufacturability C) To avoid changing the initial design D) To increase the number of simulations without purpose Answer: B Explanation: Iterative testing allows engineers to progressively improve the design by analyzing outcomes, adjusting parameters, and optimizing performance. Which of the following is a common troubleshooting step for convergence issues in simulation? A) Decrease mesh quality B) Simplify the model or refine mesh where necessary C) Ignore boundary conditions D) Increase the load arbitrarily
Exam
Explanation: The Document Manager or cloud-based sharing features enable collaboration by sharing simulation data, reports, and design files with team members. What is a key consideration in the structural integrity case study involving a mechanical part? A) Only the aesthetic appearance B) Stress distribution and potential failure points under load C) The color of the part in the model D) The material's visual texture Answer: B Explanation: Structural integrity analysis focuses on stress distribution, identifying potential failure points to optimize the part's design for strength and durability. In thermal analysis of an electronics enclosure, what is a typical goal? A) To maximize the internal temperature B) To optimize heat dissipation and prevent overheating C) To analyze airflow outside the enclosure only D) To evaluate static structural stresses
Exam
Explanation: The goal is to ensure that heat generated by electronic components is effectively dissipated, maintaining safe operating temperatures. When performing CFD for airflow in a vehicle, which aspect is most critical? A) Material properties of the engine B) Boundary conditions for inlet and outlet flow C) The color of the vehicle paint D) The static structural analysis results Answer: B Explanation: Correct boundary conditions for inlet and outlet flows are essential for realistic CFD simulations to accurately predict airflow patterns and aerodynamic performance. What is the main purpose of optimization in simulation? A) To find the least expensive manufacturing process B) To improve performance metrics such as strength, weight, or efficiency while respecting constraints C) To eliminate the need for physical testing altogether D) To simplify models regardless of performance impact
Exam
Explanation: Composites are anisotropic with layered orientations, leading to complex failure modes and requiring detailed modeling to predict behavior accurately. How does thermal-structural coupling influence simulation results? A) It ignores heat effects B) It captures the interaction where temperature changes cause structural deformations C) It only applies to fluid flow problems D) It simplifies the analysis to static conditions only Answer: B Explanation: Coupling captures how heat transfer causes expansion or contraction, influencing structural deformation and stress distribution. Which of the following is a key output parameter in a static stress analysis? A) Temperature distribution B) Displacement and von Mises stress C) Fluid velocity D) Vibration modes
Exam
Explanation: Static stress analysis primarily provides displacement and stress distributions, such as von Mises stress, indicating potential failure points. How can results validation improve confidence in simulation outcomes? A) By ignoring experimental data B) By comparing against physical test results or analytical solutions C) By increasing mesh size arbitrarily D) By changing boundary conditions randomly Answer: B Explanation: Validation against experimental or analytical data confirms that the simulation accurately predicts real-world behavior, increasing confidence. Which of the following best describes post-processing in simulation? A) Setting boundary conditions B) Visualizing and interpreting results for insights and communication C) Creating CAD geometry from scratch D) Generating manufacturing instructions directly from the simulation Answer: B Explanation: Post-processing involves visualizing results, extracting meaningful data, and preparing reports for analysis and communication.
Exam
What is a typical cause of mesh convergence issues in finite element analysis? A) Too simple a mesh B) Excessively refined mesh in critical areas C) Complex geometry or overly coarse mesh in critical regions D) Correct boundary conditions Answer: C Explanation: Complex geometries or coarse meshes in critical areas can hinder convergence; refining the mesh or simplifying geometry helps resolve this. When preparing a simulation report, which element is most critical to include? A) Only the results without context B) Assumptions, boundary conditions, results, and conclusions C) Personal opinions about the design D) Details of the CAD modeling process only Answer: B Explanation: A comprehensive report documents all assumptions, boundary conditions, results, and interpretations to ensure clarity and reproducibility.
Exam
Which feature of SolidWorks facilitates sharing simulation results with team members? A) The Assembly Mates B) The Simulation Results and Export tools C) The Part Sketch Tool D) The Configuration Manager Answer: B Explanation: Simulation results can be exported or shared directly through SolidWorks’ tools, enabling collaboration and review. In a structural case study, what is the primary focus? A) Analyzing heat transfer properties B) Evaluating stress distribution and potential failure points C) Simulating fluid flow D) Calculating electromagnetic fields Answer: B Explanation: Structural case studies focus on stress, strain, and potential failure points under applied loads to ensure integrity. In thermal analysis of an electronics enclosure, what is an important factor to consider?
