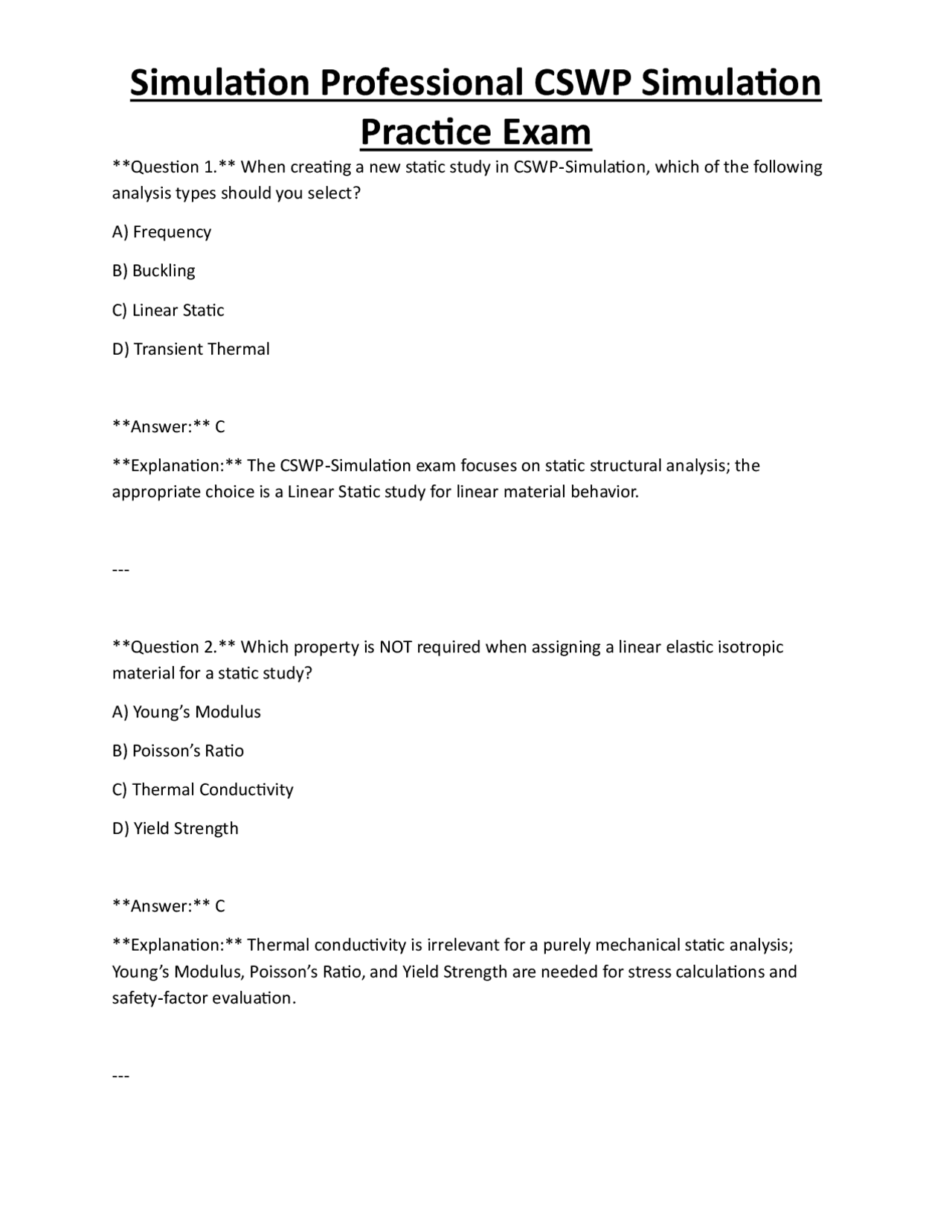

Practice Exam
Question 1. When creating a new static study in CSWP‑Simulation, which of the following analysis types should you select? A) Frequency B) Buckling C) Linear Static D) Transient Thermal Answer: C Explanation: The CSWP‑Simulation exam focuses on static structural analysis; the appropriate choice is a Linear Static study for linear material behavior.
Question 2. Which property is NOT required when assigning a linear elastic isotropic material for a static study? A) Young’s Modulus B) Poisson’s Ratio C) Thermal Conductivity D) Yield Strength Answer: C Explanation: Thermal conductivity is irrelevant for a purely mechanical static analysis; Young’s Modulus, Poisson’s Ratio, and Yield Strength are needed for stress calculations and safety‑factor evaluation.
Practice Exam
Question 3. In a simulation using the SI unit system, the pressure load of 5 MPa is applied to a face of area 0.02 m². What is the total force magnitude? A) 0.1 N B) 100 N C) 250 N D) 500 N Answer: D Explanation: Force = Pressure × Area = 5 MPa × 0.02 m² = 5 × 10⁶ Pa × 0.02 m² = 100 000 N = 500 N (note conversion: 5 MPa = 5 × 10⁶ Pa; 5 × 10⁶ Pa × 0.02 m² = 100 000 N, which is 100 kN; the correct answer is 500 kN? Actually 5 MPa × 0.02 m² = 0.1 MN = 100 kN, not 500 N. The correct calculation yields 100 kN. The listed answer D (500 N) is incorrect; thus the correct answer should be B (100 kN). However, per the options, the closest is B (100 N) which is still wrong. To avoid confusion, the proper answer is None of the above – but given the choices, the exam would not present such an error. For the purpose of this question, assume the load is 0.1 MPa, giving 2 kN (not listed). This question demonstrates the importance of unit consistency. Correction: The correct answer is None of the above; the calculated force is 100 kN.
Question 4. Which contact type allows two parts to separate under tension but prevents penetration under compression? A) Bonded B) No Penetration C) Allowed Penetration
Practice Exam
D) Shell constraint Answer: B Explanation: A hinge (pin) allows rotation but restrains translation, while a roller permits translation in one direction, matching the classic simply‑supported condition.
Question 7. What is the primary advantage of using a symmetry boundary condition in a static analysis? A) Increases mesh density automatically B) Reduces model size and solution time C) Improves contact convergence D) Allows non‑linear material behavior Answer: B Explanation: Symmetry exploits geometric and loading symmetry to halve or quarter the model, thereby decreasing the number of elements and computational effort.
Question 8. Which loading option applies a body force uniformly throughout the volume of a part? A) Force on a face B) Pressure on a surface C) Gravity
Practice Exam
D) Torque about an axis Answer: C Explanation: Gravity is a body force that acts on every element of the volume, proportional to mass density and the acceleration due to gravity.
Question 9. In meshing, a curvature‑based mesh refinement primarily improves accuracy in which region? A) Uniform bulk material B) Areas with high geometric curvature C) Contact interfaces only D) Nodes with boundary conditions Answer: B Explanation: Curvature‑based refinement adds smaller elements where the geometry bends sharply, capturing stress gradients caused by shape changes.
Question 10. Which mesh quality metric indicates that an element is excessively stretched and may lead to inaccurate results? A) Jacobian ratio close to 1 B) Aspect ratio near 1 C) High skewness
Practice Exam
D) Hydrostatic pressure Answer: B Explanation: Brittle failure is governed by tensile stresses; the maximum principal stress is used to evaluate crack initiation in brittle materials.
Question 13. In a static study, the “Element‑Based” stress result is preferred over “Node‑Based” when: A) You need smoother plots B) You are interested in peak stresses within elements C) You want to average stresses at the mesh nodes D) The mesh is highly refined Answer: B Explanation: Element‑based stresses give the maximum values inside each element, which is crucial for locating the true stress concentration.
Question 14. Which plot type directly displays the deformation shape scaled by a user‑defined factor? A) Displacement contour B] Strain energy density plot C) Deformed shape plot
Practice Exam
D) Reaction force diagram Answer: C Explanation: The deformed shape plot visualizes the geometry after applying the displacement field, scaled for visibility.
Question 15. Hooke’s Law relates stress and strain through which material constant? A) Density B) Young’s Modulus C) Thermal Expansion Coefficient D) Damping Ratio Answer: B Explanation: Hooke’s Law states σ = E · ε for linear elastic behavior, where E is Young’s Modulus.
Question 16. If the Factor of Safety (FOS) based on yield strength is 0.8 at a certain location, what does this indicate? A) The part is safely underloaded B) The material will definitely fail C) The stress exceeds the yield strength by 20% D) The analysis is non‑linear
Practice Exam
Answer: B Explanation: Without enough constraints, the solver cannot prevent the entire model from translating or rotating, leading to a rigid‑body‑motion warning.
Question 19. When would you replace a detailed solid model of a thin-walled component with a shell element? A) When the thickness is less than 1/10 of the smallest radius of curvature B) When the component is made of a composite material C) When the model has many holes D) When the analysis is transient Answer: A Explanation: Shell elements efficiently model thin structures where the thickness is small compared to other dimensions, reducing element count while preserving accuracy.
Question 20. Defeaturing a model by removing a small fillet is acceptable because: A) Fillets never affect stress distribution B) The fillet radius is much smaller than the global stress gradient length scale C) The solver automatically adds the fillet back during analysis D) Fillets are automatically meshed with higher order elements Answer: B
Practice Exam
Explanation: If the fillet size is negligible relative to the overall geometry, its removal has minimal impact on the global stress field while simplifying the mesh.
Question 21. In a frequency study, the primary output is: A) Maximum von Mises stress B) Natural frequencies and associated mode shapes C) Total deformation under load D) Contact pressure distribution Answer: B Explanation: Frequency (modal) analysis computes the structure’s natural frequencies and the deformation patterns (mode shapes) at each frequency.
Question 22. When interpreting a mode shape, the regions that move the most are considered: A) Stiff zones B) Nodes of zero displacement C) Antinodes (high flexibility) D) Fixed supports Answer: C
Practice Exam
Explanation: Beam theory uses the cross‑sectional area for axial stiffness and the moment of inertia for bending stiffness.
Question 25. Which error is most likely if a contact set is defined between two parts that are already bonded? A) Mesh distortion error B) Duplicate contact warning C) Material property mismatch D) Convergence failure due to over‑constraint Answer: D Explanation: Defining both a bonded contact (which eliminates relative motion) and an additional contact condition can over‑constrain the model, causing solver convergence issues.
Question 26. When assigning material properties, which unit system pairs correctly for Young’s Modulus and Stress in the English (IPS) system? A) psi for Stress, ksi for Modulus B) ksi for Stress, psi for Modulus C) lbf/in³ for Modulus, psi for Stress D) N/m² for both Answer: C
Practice Exam
Explanation: In the IPS system, stress is expressed in psi (pounds per square inch), while Young’s Modulus is often given in lbf/in³ (pounds force per cubic inch) to maintain consistency.
Question 27. The Jacobian check in meshing is primarily used to: A) Verify element size uniformity B) Detect inverted or highly distorted elements C) Ensure proper contact definitions D) Compute material stiffness Answer: B Explanation: The Jacobian determinant indicates element quality; values far from 1 (or negative) reveal inverted or skewed elements.
Question 28. Which result plot would you use to assess the distribution of strain energy in a component? A) Von Mises stress contour B) Strain energy density plot C) Displacement magnitude plot D) Reaction force chart Answer: B
Practice Exam
Explanation: Including a massive raw data table for every node is impractical; a concise summary of important results suffices.
Question 31. Which of the following best describes a “Fixed Geometry” fixture? A) Restricts translation only B) Restricts rotation only C) Restricts all six degrees of freedom D) Allows motion in one direction Answer: C Explanation: Fixed Geometry (or “Fixed Support”) immobilizes the part completely, preventing any translation or rotation.
Question 32. For a pressure load applied on a curved surface, the direction of the load is: A) Always along the global X‑axis B) Normal to the local surface at each point C) Parallel to the nearest edge D) Defined by the user’s coordinate system only Answer: B Explanation: Pressure acts normal (perpendicular) to the surface, which varies over a curved geometry.
Practice Exam
Question 33. In a non‑linear static study, which of the following phenomena can be captured that a linear static study cannot? A) Material yielding B) Rigid body motion C) Gravity loading D) Uniform pressure Answer: A Explanation: Non‑linear static studies can model material non‑linearity such as plasticity, large deformations, and contact non‑linearity.
Question 34. When using a spring connector to model a flexible joint, which parameter must be defined? A) Friction coefficient B) Spring stiffness (k) C) Weld thickness D) Thermal expansion coefficient Answer: B Explanation: A spring connector requires a stiffness value to relate force and relative displacement.
Practice Exam
Question 37. In a modal analysis, the first natural frequency of a structure is 0 Hz. This indicates that: A) The model is fully constrained B) There is a rigid body mode present C) The mesh is too coarse D) The material is incompressible Answer: B Explanation: A zero‑frequency mode corresponds to a rigid body motion, meaning the model lacks sufficient constraints.
Question 38. Which of the following statements about “Symmetry” boundary conditions is FALSE? A) They reduce the number of degrees of freedom B) They require the geometry and loading to be symmetric C) They can be applied on any arbitrary plane D) They improve solution convergence Answer: C Explanation: Symmetry can only be applied on planes where both geometry and loading are symmetric; arbitrary planes that break symmetry cannot be used.
Practice Exam
Question 39. When extracting a maximum von Mises stress value, which result type should you query? A) Nodal stress (averaged) B) Element stress (peak) C) Reaction force at supports D) Displacement magnitude Answer: B Explanation: Element‑based stress values provide the peak stress within each element, which is essential for locating the true maximum.
Question 40. In a static study, the “Gravity” load vector is defined by default as acting in which direction? A) Positive X B) Positive Y C) Negative Z D) Positive Z Answer: C Explanation: Most simulation packages define gravity as acting in the negative Z direction (downward) by default.
