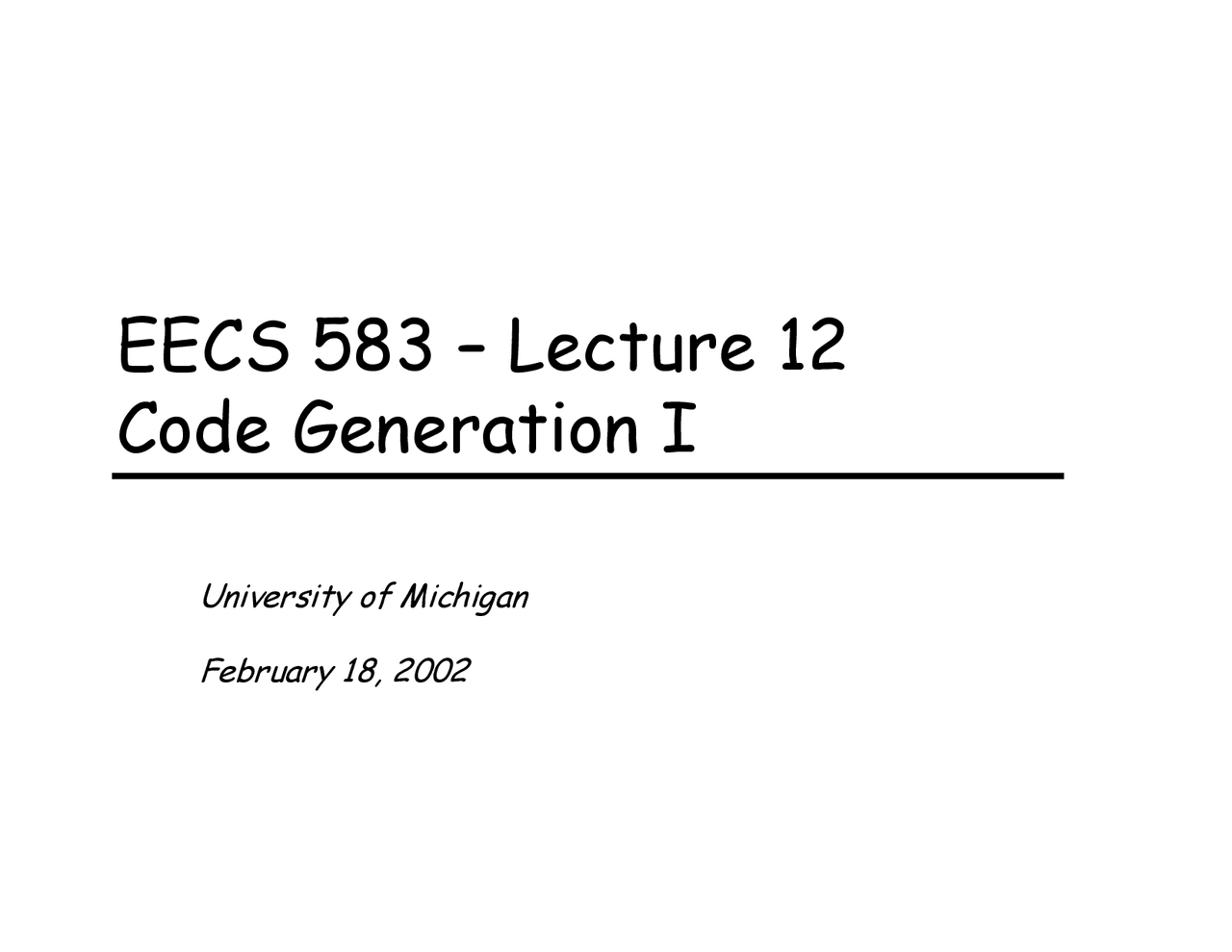

EECS 583 – Lecture 12 Code Generation I

University of Michigan February 18, 2002

• 1 -

Code generation

Y

Map optimized “machine-independent” assembly to finalassembly code

Y

Input code

Classical optimizations

ILP optimizations

Formed regions, applied if-conversion

Y

Virtual

Æ

physical binding

2 big steps

1. Scheduling

y

Determine when every operation executions

y

Create MultiOps

2. Register allocation

y

Map virtual

Æ

physical registers

y

Spill to memory if necessary

• 3 -

What do we need to schedule?

Y

Information about the processor

Number of resources

Which resources are used by each instruction

Latencies

Operand encoding limitations

Y

Lets assume

2 issue slots, 1 memory port, 1 adder/multiplier

load = 2 cycles, add = 1 cycle, mpy = 3 cycles

y

All units fully pipelined

Each operand can be register or 6 bit signed literal

• 4 -

How do we schedule?

Y

When is it legal to schedule an instruction?

Correct execution

Avoid pipeline stalls

Need a precedence graph – flow, anti, output deps

y

What about memory deps? control deps? Delay slots?

Y

Given multiple operations that can be scheduled, how do youpick the best one?

How do you know it is the best one?

y

What about a good guess?

y

Does it matter, just pick one at random?

Are decisions final?, or is this an iterative process?

Y

How do we keep track of resources that are busy/free

Need a reservation table

y

Matrix (resources x time)

• 6 -

Compiler code generation – 2

nd

try

Y

Map optimized “machine-independent” assembly tofinal assembly code

Y

Virtual

Æ

physical binding

»

Cannot do this all at once,too many decisions!!

»

Do slowly

»

Each step refines thebinding by restrictingprevious choices

Y

Schedule both before andafter register allocation

»

Initial scheduling is free ofreal processor registerconstraints

»

2

nd

phase required due to

spill code

code selection, literal handling prepass operation binding

scheduling

register allocation and spill code insertion

postpass scheduling

code emission

• 7 -

Why not schedule after allocation?

physical regs

virtual regs

r1 = load(r10) r2 = load(r11) r3 = r1 + 4 r4 = r1 – r12 r5 = r2 + r4 r6 = r5 + r3 r7 = load(r13) r8 = r7 * 23 store (r8, r6)

R1 = load(R1) R2 = load(R2) R5 = R1 + 4 R1 = R1 – R3 R2 = R2 + R1 R2 = R2 + R5 R5 = load(R4) R5 = R5 * 23 store (R5, R2)

• 9 -

The 6 step program (cont)

Y

4. Register allocation

Assign physical registers

Bind access each equilvalent register to a specific physicalregister

Introduce additional code to spill registers to memory

Y

5. Postpass scheduling

A second pass of scheduling to handle spill code

Resource assignments from first pass are ignored

But, registers are physical, so less code motion freedom

Y

6. Code emission

Convert “fully qualified” operations into real assembly

A translator basically

Assembler converts this assembly to machine code

Y

Focus for now on 3, 4, 5, assume 1, 2, 6 are not needed

• 10 -

Machine information

Y

Each step of code generation requires knowledge of themachine

Hard code it? – used to be common practice

Retargetability, then cannot

Y

What does the code generator need to know about thetarget processor?

Structural information?

y

No

For each opcode

y

What registers can be accessed as each of its operands

y

Other operand encoding limitations

Operation latencies

y

Read inputs, write outputs

Resources utilized

y

Which ones, when

• 12 -

IO format

Y

Registers, register files

Number, width, static or rotating

Read-only (hardwired 0) or read-write

Y

Operation

Number of source/dests

Predicated or not

For each source/dest/pred

y

What register file(s) can be read/written

y

Literals, if so, how big Multicluster machine example:

ADD_W.

gpr1, gpr1 : gpr

ADD_W_L.

gpr1, lit6 : gpr

ADD_W.

gpr2, gpr2 : gpr

• 13 -

Latency information

Y

Multiply takes 3 cycles

No, not that simple!!!

Y

Differential input/output latencies

Earliest read latency for each source operand

Latest read latency for each source operand

Earliest write latency for each destination operand

Latest write latency for each destination operand

Y

mpyadd(d1, d2, s1, s2, s3)

Æ

d1 = s1 * s2, d2 = d1 + s

s

s d

s

d

• 15 -

Memory serialization latency

Y

Ensuring the proper ordering of dependent memoryoperations

Y

Not the memory latency

But, point in the memory pipeline where 2 ops are guaranteedto be processed in sequential order

Y

Page fault – memory op is re-executed, so need

Earliest mem serialization latency

Latest mem serialization latency

Y

Remember

Compiler will use this, so any 2 memory ops that cannot beproven independent, must be separated by mem serializationlatency.

• 16 -

Branch latency

Y

Time relative to the initiation time of a branch at which thetarget of the branch is initiated

Y

What about branch prediction?

Can reduce branch latency

But, may not make it 1

Y

We will assume branch latency is 1 for this class (ie nodelay slots!)

0: branch 1: xxx 2: yyy 3: target

Example:

branch latency = k (3) delay slots = k – 1 (2) Note xxx and yyy are multiOps

• 18 -

Reservation tables

s

For each opcode, the resources used at each cycle relative to its initiation time are specified in the form of a table Res1, Res2 are abstract resources to model issue constraints

Res

Res

ALU

MPY

Resultbu

relative

time

X

X

X

Integer add

s

s

Res

Res

ALU

MPY

Resultbu

relative

time

X

X

X

X

Res

Res

ALU

MPY

Resultbu

relative

time

X

X X

X

Load, uses ALU for addr calculation, can’t issue load with add or multiply

Non-pipelined multiply

• 19 -

Hmdes2 – Example integer add entries SECTION Operation{

// **** Integer operations ****$for (idx in $0..(integer_units-1)){

// Table 2: Integer computation operations$for (class in intarith1_int intarith2_int intarith2_intshift intarith2_intdiv intarith2_intmpy){

$for (op in ${OP_${class}}){

$for(w in ${int_alu_widths}){

"${op}${w}.${idx}"(alt(SA${class}_i${idx})); } } }

}

What this really says:ADD_W.0 gets alt(SA_intarith2_int_i0)

Add on Integer unit 0, SA = scheduling alternative

ADD_W.1 gets alt(SA_intarith2_int_i1)

Add on Integer unit 1

Trace back of relevant entries for integer add

see trimaran/elcor/mdes/hpl_pd_elcor_std.hmdes
