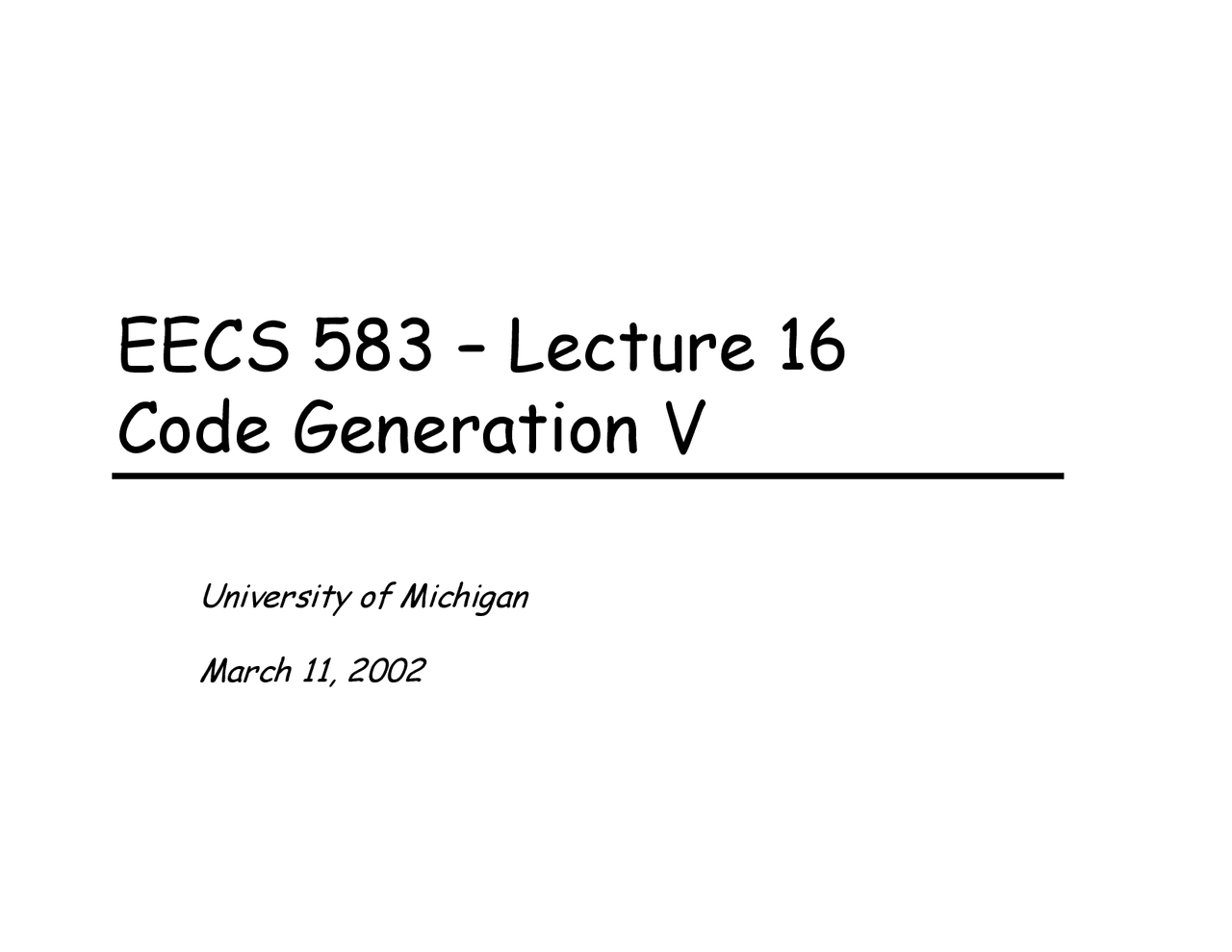

• EECS 583 – Lecture 16 Code Generation V University of Michigan March 11,

• 1 -

Class problem (2) from last time^ Latencies: ld = 2, st = 1, add = 1, cmpp = 1, br = 1^ Resources: 1 ALU, 1 MEM, 1 BR^ 1: r1[-1] = load(r2[0])2: r3[-1] = r1[1] – r1[2]3: store (r3[-1], r2[0])4: r2[-1] = r2[0] + 45: p1[-1] = cmpp (r2[-1] < 100)remap r1, r2, r36: brct p1[-1] Loop^ Calculate RecMII, ResMII, and MII

• 3 -

Finding the longest path (MinDist)^ Floyd-Warshall method to find longest path^ bool floyd(Matrix& a, Matrix& b)

for (m = 0; m < dim; m++){^ for (i = 0; i < dim; i++) {^ if (a[i][m] > minus_infinity) {

//test for empty a(i,m) edge for (j = 0; j < dim; j++) {^ if (a[m][j] > minus_infinity)

{ // test for empty a(m,j) edge delay = a[i][m] + a[m][j]; if (delay > a[i][j] {^ a[i][j] = delay;^ b[i][j] = m;^

// record the intermediate node if ((i == j) && (delay > 0))

// watch for positive cycle return(true); } } } } } } return(false);

• 4 -

The scheduling window With cyclic scheduling, not all the predecessors may be scheduled, so a more flexible earliest schedule time is:

0, if X is not scheduled E(Y) =^ MAX

MAX (0, SchedTime(X) + EffDelay(X,Y)),

otherwise

for all X = pred(Y) where EffDelay(X,Y) = Delay(X,Y) – II*Distance(X,Y) Every II cycles a new loop iteration will be initialized, thus every II cycles the pattern will repeat. Thus, you only have to look in a window of size II, if the operation cannot be scheduled there, then it cannot be scheduled.^ L(Y) = E(Y) + II – 1

• 6 -

Separate code for prolog and epilog

A0A1^ B0A2^ B1^ C0 A^ B^ C

Prolog -fill thepipe D Bn Cn-1 Dn-2Cn Dn-1Dn KernelEpilog -fill thepipe

A B C D Loop body with 4 ops Generate special code before the loop (preheader) to fill the pipe and special code after the loop to drain the pipe. Peel off II-1 iterations for the prolog. Complete II-1 iterations in epilog

• 7 -

Removing prolog/epilog^ Disable usingpredicated execution

II = 3

Prolog

Kernel^ Epilog

Execute loop kernel on every iteration, but for prolog and epilog selectively disable the appropriate operations to fill/drain the pipeline

• 9 -

Modulo scheduling architectural support^ Y^ Loop requiring N iterations^ »^ Will take N + (S – 1) where S is the number of stages^ Y^ 2 special registers created^ »^ LC: loop counter (holds N)^ »^ ESC: epilog stage counter (holds S)^ Y^ Software pipeline branch operations^ »^ Initialize LC = N, ESC = S in loop preheader^ »^ All rotating predicates are cleared^ »^ BRF.B.B.F^ y^ While LC > 0, decrement LC and RRB, P[0] = 1, branch to top ofloop

X^ This occurs for prolog and kernel y If LC = 0, then while ESC > 0, decrement RRB and write a 0 intoP[0], and branch to the top of the loop X^ This occurs for the epilog

• 10 -

Execution history with LC/ESC^ A if P[0];

LC = 3, ESC = 3 /* Remember 0 relative */Clear all rotating predicatesP[0] = 1^ B if P[1];^ C if P[2]; D if P[3]; P[0] = BRF.B.B.F; LC^ ESC^

P[0]^ P[1]^

P[2]^ P[3]

A

A^ B

A^ B^

C

A^ B^

C^ D

-^ B^

C^ D

-^ -^

C^ D

-^ -^

-^ D

4 iterations, 4 stages, II = 1, Note 4 + 4 –1 iterations of kernel executed

• 12 -

Modulo scheduling – iterative scheduler^ Y^ iterative_schedule(II, budget)^ »^ compute op priorities^ »^ while (there are unscheduled ops and budget > 0) do^ y^ op = unscheduled op with the highest priority^ y^ min = early time for op (E(Y))^ y^ max = min + II – 1^ y^ t = find_slot(op, min, max)^ y^ schedule op at time t

X^ /* Backtracking phase – undo previous scheduling decisions */ X^ Unschedule all previously scheduled ops that conflict with op y budget--

• 13 -

Modulo scheduling – find slot^ Y^ find_slot(op, min, max)^ »^ /* Successively try each time in the range */^ »^ for (t = min to max) do^ y^ if (op has no resource conflicts in MRT at t)

X^ return t » /* Op cannot be scheduled in its specified range / » / So schedule this op and displace all conflicting ops */ » if (op has never been scheduled or min > previous scheduledtime of op) y return min » else y return MIN(1 + prev scheduled time of op, max)

• 15 -

Example – Step 2^ resources: 4 issue, 2 alu, 1 mem, 1 br^ latencies: add=1, mpy=3, ld = 2, st = 1, br = 1

Step 2: DSA convert LC = 99^

LC = 99

1: r3 = load(r1)2: r4 = r3 * 263: store (r2, r4)4: r1 = r1 + 45: r2 = r2 + 47: brlc Loop

1: r3[-1] = load(r1[0])2: r4[-1] = r3[-1] * 263: store (r2[0], r4[-1])4: r1[-1] = r1[0] + 45: r2[-1] = r2[0] + 4remap r1, r2, r3, r47: brlc Loop

Loop:^

Loop:

• 16 -

Example – Step 3

Step3: Draw dependence graph Calculate MII

resources: 4 issue, 2 alu, 1 mem, 1 br latencies: add=1, mpy=3, ld = 2, st = 1, br = 1

LC = 99 1: r3[-1] = load(r1[0]) Loop: 2: r4[-1] = r3[-1] * 263: store (r2[0], r4[-1])4: r1[-1] = r1[0] + 45: r2[-1] = r2[0] + 4remap r1, r2, r3, r47: brlc Loop

0,

RecMII = 1 RESMII = 2 MII = 2

• 18 -

Example – Step 5

Schedule brlc at time II - 1

resources: 4 issue, 2 alu, 1 mem, 1 br latencies: add=1, mpy=3, ld = 2, st = 1, br = 1

Unrolled Schedule Rolled Schedule LC = 99 1: r3[-1] = load(r1[0]) Loop:2: r4[-1] = r3[-1] * 263: store (r2[0], r4[-1])4: r1[-1] = r1[0] + 45: r2[-1] = r2[0] + 4remap r1, r2, r3, r47: brlc Loop

mem bralu1alu0 0 MRT 1 X

• 19 -

Example – Step 6^ Step6: Schedule the highest priority op^ Op1: E = 0, L = 1^ Place at 0 (0 % 2)

Unrolled Schedule Rolled Schedule LC = 99^

1: r3[-1] = load(r1[0]) Loop:2: r4[-1] = r3[-1] * 263: store (r2[0], r4[-1])4: r1[-1] = r1[0] + 45: r2[-1] = r2[0] + 4remap r1, r2, r3, r47: brlc Loop

mem bralu1alu0 X 0 MRT 1 X
