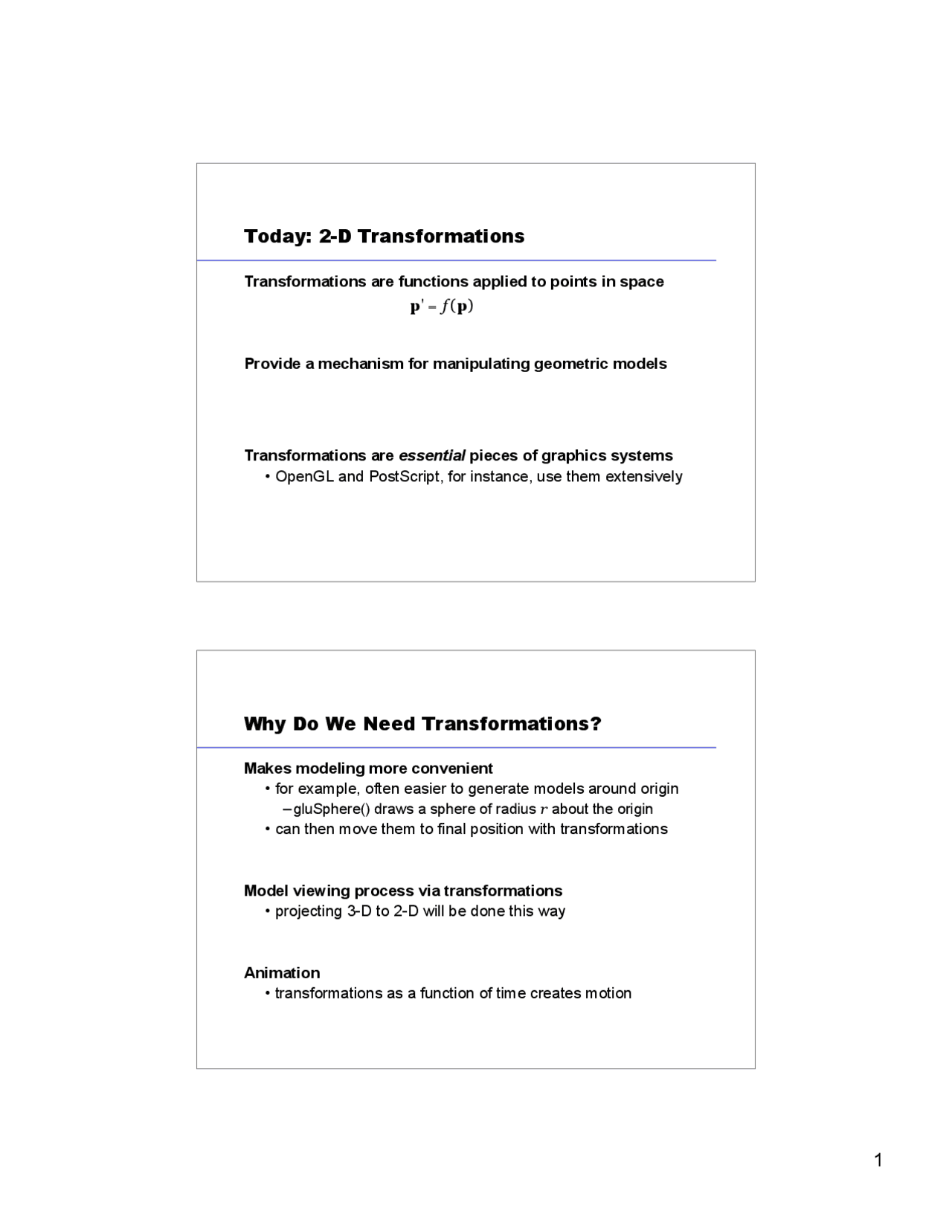

Today: 2-D Transformations
Transformations are functions applied to points in space
Provide a mechanism for manipulating geometric models
Transformations are essential pieces of graphics systems
- OpenGL and PostScript, for instance, use them extensively
p ' = f ( p )
Why Do We Need Transformations?
Makes modeling more convenient
- for example, often easier to generate models around origin
- gluSphere() draws a sphere of radius r about the origin
- can then move them to final position with transformations
Model viewing process via transformations
- projecting 3-D to 2-D will be done this way
Animation
- transformations as a function of time creates motion
Linear Algebra in 30 Seconds
We represent points as vectors p = [ x y z ]
- vectors add according to parallelogram rule
- a linear combination of two vectors is
- set of vectors is linearly independent if none is a linear
combination of the others
- a basis for a space is a linearly independent set of vectors
whose linear combinations include all vectors in the space
- but there are infinitely many possible bases
p
q
p+q
! p +" q
standard basis for 2 - D plane: 1 2
!^1 "! 0 "
e e
Linear & Affine Transformations
We’ll be specifically interested in linear transformations
- transformation of shape determined by effect on vertices
- a crucial property that allows for efficient implementation
And the related class of affine transformations
- preserves affine combinations (e.g., they map lines to lines)
- another view: a linear transformation + a translation
- this is a more general class of functions
f (! p + " q ) =! f ( p ) +" f ( q )
f ( p + !( q " p ) ) = f ( p ) +! f ( q " p )
Rotation of Points About Origin
First, write points in polar coordinates
And solve for the new positions
Can write this as a vector equation as well
cos sin
' cos( ) ' sin( )
x y
x y
! "! "
! " #! " #
= =
= + = +
θ
φ
x
y
x
y
' cos sin
' sin cos
x x y
y x y
or
' cos sin
' sin cos
x x
y y
p = Rp
The Three Fundamental Transformations
We can represent any affine transformation as a sequence of these 3
Translation is only one not represented as matrix multiplication
- because it’s not a linear transformation
- wouldn’t it be nice if we could come up with a matrix formulation!
Translation:
Scaling:
Rotation:
p p d
p Sp
p Rp
Homogeneous Coordinates
Let’s add an extra dimension to our vectors
- this added dimension is the homogeneous coordinate
- in general, we’ll have coordinates [ x y w ]
- the resulting 3-D space is a projective space
To convert back, divide by w and drop the last coordinate
- all vectors [ α x α y α w ] represent the same point
- if w= 0 , it represents a “point at infinity”
So what does this do to our transformation equations?
position: direction:
x a
x a
y b
y b
Transforms in Homogeneous Coordinates
or
x s x
y t y
p = Sp
Scaling
or
' cos sin
' sin cos
x x
y y
!!
!!
# $ # "^0 $ # $
p = Rp
Rotation
or
x x x
y y y
" # "^1 0! # "
p = Tp
Translation
Exercise: Composing Transformations
original R = rotate(60°) S = scale(1.3, 0.5) T = trans(0.2, 0.2)
What order of R , S , T
will produce this figure?
(a) TRSv
(b) RSTv
(c) TSRv
(d) RTSv
Exercise: Composing Transformations
(b) RSTv
(c) TSRv (d) RTSv
(a) TRSv
Writing Transformations in OpenGL
OpenGL maintains a current transformation matrix M
- issue commands to post-multiply matrices into M
- so, commands are listed in reverse order of application
- glLoadIdentity() — set M to identity matrix (M ← I)
- glTranslatef(Δx, Δy, Δz) — translation (M ← MT)
- glRotatef(θ, x, y, z) — rotate about given axis (M ← MR)
- glScalef(r, s, t) — scale by given factors (M ← MS)
Example: to rotate about an arbitrary point p = [ x y ]
glTranslatef(x, y, 0); // (3) move p back
glRotatef(theta, 0, 0, 1); // (2) rotate around z axis
glTranslatef(-x, -y, 0); // (1) move p to origin
DrawSomething();
A Word of Caution on Notation
We’ve consistently written points as column vectors
- virtually everyone does this
- typically represent matrices in row-major order
[[ a b ] [ c d ]]
Some in graphics have traditionally used row vectors
- convert by transposing everything:
ABv → ( ABv )
T = v
T B
T A
T
- note that order is reversed as well
- typically represent matrices in column-major order
[[ a c ] [ b d ]]
- OpenGL actually does it this way
- but you’ll probably never notice
x a b x
y c d y
[ ' '] [ ]
a c
x y x y
b d
