Module 16: "Software Distributed Shared Memory Multiprocessors"

Lecture 36: "Software Distributed Shared Memory Multiprocessors"

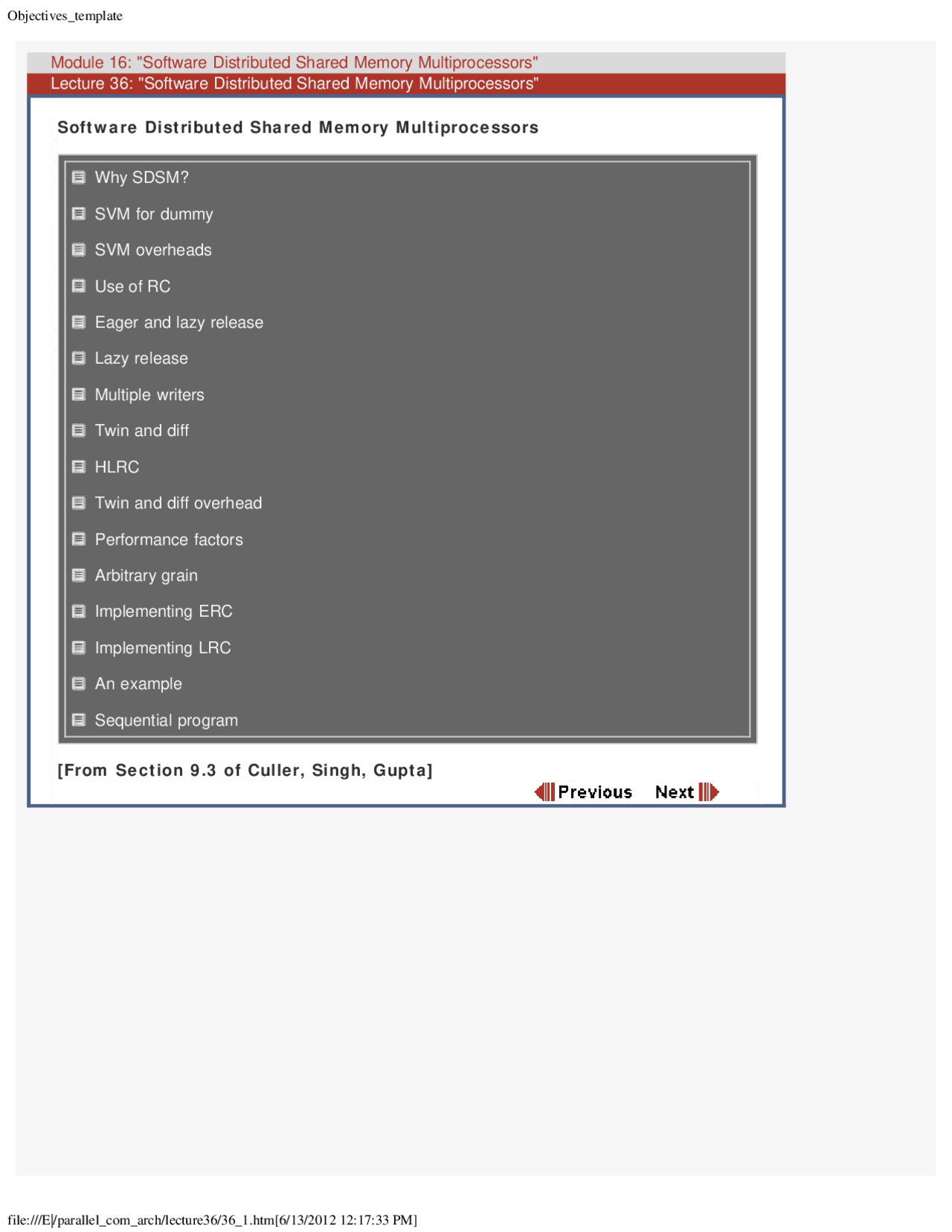

Software Distributed Shared Memory Multiprocessors

Why SDSM?

SVM for dummy

SVM overheads

Use of RC

Eager and lazy release

Lazy release

Multiple writers

Twin and diff

HLRC

Twin and diff overhead

Performance factors

Arbitrary grain

Implementing ERC

Implementing LRC

An example

Sequential program

[From Section 9.3 of Culler, Singh, Gupta]

Module 16: "Software Distributed Shared Memory Multiprocessors"

Lecture 36: "Software Distributed Shared Memory Multiprocessors"

Why SDSM?

Hardware DSM is hard to design Must have tightly integrated communication assist and NI The CA should probably be custom designed for performance Expensive in terms of time to market and the amount of custom design in memory system But still want to retain shared memory programming Software DSM Provides shared virtual memory (SVM) over message passing programs Just take the commodity nodes, connect them over a commodity high-speed network, augment commodity OS with an SVM kernel, and port your shared memory programs to SVM Coherence granularity is a page

SVM for dummy

Embed a coherence protocol in the page fault handler On a page fault, figure out if the page is mapped on some other node If yes, get a copy of the page and map it in local memory in some free page frame and return from interrupt If no, swap it in from disk and map it as usual If it was a page fault generated by a load, set only read permission in the PTE; subsequent write will generate another access fault and then you invalidate all copies in the system Multiple nodes are allowed to have a virtual page mapped at different physical frames locally; thus the sharing really happens in the virtual address space and physical address space is private

SVM overheads

Performance factors Every protocol invocation requires an interrupt and context switch Messages are sent through message passing libraries as opposed to specialized NI The entire protocol runs in software; there is no hardware support Even remote requests interrupt local processes and pollute local caches due to protocol processing The granularity of coherence is too big; causes unnecessary communication and false sharing This last point was the major problem when such systems took off; attempts to limit false sharing and communication volume led to numerous innovations in SDSM coherence protocols

Use of RC

A good place to make use of relaxed models With SC there is no other choice but to invalidate all sharers and wait for all acknowledgments on every write to a page; immediately the invalidated readers may proceed to bring the page back and performance will degrade sharply

Module 16: "Software Distributed Shared Memory Multiprocessors"

Lecture 36: "Software Distributed Shared Memory Multiprocessors"

Eager and lazy release

Propagating invalidations at release is still conservative P1 does not care about the writes from P0 until P1 executes the next acquire; at this point P1 must see all updated values Delay write notices until next acquire of the consumer Let the consumer ask for the updates (on demand) This leads to lazy release consistency (LRC); the conventional release consistency is often called eager release consistency (ERC) in SDSM world In LRC a process executing an acquire obtains all write notices corresponding to all releases that happened in the system since its last acquire (conservative)

Lazy release

All synchronization operations must be carefully labeled P0: P1: LOCK(L); while (!ptr); ptr = some_non_null_value; LOCK(L); UNLOCK(L); f(ptr); UNLOCK(L);

Hardware DSM binaries may not work directly in SVM The fence instructions are largely useless here What is more important is a way to tell the SVM library to propagate writes at proper points

Multiple writers

Thus far we have silently assumed only one writer With multiple writers if the coherence protocol only allows a single modified page at a time, ownership must be transferred every time a new writer arrives Clearly, under release consistency there is no problem in having multiple writers; you just need to pretend as if all the writes from one processor happened before all the writes from another even though they actually interleaved (assume that none of these writes are part of a release) So we just need to design a multiple writer protocol which allows multiple writers to co- exist between two consecutive synchronization points, allows pages to be modified locally and become inconsistent The main design concern of this protocol is: what happens when a process reaches acquire? How to collect all write notices? Multiple writer protocol (from TreadMarks SVM) When a page is brought in, the PTE is marked to have only read permission On the first write to the page an access fault handler is invoked and the handler makes a copy of the page (called twin); also at this point the PTE is set to have RW Now the process can write to the page as many times as it wishes At release boundary (for ERC) or at the time of an incoming acquire request (for LRC), the page is compared with the twin and a diff is created (containing just the

modifications) Finally, the diff is propagated to the requester The requester collects all the diffs and merges them into its own copies

Module 16: "Software Distributed Shared Memory Multiprocessors"

Lecture 36: "Software Distributed Shared Memory Multiprocessors"

HLRC

Home-based LRC A process performing acquire obtains write notices from previous releaser But on getting a page fault it asks the home node to send the entire page (of course, with already merged diffs) Note that this protocol not only provides space advantage, but also leads to two-hop page transfer from home to acquirer (as opposed to multiple two hops corresponding to multiple previous writers) Also, home node never suffers from page fault; here also you see a notion of local vs. remote access faults However, here the whole page (as opposed to diffs) is communicated every time from the home leading to wastage of BW

Twin and diff overhead

Module 16: "Software Distributed Shared Memory Multiprocessors"

Lecture 36: "Software Distributed Shared Memory Multiprocessors"

Performance factors

Where does SDSM stand? HLRC and multiple writer protocols do improve performance dramatically But SDSM is still lagging behind its hardware counterpart by a considerable margin The main bottlenecks are: false sharing, cost of protocol processing, time spent in taking page faults i.e. the interrupt overhead As a result, coarse-grain sharing is very well suited Also, synchronization does not scale well on SDSM because all primitives must be implemented with explicit messages Suggestions: hardware support for diff processing in memory controller (e.g., page copy engine)? Dedicated hardware thread for protocol processing and capability to deliver interrupt from a protocol thread to kernel (partitioned contexts?)?

Arbitrary grain

Why not let the user specify which variables (or formally called “objects”) should be kept coherent To each synchronization point attach the “objects” (nothing to do with OOP) for which write notices must be propagated (leads to “shared object space programs”) If nothing is attached to a synchronization point just fall back to release consistency The big advantage is that false sharing may disappear completely Disadvantages: a careful analysis of the program is needed, an efficient run-time library must intercept all synchronization events and manage the attached objects This is known as entry consistency Same philosophy has been applied to page-based SVM also leading to scope consistency

Implementing ERC

Single writer Simple scheme: maintain sharer list at the owner and transfer it with ownership to the next writer; at release send write notices to all sharers for all pages that the writer has written to since its last release Problem1: Multiple invalidations to the same node Solution1: Maintain a directory entry per page and store the sharer list there; releaser first consults the directory and then sends invalidations Problem2: Invalidating copies more recent than the releaser’s copy (not a correctness issue, just a performance problem) Solution2: Attach version number to each copy; increment version number on write; receiver applies invalidation only if its version number is lower than releaser’s; is it better with directory? Single writer When to collect the invalidation acknowledgments? Conservative: wait for all acknowledgments immediately at release Observation: following the same argument as LRC we can push the time to collect all acknowledgments until the next incoming acquire (the acquire will come to the last releaser because it probably has the dirty page with the synchronization variable)

This optimization allows the releaser to proceed past release while the acknowledgments are collected in background; again without hardware support, collection of each acknowledgment may need an interrupt Under heavy contention the next acquire may immediately follow the release Multiple writers Doesn’t make sense to talk about sharing list unless the sharing list is kept coherent across all writers (this may require broadcasting read access faults to all owners) Two ways to communicate write notices: broadcast write notices at release or use a directory to find sharers How does a faulting processor obtain the diffs? Two solutions: use a home node and releaser sends diffs to the home node or visit all “causal” releasers and apply diffs in appropriate order; order of diffs is very hard to decide and therefore, multiple writer ERC systems use updates instead of invalidations if no home (diffs are sent at release and are not demand-based); is the order okay now? Non-deterministic if not race-free Update-based multiple writer ERC protocol is used in Munin What about version numbers? Not helpful
