P a g e | 1

Lab 13: Effect of Gain on System Stability FA06_BET_012

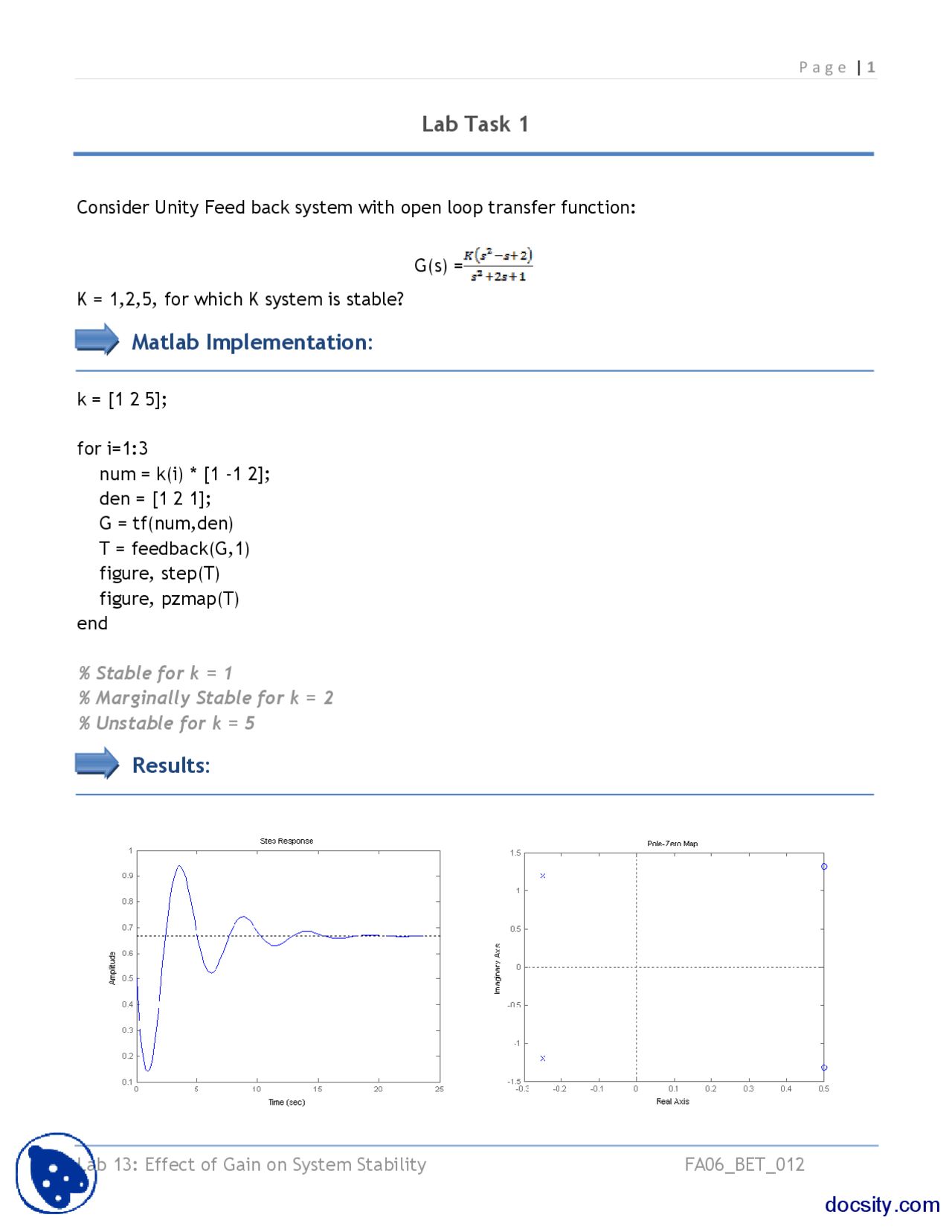

Lab Task 1

Consider Unity Feed back system with open loop transfer function:

G(s) =

K = 1,2,5, for which K system is stable?

num = k(i) * [1 -1 2];

den = [1 2 1];

G = tf(num,den)

T = feedback(G,1)

figure, step(T)

figure, pzmap(T)

end

% Stable for k = 1

% Marginally Stable for k = 2
