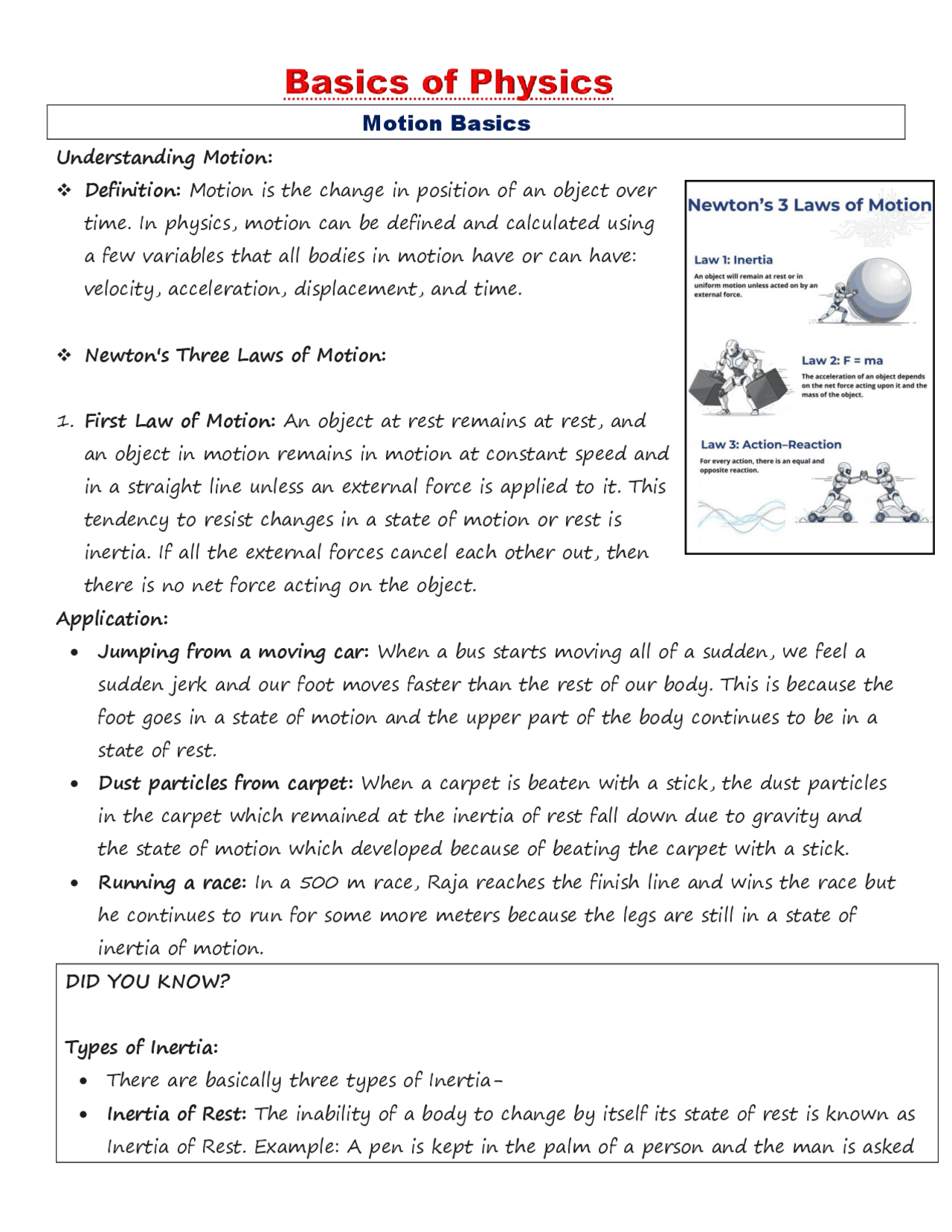

Motion Basics
Understanding Motion:
Definition: Motion is the change in position of an object over
time. In physics, motion can be defined and calculated using
a few variables that all bodies in motion have or can have:
velocity, acceleration, displacement, and time.
Newton's Three Laws of Motion:
1. First Law of Motion: An object at rest remains at rest, and
an object in motion remains in motion at constant speed and
in a straight line unless an external force is applied to it. This
tendency to resist changes in a state of motion or rest is
inertia. If all the external forces cancel each other out, then
there is no net force acting on the object.
Application:
Jumping from a moving car: When a bus starts moving all of a sudden, we feel a
sudden jerk and our foot moves faster than the rest of our body. This is because the
foot goes in a state of motion and the upper part of the body continues to be in a
state of rest.
Dust particles from carpet: When a carpet is beaten with a stick, the dust particles
in the carpet which remained at the inertia of rest fall down due to gravity and
the state of motion which developed because of beating the carpet with a stick.
Running a race: In a 500 m race, Raja reaches the finish line and wins the race but
he continues to run for some more meters because the legs are still in a state of
inertia of motion.
DID YOU KNOW?
Types of Inertia:
There are basically three types of Inertia-
Inertia of Rest: The inability of a body to change by itself its state of rest is known as
Inertia of Rest. Example: A pen is kept in the palm of a person and the man is asked
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff

Partial preview of the text

Download UPSC Science and Technology Study material and more Study notes Material Science and Technology in PDF only on Docsity!

Motion Basics

Understanding Motion:Definition: Motion is the change in position of an object over time. In physics, motion can be defined and calculated using a few variables that all bodies in motion have or can have: velocity, acceleration, displacement, and time. ❖ Newton's Three Laws of Motion:

  1. First Law of Motion: An object at rest remains at rest, and an object in motion remains in motion at constant speed and in a straight line unless an external force is applied to it. This tendency to resist changes in a state of motion or rest is inertia. If all the external forces cancel each other out, then there is no net force acting on the object. Application:
    • Jumping from a moving car: When a bus starts moving all of a sudden, we feel a sudden jerk and our foot moves faster than the rest of our body. This is because the foot goes in a state of motion and the upper part of the body continues to be in a state of rest.
    • Dust particles from carpet: When a carpet is beaten with a stick, the dust particles in the carpet which remained at the inertia of rest fall down due to gravity and the state of motion which developed because of beating the carpet with a stick.
    • Running a race: In a 500 m race, Raja reaches the finish line and wins the race but he continues to run for some more meters because the legs are still in a state of inertia of motion. DID YOU KNOW? Types of Inertia:
  • There are basically three types of Inertia-
  • Inertia of Rest: The inability of a body to change by itself its state of rest is known as Inertia of Rest. Example: A pen is kept in the palm of a person and the man is asked

to stand as a statue. By no means, the pen is going to get back in its motion of writing until an external force is applied.

  • Inertia of Motion: When a body cannot change by itself its state of uniform motion is known as Inertia of motion. Example: A ball gliding on the surface of a frictionless table will continue moving without stopping.
  • Inertia of Direction: It is the inability of a body to change by itself its direction of motion. Example: When a stone attached to a string is in a whirling motion and if the string is cut suddenly the stone will not continue to move in a circular motion but moves tangentially to the center.
  1. Second Law of Motion: The acceleration of an object depends on the mass of the object and the amount of force applied. The rate at which velocity changes with time, in terms of both speed and direction is termed acceleration. The more force we will apply, the more the object will accelerate and vice versa. Thus, acceleration is directly proportional to the force applied. If you increase the mass at a given force the rate of acceleration slows. Therefore, mass is inversely proportional to acceleration. Application:
  • Catching a ball: A cricket player lowers his hand while catching a cricket ball because it deaccelerates the ball by increasing the time so, the ball will exert a lesser force on the hands of the fielder, and the fielder will not get hurt.
  • Placing a book on the table: A book is kept on the table and pushed from behind, the object moves forward. Now, when a line of books is kept and force is applied, the books do not move easily. From this, it is understood that the greater the mass of the body, the more force needs to be applied. The lesser the mass of the body, the more the acceleration will be. So mass and acceleration are inversely related to each other.
  • Hammering a nail: Inserting a nail on a wooden table with the help of a hammer needs a lot of force. So the hammer is accelerated which will bring in more force and will easily help in inserting the nail inside of the table.
  1. Third Law of Motion: Whenever one object exerts a force on another object, the second object exerts an equal and opposite force on the first. Application:

o When a ray of light goes from a denser medium to a rarer medium, it bends away from the normal (at the point of incidence).

  • Reflection, Refraction, Absorption Transmission: When any light passes from a rarer medium to a denser medium, one of the three things happens: o Reflection: The light may get reflected from the surface and change its direction is termed as reflection. The reflection on the plain mirror can be of different types. o Absorption: This happens when the light gets absorbed and gets converted to another form of energy. This occurs when light disappears as it passes through another medium. o Transmission: The light could be transmitted, which means it may pass easily through another medium or may get refracted. o Refraction: When light travels from one medium to another medium it bends at the point of the interface of the two media. This phenomenon is called refraction of light. DID YOU KNOW? Types of Images:Real Images: Real images are defined as the images formed due to the convergence of light rays after being reflected or refracted from a mirror, lens, or object. In other words, a real image is formed in front of the mirror. A real image is always located in the plane of convergence of light rays emitted from the source. ✓ Virtual Images: Virtual images are defined as the images formed due to the divergence of light after being reflected or refracted from a mirror, lens, or object. The virtual image is of the same size as the object. It is erect and forms at an equal distance from the object. But the virtual image gets inverted upon reflection in the plain mirror. ❖ Mirror:- Important Terms associated with Mirror:
  • Centre of Curvature: The center of curvature of a mirror is the center of the sphere of which the mirror is a part.
  • Pole: The pole of a spherical mirror is the center of the reflecting surface of the spherical mirror. It lies on the surface of the spherical mirror.
  • Principal Axis: The line joining the center of curvature and the pole of a spherical mirror is known as the principal axis. Types of Mirrors:
  • Plane Mirror: A plane mirror is a type of mirror that is flat in structure and possesses a smooth reflective surface. This mirror is capable of forming the virtual image of an object with the same shape and size.
  • Spherical Mirror: Spherical mirrors are considered to have consistent curves as well as a constant radius of curvatures. An image that can be formed by a spherical mirror can either be real or virtual. Moreover, there are two different types involved while talking about a spherical mirror. They are: Concave mirror and Convex mirror. o Concave mirror: In concave mirrors, the reflection takes place from the inner surface of the spherical mirror. The image formed by the concave mirrors is real and inverted. o Convex mirror: However, in the case of convex mirrors, the reflection takes place from the outer surface of the spherical mirror. The image formed by the convex mirrors is virtual and erect. Reflection in Concave Mirror:
  • The image which is generated by a concave mirror can be of any size, large or small and it can be either real or virtual.
  • A magnified image is obtained if this concave mirror is located close to an object. This can be considered as a virtual image.
  • A real image would be formed if we increase the distance between the object and the mirror. This is because when they are being kept far away from each other, the image that appears is very small in size.
  • Application: A concave mirror gives the dentist a magnified reflection of the mouth while also refracting a bit of light. This means the image in the mirror is larger, brighter, and, for the dentist, easier to see.
  • Rules for Image Formation:
  • Sparkling of Diamonds: When light enters the diamond it suffers multiple total internal reflections. The light gets collected inside but it comes out only through a few faces. Hence the diamond sparkles when seen in the direction of emerging light.
  • Optical fibers: These use total internal reflection. An optical fiber is made up of an inner core made of glass with a high refractive index and an outer cladding made of glass with a lower refractive index. Refraction of light:
  • When light travels from one medium to another medium it bends at the point of the interface of the two media. This phenomenon is called refraction of light. o So, when light travels from a rarer to a denser medium, the ray of light will bend towards the normal, and when light travels from a denser to a rarer medium, the ray of light will bend away from the normal.
  • Example: o Optical wires: The optimal wires used in our household for internet connections work on the principle of refraction. o Mirage: Mirages are produced by atmospheric refraction and are mainly seen in settings where there are large variations in the air temperature, such as in deserts or over cold bodies of water. ✓ The refraction that occurs near the Earth's surface is mainly due to temperature gradients where the light rays will be bent toward the cooler side of a given interface. ✓ Refraction bends the light rays from the bright sky upward from the hot surface producing a mirage that has the appearance of a wet surface. Gallant refers to this kind of mirage as a "puddle mirage". ✓ The inferior mirage is produced when light rays from an object approach a hotter region and are refracted away from the hot area. ✓ In the desert mirage, the rays approaching the hot surface are turned upward away from the surface. If those upward rays are intercepted by your eye, you see the mirage image appearing below the actual object. o Pencil submerged in a beaker of water: The light from the part of the pencil which is immersed in water, travels from water to air i.e., denser medium to

rarer medium. Therefore, its light bends away from the normal. Because of this bend, the pencil appears to be bent or broken. ❖ Lenses:- There are two types of lenses, based on the nature of the rays once they strike the lens, which can be categorized as converging or diverging. o Converging Lens: The two sides of a convex (converging) lens curve inwards. It is also known as a converging lens because it converges when the light rays impact it onto a focal point. o Diverging Lens: Both sides of a concave (diverging) lens are bent outwards. It is also known as a diverging lens because, when parallel rays are incident on it, the emerging rays spread out or diverge. A diverging lens creates a virtual picture but not a real image. ❖ Dispersion:- Meaning: When white light is passed through a glass prism it splits into its spectrum of colors (in order violet, indigo, blue, green, yellow, orange, and red) and this process of white light splitting into its constituent colors is termed as dispersion. Formation of the rainbow: A rainbow will always form in the opposite direction from where the Sun is. The water droplets perform the role of tiny prisms. The incident sunlight is first refracted and dispersed, then refracted internally, and then refracted once more when it emerges from the raindrop. Different colors are visible to the observer's eye as a result of light dispersion and total internal reflection. ❖ Scattering or Tyndall Effect:- Meaning: The scattering of light is one of the most important physical phenomena in our lives. When a beam of light passes through a medium, a part of it appears in directions other than the incident direction. This phenomenon is called the scattering of light. The particle of the medium should be comparable in size to the wavelength

  • Mach is used as a unit of measurement in stating the speed of a moving object in relation to the speed of sound. For example, if an aircraft is traveling at Mach 1, it is traveling at exactly the speed of sound. Types of Sound Waves:
  • Subsonic and Supersonic Waves: Supersonic and subsonic refer to speeds faster or slower than the speed of sound. Anything going faster than the speed of sound is traveling at supersonic speeds. Anything going slower than the speed of sound is traveling at subsonic speeds. o The speed of sound varies depending on the medium through which it's traveling. o In subsonic waves, the Mach is less than 1 which means that the speed of the object is less than the speed of the sound.
  • Transonic Waves: As the speed of the object approaches the speed of sound, the flight Mach number M is nearly equal to one, $M=1$, and the flow is said to be transonic. At some places on the object, the local speed exceeds the speed of sound. Compressibility effects are most important in transonic flows and lead to the early belief in a sound barrier.
  • Ultrasonic or Supersonic Waves: The human ear can perceive sound waves of frequency ranging from 20 Hz to 20 kHz. The waves of this frequency range are known as audible waves. o The sound waves having frequencies greater than the upper limit of the audible range (i.e., above 20 kHz) are known as ultrasonic or supersonic waves. o In this wave, Mach is more than 1. This means that the speed of the object is more than the speed of sound. o For high supersonic speeds, 3 < M < 5 , aerodynamic heating also becomes very important for aircraft design.
  • Hypersonic Waves: For speeds greater than five times the speed of sound, M > 5 the flow is said to be hypersonic. o At these speeds, some of the energy of the object now goes into exciting the chemical bonds that hold together the nitrogen and oxygen molecules of the air. o At hypersonic speeds, the chemistry of the air must be considered when determining forces on the object.

o The Space Shuttle re-enters the atmosphere at high hypersonic speeds, M ~ 25. How is the Human Voice Produced?

  • Lungs: Voice is generated by airflow from the lungs. When the air from the lungs blows through the vocal folds at a high speed, the vocal folds vibrate. The vibrations lead to sounds we call voice. These sounds are shaped to form speech.
  • Larynx: When it's time to speak, the air pressure below the larynx increases until it blows the vocal folds apart.
  • Vocal Folds: As we release our breath, the pressure pushes air through our voice cords, forming suction. The vocal folds must vibrate regularly when air passes through them from the lungs and into the mouth and nose in order to create speech.
  • Eardrum: The eardrum in ear senses the vibrations of sound, it sends the signals to the brain. It is a thin layer of skin stretched tight, like a drum, in the ear involved in the hearing process. Categories of Waves:
  • Longitudinal Waves: A longitudinal wave is a wave in which particles of the medium move in a direction parallel to the direction in which the wave moves. Sound is an example of longitudinal waves. o A longitudinal wave can be seen in compressions traveling along a slinky.
  • By pushing and pulling the slinky horizontally, we may create a horizontal longitudinal wave.
  • Transverse Waves: A transverse wave is a wave in which particles of the medium move in a direction perpendicular to the direction that the wave moves. o Examples: The vibrations on a string and ripples on the surface of the water are examples of Transverse Waves. o By moving the slinky vertically up and down, we may create a horizontal transverse wave. o Furthermore, when we throw a stone into a pond the molecules of water move up and down in the vertical direction around their mean positions while the waves travel in the horizontal direction along the surface of the water. Characteristics of Waves:

o Usage in concert halls: Because the music hall ceilings are curved, the sound is reflected off the curving surface and evenly spreads to every corner of the room. Application of Ultra Sound (Freq. > 20,000 Hz)

  • Functioning of SONAR (Sound Navigation and Ranging): SONAR works using ultrasonic waves. A transmitter and receiver are used in SONAR techniques. The whole device has been loaded into the ship. o Ultrasonic waves or ultrasound are generated by the transmitter. These waves travel across water. o Waves pass through water and hit objects submerged or on the seabed. These waves are reflected by objects or the seabed after they strike. o As a result, the receiver collects these waves. o The ultrasonic waves are then converted into electrical signals, which are studied to determine underwater conditions and obstacles. SONAR is used to map seabed topography.
  • Detect cracks in metal blocks: Ultrasonic inspection of metal blocks can be used to find flaws and fissures. Metallic components are used in large structures including buildings, bridges, machinery, and scientific equipment.
  • Ultrasonography: Ultrasonography is a type of medical imaging that uses high- frequency sound (ultrasound) waves to produce images of internal organs and other tissues. During an ultrasound, a device called a transducer converts electrical current into sound waves, which are sent into the body's tissues.
  • Used by bats and dolphins: To communicate, bats and dolphins use ultrasonic vibrations. In the event that they clash, these waves are reflected back to the bat's ears. By analyzing these waves' reflections, bats may determine the location of their prey. Echolocation is the name we give this process. Dependency of Sound:
  • Nature of Medium: The speed of the sound depends on the density of the medium through which it travels. Sound travels faster in solids than in liquids and quicker in liquids than in gases.
  • Temperature: The speed of sound depends on the temperature of the medium. The speed will be more when the temperature will be more.

Atoms and Molecules

Atoms:-

  • The atom is considered the basic building block of matter. Anything that has a mass, in other words, anything that occupies space is composed of atoms. Atoms are very small, they are smaller than anything that we can imagine or compare.
  • But later upon research it has been deciphered that atoms are not indivisible. Each atom is generally made up of smaller particles. Given that these particles make up atoms, they are often referred to as subatomic particles. There are three subatomic particles: protons, neutrons, and electrons. These subatomic particles are called the elementary particles of any matter. o Protons and neutrons are in the center of the atom, making up the nucleus. Protons have a positive charge. o Electrons spin around the nucleus and have a negative charge. The charge on the proton and electron are exactly the same size but opposite. Since opposite charges attract, protons and electrons attract each other. o Neutrons have no charge.
  • With further study and experimentation, it has been understood that even protons, electrons, and neutrons are not the elementary particles of any matter because they themselves are made up of multiple smaller units (elementary particles) named Quarks. DID YOU KNOW? Molecules: o A molecule is in general a group of two or more atoms that are chemically bonded together, that is, tightly held together by attractive forces. o A molecule can be defined as the smallest particle of an element or a compound that is capable of an independent existence and shows all the properties of that substance.

Gluons: The strongest force of attraction between the proton and neutrons happens inside the nucleus. To separate these two elements, an immense amount of energy is required. The elementary particle responsible (boson) gluon is responsible for this immense nuclear force.

  • Photons: The boson responsible for generating electromagnetic force is a photon.
  • Gravitons: These are responsible for the gravitational force. However, it is hypothetical.
  • W Boson and Z Boson: These are responsible for the weak force. These elementary particles mediate the weak interactions.
  • Scalar Boson: The Higgs boson (God Particle) is another fundamental particle of a type called a scalar boson. This boson is responsible for mass. o Peter Higgs and the team of François Englert and Robert Brout proposed a theory about the existence of a particle that explains why other particles have a mass. o In 2012, two experiments conducted confirmed the existence of the Higgs particle. Coined by physicist Leon Lederman, the "God Particle" was born.
  • Fermions: Fermions make up matter. Two fermions cannot be in the same quantum state. Electrons, protons, and neutrons are fermions. Fundamental fermions (fermions that are not made up of anything else) are either Quarks or Leptons.
  • Quarks: There are 6 different elementary types of quarks- Up, down, top, bottom, charm, and strange. Example: Protons are made out of three quarks (2 up quarks + 1 down quark). Neutrons are made up of three quarks too (2 down quarks and 1 up quark). Quarks can be further broken down into two categories: Baryon and Mason. o Mason is a pair of a quark and an anti-quark. o On the other hand, Baryon is a combination of three quarks. The protons and neutrons are nothing but Baryons.
  • Leptons: These are also of 6 types - Electron, muon, tau, electron neutrino, muon neutrino, tau neutrino. DID YOU KNOW? Large Hadron Collider (LHC): o The Large Hadron Collider (LHC) is the world's largest and most powerful particle accelerator. The LHC consists of a 27 - kilometer ring of superconducting magnets with a number of accelerating structures to boost the energy of the particles along the way. o Inside the accelerator, two high-energy particle beams travel at close to the speed of light before they are made to collide. o The beams travel in opposite directions in separate beam pipes two tubes kept at ultrahigh vacuum.
