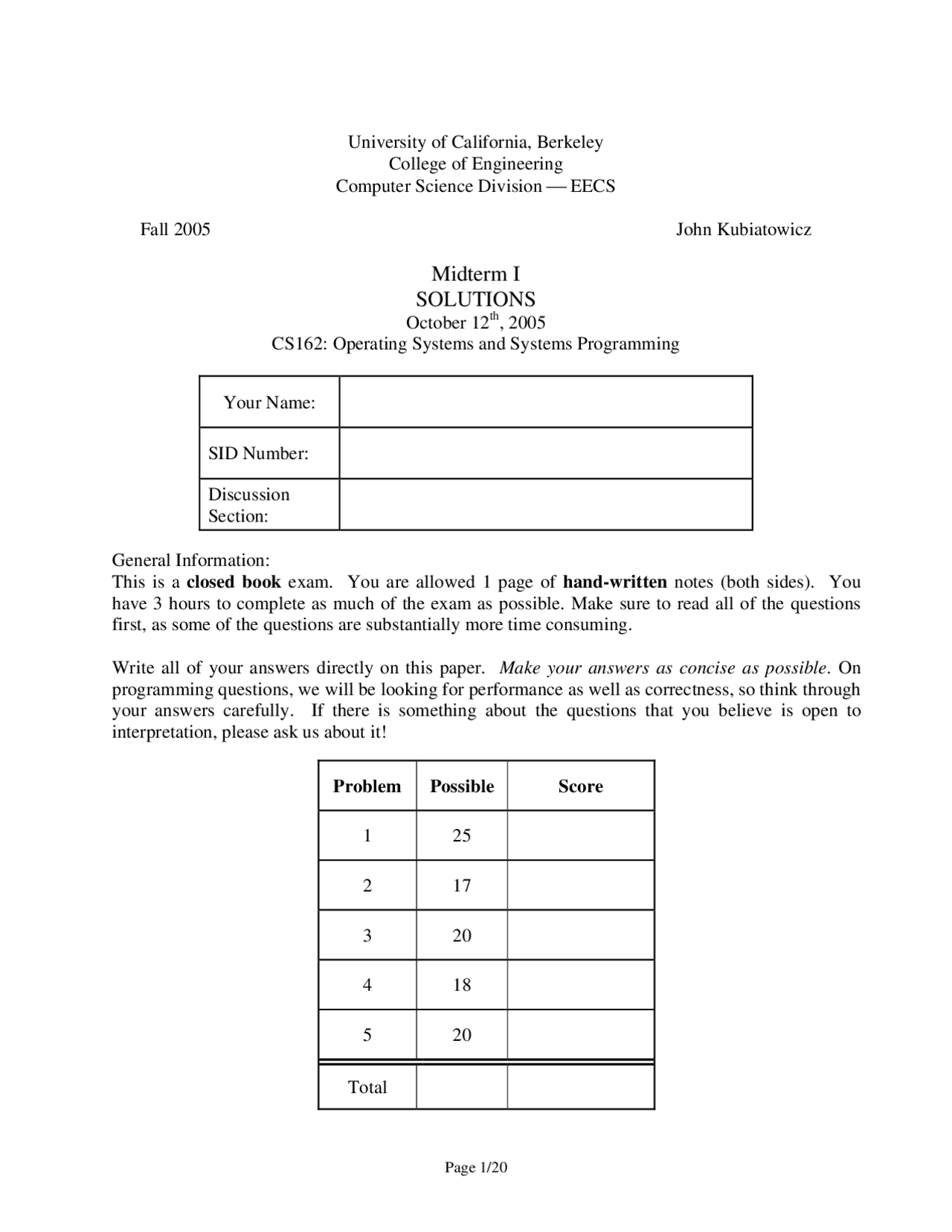

University of California, Berkeley College of Engineering Computer Science Division ⎯ EECS
Fall 2005 John Kubiatowicz
Midterm I
SOLUTIONS
October 12th, 2005 CS162: Operating Systems and Systems Programming
Your Name:
SID Number:
Discussion Section:
General Information: This is a closed book exam. You are allowed 1 page of hand-written notes (both sides). You have 3 hours to complete as much of the exam as possible. Make sure to read all of the questions first, as some of the questions are substantially more time consuming.
Write all of your answers directly on this paper. Make your answers as concise as possible. On programming questions, we will be looking for performance as well as correctness, so think through your answers carefully. If there is something about the questions that you believe is open to interpretation, please ask us about it!
Problem Possible Score
Total
[ This page left for π ]
Problem 1e[3pts]: Suppose that we have a two-level page translation scheme with 4K-byte pages and 4-byte page table entries (includes a valid bit, a couple permission bits, and a pointer to another page/table entry). What is the format of a 32-bit virtual address? Sketch out the format of a complete page table.
Grading Scheme: 1 point for the virtual address format (1/2 for [L1 page index, L2 page index, offset] and 1/2 point for # bits = 10,10,12) , 1 point for picture of single level page table, 1 point for multiple page tables linked together correctly
Problem 1f[2pts]: What needs to be saved and restored on a context switch between two threads in the same process? What if the two threads are in different processes? Be explicit.
Need to save the processor registers, stack pointer, program counter into the TCB of the thread that is no longer running. Need to reload the same things from the TCB of the new thread. When the threads are from different processes, need to not only save and restore what was given above, but you also need to load the pointer for the top-level page-table of the new address space. You don’t need to save the old pointer, since this will not change and is already stored in the PCB. Grading Scheme: 1 point for within process save/restore registers, stack pointer and PC separate processes 1/2 point for same as "within process" + 1/2 for also need to save/restore virtual memory info (page table base register)
Problem 1g[1pt]: What is a thread-join operation?
Thread-join is issued by one thread when it wants to stop and wait for the termination of another thread. On termination of the target thread, the original thread resumes execution. Grading Scheme: 1 point for this thread waits for the joined-to thread to finish
4KB
10 bits 10 bits 12 bits
Virtual
Address:
P1 indexVirtual P2 indexVirtual Offset
4 bytes
PageTablePtr
4 bytes
4KB
10 bits 10 bits 12 bits
Virtual
Address:
P1 indexVirtual P2 indexVirtual Offset
10 bits 10 bits 12 bits
Virtual
Address:
Virtual P1 indexVirtual P2 indexVirtual Offset
Address:
P1 indexP1 indexVirtualVirtual P2 indexP2 indexVirtualVirtual OffsetOffset
4 bytes
PageTablePtr
4 bytes4 bytes
PageTablePtr
4 bytes4 bytes
Problem 1h[3pts]: Name at least three ways in which context-switching can happen in a non- preemptive scheduler.
- The user code can execute a yield() system call.
- The user code can request an I/O operation.
- The user code can request a wait() operation for another thread (such as thread-join).
Grading Scheme: 1 point per correct answer. People who said traps/exceptions got no points unless they somehow mentioned that it could be possible for a process to get killed by the OS. Thereby, the OS would context-switch to a new thread because the old process had been killed. In this special case weI gave ½ point because the old process isn't context-switching so much as it just gets killed.
Problem 1i[3pts]: Name three ways in which processes on the same processor can communicate with one another. If any of the techniques you name require hardware support, explain.
- Shared memory. This requires translation hardware (segments or page tables) in order to map a shared piece of DRAM into two different address spaces.
- Message passing. Doesn’t require hardware support.
- Through the file system. Doesn’t require hardware support (other than the support that was already there for the file system).
Grading Scheme: 1 point per correct answer. If other answers were given they had to be explained fully to get any kind of credit - for example, some students mentioned Unix pipes and communication by stdin/stdout, but this had to be explained fully to get credit.
Problem 1j[2pts]: What is an interrupt? What happens when an interrupt occurs? What is the function of an interrupt controller?
An interrupt is an external signal. When interrupt occurs and is enabled (which means that it is not masked off and the primary interrupt bit in the processor is turned on), then the processor will stop the current running code, save the PC, disable interrupts, and jump to an appropriate interrupt handler. The function of the interrupt controller is to provide some control over which hardware interrupt signals are enabled and what their priority is.
Grading Scheme: ½ point for giving the correct definition of an interrupt. 1 point for what happens when an interrupt occurs. Credit was not given for saying a context switch occurs. To get full credit, you should have also mentioned something about an interrupt handler. ½ point for the correct definition of an interrupt controller.
Problem 2: Monitors
Problem 2a[2pts]: What is a monitor?
A monitor is a synchronization mechanism (as well as a style of programming) that abstracts away protection and scheduling access to shared data through the use of a lock and zero or more condition variables.
Problem 2b[5pts]: Provide Java class definitions for each of the components of a monitor. Include specifications for local data and methods (names and arguments, not implementation); method names should adhere to the interface defined in class. Make sure to document each method by saying what it should do. Be brief! Hint: you should have two different object classes.
Class Lock { ThreadQueue Q; Acquire(); //fun to acquire lock Release(); //fun to release lock }
Class ConditionVar { ThreadQueue Q; Sleep(Lock lock); /* sleep thread until someone wakes it up / Wake(); / wake one sleeping thread / WakeAll(); / wake all sleeping threads */ } Also accepted: Wait(Lock lock); Signal(); Broadcast();
1pt for each of the functions. A lot of students decided to give the usage for a monitor. If you had methods like “enqueue and dequeue or something like that we gave 1 point if it looked reasonable and you showed an understanding of monitors. An answer that used locks and condition variables properly (i.e. writing out enqueue and dequeue for a protected queue) got 2pts. We were very generous here even though we explicitly said give class definitions and not implementations!
Problem 2c[2pts]: What is the difference between Mesa and Hoare scheduling for monitors?
In a mesa scheduling, the thread that is doing the signaling retains the lock after the signal is done. The signaled thread is just put on the ready queue. However, in Hoare scheduling the thread that is doing the signaling atomically transfers the lock to the signaling thread and it gets to start running right away. When the signalee is done running it gives the lock back to the signaler when it is done.
One point for each. We took of 0.5 points if you neglected to mention the that the signalee gives the lock back. Most of the students in the class forgot this.
Problem 2d[8pts]: In parallel programs (one multi-threaded process), a common design methodology is to perform processing in sequential stages. All of the threads work independently during each stage, but they must synchronize at the end of each stage at a synchronization point called a barrier. If a thread reaches the barrier before all other threads have arrived, it waits. When all threads reach the barrier, they are notified and can begin execution on the next phase of the computation.
Example:
While (true) { Compute stuff; BARRIER(); Read other threads results; }
There are three complications to barriers. First, there is no master thread that controls the threads, waits for each of them to reach the barrier, and then tells them to restart. Instead, the threads must monitor themselves and determine when they should wait or proceed. Second, for many dynamic programs, the number of threads that will be created during the lifetime of the parallel program is unknown in advance, since a thread can spawn another thread, which will start in the same program stage as the thread that created it. Third, a thread may end before the barrier. In all cases, all threads must wait at the barrier for all other threads before anyone is allowed to proceed.
Provide the pseudo-code for a monitor class called Barrier that enables this style of barrier synchronization. Your solution must support creation of a new thread (an additional thread that needs to synchronize), termination of a thread (one less thread that needs to synchronize), waiting when a thread reaches the barrier early, and releasing waiting threads when the last thread reaches the barrier. Implement your solution using monitors. You should never busy-wait; threads waiting at a barrier should be sleeping.
Your class must implement the following three methods: threadCreated(), threadEnd(), and enterBarrier(). Think carefully about efficiency and avoid unnecessary looping. Feel free to utilize space on the next page.
Solution: See next page
Problem 3: Lock-Free Queue
An object such as a queue is considered “lock-free” if multiple processes can operate on this object simultaneously without requiring the use of locks, busy-waiting, or sleeping. In this problem, we are going to construct a lock-free FIFO queue using an atomic “swap” operation. This queue needs both an Enqueue and Dequeue method.
We are going to do this in a slightly different way than normally. Rather than Head and Tail pointers, we are going to have “PrevHead” and Tail pointers. PrevHead will point at the last object returned from the queue. Thus, we can find the head of the queue (for dequing). Here are the basic class definitions (assuming that only one thread accesses the queue at a time):
// Holding cell for an entry class QueueEntry { QueueEntry next = null; Object stored; int taken = 0;
QueueEntry(Object newobject) { stored = newobject; } }
// The actual Queue (not yet lock free!) class Queue { QueueEntry prevHead = new QueueEntry(null); QueueEntry tail = prevHead;
void Enqueue(Object newobject) { QueueEntry newEntry = new QueueEntry(newobject); tail.next = newEntry; tail = newEntry; }
Object Dequeue() { QueueEntry nextEntry = prevHead.next; While ((nextEntry != null) && nextEntry.taken == 1) { nextEntry = nextEntry.next; } if (nextEntry == null) { return null; } else { nextEntry.taken = 1; prevHead = nextEntry; return nextEntry.stored; } } }
Problem 3a[10pts]: Suppose that we have an atomic swap instruction. This instruction takes a local variable (register) and a memory location and swaps the contents. Although Java doesn’t contain pointers, we might describe this as follows:
Object AtomicSwap(variable addr, Object newValue) { object result = *addr ; // get old object stored in addr *addr = newValue ; // store new object into addr return result; // Return old contents of addr }
With this primitive, we might build a test-and-set lock as follows:
int mylock = 0; // grab lock while (AtomicSwap(mylock,1) == 1); // got lock
Rewrite code for Enqueue(), using the AtomicSwap() operation, such that it will work for any number of simultaneous Enqueue and Dequeue operations. You should never need to busy wait. Do not use locking (i.e. don’t use a test-and-set lock). The solution is tricky but can be done in a few lines. We will be grading on conciseness. Hint: during simultaneous insertions, objects may be temporarily disconnected from the queue (i.e. the set of entries reachable by nextEntry = nextEntry.next starting from prevEntry ); but eventually the queue needs to be connected.
Solution: One of the most important things about this solution is that it still has to work for single-
threaded execution!!!! We were not very forgiving of solutions that produced loops and other anomalies when running single-threaded. The key to this solution is to atomically insert the new element at the tail of the list. What it means to be at the “tail of the list” is that new elements will be added after you. We need to make sure that the system presents a single insertion order within the queue (i.e. no reordering after insertion), since Dequeue operations are occurring in parallel with insertions. Technique: we use a single AtomicSwap to set our insertion order, then reconnect the queue afterwards using a single store operation. void Enqueue(Object newobject) { QueueEntry newEntry = new QueueEntry(newobject); QueueEntry oldTail = AtomicSwap(tail,newEntry); oldTail.next = newEntry; } Further explanation: After the swap, the new entry is not yet attached to the beginning of the list, but has become the new tail (and may get new items added to it). To reconnect the list, we merely need to store our identity into the next field of the old tail (the element that was the tail when we performed our swap). Until we reconnect the list, Dequeue() operations may free everything up to and including the oldTail. However, they will go no further (since the next field of the oldTail is null up to the moment that the new element is added to the end). Sample grading constraints: Wrong AtomicSwap: -4, (although some close results got -2), Ignoring return from AtomicSwap: -3 (unless you were otherwise really close), Solution not working for single-threaded: discount up to -6, depending on circumstances. Tail not updated correctly: -
Problem 4: Scheduling
Problem 4a[2pts]: Six jobs are waiting to be run. Their expected running times are 10, 8, 6, 3, 1, and X. In what order should they be run to minimize average completion time? State the scheduling algorithm that should be used AND the order in which the jobs should be run. (Your answer will depend on X).
Shortest Job First or Shortest Remaining Processing Time
X <= 1 X, 1, 3, 6, 8, 10 Answers that mentioned something about scheduling X by 1 < X <= 3 1, X, 3, 6, 8, 10 ordering the processes in ascending order by running times 3 < X <= 6 1, 3, X, 6, 8, 10 were accepted. 6 < X <= 8 1, 3, 6, X, 8, 10 8 < X <= 10 1, 3, 6, 8, X, 10 X > 10 1, 3, 6, 8, 10, X
Problem 4b[4pts]: Name and describe 4 different scheduling algorithms. What are the advantages and disadvantages of each?
FCFC (FIFO) – The first process that arrives gets to run all the way to completion
- Simple and quick to choose the next thread
- Fair in the sense that jobs run in the order they arrived
- Long wait times for short jobs that get stuck behind long jobs
- Not fair for jobs that can finish very quickly but must wait a long time Round Robin – Scheduler rotates through all threads, allowing each to run for some time quantum
- Fair because gives every thread a chance to run
- Potentially large overhead from frequent context switching
- Can result in large completion times, especially for threads with similar run times Shortest Job First – Scheduler runs the shortest job first, non-preemptive
- Results in low average completion time
- Long jobs can et stuck behind short jobs
- Requires knowledge of the future, hard to predict Shortest Remaining Processing Time – Works like SJF, but preemptive +/- Same as SJF Priority Scheduler – Assign threads different priorities, run them in order of priority
- Important threads get run first
- Low priority threads can starve Lottery Scheduler – Give threads tickets and hold a lottery to pick the next thread to run
- Allows high priority threads to run quickly, but low priority threads still make progress
- More difficult to implement, may take longer to pick next thread than other algorithms
You needed to have the description of the scheduler, one advantage, and one disadvantage to get full credit.
Problem 4c[3pts]: Here is a table of processes and their associated running times. All of the processes arrive in numerical order at time 0.
Process ID CPU Running Time Process 1 2 Process 2 6 Process 3 1 Process 4 4 Process 5 3
Show the scheduling order for these processes under 3 policies: First Come First Serve (FCFS), Shortest-Remaining-Time-First (SRTF), Round-Robin (RR) with timeslice quantum = 1
Time Slot FCFS SRTF RR
0 1 3 1
1 1 1 2
2 2 1 3
3 2 5 4
4 2 5 5
5 2 5 1
6 2 4 2
7 2 4 4
(^8 3 4 )
9 4 4 2
10 4 2 4
11 4 2 5
(^12 4 2 )
13 5 2 4
14 5 2 2
15 5 2 2
[ This page intentionally left blank ]
Problem 5: Deadlock
Problem 5a[2pts]: List the conditions for deadlock.
(½ point each) Hold & wait Circular dependency/circular wait No preemption of resources Mutual exclusion
Problem 5b[3pts]: What are three methods of dealing with the possibility of deadlock? Explain each method and its consequences to programmer of applications.
(1 point each) Ignore it – do nothing about it. Application programmers have to deal with deadlock or not care if it happens Prevent it – use Banker’s Algorithm and only allow allocations that cannot possibly lead to deadlock. Application programmer has to specify maximum possible resource needs Detect it and recover – check dependency graph for cycles and kill a thread in the cycle. Application programmer has to deal with their threads possibly getting killed.
Many lost 1 point total for skipping all of the “consequences to the programmer of applications”. A common mistake was to say what the OS programmer had to do.
Problem 5c[3pts]: Suppose that we have several processes and several resources. Name three ways of preventing deadlock between these processes
(1 point each) Atomically acquire all resources at the start of execution Use the Banker’s Algorithm Acquire all resources in a specified order
Many other possible answers
Problem 5e[3pts]: Assuming the allocations in (5d), suppose that T1 asks for 2 more copies of A. Can the system grant this or not? Explain.
Solution:
No, if we allocate two more A to T1, then the available resources are: A B C 0 1 1
and T1’s new need is A B C 0 2 1 (other threads’ needs are the same)
Because we need more B to guarantee that T1 can run, and we need more A to guarantee that T2, T3, or T4 can run, this is an unsafe state
(1 point for “No”) (1 point for T1’s new need vector or explanation of T1’s new need) (1 point for “No thread can meet it’s need now”)
Alternate (mostly wrong) answer: (1 point for “Yes, because there are enough A available”)
Problem 5f[4pts]: Assuming the allocations in (5d), what is the maximum number of additional copies of resources (A, B, and C) that T1 can be granted in a single request without risking deadlock? Explain.
Solution: the following is the max possible:
A B C
From 5e, we know that we cannot grant 2A. This is thus the max we might be able to allocate (because only 1B and 1C are even available). If we grant 1A, 1B, and 1C to T1, we can see the new need vector for T1 is A B C 0 1 0 And the new available resources vector is A B C 1 0 0 This is enough resources to grant T3 its max and run it to completion (thus freeing its resources). After finishing T3, we have
enough resources to run each of the other threads in turn, therefore no deadlock can occur. 2 points for A B C 1 1 1 -1 point for one number being off by one, except A B C 2 1 1 is -2 for just being the same as avail
1 point for “We can run T3” 1 point for “After running T3, we have enough resources to run the rest”
