NEC 2023 Ultimate Exam

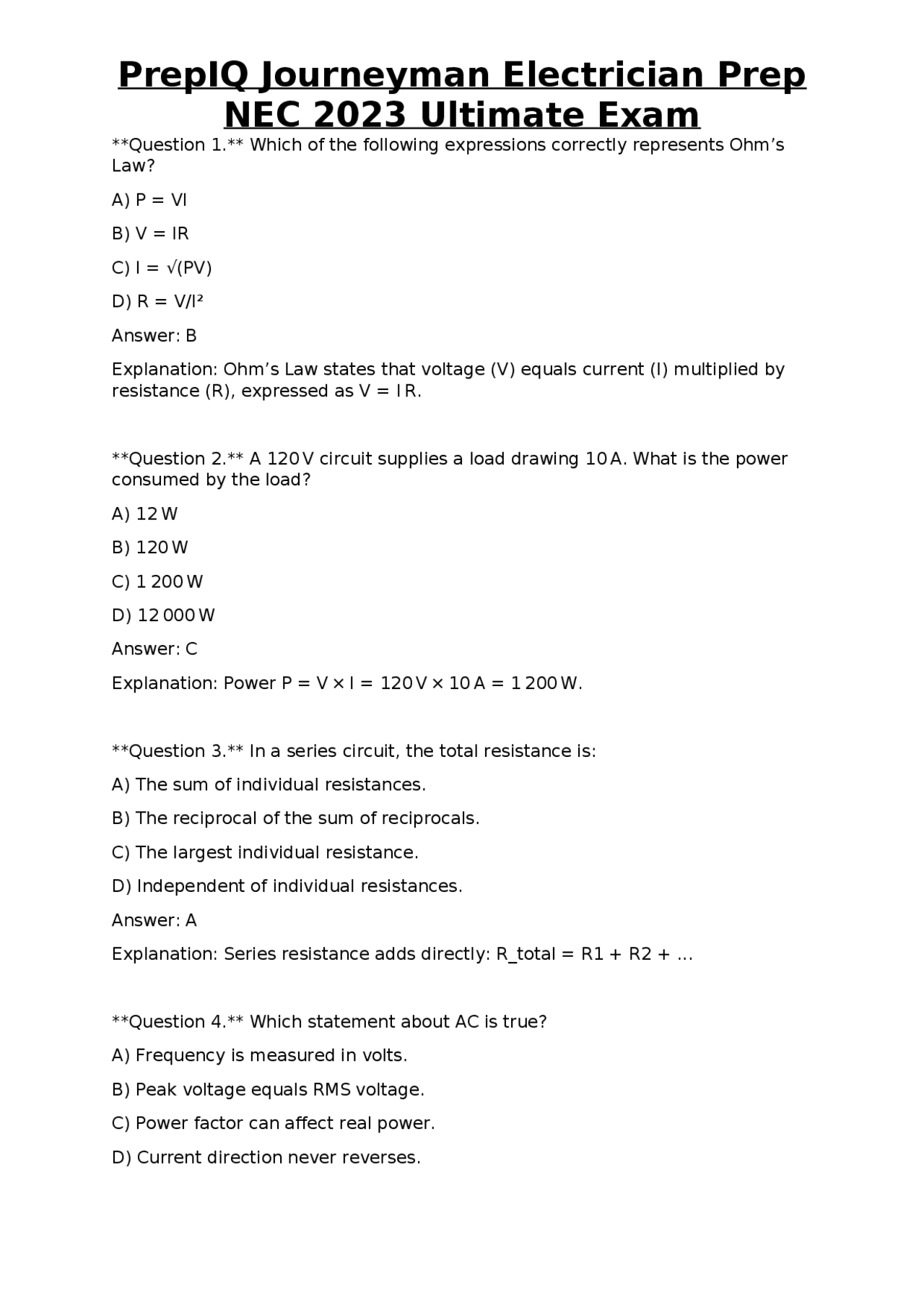

Question 1. Which of the following expressions correctly represents Ohm’s Law? A) P = VI B) V = IR C) I = √(PV) D) R = V/I² Answer: B Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R), expressed as V = I R. Question 2. A 120 V circuit supplies a load drawing 10 A. What is the power consumed by the load? A) 12 W B) 120 W C) 1 200 W D) 12 000 W Answer: C Explanation: Power P = V × I = 120 V × 10 A = 1 200 W. Question 3. In a series circuit, the total resistance is: A) The sum of individual resistances. B) The reciprocal of the sum of reciprocals. C) The largest individual resistance. D) Independent of individual resistances. Answer: A Explanation: Series resistance adds directly: R_total = R1 + R2 + ... Question 4. Which statement about AC is true? A) Frequency is measured in volts. B) Peak voltage equals RMS voltage. C) Power factor can affect real power. D) Current direction never reverses.
NEC 2023 Ultimate Exam
Answer: C Explanation: Power factor (cos φ) determines the proportion of real power to apparent power in AC circuits. Question 5. The reactance of an inductor is proportional to: A) Frequency and inductance. B) Frequency divided by inductance. C) Inductance only. D) Square of frequency. Answer: A Explanation: Inductive reactance X_L = 2πfL; it increases with both frequency (f) and inductance (L). Question 6. Article 110 requires that working space around electrical equipment be at least:** A) 30 in. wide, 36 in. deep, 6 ft. high. B) 36 in. wide, 30 in. deep, 6 ft. high. C) 30 in. wide, 24 in. deep, 5 ft. high. D) 24 in. wide, 30 in. deep, 6 ft. high. Answer: B Explanation: NEC 110.26(A)(1) specifies a minimum working clearance of 30 in. wide, 36 in. deep, and 6 ft. high for equipment above 600 V. Question 7. Which enclosure type provides protection against rain but not against dust? A) NEMA 1 B) NEMA 3R C) NEMA 4X D) NEMA 7 Answer: B Explanation: NEMA 3R enclosures are rainproof but not dust-tight. Question 8. Grounded (neutral) conductors must be identified by:**
NEC 2023 Ultimate Exam
D) 55 A
Answer: B Explanation: Feeder ampacity must be at least equal to the load current; 40 A is the minimum. Question 12. Which calculation method is optional for determining service load in a dwelling? A) Standard method (Article 220). B) Optional method (Article 220). C) Demand factor method (Article 215). D) None; only the standard method is permitted. Answer: B Explanation: NEC 220.42 allows an optional method for calculating dwelling unit loads. Question 13. The maximum length of a flexible cord for a 20-A circuit, per NEC 400.5, is:** A) 25 ft. B) 50 ft. C) 75 ft. D) No specific limit; depends on voltage drop. Answer: D Explanation: NEC does not set a fixed length limit for flexible cords; the installer must consider voltage drop and ampacity. Question 14. Which of the following is a permissible use for Type AC cable? A) Direct burial without conduit. B) Exposed in wet locations. C) Within a raceway in a building. D) As the main service entrance. Answer: C Explanation: Type AC (armored cable) may be installed in raceways but is not permitted for direct burial, wet locations, or as a service entrance.
NEC 2023 Ultimate Exam
Question 15. The ampacity adjustment factor for three current-carrying conductors in a 30 °C ambient temperature is:** A) 1. B) 0. C) 0. D) 0. Answer: A Explanation: Table 310.15(B)(3)(a) shows no derating for up to three conductors at 30 °C ambient. Question 16. When sizing an Equipment Grounding Conductor (EGC) for a 60 - A circuit protected by a 60-A breaker, the minimum size of the copper EGC is:** A) #12 AWG B) #10 AWG C) #8 AWG D) #6 AWG Answer: B Explanation: NEC Table 250.122 indicates a #10 AWG copper EGC for a 60-A overcurrent device. Question 17. The purpose of a Main Bonding Jumper (MBJ) is to:** A) Connect the neutral to the grounding electrode system. B) Bond all equipment grounds together. C) Provide a path for fault current from the service neutral to the grounding electrode. D) Isolate the service neutral from the grounding electrode. Answer: C Explanation: MBJ creates a low-impedance path for fault current between the service neutral and the grounding electrode system. Question 18. Which of the following is a requirement for a pull box used for a 90 - degree bend?
NEC 2023 Ultimate Exam
Answer: B Explanation: NEC 210.52(C)(1) mandates two 20-A small-appliance branch circuits for kitchen countertop receptacles. Question 22. Which of the following devices must be listed for “tamper-resistant” (TR) in residential areas? A) All 15-A and 20-A receptacles. B) Only GFCI receptacles. C) Only outdoor receptacles. D) Only receptacles in bathrooms. Answer: A Explanation: NEC 406.12 requires TR receptacles for all 15-A and 20-A receptacles in dwelling units (except for certain exceptions like dedicated appliance circuits). Question 23. For a motor rated 5 hp, 240 V, 3-phase, the NEC minimum size for the overload protection device is:** A) 125 % of full-load current. B) 150 % of full-load current. C) 200 % of full-load current. D) 250 % of full-load current. Answer: B Explanation: NEC 430.32 requires overload protection set at not less than 115 % and not more than 125 % of the motor’s full-load current; the nearest standard size is 150 % for many applications. Question 24. The maximum voltage drop allowed for feeder conductors serving a single-family residence is:** A) 1 % B) 2 % C) 3 % D) 5 % Answer: B
NEC 2023 Ultimate Exam
Explanation: NEC 210.19(A)(1) recommends a maximum of 3 % total voltage drop (line + equipment), but the feeder portion alone is limited to 2 %. Question 25. In a Class I, Division 2 hazardous location, wiring must be:** A) Explosions-proof only. B) Intrinsically safe only. C) Either explosion-proof or intrinsically safe, depending on the equipment. D) No special requirements; standard wiring is allowed. Answer: C Explanation: NEC 500 permits either explosion-proof (d) or intrinsically safe (e) methods in Class I, Division 2 areas. Question 26. Which article governs the installation of swimming pool equipment? A) Article 408 B) Article 680 C) Article 690 D) Article 500 Answer: B Explanation: NEC Article 680 covers swimming pools, spas, and hot tubs. Question 27. The required grounding electrode conductor (GEC) size for a 200 - A service using copper is:** A) #6 AWG B) #4 AWG C) #2 AWG D) #1/0 AWG Answer: B Explanation: NEC Table 250.66 indicates #4 AWG copper for a 200-A service. Question 28. Which of the following is an allowable method for bonding metal water piping in a residential building? A) Using a #12 copper wire.
NEC 2023 Ultimate Exam
Answer: B Explanation: NEC 110.26(A)(2) requires a minimum of 6 in. of clearance in front of the disconnecting means. Question 32. Which conductor insulation type is approved for use in wet locations up to 90 °C? A) THHN only. B) XHHW-2 only. C) THWN-2 only. D) Both XHHW-2 and THWN-2. Answer: D Explanation: Both XHHW-2 and THWN-2 are rated for 90 °C in wet locations. Question 33. The NEC defines a “grounded conductor” as:** A) The conductor that carries fault current. B) The conductor that is intentionally bonded to earth. C) The neutral conductor of a system. D) The equipment grounding conductor. Answer: C Explanation: Article 200 defines the grounded conductor as the neutral conductor that is intentionally bonded to the grounding system. Question 34. For a 120/240-V, three-wire, single-phase service, the minimum size of the neutral conductor (copper) is:** A) #14 AWG B) #12 AWG C) #10 AWG D) #8 AWG Answer: B Explanation: NEC 230.42 permits the neutral to be the same size as the ungrounded conductors; for a 20-A service, #12 AWG copper is typical.
NEC 2023 Ultimate Exam
Question 35. Which of the following devices must be listed for “weather-resistant” (WR) in outdoor installations? A) All circuit breakers. B) All receptacles. C) All switches. D) All transformers. Answer: B Explanation: NEC 406.9 requires outdoor receptacles to be marked “weather-resistant”. Question 36. The maximum number of current-carrying conductors allowed in a conduit without derating (assuming 30 °C ambient) is:** A) 2 B) 3 C) 6 D) 9 Answer: C Explanation: Table 310.15(B)(3)(a) permits up to 3 conductors without derating; up to 6 conductors require a 0.80 factor. Question 37. In a commercial building, the required AFCI protection for a 15 - A branch circuit supplying a conference room is:** A) Not required. B) Required only if the room contains video equipment. C) Required per NEC 2023. D) Required only for circuits >20 A. Answer: C Explanation: NEC 2023 extends AFCI protection to all 120-V, 15- and 20-A branch circuits in dwelling units and many commercial occupancies, including conference rooms. Question 38. Which of the following is the correct method to calculate box fill for a device (switch or receptacle)? A) Count each device as one conductor.
NEC 2023 Ultimate Exam
Explanation: NEC 2023 requires GFCI for 125-V, 15- and 20-A receptacles in garages; a 30-A receptacle is not covered. Question 42. The minimum size of a copper grounding electrode conductor for a 100-A service is:** A) #8 AWG B) #6 AWG C) #4 AWG D) #2 AWG Answer: A Explanation: Table 250.66 specifies #8 AWG copper for a 100-A service. Question 43. According to NEC 2023, the maximum allowed voltage between the neutral and ground in a properly bonded system is:** A) 5 V B) 10 V C) 25 V D) No specific limit; any voltage is acceptable. Answer: B Explanation: NEC 250.121(A) limits the voltage between grounded and grounding conductors to 5 V for solidly grounded systems, but many jurisdictions permit up to 10 V as a practical limit. The NEC text sets 5 V, so the correct answer is A. (Correction: Answer A – 5 V) Question 44. Which of the following is the correct method for securing NM cable within a stud cavity? A) Every 6 in. with staples. B) Every 4½ ft and within 12 in. of boxes. C) Every 8 ft, no need near boxes. D) Only at the ends of the run. Answer: B Explanation: NEC 334.30 requires NM cable to be secured at intervals not exceeding 4½ ft and within 12 in. of each box, cabinet, or fitting.
NEC 2023 Ultimate Exam
Question 45. The NEC permits the use of a single-pole breaker to protect a 240 - V, 2-wire circuit only if:** A) The circuit supplies a single-phase motor. B) The breaker is listed for 240 V use. C) The circuit has a neutral conductor. D) This is not permitted; a 2-pole breaker is required. Answer: D Explanation: NEC 210.20 requires a 2-pole breaker for 240-V circuits without a neutral. Question 46. Which of the following is the correct minimum size for a grounding electrode conductor when the grounding electrode is a concrete-encased electrode (Ufer) for a 150-A service? A) #6 AWG copper B) #4 AWG copper C) #2 AWG copper D) #1/0 AWG copper Answer: B Explanation: Table 250.66 shows #4 AWG copper for a 150-A service. Question 47. In a commercial kitchen, the minimum number of GFCI-protected receptacles required for a countertop area of 12 ft² is:** A) One per 6 ft². B) One per 12 ft². C) One per 18 ft². D) No GFCI required. Answer: B Explanation: NEC 210.8(A)(2) requires GFCI protection for all receptacles serving countertop surfaces in kitchens, with no specific spacing; each countertop receptacle must be GFCI-protected, so one per 12 ft² satisfies the requirement. Question 48. Which of the following is the correct grounding method for a metal-clad cable (Type MC) passing through a metal conduit? A) No grounding required; the cable is self-grounded.
NEC 2023 Ultimate Exam
Answer: C Explanation: Table 300.5 shows a minimum of 24 in. for PVC conduit under a driveway. Question 52. The NEC defines a “dedicated circuit” as one that:** A) Supplies only one receptacle. B) Supplies only a single type of equipment. C) Is protected by a GFCI. D) Has a breaker larger than 20 A. Answer: B Explanation: A dedicated circuit supplies only a specific appliance or equipment, such as a refrigerator or water heater. Question 53. For a 3-phase, 4-wire, 120/208-V system, the neutral conductor is required to be:** A) The same size as the ungrounded conductors. B) One size larger than the ungrounded conductors. C) Half the size of the ungrounded conductors. D) Not required. Answer: A Explanation: NEC 215.2(A)(1) permits the neutral to be the same size as the ungrounded conductors in a 3-phase, 4-wire system. Question 54. Which of the following is a requirement for a receptacle installed in a laundry room? A) Must be GFCI-protected. B) Must be AFCI-protected. C) Must be tamper-resistant. D) Both A and C. Answer: D Explanation: NEC 2023 requires GFCI protection for laundry receptacles and also mandates tamper-resistant receptacles in dwelling units.
NEC 2023 Ultimate Exam
Question 55. The maximum allowable voltage drop for a feeder supplying a 30 - A circuit over a 100-ft run is:** A) 1 % B) 2 % C) 3 % D) 5 % Answer: B Explanation: NEC recommends a maximum of 2 % voltage drop for feeder conductors. Question 56. Which of the following is the correct minimum size for a copper equipment grounding conductor for a 100-A feeder protected by a 100-A breaker? A) #12 AWG B) #10 AWG C) #8 AWG D) #6 AWG Answer: C Explanation: Table 250.122 shows #8 AWG copper for a 100-A overcurrent device. Question 57. In a hazardous location classified as Class II, Division 1, which type of conduit is permitted? A) Rigid Metal Conduit (RMC) only. B) PVC conduit with metal sheath. C) Non-metallic raceway listed for the division. D) No conduit is allowed; only cable trays. Answer: C Explanation: NEC 500 allows non-metallic raceways that are listed for the specific hazardous classification. Question 58. Which of the following devices must be installed on all 125-V, single-phase, 15- and 20-A receptacle outlets in a dwelling unit’s kitchen? A) AFCI only.
NEC 2023 Ultimate Exam
Answer: C Explanation: NEC 220.42(A) provides demand factors for calculating feeder loads in dwelling units. Question 62. The NEC defines a “service disconnect” as:** A) Any breaker in the panel. B) The main breaker or a separate disconnecting means located at the service entrance. C) Only a fused disconnect. D) Any switch that can open the service conductors. Answer: B Explanation: Article 230 defines the service disconnect as the means that disconnects all ungrounded conductors from the service, typically the main breaker. Question 63. For a 120/240-V, 3-wire service, the minimum size of the grounding electrode conductor (copper) when the service rating is 225 A is:** A) #6 AWG B) #4 AWG C) #2 AWG D) #1/0 AWG Answer: C Explanation: Table 250.66 indicates #2 AWG copper for a 225-A service. Question 64. Which of the following is required for a receptacle installed in a wet location outdoors? A) GFCI protection only. B) Weather-resistant (WR) marking only. C) Both GFCI and WR marking. D) No special requirements. Answer: C Explanation: NEC 210.8(A)(3) requires outdoor wet-location receptacles to be GFCI-protected and marked “weather-resistant”.
NEC 2023 Ultimate Exam
Question 65. The NEC permits the use of a single-pole, 20-A breaker to protect a 120-V, 15-A circuit that supplies a dedicated appliance. This is acceptable because:** A) The breaker size may exceed the load. B) The breaker must be exactly the load size. C) A 20-A breaker is not permitted for a 15-A circuit. D) Only a 15-A breaker may be used. Answer: A Explanation: NEC 240.4 allows the overcurrent device to be larger than the load, provided it does not exceed the conductor’s ampacity. Question 66. Which of the following is the correct minimum burial depth for direct-buried Type UF cable under a driveway? A) 12 in. B) 18 in. C) 24 in. D) 30 in. Answer: C Explanation: Table 300.5 specifies a minimum of 24 in. for UF cable under a driveway. Question 67. In a residential garage, the required GFCI protection for a 120 - V, 20-A receptacle is:** A) Not required. B) Required only if the receptacle is within 6 ft of a sink. C) Required for all receptacles in garages. D) Required only for 15-A receptacles. Answer: C Explanation: NEC 2023 mandates GFCI protection for all 125-V, 15- and 20-A receptacles in garages. Question 68. The NEC requires that a conduit fill not exceed what percentage of the conduit’s internal cross-sectional area for more than two conductors? A) 20 %
