PROBLEM 3.95 BEER BOOK, Ejercicios de Mecánica

¡Descarga PROBLEM 3.95 BEER BOOK y más Ejercicios en PDF de Mecánica solo en Docsity!

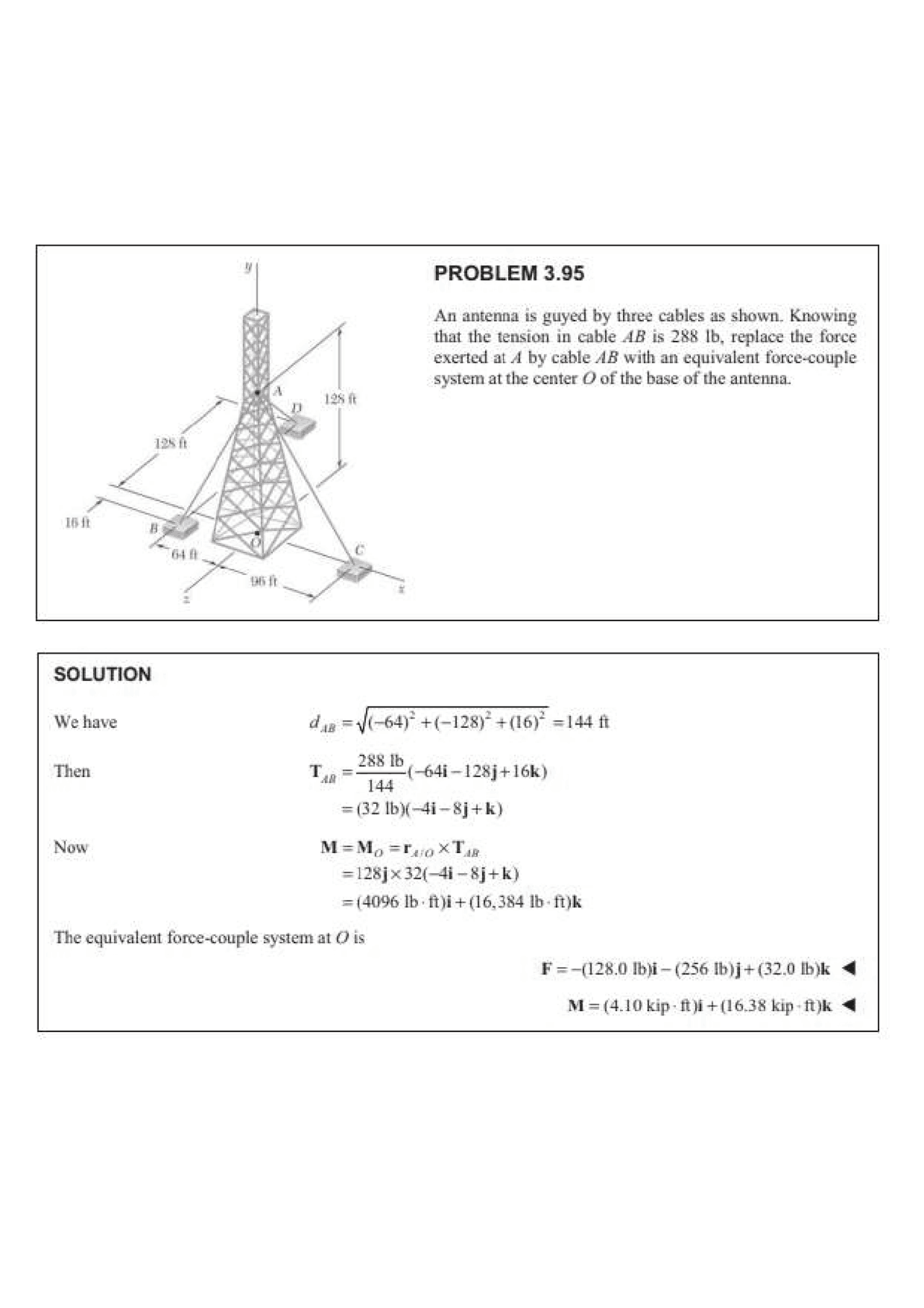

PROBLEM 3.95 An antenna is guyed by three cables as shown. Knowing that the tension in cable AB is 288 lb, replace the force exerted al 4 by cable 48 with an equivalent force-couple system at the center O of the base of the antenna. SOLUTION We have dis =(E64 + (1284 +(16)* Then Tis = DP esi-128j+16k) = (32 Ibi-4i—8j+k) Now M=Mo =TFao XT =128jx 32(Ai-8j+k) = (4096 lb-f)i+(16,384 ll ft)k The equivalent foree-couple system at 0 is F=-(128.0 Mbji—(256 Ib)j+(32.0 lb)k 4 M=(4.10 kip-ft)i+(16.38 kip-f)k «4
