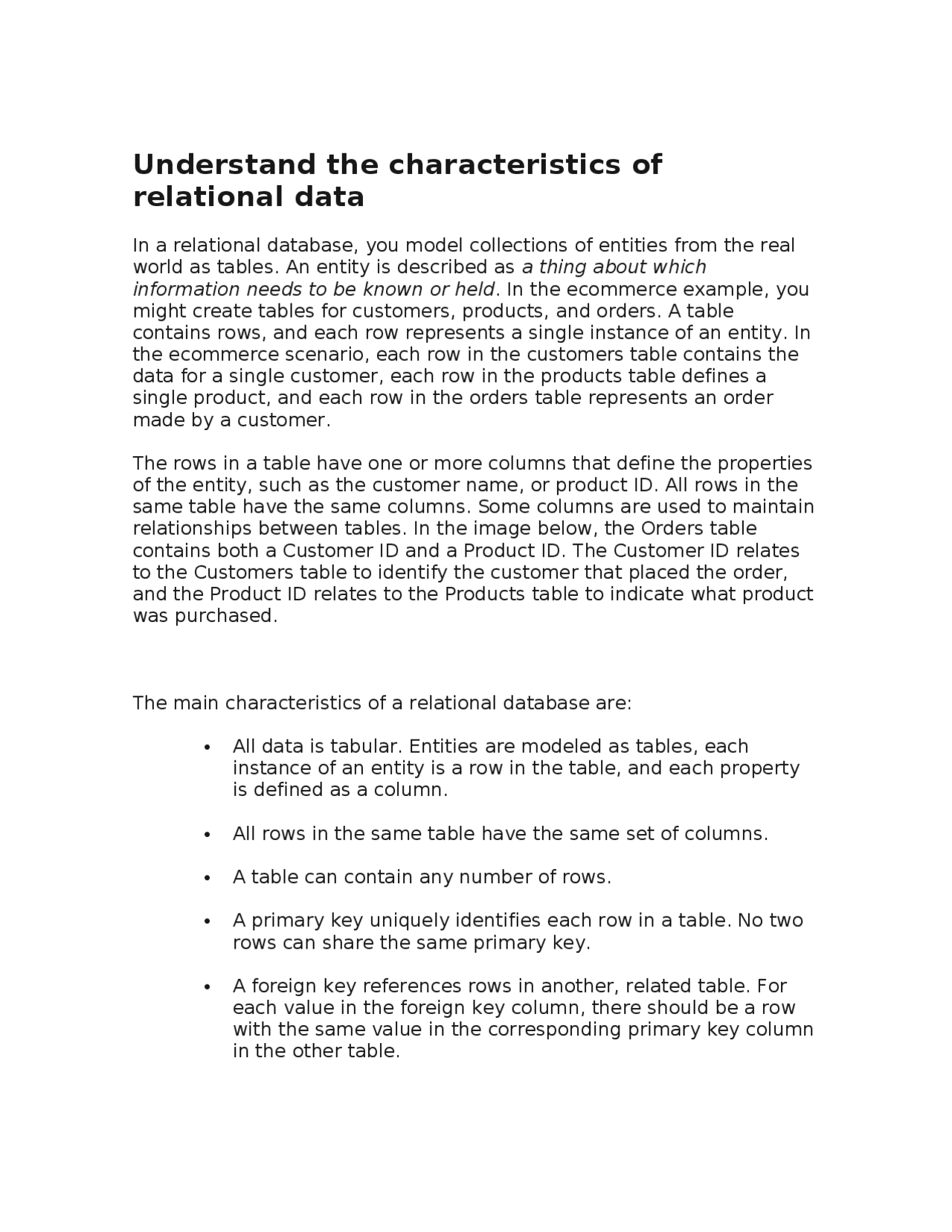

Understand the characteristics of
relational data
In a relational database, you model collections of entities from the real world as tables. An entity is described as a thing about which information needs to be known or held. In the ecommerce example, you might create tables for customers, products, and orders. A table contains rows, and each row represents a single instance of an entity. In the ecommerce scenario, each row in the customers table contains the data for a single customer, each row in the products table defines a single product, and each row in the orders table represents an order made by a customer. The rows in a table have one or more columns that define the properties of the entity, such as the customer name, or product ID. All rows in the same table have the same columns. Some columns are used to maintain relationships between tables. In the image below, the Orders table contains both a Customer ID and a Product ID. The Customer ID relates to the Customers table to identify the customer that placed the order, and the Product ID relates to the Products table to indicate what product was purchased. The main characteristics of a relational database are: All data is tabular. Entities are modeled as tables, each instance of an entity is a row in the table, and each property is defined as a column. All rows in the same table have the same set of columns. A table can contain any number of rows. A primary key uniquely identifies each row in a table. No two rows can share the same primary key. A foreign key references rows in another, related table. For each value in the foreign key column, there should be a row with the same value in the corresponding primary key column in the other table.
Note Creating a relational database model for a large organization is not a trivial task. It can take several iterations to define tables to match the characteristics described above. Sometimes you have to split an entity into more than one table. This process is called normalization.
Explore relational database use cases
You can use a relational database any time you can easily model your data as a collection of tables with a fixed set of columns. In theory, you could model almost any dataset in this way, but some scenarios lend themselves to the relational model better than others. For example, if you have a collection of music, video, or other media files, attempting to force this data into the relational model could be difficult. You may be better off using unstructured storage, such as that available in Azure Blob storage. Similarly, social networking sites use databases to store data about millions of users, each of whom can be linked to any number of other users in a highly complex web of relationships. This type of data lends itself more to a graph database structure rather than a collection of relational tables. Relational databases are commonly used in ecommerce systems, but one of the major use cases for using relational databases is Online Transaction Processing (OLTP). OLTP applications are focused on transaction-oriented tasks that process a very large number of transactions per minute. Relational databases are well suited for OLTP applications because they naturally support insert, update, and delete operations. A relational database can often be tuned to make these operations fast. Also, the nature of SQL makes it easy for users to perform ad-hoc queries over data. Examples of OLTP applications that use relational databases are: Banking solutions Online retail applications Flight reservation systems Many online purchasing applications.
Some relational database management systems also support clustered indexes. A clustered index physically reorganizes a table by the index key. This arrangement can improve the performance of queries still further, because the relational database management system doesn't have to follow references from the index to find the corresponding data in the underlying table. The image below shows the Orders table with a clustered index on the Customer ID column.
What is a view?
A view is a virtual table based on the result set of a query. In the simplest case, you can think of a view as a window on specified rows in an underlying table. For example, you could create a view on the Orders table that lists the orders for a specific product (in this case, product P1 ) like this: CREATE VIEW P1Orders AS SELECT CustomerID, OrderID, Quantity FROM Orders WHERE ProductID = "P1" You can query the view and filter the data in much the same way as a table. The following query finds the orders for customer C1 using the view. This query will only return orders for product P1 made by the customer: SELECT CustomerID, OrderID, Quantity FROM P1Orders WHERE CustomerID = "C1"
A view can also join tables together. If you regularly needed to find the details of customers and the products that they've ordered, you could create a view based on the join query shown in the previous unit: CREATE VIEW CustomersProducts AS SELECT Customers.CustomerName, Orders.QuantityOrdered, Products.ProductName FROM Customers JOIN Orders ON Customers.CustomerID = Orders.CustomerID JOIN Products ON Orders.ProductID = Products.ProductID The following query finds the customer name and product names of all orders greater than QuantityOrdered 100, using this view: SELECT CustomerName, ProductName FROM CustomersProducts WHERE QuantityOrdered > 100
Understand IaaS and PaaS
You generally have two options when moving your operations and databases to the cloud. You can select an IaaS approach, or PaaS. IaaS is an acronym for Infrastructure-as-a-Service. Azure enables you to create a virtual infrastructure in the cloud that mirrors the way an on- premises data center might work. You can create a set of virtual machines, connect them together using a virtual network, and add a range of virtual devices. In many ways, this approach is similar to the way in which you run your systems inside an organization, except that you don't have to concern yourself with buying or maintaining the hardware. However, you're still responsible for many of the day-to-day operations, such as installing and configuring the software, patching, taking backups, and restoring data when needed. You can think of IaaS as a transition to fully managed operations in the cloud; you don't have to worry about the hardware, but running and managing the software is still very much your responsibility. You can run any software for which you have the appropriate licenses using this approach. You're not restricted to any specific database management system.
