Selecting List Elements
Import libraries
>>> import numpy
>>> import numpy as np
Selective import
>>> from math import pi
>>> help(str)

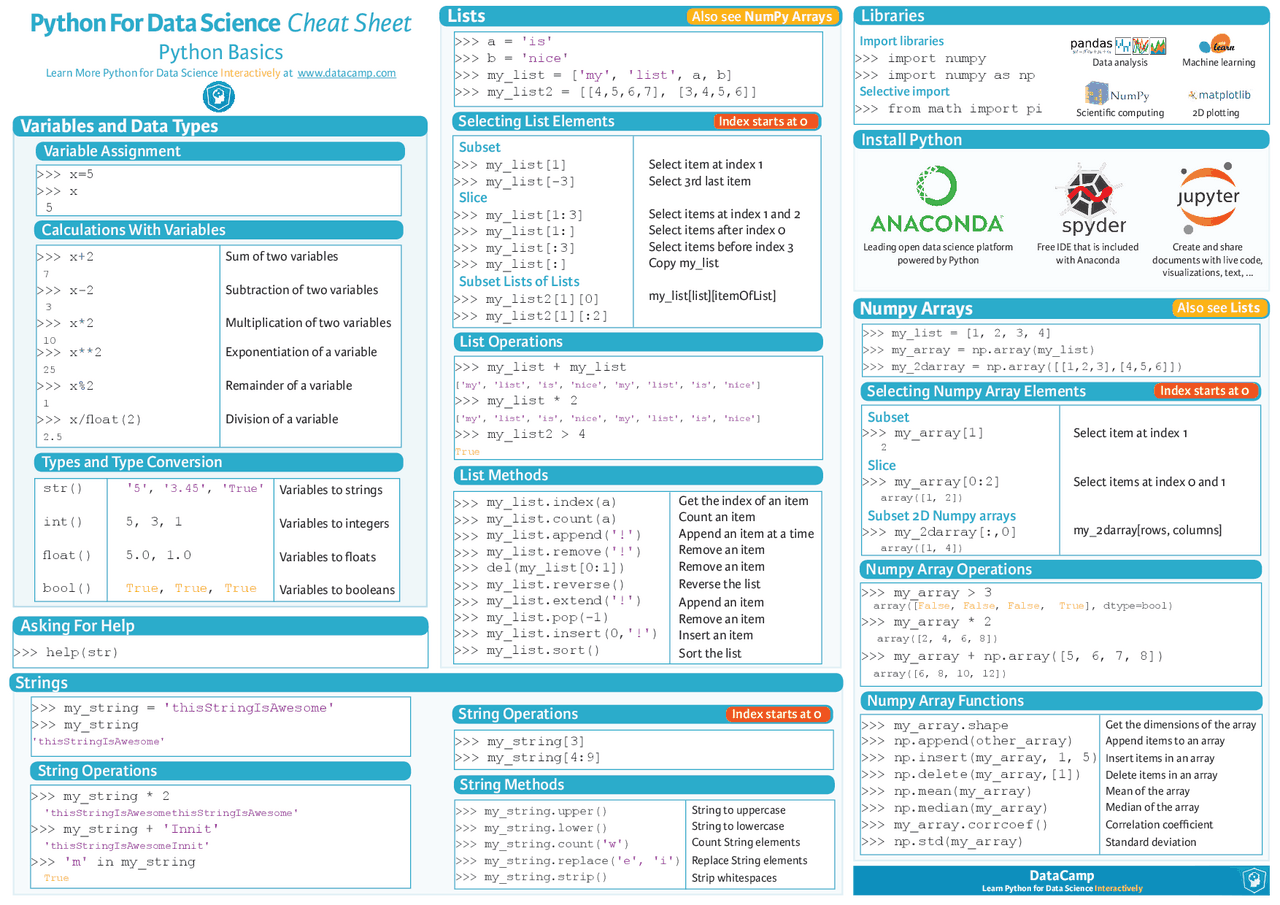

Python For Data Science Cheat Sheet
Python Basics
Learn More Python for Data Science Interactively at www.datacamp.com
Variable Assignment
Strings
>>> x=
>>> x
>>> x+ 2 Sum of two variables
>>> x- 2 Subtraction of two variables
>>> x* 2 Multiplication of two variables
>>> x** 2 Exponentiation of a variable
>>> x% 2 Remainder of a variable
>>> x/float(2) Division of a variable
Variables and Data Types
str() '5', '3.45', 'True'
int() 5, 3, 1
float() 5.0, 1.
bool() True, True, True
Variables to strings
Variables to integers
Variables to floats
Variables to booleans
Lists
>>> a = 'is'
>>> b = 'nice'
>>> my_list = ['my', 'list', a, b]
>>> my_list2 = [[4,5,6,7], [3,4,5,6]]
Subset
>>> my_list[1]
>>> my_list[-3]
Slice
>>> my_list[1:3]
>>> my_list[1:]
>>> my_list[:3]
>>> my_list[:]
Subset Lists of Lists
>>> my_list2[1][0]
>>> my_list2[1][:2]
Also see NumPy Arrays
>>> my_list.index(a)
>>> my_list.count(a)
>>> my_list.append('!')
>>> my_list.remove('!')
>>> del(my_list[0:1])
>>> my_list.reverse()
>>> my_list.extend('!')
>>> my_list.pop(-1)
>>> my_list.insert(0,'!')
>>> my_list.sort()
Get the index of an item
Count an item
Append an item at a time
Remove an item
Remove an item
Reverse the list
Append an item
Remove an item
Insert an item
Sort the list
Index starts at 0
Select item at index 1
Select 3rd last item
Select items at index 1 and 2
Select items after index 0
Select items before index 3
Copy my_list
my_list[list][itemOfList]
Libraries
>>> my_string.upper()
>>> my_string.lower()
>>> my_string.count('w')
>>> my_string.replace('e', 'i')
>>> my_string.strip()
>>> my_string = 'thisStringIsAwesome'
>>> my_string
'thisStringIsAwesome'
Numpy Arrays
>>> my_list = [1, 2, 3, 4]
>>> my_array = np.array(my_list)
>>> my_2darray = np.array([[1,2,3],[4,5,6]])
>>> my_array.shape
>>> np.append(other_array)
>>> np.insert(my_array, 1, 5)
>>> np.delete(my_array,[1])
>>> np.mean(my_array)
>>> np.median(my_array)
>>> my_array.corrcoef()
>>> np.std(my_array)
Asking For Help
>>> my_string[3]
>>> my_string[4:9]
Subset
>>> my_array[1]
Slice
>>> my_array[0:2]
array([1, 2])
Subset 2D Numpy arrays
>>> my_2darray[:,0]
array([1, 4])
>>> my_list + my_list
['my', 'list', 'is', 'nice', 'my', 'list', 'is', 'nice']
>>> my_list * 2
['my', 'list', 'is', 'nice', 'my', 'list', 'is', 'nice']
>>> my_list2 > 4
True
>>> my_array > 3
array([False, False, False, True], dtype=bool)
>>> my_array * 2
array([2, 4, 6, 8])
>>> my_array + np.array([5, 6, 7, 8])
array([6, 8, 10, 12])
>>> my_string * 2
'thisStringIsAwesomethisStringIsAwesome'
>>> my_string + 'Innit'
'thisStringIsAwesomeInnit'
>>> 'm' in my_string
True DataCamp
Scientific computing
Data analysis
2D plotting
Machine learning
Also see Lists
Get the dimensions of the array
Append items to an array
Insert items in an array
Delete items in an array
Mean of the array
Median of the array
Correlation coefficient
Standard deviation
String to uppercase
String to lowercase
Count String elements
Replace String elements
Strip whitespaces
Select item at index 1
Select items at index 0 and 1
my_2darray[rows, columns]
Install Python
Calculations With Variables
Leading open data science platform powered by Python
Free IDE that is included with Anaconda
Create and share documents with live code, visualizations, text, ...
Types and Type Conversion
String Operations
List Operations
List Methods
Index starts at 0
String Methods
String Operations
Selecting Numpy Array Elements Index starts at 0
Numpy Array Operations
Numpy Array Functions
DataCamp
Saving/Loading Notebooks
Working with Different Programming Languages
Asking For Help
Widgets Python For Data Science Cheat Sheet
Jupyter Notebook Learn More Python for Data Science Interactively at www.DataCamp.com
Kernels provide computation and communication with front-end interfaces
like the notebooks. There are three main kernels:
Installing Jupyter Notebook will automatically install the IPython kernel.
Create new notebook
Open an existing
Make a copy of the^ notebook
current notebook
Rename notebook
Writing Code And Text
Save current notebook
and record checkpoint
Revert notebook to a
previous checkpoint
Preview of the printed
notebook
Download notebook as
- IPython notebook
- Python
- HTML
- Markdown
- reST
- LaTeX
- PDF
Close notebook & stop
running any scripts
IRkernel IJulia
Cut currently selected cells
to clipboard
Copy cells from
clipboard to current
cursor position
Paste cells from
clipboard above
current cell
Paste cells from
clipboard below
Paste cells from^ current cell
clipboard on top
of current cel
Delete current cells
Revert “Delete Cells”
invocation
Split up a cell from
current cursor
position
Merge current cell
with the one above
Merge current cell
with the one below
Move current cell up Move current cell
down
Adjust metadata
underlying the
current notebook
Find and replace
in selected cells
Insert image in
selected cells
Restart kernel
Restart kernel & run
all cells
Restart kernel & run
all cells
Interrupt kernel
Interrupt kernel &
clear all output
Connect back to a
remote notebook
Run other installed
kernels
Code and text are encapsulated by 3 basic cell types: markdown cells, code
cells, and raw NBConvert cells.
Edit Cells
Insert Cells
View Cells
Notebook widgets provide the ability to visualize and control changes
in your data, often as a control like a slider, textbox, etc.
You can use them to build interactive GUIs for your notebooks or to
synchronize stateful and stateless information between Python and
JavaScript.
Toggle display of Jupyter
logo and filename
Toggle display of toolbar
Toggle line numbers
in cells
Toggle display of cell
action icons:
- None
- Edit metadata
- Raw cell format
- Slideshow
- Attachments
- Tags
Add new cell above the
current one
Add new cell below the
current one
Executing Cells
Run selected cell(s) Run current cells down
and create a new one
below
Run current cells down
and create a new one
above Run all cells
Save notebook
with interactive
widgets
Download serialized
state of all widget
models in use
Embed current
widgets
Walk through a UI tour
List of built-in keyboard
Edit the built-in^ shortcuts
keyboard shortcuts
Notebook help topics
Description of
markdown available
in notebook
About Jupyter Notebook
Information on
unofficial Jupyter
Notebook extensions
Python help topics
IPython help topics
NumPy help topics
SciPy help topics
Pandas help topics
SymPy help topics
Matplotlib help topics
Run all cells above the
current cell
Run all cells below
the current cell
Change the cell type of
current cell
toggle, toggle
scrolling and clear
toggle, toggle current outputs
scrolling and clear
all output
1. Save and checkpoint 2. Insert cell below 3. Cut cell 4. Copy cell(s) 5. Paste cell(s) below 6. Move cell up 7. Move cell down 8. Run current cell
9. Interrupt kernel 10. Restart kernel 11. Display characteristics 12. Open command palette 13. Current kernel 14. Kernel status 15. Log out from notebook server
Command Mode:
Edit Mode:
1 2 3 4 5 6 7 8 9 10 11 12
13 14
15
Copy attachments of
current cell
Remove cell
attachments
Paste attachments of
current cell
Python For Data Science Cheat Sheet
SciPy - Linear Algebra
Learn More Python for Data Science Interactively at www.datacamp.com
SciPy
DataCamp
Learn Python for Data Science Interactively
Interacting With NumPy Also see NumPy
The SciPy library is one of the core packages for scientific computing that provides mathematical algorithms and convenience functions built on the NumPy extension of Python.
Index Tricks
>>> np.mgrid[0:5,0:5] Create a dense meshgrid
>>> np.ogrid[0:2,0:2] Create an open meshgrid
>>> np.r_[[3,[0]*5,-1:1:10j] Stack arrays vertically (row-wise)
>>> np.c_[b,c] Create stacked column-wise arrays
Shape Manipulation
Polynomials
Vectorizing Functions
Type Handling
>>> np.angle(b,deg=True) Return the angle of the complex argument
>>> g = np.linspace(0,np.pi,num=5) Create an array of evenly spaced values
(number of samples) >>> g [3:] += np.pi
>>> np.unwrap(g) Unwrap
>>> np.logspace(0,10,3) Create an array of evenly spaced values (log scale)
>>> np.select([c<4],[c*2]) Return values from a list of arrays depending on
conditions
>>> misc.factorial(a) Factorial
>>> misc.comb(10,3,exact=True) Combine N things taken at k time
>>> misc.central_diff_weights(3) Weights for Np-point central derivative
>>> misc.derivative(myfunc,1.0) Find the n-th derivative of a function at a point
Other Useful Functions
>>> np.real(c) Return the real part of the array elements
>>> np.imag(c) Return the imaginary part of the array elements
>>> np.real_if_close(c,tol=1000) Return a real array if complex parts close to 0
>>> np.cast'f' Cast object to a data type
>>> def myfunc(a): if a < 0: return a* else: return a/
>>> np.vectorize(myfunc) Vectorize functions
>>> from numpy import poly1d
>>> p = poly1d([3,4,5]) Create a polynomial object
>>> np.transpose(b) Permute array dimensions
>>> b.flatten() Flatten the array
>>> np.hstack((b,c)) Stack arrays horizontally (column-wise)
>>> np.vstack((a,b)) Stack arrays vertically (row-wise)
>>> np.hsplit(c,2) Split the array horizontally at the 2nd index
>>> np.vpslit(d,2) Split the array vertically at the 2nd index
>>> import numpy as np >>> a = np.array([1,2,3]) >>> b = np.array([(1+5j,2j,3j), (4j,5j,6j)]) >>> c = np.array([[(1.5,2,3), (4,5,6)], [(3,2,1), (4,5,6)]])
>>> help(scipy.linalg.diagsvd) >>> np.info(np.matrix)
Linear Algebra
You’ll use the linalg and sparse modules. Note that scipy.linalg contains and expands on numpy.linalg.
>>> from scipy import linalg, sparse
Creating Matrices
>>> A = np.matrix(np.random.random((2,2))) >>> B = np.asmatrix(b) >>> C = np.mat(np.random.random((10,5))) >>> D = np.mat([[3,4], [5,6]])
Also see NumPy
Basic Matrix Routines
Inverse
>>> A.I Inverse
>>> linalg.inv(A) Inverse
>>> A.T Tranpose matrix
>>> A.H Conjugate transposition
>>> np.trace(A) Trace
Norm
>>> linalg.norm(A) Frobenius norm
>>> linalg.norm(A,1) L1 norm (max column sum)
>>> linalg.norm(A,np.inf) L inf norm (max row sum)
Rank
>>> np.linalg.matrix_rank(C) Matrix rank
Determinant
>>> linalg.det(A) Determinant
Solving linear problems
>>> linalg.solve(A,b) Solver for dense matrices
>>> E = np.mat(a).T Solver for dense matrices
>>> linalg.lstsq(D,E) Least-squares solution to linear matrix
equation
Generalized inverse
>>> linalg.pinv(C) Compute the pseudo-inverse of a matrix
(least-squares solver)
>>> linalg.pinv2(C) Compute the pseudo-inverse of a matrix
(SVD)
Addition
>>> np.add(A,D) Addition
Subtraction
>>> np.subtract(A,D) Subtraction
Division
>>> np.divide(A,D) Division
Multiplication
>>> np.multiply(D,A) Multiplication
>>> np.dot(A,D) Dot product
>>> np.vdot(A,D) Vector dot product
>>> np.inner(A,D) Inner product
>>> np.outer(A,D) Outer product
>>> np.tensordot(A,D) Tensor dot product
>>> np.kron(A,D) Kronecker product
Exponential Functions
>>> linalg.expm(A) Matrix exponential
>>> linalg.expm2(A) Matrix exponential (Taylor Series)
>>> linalg.expm3(D) Matrix exponential (eigenvalue
decomposition) Logarithm Function
>>> linalg.logm(A) Matrix logarithm
Trigonometric Tunctions
>>> linalg.sinm(D) Matrix sine
>>> linalg.cosm(D) Matrix cosine
>>> linalg.tanm(A) Matrix tangent
Hyperbolic Trigonometric Functions
>>> linalg.sinhm(D) Hypberbolic matrix sine
>>> linalg.coshm(D) Hyperbolic matrix cosine
>>> linalg.tanhm(A) Hyperbolic matrix tangent
Matrix Sign Function
>>> np.sigm(A) Matrix sign function
Matrix Square Root
>>> linalg.sqrtm(A) Matrix square root
Arbitrary Functions
>>> linalg.funm(A, lambda x: x*x) Evaluate matrix function
Matrix Functions
Asking For Help
Decompositions
Eigenvalues and Eigenvectors
>>> la, v = linalg.eig(A) Solve ordinary or generalized
eigenvalue problem for square matrix
>>> l1, l2 = la Unpack eigenvalues
>>> v[:,0] First eigenvector
>>> v[:,1] Second eigenvector
>>> linalg.eigvals(A) Unpack eigenvalues
Singular Value Decomposition
>>> U,s,Vh = linalg.svd(B) Singular Value Decomposition (SVD)
>>> M,N = B.shape
>>> Sig = linalg.diagsvd(s,M,N) Construct sigma matrix in SVD
LU Decomposition
>>> P,L,U = linalg.lu(C) LU Decomposition
>>> F = np.eye(3, k=1) Create a 2X2 identity matrix >>> G = np.mat(np.identity(2)) Create a 2x2 identity matrix >>> C[C > 0.5] = 0 >>> H = sparse.csr_matrix(C) Compressed Sparse Row matrix >>> I = sparse.csc_matrix(D) Compressed Sparse Column matrix >>> J = sparse.dok_matrix(A) Dictionary Of Keys matrix >>> E.todense() Sparse matrix to full matrix >>> sparse.isspmatrix_csc(A) Identify sparse matrix
Creating Sparse Matrices
Inverse >>> sparse.linalg.inv(I) Inverse Norm >>> sparse.linalg.norm(I) Norm Solving linear problems >>> sparse.linalg.spsolve(H,I) Solver for sparse matrices
Sparse Matrix Routines
Sparse Matrix Functions
>>> sparse.linalg.expm(I) Sparse matrix exponential
Sparse Matrix Decompositions
>>> la, v = sparse.linalg.eigs(F,1) Eigenvalues and eigenvectors
>>> sparse.linalg.svds(H, 2) SVD
Python For Data Science Cheat Sheet
Pandas Basics
Learn Python for Data Science Interactively at www.DataCamp.com
Pandas
DataCamp
Series
DataFrame
d
c
b
A one-dimensional labeled array a capable of holding any data type
Index
Index
Columns
A two-dimensional labeled data structure with columns of potentially different types
The Pandas library is built on NumPy and provides easy-to-use data structures and data analysis tools for the Python programming language.
>>> import pandas as pd
Use the following import convention:
Pandas Data Structures
>>> s = pd.Series([3, -5, 7, 4], index=['a', 'b', 'c', 'd'])
>>> data = {'Country': ['Belgium', 'India', 'Brazil'], 'Capital': ['Brussels', 'New Delhi', 'Brasília'], 'Population': [11190846, 1303171035, 207847528]}
>>> df = pd.DataFrame(data, columns=['Country', 'Capital', 'Population'])
Selection
>>> s['b'] Get one element
>>> df[1:] Get subset of a DataFrame
Country Capital Population 1 India New Delhi 1303171035 2 Brazil Brasília 207847528
By Position
>>> df.iloc([0],[0]) Select single value by row &
'Belgium' column
>>> df.iat([0],[0])
'Belgium'
By Label
>>> df.loc([0], ['Country']) Select single value by row &
'Belgium' column labels
>>> df.at([0], ['Country'])
'Belgium'
By Label/Position
>>> df.ix[2] Select single row of
Country Brazil subset of rows
Capital Brasília Population 207847528
>>> df.ix[:,'Capital'] Select a single column of
0 Brussels subset of columns
1 New Delhi 2 Brasília
>>> df.ix[1,'Capital'] Select rows and columns
'New Delhi'
Boolean Indexing
>>> s[~(s > 1)] Series s where value is not >
>>> s[(s < -1) | (s > 2)] s where value is <-1 or >
>>> df[df['Population']>1200000000] Use filter to adjust DataFrame
Setting
>>> s['a'] = 6 Set index a of Series s to 6
Applying Functions
>>> f = lambda x: x*
>>> df.apply(f) Apply function
>>> df.applymap(f) Apply function element-wise
Retrieving Series/DataFrame Information
>>> df.shape (rows,columns)
>>> df.index Describe index
>>> df.columns Describe DataFrame columns
>>> df.info() Info on DataFrame
>>> df.count() Number of non-NA values
Getting
Also see NumPy Arrays
Selecting, Boolean Indexing & Setting
Basic Information
Summary
>>> df.sum() Sum of values
>>> df.cumsum() Cummulative sum of values
>>> df.min()/df.max() Minimum/maximum values
>>> df.idxmin()/df.idxmax() Minimum/Maximum index value
>>> df.describe() Summary statistics
>>> df.mean() Mean of values
>>> df.median() Median of values
Dropping
>>> s.drop(['a', 'c']) Drop values from rows (axis=0)
>>> df.drop('Country', axis=1) Drop values from columns(axis=1)
Data Alignment
>>> s.add(s3, fill_value=0)
a 10. b -5. c 5. d 7.
>>> s.sub(s3, fill_value=2)
>>> s.div(s3, fill_value=4)
>>> s.mul(s3, fill_value=3)
>>> s3 = pd.Series([7, -2, 3], index=['a', 'c', 'd'])
>>> s + s
a 10. b NaN c 5. d 7.
Arithmetic Operations with Fill Methods
Internal Data Alignment
NA values are introduced in the indices that don’t overlap:
You can also do the internal data alignment yourself with the help of the fill methods:
Sort & Rank
>>> df.sort_index() Sort by labels along an axis
>>> df.sort_values(by='Country') Sort by the values along an axis
>>> df.rank() Assign ranks to entries
Belgium Brussels
India New Delhi
Brazil Brasília
Country Capital
11190846
1303171035
207847528
Population
I/O
Read and Write to CSV
>>> pd.read_csv('file.csv', header=None, nrows=5)
>>> df.to_csv('myDataFrame.csv')
Read and Write to Excel
>>> pd.read_excel('file.xlsx')
>>> pd.to_excel('dir/myDataFrame.xlsx', sheet_name='Sheet1')
Read multiple sheets from the same file
>>> xlsx = pd.ExcelFile('file.xls')
>>> df = pd.read_excel(xlsx, 'Sheet1')
>>> help(pd.Series.loc)
Asking For Help
Read and Write to SQL Query or Database Table
>>> from sqlalchemy import create_engine
>>> engine = create_engine('sqlite:///:memory:')
>>> pd.read_sql("SELECT * FROM my_table;", engine)
>>> pd.read_sql_table('my_table', engine)
>>> pd.read_sql_query("SELECT * FROM my_table;", engine)
>>> pd.to_sql('myDf', engine)
read_sql()is a convenience wrapper around read_sql_table() and
read_sql_query()
Python For Data Science Cheat Sheet
Matplotlib
Learn Python Interactively at www.DataCamp.com
Matplotlib
DataCamp Learn Python for Data Science Interactively
Prepare The Data Also see^ Lists^ &^ NumPy
Matplotlib is a Python 2D plotting library which produces publication-quality figures in a variety of hardcopy formats and interactive environments across platforms.
>>> import numpy as np >>> x = np.linspace(0, 10, 100) >>> y = np.cos(x) >>> z = np.sin(x)
Show Plot
>>> plt.show()
Matplotlib 2.0.0 - Updated on: 02/
Save Plot
Save figures
>>> plt.savefig('foo.png')
Save transparent figures
>>> plt.savefig('foo.png', transparent=True)
>>> fig = plt.figure() >>> fig2 = plt.figure(figsize=plt.figaspect(2.0))
2^ Create Plot
Plot Anatomy & Workflow
All plotting is done with respect to an Axes. In most cases, a
subplot will fit your needs. A subplot is an axes on a grid system.
>>> fig.add_axes() >>> ax1 = fig.add_subplot(221) # row-col-num >>> ax3 = fig.add_subplot(212) >>> fig3, axes = plt.subplots(nrows=2,ncols=2) >>> fig4, axes2 = plt.subplots(ncols=3)
Customize Plot
Colors, Color Bars & Color Maps
Markers
Linestyles
Mathtext
Text & Annotations
Limits, Legends & Layouts
The basic steps to creating plots with matplotlib are:
1 Prepare data 2 Create plot 3 Plot 4 Customize plot 5 Save plot 6 Show plot
>>> import matplotlib.pyplot as plt >>> x = [1,2,3,4] >>> y = [10,20,25,30] >>> fig = plt.figure() >>> ax = fig.add_subplot(111) >>> ax.plot(x, y, color='lightblue', linewidth=3) >>> ax.scatter([2,4,6], [5,15,25], color='darkgreen', marker='^') >>> ax.set_xlim(1, 6.5) >>> plt.savefig('foo.png') >>> plt.show()
Step 3, 4
Step 2
Step 1
Step 3
Step 6
Plot Anatomy Workflow
Limits & Autoscaling
>>> ax.margins(x=0.0,y=0.1) Add padding to a plot >>> ax.axis('equal') Set the aspect ratio of the plot to 1 >>> ax.set(xlim=[0,10.5],ylim=[-1.5,1.5]) Set limits for x-and y-axis >>> ax.set_xlim(0,10.5) Set limits for x-axis
Legends
>>> ax.set(title='An Example Axes', Set a title and x-and y-axis labels ylabel='Y-Axis', xlabel='X-Axis') >>> ax.legend(loc='best') No overlapping plot elements
Ticks
>>> ax.xaxis.set(ticks=range(1,5), Manually set x-ticks ticklabels=[3,100,-12,"foo"]) >>> ax.tick_params(axis='y', Make y-ticks longer and go in and out direction='inout', length=10)
Subplot Spacing
>>> fig3.subplots_adjust(wspace=0.5, Adjust the spacing between subplots hspace=0.3, left=0.125, right=0.9, top=0.9, bottom=0.1) >>> fig.tight_layout() (^) Fit subplot(s) in to the figure area
Axis Spines
>>> ax1.spines['top'].set_visible(False) Make the top axis line for a plot invisible >>> ax1.spines['bottom'].set_position(('outward',10)) Move the bottom axis line outward
Figure
Axes
>>> data = 2 * np.random.random((10, 10)) >>> data2 = 3 * np.random.random((10, 10)) >>> Y, X = np.mgrid[-3:3:100j, -3:3:100j] >>> U = -1 - X2 + Y >>> V = 1 + X - Y >>> from matplotlib.cbook import get_sample_data >>> img = np.load(get_sample_data('axes_grid/bivariate_normal.npy'))
>>> fig, ax = plt.subplots() >>> lines = ax.plot(x,y) Draw points with lines or markers connecting them >>> ax.scatter(x,y) Draw unconnected points, scaled or colored >>> axes[0,0].bar([1,2,3],[3,4,5]) Plot vertical rectangles (constant width) >>> axes[1,0].barh([0.5,1,2.5],[0,1,2]) Plot horiontal rectangles (constant height) >>> axes[1,1].axhline(0.45) Draw a horizontal line across axes >>> axes[0,1].axvline(0.65) Draw a vertical line across axes >>> ax.fill(x,y,color='blue') Draw filled polygons >>> ax.fill_between(x,y,color='yellow') Fill between y-values and 0
3 Plotting Routines
1D Data
>>> fig, ax = plt.subplots() >>> im = ax.imshow(img, Colormapped or RGB arrays cmap='gist_earth', interpolation='nearest', vmin=-2, vmax=2)
2D Data or Images
Vector Fields
>>> axes[0,1].arrow(0,0,0.5,0.5) Add an arrow to the axes >>> axes[1,1].quiver(y,z) Plot a 2D field of arrows >>> axes[0,1].streamplot(X,Y,U,V) Plot a 2D field of arrows
Data Distributions
>>> ax1.hist(y) Plot a histogram >>> ax3.boxplot(y) Make a box and whisker plot >>> ax3.violinplot(z) Make a violin plot
>>> axes2[0].pcolor(data2) Pseudocolor plot of 2D array >>> axes2[0].pcolormesh(data) Pseudocolor plot of 2D array >>> CS = plt.contour(Y,X,U) Plot contours >>> axes2[2].contourf(data1) Plot filled contours >>> axes2[2]= ax.clabel(CS) Label a contour plot
Figure
Axes/Subplot
Y-axis
X-axis
1D Data
2D Data or Images
>>> plt.plot(x, x, x, x2, x, x3) >>> ax.plot(x, y, alpha = 0.4) >>> ax.plot(x, y, c='k') >>> fig.colorbar(im, orientation='horizontal') >>> im = ax.imshow(img, cmap='seismic')
>>> fig, ax = plt.subplots() >>> ax.scatter(x,y,marker=".") >>> ax.plot(x,y,marker="o")
>>> plt.title(r'$sigma_i=15$', fontsize=20)
>>> ax.text(1, -2.1, 'Example Graph', style='italic') >>> ax.annotate("Sine", xy=(8, 0), xycoords='data', xytext=(10.5, 0), textcoords='data', arrowprops=dict(arrowstyle="->", connectionstyle="arc3"),)
>>> plt.plot(x,y,linewidth=4.0) >>> plt.plot(x,y,ls='solid') >>> plt.plot(x,y,ls='--') >>> plt.plot(x,y,'--',x2,y2,'-.') >>> plt.setp(lines,color='r',linewidth=4.0)
>>> import matplotlib.pyplot as plt
Close & Clear
>>> plt.cla() Clear an axis >>> plt.clf() Clear the entire figure >>> plt.close() Close a window
Python For Data Science Cheat Sheet
Seaborn
Learn Data Science Interactively at www.DataCamp.com
Statistical Data Visualization With Seaborn
DataCamp
Figure Aesthetics
Data
The Python visualization library Seaborn is based on matplotlib and provides a high-level interface for drawing attractive statistical graphics.
Make use of the following aliases to import the libraries:
The basic steps to creating plots with Seaborn are:
- Prepare some data
- Control figure aesthetics
- Plot with Seaborn
- Further customize your plot
>>> import pandas as pd >>> import numpy as np >>> uniform_data = np.random.rand(10, 12) >>> data = pd.DataFrame({'x':np.arange(1,101), 'y':np.random.normal(0,4,100)})
>>> import matplotlib.pyplot as plt >>> import seaborn as sns
Plotting With Seaborn
>>> import matplotlib.pyplot as plt >>> import seaborn as sns >>> tips = sns.load_dataset("tips") >>> sns.set_style("whitegrid") >>> g = sns.lmplot(x="tip", y="total_bill", data=tips, aspect=2) >>> g = (g.set_axis_labels("Tip","Total bill(USD)"). set(xlim=(0,10),ylim=(0,100))) >>> plt.title("title") >>> plt.show(g)
Step 4
Step 2
Step 1
Step 5
Step 3
>>> titanic = sns.load_dataset("titanic") >>> iris = sns.load_dataset("iris")
Seaborn also offers built-in data sets:
4^ Further Customizations
Show or Save Plot
>>> sns.set() (Re)set the seaborn default
>>> sns.set_style("whitegrid") Set the matplotlib parameters
>>> sns.set_style("ticks", Set the matplotlib parameters
{"xtick.major.size":8, "ytick.major.size":8})
>>> sns.axes_style("whitegrid") Return a dict of params or use with
with to temporarily set the style
Axis Grids
>>> f, ax = plt.subplots(figsize=(5,6)) Create a figure and one subplot
>>> plt.title("A Title") Add plot title
>>> plt.ylabel("Survived") Adjust the label of the y-axis
>>> plt.xlabel("Sex") Adjust the label of the x-axis
>>> plt.ylim(0,100) Adjust the limits of the y-axis
>>> plt.xlim(0,10) Adjust the limits of the x-axis
>>> plt.setp(ax,yticks=[0,5]) Adjust a plot property
>>> plt.tight_layout() Adjust subplot params
>>> plt.show() Show the plot
>>> plt.savefig("foo.png") Save the plot as a figure
>>> plt.savefig("foo.png", Save transparent figure
transparent=True)
>>> sns.regplot(x="sepal_width", Plot data and a linear regression
y="sepal_length", model fit
data=iris, ax=ax)
>>> g.despine(left=True) Remove left spine
>>> g.set_ylabels("Survived") Set the labels of the y-axis
>>> g.set_xticklabels(rotation=45) Set the tick labels for x
>>> g.set_axis_labels("Survived", Set the axis labels
"Sex")
>>> h.set(xlim=(0,5), Set the limit and ticks of the
ylim=(0,5), x-and y-axis
xticks=[0,2.5,5], yticks=[0,2.5,5])
Close & Clear
>>> plt.cla() Clear an axis
>>> plt.clf() Clear an entire figure
>>> plt.close() Close a window
Also see Lists, NumPy & Pandas
Also see Matplotlib
Also see Matplotlib
Also see Matplotlib
Also see Matplotlib
Context Functions
>>> sns.set_context("talk") Set context to "talk"
>>> sns.set_context("notebook", Set context to "notebook",
font_scale=1.5, Scale font elements and
rc={"lines.linewidth":2.5}) override param mapping
Seaborn styles
>>> sns.set_palette("husl",3) Define the color palette
>>> sns.color_palette("husl") Use with with to temporarily set palette
>>> flatui = ["#9b59b6","#3498db","#95a5a6","#e74c3c","#34495e","#2ecc71"]
>>> sns.set_palette(flatui) Set your own color palette
Color Palette
Plot
Axisgrid Objects
>>> g = sns.FacetGrid(titanic, Subplot grid for plotting conditional
col="survived", relationships
row="sex") >>> g = g.map(plt.hist,"age")
>>> sns.factorplot(x="pclass", Draw a categorical plot onto a
y="survived", Facetgrid
hue="sex", data=titanic)
>>> sns.lmplot(x="sepal_width", Plot data and regression model fits
y="sepal_length", across a FacetGrid
hue="species", data=iris)
Categorical Plots^ Regression Plots
Scatterplot
>>> sns.stripplot(x="species", Scatterplot with one
y="petal_length", categorical variable
data=iris)
>>> sns.swarmplot(x="species", Categorical scatterplot with
y="petal_length", non-overlapping points
data=iris)
Bar Chart
>>> sns.barplot(x="sex", Show point estimates and
y="survived", confidence intervals with
hue="class", scatterplot glyphs
data=titanic)
Count Plot
>>> sns.countplot(x="deck", Show count of observations
data=titanic, palette="Greens_d")
Point Plot
>>> sns.pointplot(x="class", Show point estimates and
y="survived", confidence intervals as
hue="sex", rectangular bars
data=titanic, palette={"male":"g", "female":"m"}, markers=["^","o"], linestyles=["-","--"])
Boxplot
>>> sns.boxplot(x="alive", Boxplot
y="age", hue="adult_male", data=titanic)
>>> sns.boxplot(data=iris,orient="h") Boxplot with wide-form data
Violinplot
>>> sns.violinplot(x="age", Violin plot
y="sex", hue="survived", data=titanic)
>>> plot = sns.distplot(data.y, Plot univariate distribution
kde=False, color="b")
Distribution Plots
>>> h = sns.PairGrid(iris) Subplot grid for plotting pairwise
>>> h = h.map(plt.scatter) relationships
>>> sns.pairplot(iris) Plot pairwise bivariate distributions
>>> i = sns.JointGrid(x="x", Grid for bivariate plot with marginal
y="y", univariate plots
data=data) >>> i = i.plot(sns.regplot, sns.distplot)
>>> sns.jointplot("sepal_length", Plot bivariate distribution
"sepal_width", data=iris, kind='kde')
Matrix Plots
>>> sns.heatmap(uniform_data,vmin=0,vmax=1) Heatmap
