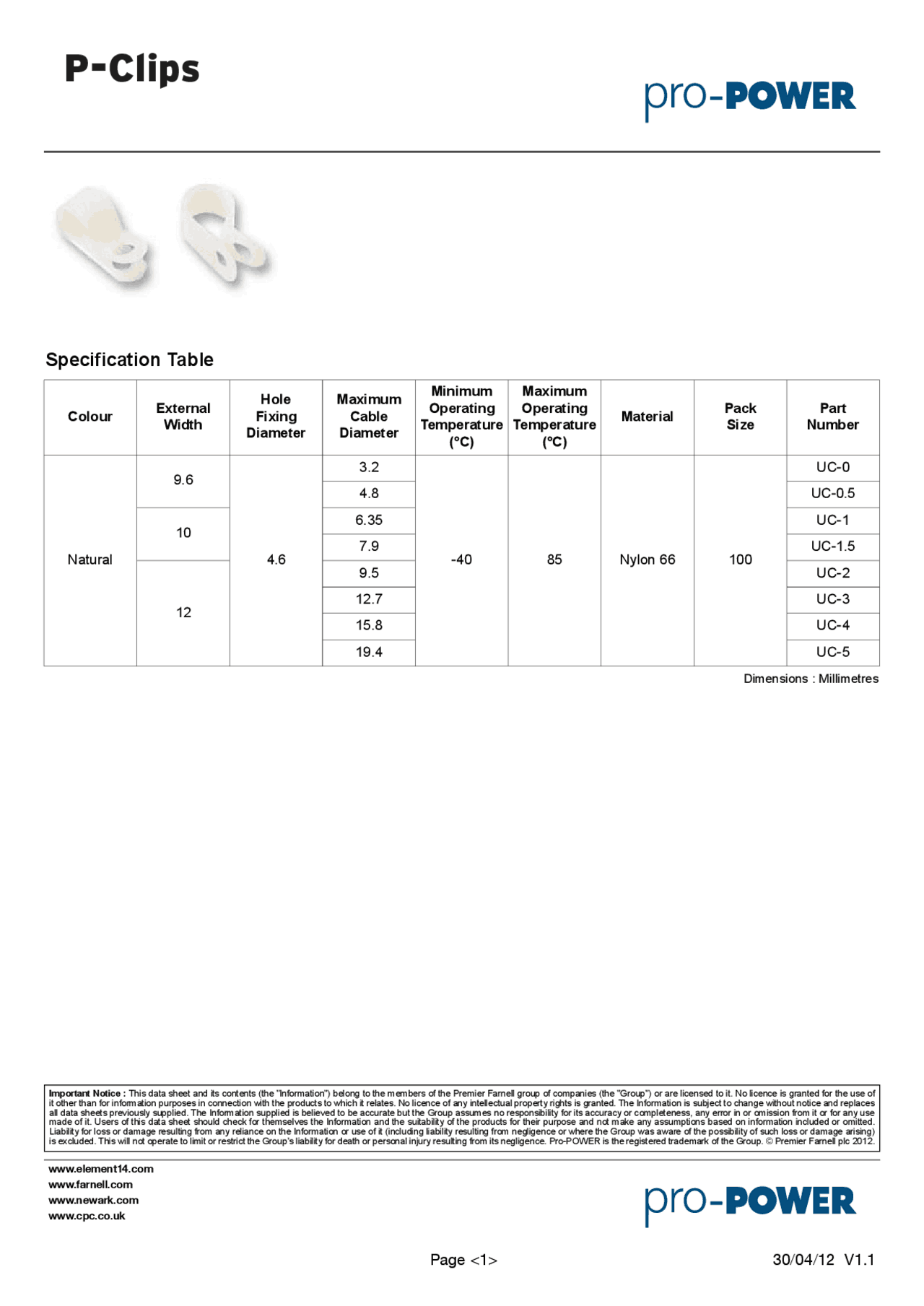

P-Clips
Page <1> 30/04/12 V1.1
www.element14.com
www.farnell.com
www.newark.com
www.cpc.co.uk
Important Notice : This data sheet and its contents (the "Information") belong to the members of the Premier Farnell group of companies (the "Group") or are licensed to it. No licence is granted for the use of
it other than for information purposes in connection with the products to which it relates. No licence of any intellectual property rights is granted. The Information is subject to change without notice and replaces
all data sheets previously supplied. The Information supplied is believed to be accurate but the Group assumes no responsibility for its accuracy or completeness, any error in or omission from it or for any use
made of it. Users of this data sheet should check for themselves the Information and the suitability of the products for their purpose and not make any assumptions based on information included or omitted.
Liability for loss or damage resulting from any reliance on the Information or use of it (including liability resulting from negligence or where the Group was aware of the possibility of such loss or damage arising)
is excluded. This will not operate to limit or restrict the Group's liability for death or personal injury resulting from its negligence. Pro-POWER is the registered trademark of the Group. © Premier Farnell plc 2012.
Specification Table
Colour External
Width
Hole
Fixing
Diameter
Maximum
Cable
Diameter
Minimum
Operating
Temperature
(°C)
Maximum
Operating
Temperature
(°C)
Material Pack
Size
Part
Number
Natural
9.6
4.6
3.2
-40 85 Nylon 66 100
UC-0
4.8 UC-0.5
10
6.35 UC-1
7.9 UC-1.5
12
9.5 UC-2
12.7 UC-3
15.8 UC-4
19.4 UC-5
Dimensions : Millimetres
