Caché ObjectScript Programming Guide 10-

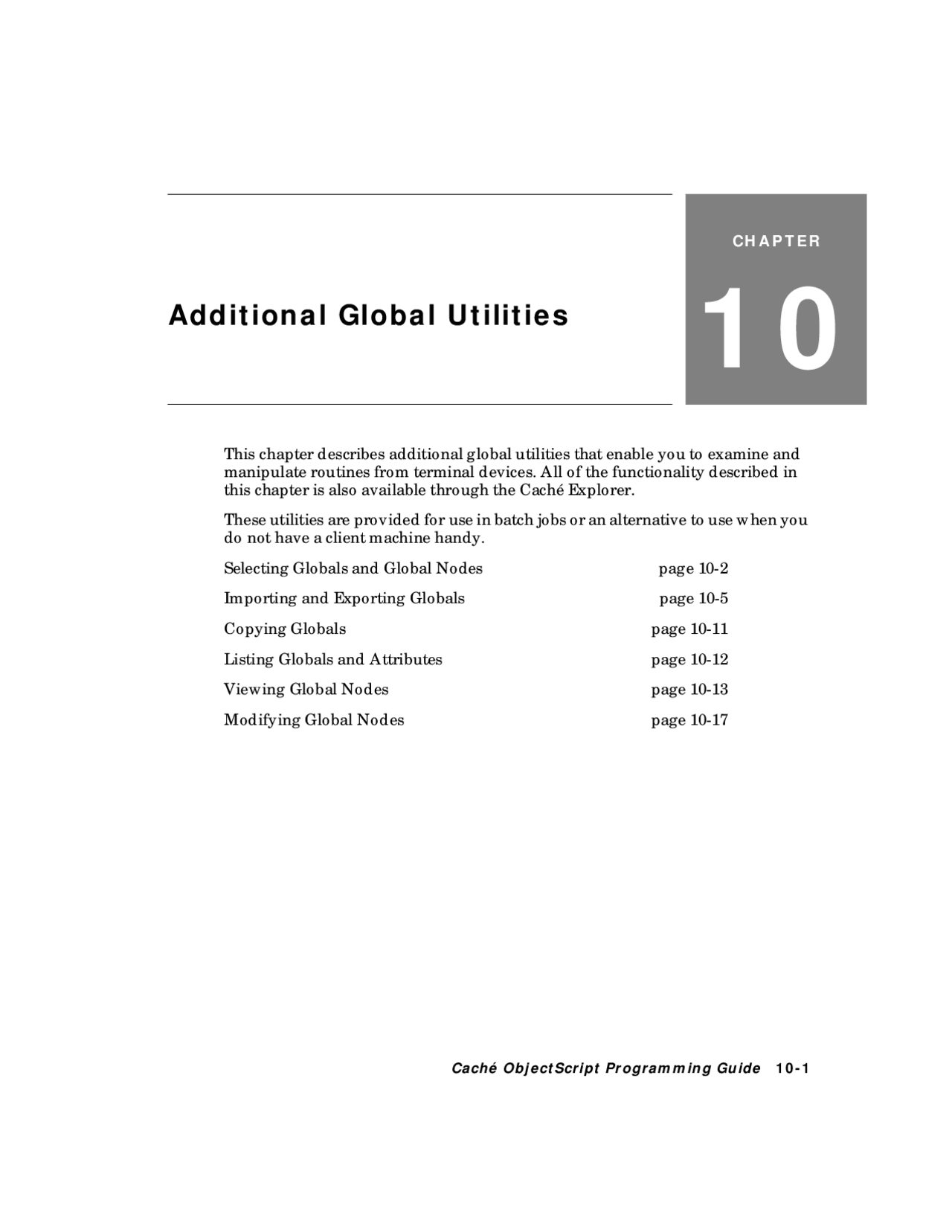

CHAPTER
Additional Global Utilities
This chapter describes additional global utilities that enable you to examine and
manipulate routines from terminal devices. All of the functionality described in
this chapter is also available through the Caché Explorer.
These utilities are provided for use in batch jobs or an alternative to use when you
do not have a client machine handy.
Selecting Globals and Global Nodes page 10-
Importing and Exporting Globals page 10-
Copying Globals page 10-
Listing Globals and Attributes page 10-
Viewing Global Nodes page 10-
Modifying Global Nodes page 10-
Chapter 10 — Additional Global Utilities
10-2 Caché ObjectScript Programming Guide
Selecting Globals and Global Nodes
This section describes how to specify globals and global nodes for selection. You
use the methods described here for both GUI and character-based utilities.
Specifying Global Names to Select Globals
This section describes methods for selecting globals. These responses will
typically be to the Global ^ prompt.
Methods for Specifying Globals
The simplest way to specify globals is to enter the name of each global:
Global ^ LAB
selects the global LAB.
You can also use the following symbols.
The asterisk can be placed after a set of alphanumeric characters to specify all
globals whose names start with those characters. This example selects all globals
whose name starts with R:
Global ^ _R_*
Symbol Definition
? (question mark) • A question mark by itself displays all available
globals and flags those globals that have been
selected.
- A question mark followed by any character
displays just the globals that have been selected.
- A question mark within a specification matches
any single character.
; (semicolon) Separates the globals in a list of globals.
- (dash) Indicates an inclusive range of globals to be
selected.
' (apostrophe) Indicates globals to be excluded from those to be
selected.
* (asterisk) A wildcard symbol that matches any character(s).
& (ampersand) A wildcard symbol that matches any letter.
# (pound) A wildcard symbol that matches any digit.
Chapter 10 — Additional Global Utilities
10-4 Caché ObjectScript Programming Guide
To see how many globals match a set of specifications, select them with %GSET.
For example, the following call to %GSET reveals that 10 globals in the indicated
namespace match the indicated specifications.
%SYS> D ^%GSET
All globals? (Y or N) N=
Global ^ LAB Global ^ _N_* Global ^ 'NIM Global ^ XR-YB Global ^ 10 globals %SYS>
Selected globals are stored in the global ^UTILITY. To see what globals match a
set of specifications, select them with %GSET and then use %G to examine the
nodes of ^UTILITY.
The following call to %G shows the globals selected by the call to %GSET.
%SYS> D ^%GSET
All globals? (Y or N) N= Y
Global ^ LAB Global ^ DI-DXA Global ^ _B_* Global ^ 'BAC Global ^ 'BX-BYA Global ^ _'BIL_* Global ^ 11 globals
%SYS> D ^%G
Global ^ UTILITY($J#256, ^UTILITY(2,"BAA")= "BAB")= "BACC")= "BCODE")= "BWA")= "BYB")= "DIC")= "DICT")= "DLA")= "DXA")= "LAB")=
All the symbols described above can also be used with utilities that call %GSET.
To display selected globals either alone or flagged as selected, together with all
other globals, use the Caché Explorer.
Importing and Exporting Globals
Caché ObjectScript Programming Guide 10-
Importing and Exporting Globals
Caché provides six utilities for importing and exporting globals for use on other
systems and remote storage.
- The %GI utility imports globals into Caché. This is the most common method
of importing whole globals.
- The %GO utility exports globals to disk or tape. This is the most common
method of exporting whole globals.
- The %GIF utility imports globals to disk or tape. This method works faster
than %GI but it doesn’t allow you to import globals that span namespaces.
- The %GOF utility exports globals to disk or tape. This method works faster
than %GO but doesn’t allow you to export globals that span namespaces.
- The %GIGEN utility imports globals or selected portions of globals into
Caché. It also allows you to restore a global subtree to a different global.
- The %GOGEN utility exports globals or selected portions of globals to disk or
tape.
Importing Globals with %GI
The %GI utility is used to restore those globals previously saved with the %GO
utility.
The %GI utility does the following:
- Calls the %IS utility to determine which device will be used as the input
device.
- Reads and displays the first two strings from that device, which should be the
date and time that the globals were saved and the description comment
- Asks you to select an input option. You can enter “A” to restore all globals,
“S” to select globals to be restored individually, or press < RETURN> to restore
nothing. As each global is loaded, its global name is displayed on the
terminal.
Importing and Exporting Globals
Caché ObjectScript Programming Guide 10-
The following is an example of using the %GO utility:
%SYS> D ^%GO
Global output Device: c:\cachesys\global Parameters: " WNS"=>
Description (^ for self-loading): Save globals for backup All globals? (Y or N) No= N
Global ^ ACCOUNT Global ^ NAME Global ^ SPOOL Global ^ 3 globals written %SYS>
Importing and Exporting Globals Quickly with %GIF and
%GOF
When importing or exporting simple, whole globals, ones that do not span
namespaces, you can use %GIF and %GOF for faster global import and export.
They work identically to %GI and %GO.
Importing Part of a Global with %GIGEN
The %GIGEN utility is used to restore globals saved by %GOGEN. %GIGEN and
%GOGEN are slower than %GI and %GO, but they offer a more general set of
features, including the ability to restore a global subtree under a different global.
The %GIGEN utility does the following:
- Calls the %IS utility to determine which device will be used as the input
device.
- Asks you to select an input option. You can enter “Yes” to restore all globals
to the same global node as used when saving the global, or “No” to select
globals to be restored individually to either the same global node or a
different global node.
If the global specification used when %GOGEN saved a file was in the format,
^GLO("Y",
or
^GLO("Y",2,
Chapter 10 — Additional Global Utilities
10-8 Caché ObjectScript Programming Guide
the utility will allow you to specify an alternative location, such as,
^X(1,2,
In this example, the node ^GLO("Y",2) would be restored to the node ^X(1,2,3),
and the node ^GLO("Y",2,7) would be restored as ^X(1,2,3,7).
Note that remapping of globals saved through more exotic specifications in
%GOGEN, such as ^GLO(,2,3:4, is not allowed. In such cases, the restoration is to
the same global reference used as input.
This example shows two %GIGEN examples then displays the global:
%SYS> D ^%GIGEN
Device: c:\cachesys\global Parameters: "R"=>
Transfer entire set of files? No=> Transferring files on Apr 16 1999 at 9:17 AM From global ^NAME("SMITH",,, To global ^NAME("SMITH",,,
Transfer completed Transferring files on Apr 16 1999 at 9:17 AM From global ^NAME("WILSON",, To global ^NAME("WILSON",,
Transfer completed Done for this set of files.
%SYS> D ^%GIGEN
Device: 47 Parameters: ("AUV:0:2048) Rewind? No= Y
Transfer entire set of files? No= Transferring files on Apr 16 1999 at 9:17 AM From global ^NAME("SMITH",,, To global ^NAME("SMITH",,,
OK to transfer? Yes=
Transfer completed Transferring files on Apr 16 1999 at 9:17 AM From global ^NAME("WILSON",, To global ^NAME("WILSON",,=^PERSON("CLIENT","WILSON",,
OK to transfer? Yes=
Transfer completed Done for this set of files. %SYS> D ^%G
Global ^ NAME("WILSON",
Chapter 10 — Additional Global Utilities
10-10 Caché ObjectScript Programming Guide
In the first two examples, the output device is specified as your terminal so that
you can see the output. Normally, of course, you would specify a device such as
sequential file or magnetic tape sequential file, as in the third example.
%SYS> D ^%GOGEN
Device: Right margin: 80=
[Warning: Use a "V" format to avoid problems with control characters.]
Global ^ NAME("WILSON",
Transferring files on Apr 16 1999 at 9:26 AM ^NAME("WILSON",
^NAME("WILSON","HOWARD") 3003 5TH AVE ^%NAME("WILSON","JANE") 55 MAIN ST ^NAME("WILSON","ROBERT") 404 ELM ST DONE
Global ^
%SYS> D ^%GOGEN
Device: Right margin: 80=
[Warning: Use a "V" format to avoid problems with control characters.]
Global ^ NAME("SMITH", Transferring files on Apr 16 1999 at 9:28 AM ^NAME("SMITH",
^NAME("SMITH","NANCY","CITY") MIAMI ^NAME("SMITH","ROBERT","CITY") CHICAGO DONE
Global ^
%SYS> D ^%GOGEN
Device: c:\cachesys\swglobal Parameters: ("WNS")=> Global ^NAME("SMITH",)
Global ^NAME("WILSON",)
Global ^ %SYS>
Copying Globals
Caché ObjectScript Programming Guide 10-
Copying Globals
Use the %GCOPY utility to copy one global to another. This provides a quicker
way to make a copy than exporting a global and importing it to a different name.
To copy one global to another:
1. Invoke %GCOPY. Caché prompts you for the global you want to copy:
Copy Global ^
2. Enter the name of the global you want to copy. Caché prompts you for the
namespace where the global is stored; default is the current namespace:
Copy Global ^ zem
in namespace: %SYS =>
3. Enter the name of the namespace where the global is stored. Caché prompts
you for the name of the target global; default is the source global.
4. Enter the name of the global to which you want to copy. Caché prompts you
for the namespace where the target global will be stored; default is the current
namespace:
To Global ^zem=> ^zeb
in namespace: %SYS =>
The global and all its contents are copied into a new global with the name and
namespace you specified.
This example shows a global copy:
%SYS> set ^zem="Hello"
%SYS> d ^%GCOPY
Copy Global ^ zem
in namespace: %SYS =>
To Global ^zem=> ^zeb
in namespace: %SYS =
%SYS> w ^zeb
Hello
Viewing Global Nodes
Caché ObjectScript Programming Guide 10-
Viewing Global Nodes
The %G utility shows global nodes. %G first calls %IS to select a device for the
displayed global node output, then asks for the global name. If the value of the
variable %IO is already equal to the current device, the %G utility skips the
“Device:” prompt.
The following sections describe methods for specifying global nodes to be
selected for display in response to the Global ^ prompt displayed when you call
%G. If you respond to the “Global ^” prompt with a question mark, %G displays
the global directory.
Specifying a Global Subtree
If you enter the name of a global, %G displays the entire global. If you enter a
complete global reference, such as “^GLO(3,"BED",5)”, only that particular node
is displayed. You may also specify a subtree, such as “^GLO(3,"BED",“ in which
case all descendants of that node are displayed. To display both the node and its
descendants, do not end your entry with a comma or a right parenthesis.
This example displays a global subtree and all decendants of the node:
USER> D ^%G
Device: Right Margin: 80=> Global ^ GLO(3,"BED" ^GLO(3,"BED")=EAST WING ^GLO(3,"BED",0)= "ABC")= "CAT")= ^GLO(3,"BED","TD",1)=MERRY CHRISTMAS 34)=HAPPY NEW YEAR Global ^
Quotation Marks
Use quotation marks when specifying a string subscript. Noncanonic numbers
are also enclosed in quotation marks. (A canonic number is a number that
satisfies the equation +X=X. A noncanonic number has superfluous zeros, or an
explicit plus sign.) If a subscript includes a quotation mark as a subscript
character, it appears as two quotation marks in the subscript. Quotation marks do
not enclose the data value, however, and a quotation mark in the data appears as
only a single quote in the data value. Thus, with a null string, there are no
characters to the right of the equal sign.
Chapter 10 — Additional Global Utilities
10-14 Caché ObjectScript Programming Guide
Pointer Only Nodes
If a node is displayed whose $D() value is ten (a pointer with no data), then the
word “pointer” appears after the global reference without any equal sign. For
example:
^ABC(3,10)pointer ^ABC(3,10,2)="Johnson,Johnny"
Null Subscripts in Specification
You can leave a subscript field empty when you specify the subtree for display.
The %G utility displays any nodes matching the other subscripts and having any
value for the missing subscript. For example:
Global ^ SCRATCH(,8) ^SCRATCH(3,8)= ^SCRATCH(5,8)= ^SCRATCH(12,8)= Global ^
In this example, the %G utility displayed all the nodes in ^SCRATCH whose
second level subscript was 8.
Use of a Right Parenthesis
In the previous example, a right parenthesis appeared in the specification, so %G
displayed no nodes with more than the specified two subscript levels. If a right
parenthesis is not present, the utility also displays any descendants of these
nodes, as in the following example:
Global ^ SCRATCH(, ^SCRATCH(3,8)= ^SCRATCH(3,8,1)= 6)= ^SCRATCH(3,8,6,12)= ^SCRATCH(5,8)= ^SCRATCH(5,8,1,3)= ^SCRATCH(12,8)= Global ^
Subscript Ranges
You can also specify a range of subscripts for a particular subscript level by
inserting a colon between the first and last subscript in the range:
Global ^ PT(1,"ACC":"BIRTH" ^PT(1,"ACC")= "ADD")=1 PETER STREET "BIRTH")=3/12/ Global ^
Chapter 10 — Additional Global Utilities
10-16 Caché ObjectScript Programming Guide
This example shows the contents of the global in the %SYS namespace:
%SYS> D ^%G
Device: Right margin: 80=
Global ^? Global Directory Display of %SYS 2:10 PM Nov 24 99
^% ^%CDServer ^%CDUaf ^%IS ^%RS ^%SYS ^%nls ^%tercap ^%utility ^CacheTemp ^NET ^ROUTINE ^SYS ^rINC ^rOBJ ^NAME
16 globals listed.
Global ^ NAME ^NAME("CABOT","THOMAS")=133 ELM ST ^NAME("CARLSON","JAMES"=444 PINE ST ^NAME("JOHNSON","BARBARA")=202 NORTH ST ^NAME("JONES","LINDA")=188 PINE ST
^NAME("SMITH","NANCY")=155 WASHINGTON ST ^NAME("SMITH","NANCY","CITY")=MIAMI ^NAME("WILSON","HOWARD")=3033 5TH AVE "JANE")=55 MAIN ST "ROBERT")=404 ELM ST
Global ^ NAME("CARLSON","JAMES") ^NAME("CARLSON","JAMES")=444 PINE ST
Global ^ NAME("SMITH") ^NAME("SMITH")pointer
Global ^ NAME("SMITH", ^NAME("SMITH","NANCY")=155 WASHINGTON ST ^NAME("SMITH","NANCY","CITY")=MIAMI
Global ^ NAME("SMITH",) ^NAME("SMITH","NANCY")=155 WASHINGTON ST "NANCY")pointer
Global ^ NAME("WILSON","H":"M") ^NAME("WILSON","HOWARD")=3003 5TH AVE "JANE")=55 MAIN ST
Global ^ %SYS>
Modifying Global Nodes
Caché ObjectScript Programming Guide 10-
Modifying Global Nodes
Use the %GCHANGE utility to search a global for all occurrences of a specified
sequence of characters and:
- Display the nodes and their values
- Change their values by substituting one sequence of characters for another.
As values are modified, the utility displays the global nodes and their new
values.
- Execute a specified line of code, using the XECUTE command, for each data
field that matches a specified sequence of characters. After the execute is
completed, the utility prints each located data field.
To use %GCHANGE display nodes, change values, or execute code:
1. Invoke %GCHANGE. The utility uses the %IS utility to select a device for
writing the output. Then it asks you to specify a global by asking:
Global ^
2. Answer with any of the formats used for the %G global display utility.
3. Enter the function you want when the utility asks which function you want to
perform:
(F) Find, (C) Change every, or (X) Execute code:
This example shows a global find, and then a global change:
%SYS> D ^%GCHANGE
Output results on Device: Right margin: 80=>
Global ^ A(5:200,3, (F) Find, (C) Change every, or (X) Execute code: F=> Find every: 100 ^A(6,3,0)= ^A(19,3,12,40)=
Global ^ A(,4, (F) Find, (C) Change every, or (X) Execute code: F=> C Change every: X to ZA ^A(3,4,5)="ABZAM" ^A("SMITH",4,2,0)="WZAYZ" Global ^ %SYS>
If you select X for Execute, the utility asks for a line of code to be executed every
time it finds a matching node. If you wish, you can specify a string of characters
that must be present in the data for the code to be executed. You may answer the
“Find every data node with:” question with a null response. When the utility
executes your code, the variable %Q holds the full name of the node found, and
