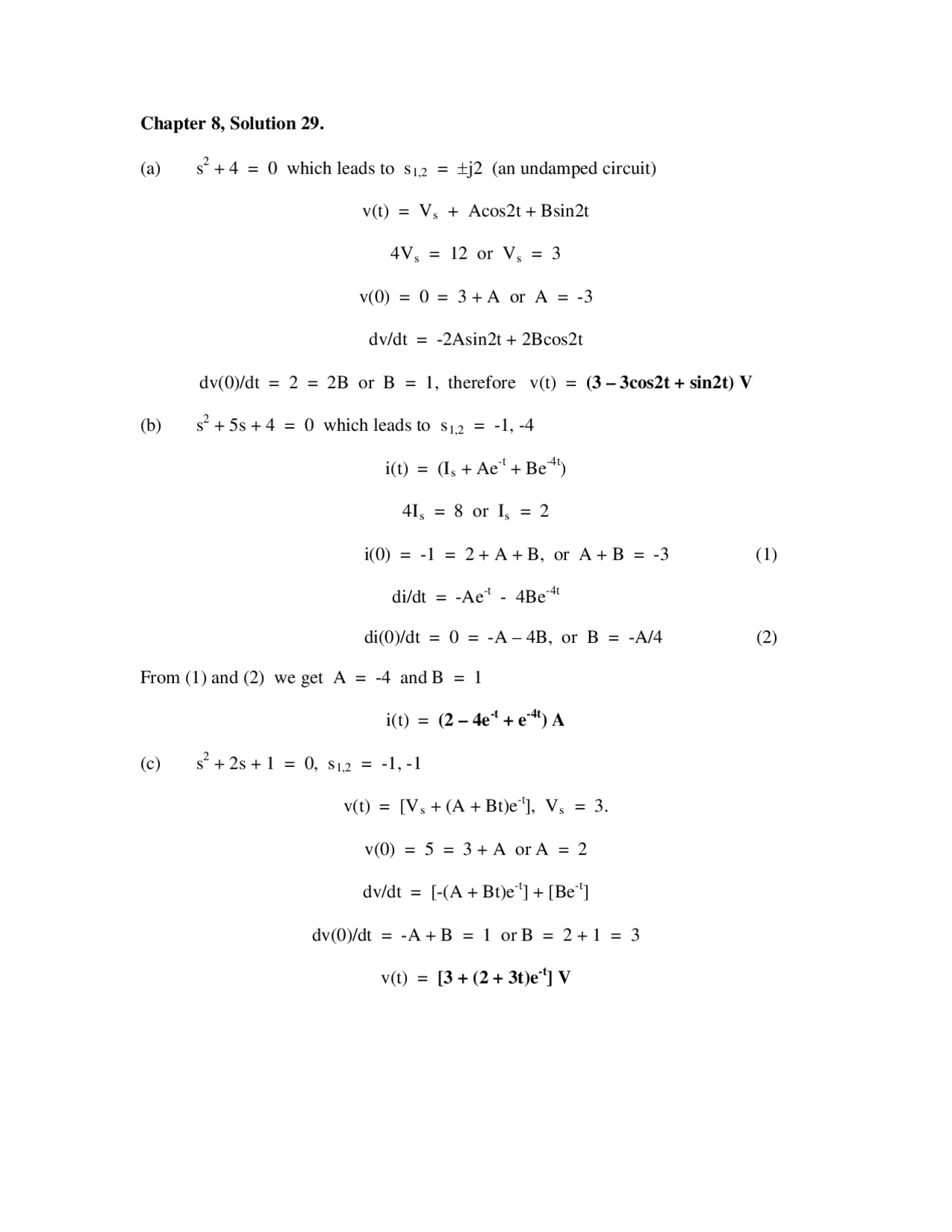

Chapter 8, Solution 29.
(a) s2 + 4 = 0 which leads to s1,2 = j2 (an undamped circuit)
v(t) = Vs + Acos2t + Bsin2t
4Vs = 12 or Vs = 3
v(0) = 0 = 3 + A or A = -3
dv/dt = -2Asin2t + 2Bcos2t
dv(0)/dt = 2 = 2B or B = 1, therefore v(t) = (3 – 3cos2t + sin2t) V
(b) s2 + 5s + 4 = 0 which leads to s1,2 = -1, -4
i(t) = (Is + Ae-t + Be-4t)
4Is = 8 or Is = 2
i(0) = -1 = 2 + A + B, or A + B = -3 (1)
di/dt = -Ae-t - 4Be-4t
di(0)/dt = 0 = -A – 4B, or B = -A/4 (2)
From (1) and (2) we get A = -4 and B = 1
i(t) = (2 – 4e-t + e-4t) A
(c) s2 + 2s + 1 = 0, s1,2 = -1, -1
v(t) = [Vs + (A + Bt)e-t], Vs = 3.
v(0) = 5 = 3 + A or A = 2
dv/dt = [-(A + Bt)e-t] + [Be-t]
dv(0)/dt = -A + B = 1 or B = 2 + 1 = 3
v(t) = [3 + (2 + 3t)e-t] V
