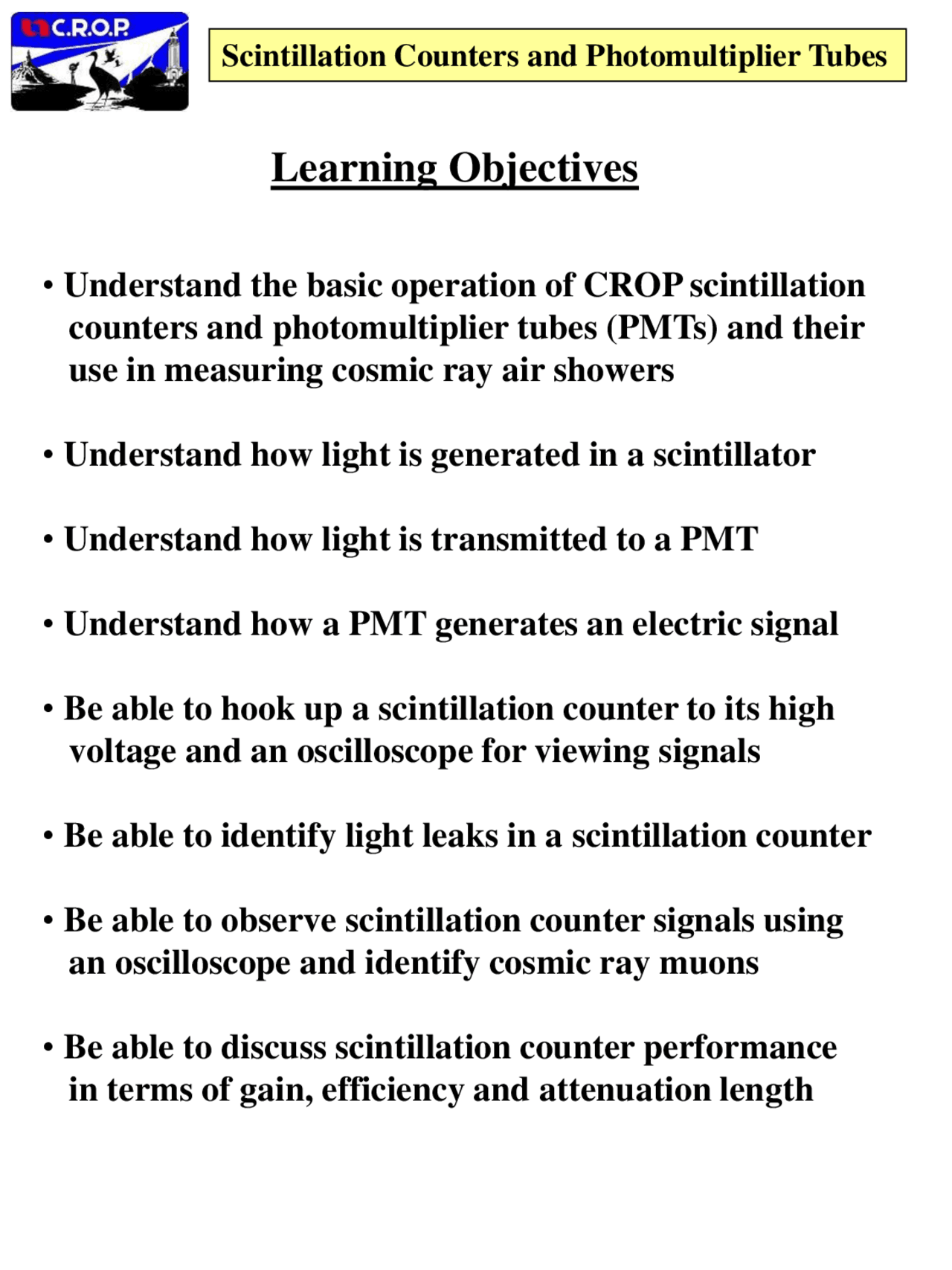

Scintillation Counters and Photomultiplier Tubes
Learning Objectives
• Understand the basic operation of CROP scintillation
counters and photomultiplier tubes (PMTs) and their
use in measuring cosmic ray air showers
• Understand how light is generated in a scintillator
• Understand how light is transmitted to a PMT
• Understand how a PMT generates an electric signal
• Be able to hook up a scintillation counter to its high
voltage and an oscilloscope for viewing signals
• Be able to identify light leaks in a scintillation counter
• Be able to observe scintillation counter signals using
an oscilloscope and identify cosmic ray muons
• Be able to discuss scintillation counter performance
in terms of gain, efficiency and attenuation length
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d
pf2e
pf2f
pf30
pf31
pf32
pf33
pf34

Pré-visualização parcial do texto

Baixe crop scintillator lesson e outras Notas de estudo em PDF para Engenharia Biomédica, somente na Docsity!

Learning Objectives

  • Understand the basic operation of CROP scintillation counters and photomultiplier tubes (PMTs) and their use in measuring cosmic ray air showers
  • Understand how light is generated in a scintillator
  • Understand how light is transmitted to a PMT
  • Understand how a PMT generates an electric signal
  • Be able to hook up a scintillation counter to its high voltage and an oscilloscope for viewing signals
  • Be able to identify light leaks in a scintillation counter
  • Be able to observe scintillation counter signals using an oscilloscope and identify cosmic ray muons
  • Be able to discuss scintillation counter performance in terms of gain, efficiency and attenuation length

Outline

  • Introduction
  • Light Generation in Scintillators
  • Light Collection
  • Optical Interfaces and Connections
  • Photodetectors and photomultiplier tubes
  • Performance and Exercises
  • References

Photomultiplier tube (PM or PMT) generates electric signal

Light guide transmits light to photodetector

Passage of charged particle generates light in scintillator

Charged particle

Basic principles of operation

Introduction

  • Examples from High Energy Physics experiments at particle accelerators - Hodoscope -- an array of several counters covering a large area - Veto counters -- for particles you don’t want to measure - Calorimetry -- measuring a particle’s total energy - Triggering -- a fast signal which indicates an interesting event to record

Examples from cosmic ray experiments

  • CASA
  • KASCADE

Scintillation counter hodoscope

Counters arranged as pizza slices

Photomultiplier tube

Scintillator wedge

Foil wrapping

Chicago Air Shower Array (CASA)

Dugway Proving Grounds, Utah

  • University of Chicago and University of Utah collaboration to study extended cosmic ray air showers
  • 1089 boxes in a rectangular grid, 15 meter spacing, each with
    • 4 scintillator planes and 4 photomultplier tubes
    • 1 low voltage and 1 high voltage supply
    • 1 electronics card for data triggering and data acquisition
  • CASA collected data in the 1990’s and is now complete
  • CROP will use retired scintillation counters recovered from CASA

The KASCADE experiment

in Karlsruhe, Germany

KASCADE = KArlsruhe Shower Core and Array DEtector

• 252 detector stations

• Rectangular grid with 13 m spacing

• Array of 200 x 200 m^2

The KASCADE experiment

PET Scans

(Positron Emission Tomography)

Scintillating crystal detector and photomultiplier

3-D image

Cross Section

  • Different scintillator materials
    • Plastic scintillator -- good for large areas
    • Sodium Iodide (NaI)
    • BGO (Bi 4 Ge 2 O 12 )
    • Lead Tungstanate (PbWO 4 )
  • Focus on plastic scintillator
  • Composition
    • Polystyrene (plexiglass)
    • Doped with small admixture of a fluor
    • Fluor is organic macro-molecule like POPOP: 1,4-Bis-[2-(5-phenyloxazolyl)]-benzene C 24 H 16 N 2 O 2
  • Light generated by fluorescence process
    • One of energy loss mechanisms when charged particles pass through matter
    • Similar to television screen or computer monitor
    • Quantum mechanical process
    • Light (photons) emitted isotropically
  • Emission spectrum from typical scintillator
    • Relation to visible light spectrum

2. Light generation in scintillators

Inorganic crystals

  • 1 nm = 1 nanometer = 1  10 -9^ meter
  • For reference, 1 nm = 10 Angstroms, where 1 Angstrom is approximate size of an atom
  • Maximum emission at about 425 nm

Typical plastic scintillator emission spectrum

Wavelength of emitted light

The wavelengths of visible light

3. Light Collection

  • Purpose -- Direct as much generated light as possible to the photodetector
  • Need for making counters light tight
  • Light transmission within scintillator
    • Reflections from surfaces, total internal reflection
    • Transmission through surfaces
    • Critical angle
    • Importance of smooth polished surfaces
    • Use of reflective coverings (foil, white paint, white paper, black paper)
    • Multiple bounces (many!)
    • Ray-tracing simulation programs
    • Attenuation of light in scintillator

Photomultiplier tubes

Light rays

Scintillator

Charged particle passes through here

Light transmission within scintillator
