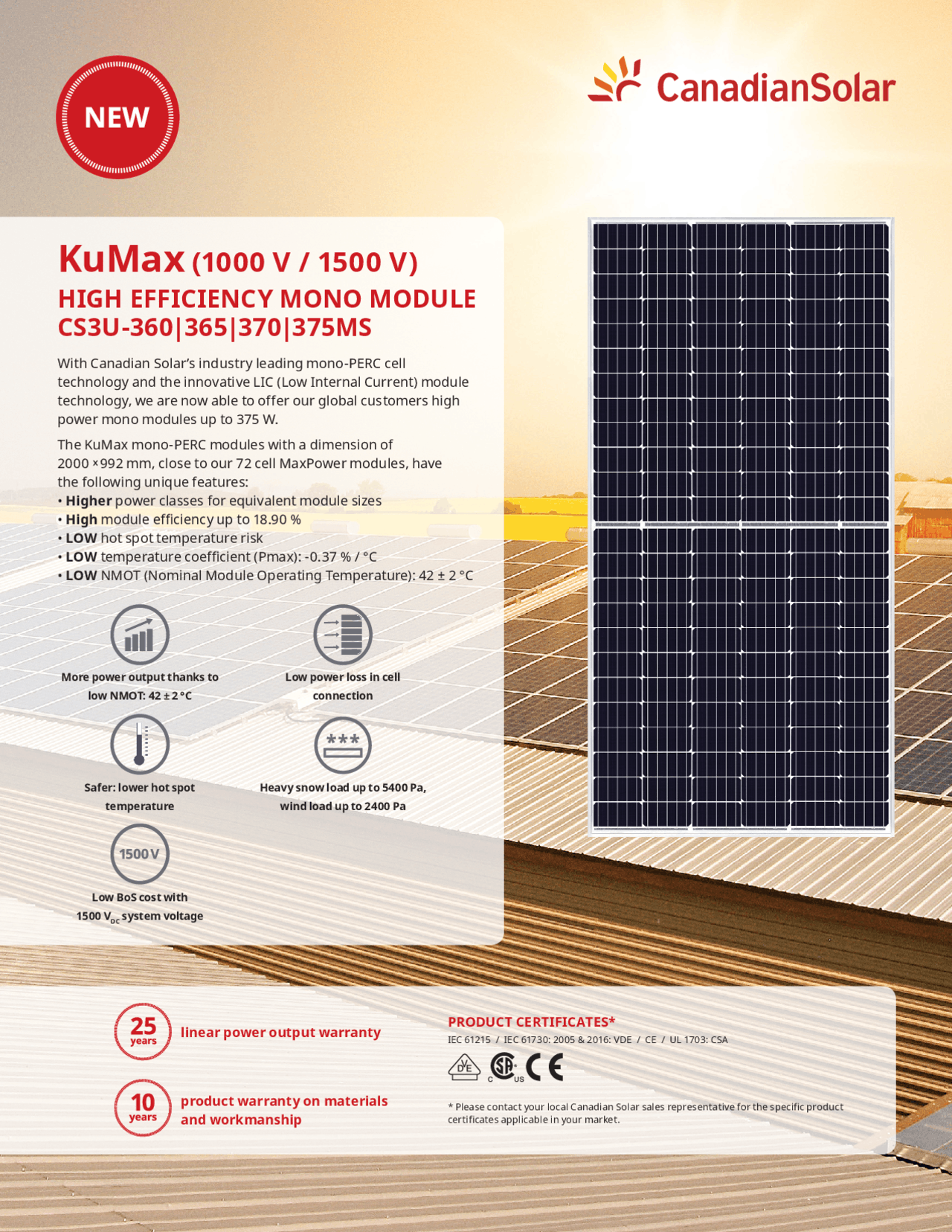

KuMax (1000 V / 1500 V)
HIGH EFFICIENCY MONO MODULE
CS3U-360|365|370|375MS
With Canadian Solar’s industry leading mono-PERC cell technology and the innovative LIC (Low Internal Current) module technology, we are now able to offer our global customers high power mono modules up to 375 W.
The KuMax mono-PERC modules with a dimension of 2000 ˣ 992 mm, close to our 72 cell MaxPower modules, have the following unique features:
- Higher power classes for equivalent module sizes
- High module efficiency up to 18.90 %
- LOW hot spot temperature risk
- LOW temperature coefficient (Pmax): -0.37 % / °C
- LOW NMOT (Nominal Module Operating Temperature): 42 ± 2 °C
Safer: lower hot spot temperature
Low BoS cost with 1500 V (^) DC system voltage
More power output thanks to low NMOT: 42 ± 2 °C
Low power loss in cell connection
Heavy snow load up to 5400 Pa, wind load up to 2400 Pa
linear power output warranty
product warranty on materials and workmanship
- Please contact your local Canadian Solar sales representative for the specific product certificates applicable in your market.
PRODUCT CERTIFICATES*
IEC 61215 / IEC 61730: 2005 & 2016: VDE / CE / UL 1703: CSA
PARTNER SECTION
The aforesaid datasheet only provides the general information on Canadian Solar products and, due to the on-going innovation and improvement, please always contact your local Canadian Solar sales representative for the updated information on specifications, key features and certification requirements of Canadian Solar products in your region. Please be kindly advised that PV modules should be handled and installed by qualified people who have professional skills and please carefully read the safety and installation instructions before using our PV modules.
3000 Oak Road, Suite 400, Walnut Creek, CA 94597, USA | www.canadiansolar.com/na | [email protected]
CANADIAN SOLAR (USA) INC.
MECHANICAL DATA
Specification Data Cell Type Mono-crystalline, 156.75 ˣ 78.38 mm Cell Arrangement 144 [2 ˣ (12 ˣ 6) ] Dimensions 2000 ˣ 992 ˣ 40 mm (78.7 ˣ 39.1 ˣ 1.57 in) Weight 22.6 kg (49.8 lbs) Front Cover 3.2 mm tempered glass Frame Anodized aluminium alloy, crossbar enhanced J-Box IP68, 3 diodes Cable 4.0 mm² & 12 AWG Cable Length 1670 mm (65.7 in) Connector T4 (IEC / UL) Per Pallet 27 pieces Per Container (40‘ HQ) 594 pieces
TEMPERATURE CHARACTERISTICS
Specification Data Temperature Coefficient (Pmax) -0.37 % / °C Temperature Coefficient (Voc) -0.29 % / °C Temperature Coefficient (Isc) 0.05 % / °C Nominal Module Operating Temperature 42±2 °C
ELECTRICAL DATA | STC*
CS3U 360MS 365MS 370MS 375MS
Nominal Max. Power (Pmax) 360 W 365 W 370 W 375 W Opt. Operating Voltage (Vmp) 39.2 V 39.4 V 39.6 V 39.8 V Opt. Operating Current (Imp) 9.19 A 9.27 A 9.35 A 9.43 A Open Circuit Voltage (Voc) 47.0 V 47.2 V 47.4 V 47.6 V Short Circuit Current (Isc) 9.69 A 9.77 A 9.85 A 9.93 A Module Efficiency 18.15% 18.40% 18.65% 18.90% Operating Temperature -40°C ~ +85°C Max. System Voltage 1000 V (IEC / UL) or 1500 V (IEC / UL) Module Fire Performance TYPE 1 (UL 1703) or CLASS C (IEC 61730) Max. Series Fuse Rating 30 A Application Classification Class A Power Tolerance 0 ~ + 5 W
- Under Standard Test Conditions (STC) of irradiance of 1000 W/m2, spectrum AM 1.5 and cell temperature of 25°C.
ELECTRICAL DATA | NMOT*
CS3U 360MS 365MS 370MS 375MS
Nominal Max. Power (Pmax) 267 W 271 W 275 W 278 W Opt. Operating Voltage (Vmp) 35.7 V 35.9 V 36.1 V 36.3 V Opt. Operating Current (Imp) 7.48 A 7.55 A 7.62 A 7.67 A Open Circuit Voltage (Voc) 44.0 V 44.2 V 44.4 V 44.6 V Short Circuit Current (Isc) 7.82 A 7.89 A 7.95 A 8.01 A
- Under Nominal Module Operating Temperature (NMOT), irradiance of 800 W/m2, spectrum AM 1.5, ambient temperature 20°C, wind speed 1 m/s.
Frame Cross Section A-A
Mounting Hole
40
30
11
ENGINEERING DRAWING (mm) CS3U-370MS / I-V CURVES
10 9 8 7 6 5 4 3 2 1
(^0) V
A 10 9 8 7 6 5 4 3 2 1 0
5 10 15 20 25 30 35 40 45 50
V
A
5 10 15 20 25 30 35 40 45 50 5°C 25°C 45°C 65°C
1000 W/m^2 800 W/m^2 600 W/m^2 400 W/m^2 200 W/m^2
August 2017 | All rights reserved | PV Module Product Datasheet V5.552_E1_NA
Rear View
2-R4.
14 2-R3.
10
(^40011551300)
40 992
2000
1250 1250
180
180
6- GroundingΦ 5 Hole 8-14x9 Mounting Hole (^) A A Mounting^ 4-10x Hole(tracker)
950
951
