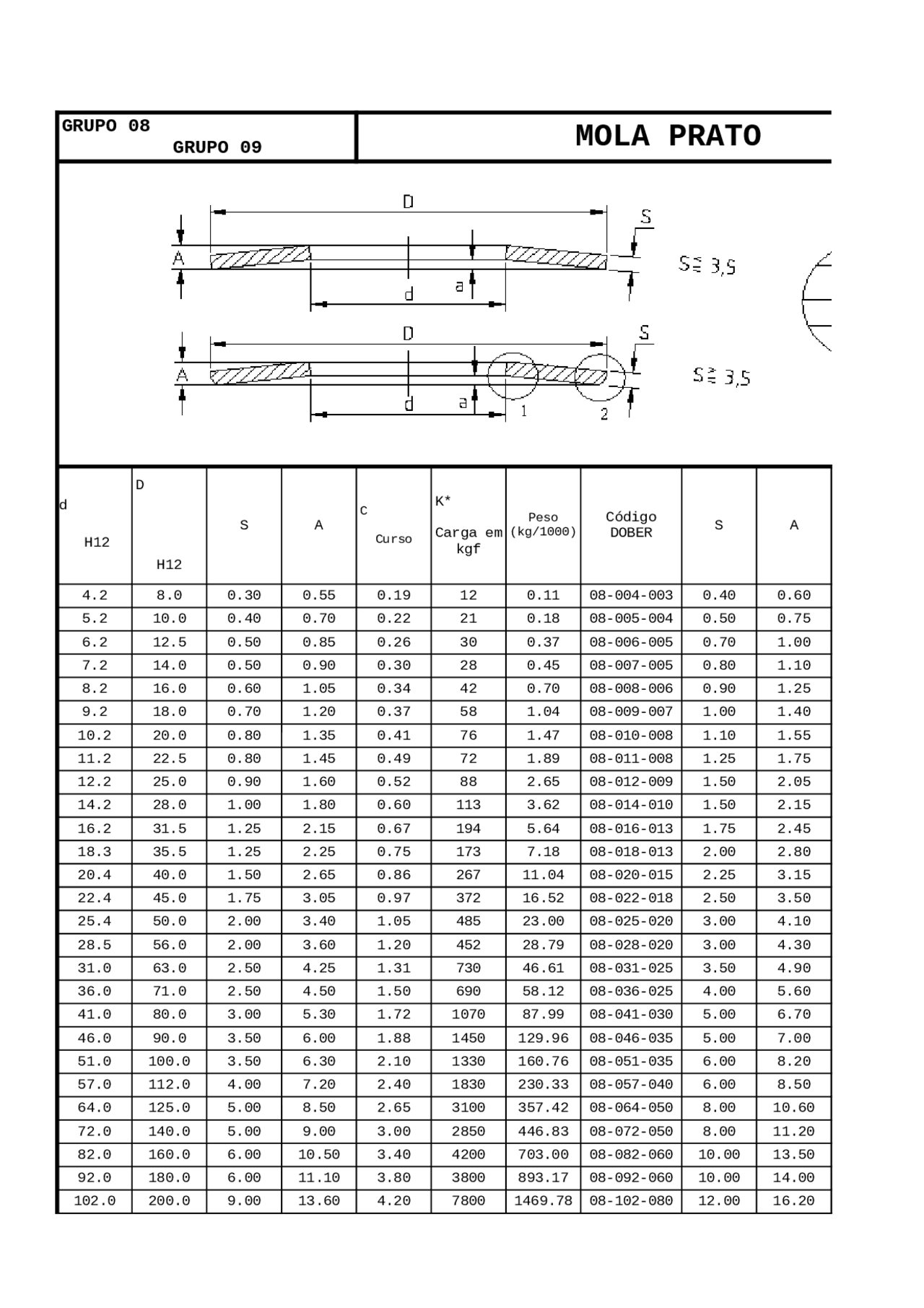

MOLA PRATO
S A S A
4.2 8.0 0.30 0.55 0.19 12 0.11 08-004-003 0.40 0.60
5.2 10.0 0.40 0.70 0.22 21 0.18 08-005-004 0.50 0.75
6.2 12.5 0.50 0.85 0.26 30 0.37 08-006-005 0.70 1.00
7.2 14.0 0.50 0.90 0.30 28 0.45 08-007-005 0.80 1.10
8.2 16.0 0.60 1.05 0.34 42 0.70 08-008-006 0.90 1.25
9.2 18.0 0.70 1.20 0.37 58 1.04 08-009-007 1.00 1.40
10.2 20.0 0.80 1.35 0.41 76 1.47 08-010-008 1.10 1.55
11.2 22.5 0.80 1.45 0.49 72 1.89 08-011-008 1.25 1.75
12.2 25.0 0.90 1.60 0.52 88 2.65 08-012-009 1.50 2.05
14.2 28.0 1.00 1.80 0.60 113 3.62 08-014-010 1.50 2.15
16.2 31.5 1.25 2.15 0.67 194 5.64 08-016-013 1.75 2.45
18.3 35.5 1.25 2.25 0.75 173 7.18 08-018-013 2.00 2.80
20.4 40.0 1.50 2.65 0.86 267 11.04 08-020-015 2.25 3.15
22.4 45.0 1.75 3.05 0.97 372 16.52 08-022-018 2.50 3.50
25.4 50.0 2.00 3.40 1.05 485 23.00 08-025-020 3.00 4.10
28.5 56.0 2.00 3.60 1.20 452 28.79 08-028-020 3.00 4.30
31.0 63.0 2.50 4.25 1.31 730 46.61 08-031-025 3.50 4.90
36.0 71.0 2.50 4.50 1.50 690 58.12 08-036-025 4.00 5.60
41.0 80.0 3.00 5.30 1.72 1070 87.99 08-041-030 5.00 6.70
46.0 90.0 3.50 6.00 1.88 1450 129.96 08-046-035 5.00 7.00
51.0 100.0 3.50 6.30 2.10 1330 160.76 08-051-035 6.00 8.20
57.0 112.0 4.00 7.20 2.40 1830 230.33 08-057-040 6.00 8.50
64.0 125.0 5.00 8.50 2.65 3100 357.42 08-064-050 8.00 10.60
72.0 140.0 5.00 9.00 3.00 2850 446.83 08-072-050 8.00 11.20
82.0 160.0 6.00 10.50 3.40 4200 703.00 08-082-060 10.00 13.50
92.0 180.0 6.00 11.10 3.80 3800 893.17 08-092-060 10.00 14.00
102.0 200.0 9.00 13.60 4.20 7800 1469.78 08-102-080 12.00 16.20
GRUPO 08
GRUPO 09
d
H12
D
H12
C
Curso
K*
Carga em
kgf
Peso
(kg/1000)
Código
DOBER
