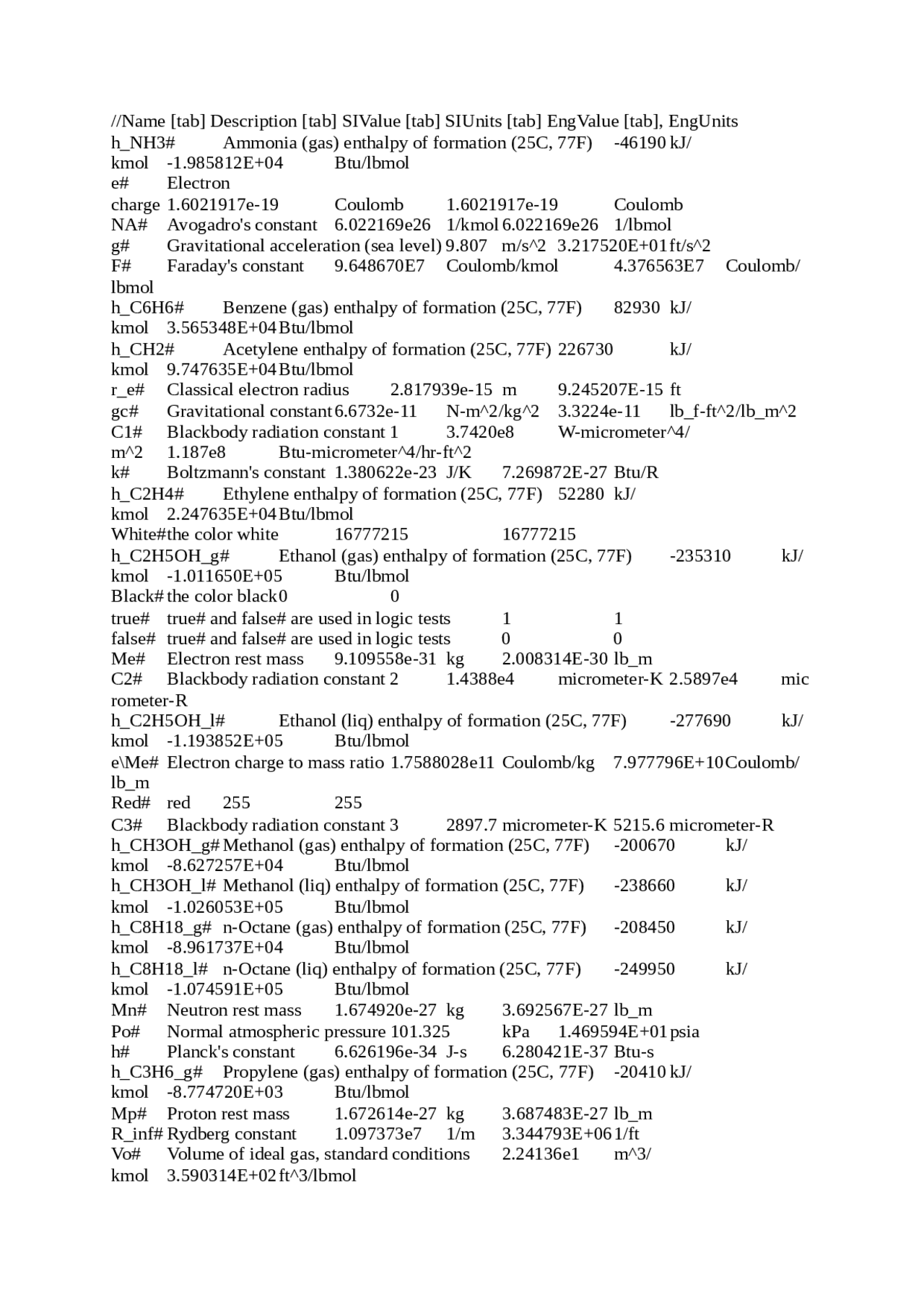

//Name [tab] Description [tab] SIValue [tab] SIUnits [tab] EngValue [tab], EngUnits
h_NH3# Ammonia (gas) enthalpy of formation (25C, 77F) -46190 kJ/
kmol -1.985812E+04 Btu/lbmol
e# Electron
charge 1.6021917e-19 Coulomb 1.6021917e-19 Coulomb
NA# Avogadro's constant 6.022169e26 1/kmol 6.022169e26 1/lbmol
g# Gravitational acceleration (sea level) 9.807 m/s^2 3.217520E+01ft/s^2
F# Faraday's constant 9.648670E7 Coulomb/kmol 4.376563E7 Coulomb/
lbmol
h_C6H6# Benzene (gas) enthalpy of formation (25C, 77F) 82930 kJ/
kmol 3.565348E+04Btu/lbmol
h_CH2# Acetylene enthalpy of formation (25C, 77F) 226730 kJ/
kmol 9.747635E+04Btu/lbmol
r_e# Classical electron radius 2.817939e-15 m 9.245207E-15 ft
gc# Gravitational constant6.6732e-11 N-m^2/kg^2 3.3224e-11 lb_f-ft^2/lb_m^2
C1# Blackbody radiation constant 1 3.7420e8 W-micrometer^4/
m^2 1.187e8 Btu-micrometer^4/hr-ft^2
k# Boltzmann's constant 1.380622e-23 J/K 7.269872E-27 Btu/R
h_C2H4# Ethylene enthalpy of formation (25C, 77F) 52280 kJ/
kmol 2.247635E+04Btu/lbmol
White#the color white 16777215 16777215
h_C2H5OH_g# Ethanol (gas) enthalpy of formation (25C, 77F) -235310 kJ/
kmol -1.011650E+05 Btu/lbmol
Black# the color black0 0
true# true# and false# are used in logic tests 1 1
false# true# and false# are used in logic tests 0 0
Me# Electron rest mass 9.109558e-31 kg 2.008314E-30 lb_m
C2# Blackbody radiation constant 2 1.4388e4 micrometer-K 2.5897e4 mic
rometer-R
h_C2H5OH_l# Ethanol (liq) enthalpy of formation (25C, 77F) -277690 kJ/
kmol -1.193852E+05 Btu/lbmol
e\Me# Electron charge to mass ratio 1.7588028e11 Coulomb/kg 7.977796E+10Coulomb/
lb_m
Red# red 255 255
C3# Blackbody radiation constant 3 2897.7 micrometer-K 5215.6 micrometer-R
h_CH3OH_g# Methanol (gas) enthalpy of formation (25C, 77F) -200670 kJ/
kmol -8.627257E+04 Btu/lbmol
h_CH3OH_l# Methanol (liq) enthalpy of formation (25C, 77F) -238660 kJ/
kmol -1.026053E+05 Btu/lbmol
h_C8H18_g# n-Octane (gas) enthalpy of formation (25C, 77F) -208450 kJ/
kmol -8.961737E+04 Btu/lbmol
h_C8H18_l# n-Octane (liq) enthalpy of formation (25C, 77F) -249950 kJ/
kmol -1.074591E+05 Btu/lbmol
Mn# Neutron rest mass 1.674920e-27 kg 3.692567E-27 lb_m
Po# Normal atmospheric pressure 101.325 kPa 1.469594E+01psia
h# Planck's constant 6.626196e-34 J-s 6.280421E-37 Btu-s
h_C3H6_g# Propylene (gas) enthalpy of formation (25C, 77F) -20410 kJ/
kmol -8.774720E+03 Btu/lbmol
Mp# Proton rest mass 1.672614e-27 kg 3.687483E-27 lb_m
R_inf# Rydberg constant 1.097373e7 1/m 3.344793E+061/ft
Vo# Volume of ideal gas, standard conditions 2.24136e1 m^3/
kmol 3.590314E+02ft^3/lbmol
