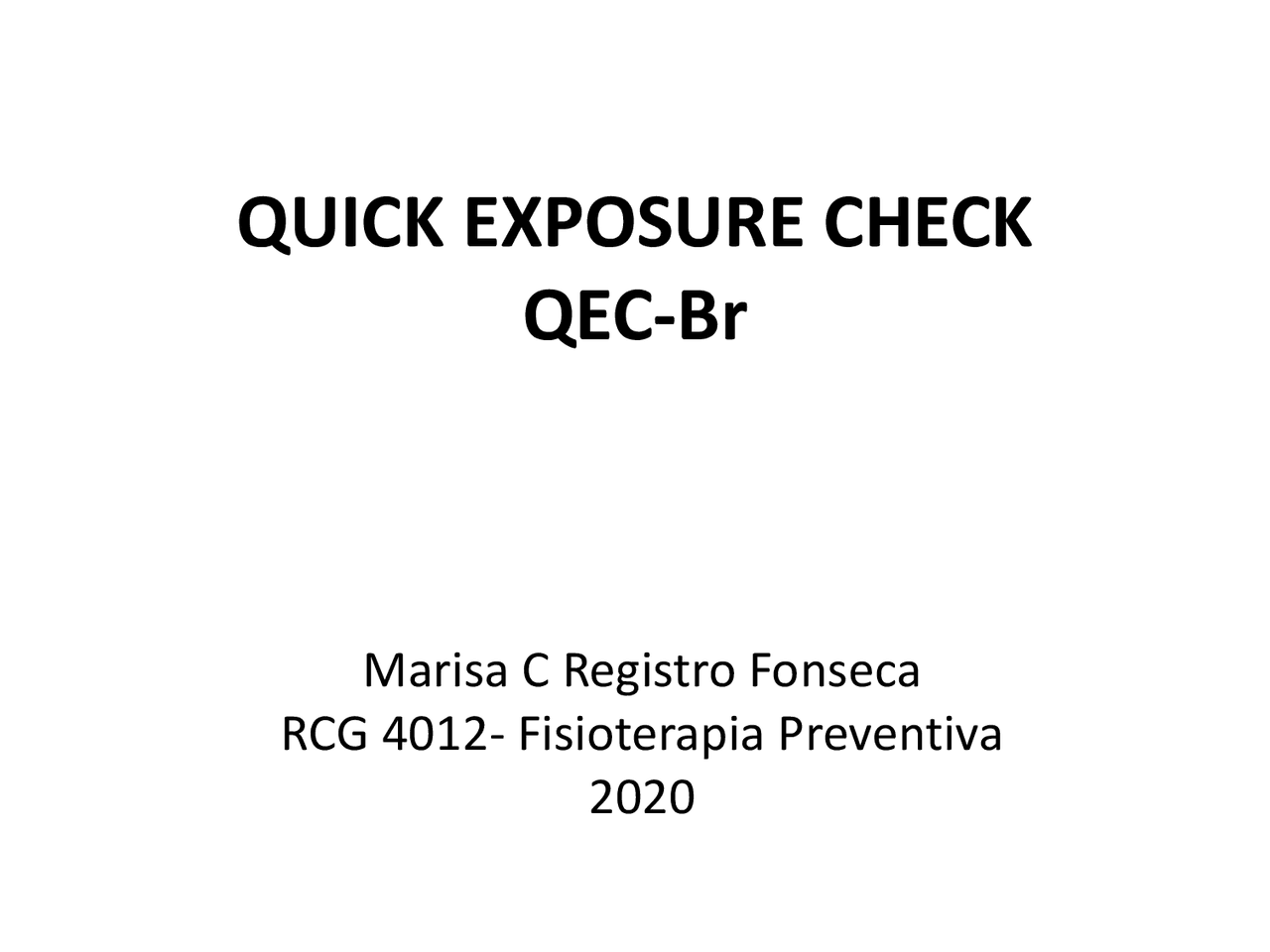

QUICK EXPOSURE CHECK

QEC-Br

Marisa C Registro Fonseca

RCG 4012- Fisioterapia Preventiva

Quick Exposure Check

QEC

Ferramenta observacional

• Usabilidade, confiabilidade

intra/inter avaliador

• Válido em diversas

atividades

• Avaliar 4 áreas corporais
• Avaliar antes e após

intervenção ergonômica

• Comparar exposições entre

2 ou mais pessoas

realizando a mesma tarefa

ou entre diferentes tarefas

Processo

ergonomia participativa

Quick Exposure Check

fatores de risco ocupacionais

físicos e psicossociais

Avaliação pelo examinador

• Postura e frequencia de movimentos
• Coluna cervical
• Coluna lombar
• Ombros e braços
• Punhos e mãos Opiniões do trabalhador
• Quantidade de peso manuseado
• Tempo necessário para completar uma tarefa
• Nível de esforço manual
• Demanda visual
• Vibração
• Dirigir veículo
• Ritmo trabalho e stress

Score total QEC

• Combinação de fatores

de risco e das respostas

de ambos examinador e

trabalhador

Domínios:

• Postura x força

• Duração x força

• Postura x duração

Score total = 46- 269

pontos

4 categorias risco:

• Baixo = 46- 84

• Moderado = 106- 138

• Alto = 168- 198

• Muito alto = 187- 242

David et al. ,2008, Comper et al. 2012

Ericsson et al. 2012 Outros ex. Uso do QEC

• Bulduk et al., 2014- taxistas
• Farhadi et al., 2014- hidrelétrica

Quick Exposure Check (QEC)

QEC has been designed to:

assess the changes in exposure to musculoskeletal risk factors of the back, shoulders

and arms, hands and wrists, and neck before and after an ergonomic intervention

involve the practitioner (i.e. the observer) who conducts the assessment,

and the worker who has direct experience of the task

indicate change in exposure scores following an intervention

The QEC Guide gives more detailed information about each question and the background to QEC.

Worker’s name:

Worker’s job title:

Task:

Assessment conducted by:

Date: Time:

Action(s) required:

For more information on the Quick Exposure Check contact:

The Robens Centre for Health Ergonomics

European Institute of Health and Medical Sciences

University of Surrey, Guildford GU2 7TE

Telephone 01483 689 213

www.surrey.ac.uk/robens/erg © Copyright University of Surrey

Workers Assessment Score 1 Back Posture (A) & Weight (H) Total score for Shoulder/Arm Sum of Scores 1 to 5 Total score for Wrist/Hand Sum of Scores 1 to 5 Total score for Neck Sum of Scores 1 to 2 Back Exposure Scores Worker’s name Date Shoulder/Arm Wrist/Hand Driving Neck Stress Work pace Vibration Driving A1 A2 A H1 2 4 6 H2 4 6 8 H3 6 8 10 H4 8 10 12 Score 5 Frequency (B) & Weight (H) B3 B4 B H1 2 4 6 H2 4 6 8 H3 6 8 10 H4 8 10 12 Score 3 Duration (J) & Weight (H) J1 J2 J H1 2 4 6 H2 4 6 8 H3 6 8 10 H4 8 10 12 Score 2 Back Posture (A) & Duration (J) A1 A2 A J1 2 4 6 J2 4 6 8 J3 6 8 10 Score 6 Frequency (B) & Duration (J) B3 B4 B J1 2 4 6 J2 4 6 8 J3 6 8 10 Score 4 Static Posture (B) & Duration (J) B1 B J1 2 4 J2 4 6 J3 6 8 Score 1 Repeated Motion (F) & Force (K) F1 F2 F K1 2 4 6 K2 4 6 8 K3 6 8 10 Score 1 Neck Posture (G) & Duration (J) G1 G2 G J1 2 4 6 J2 4 6 8 J3 6 8 10 Score 3 Duration (J) & Force (K) J1 J2 J K1 2 4 6 K2 4 6 8 K3 6 8 10 Score 2 Repeated Motion (F) & Duration (J) F1 F2 F J1 2 4 6 J2 4 6 8 J3 6 8 10 Score 4 Wrist Posture (E) & Force (K) E1 E K1 2 4 K2 4 6 K3 6 8 Score 2 Visual Demand (L) & Duration (J) L1 L J1 2 4 J2 4 6 J3 6 8 Score 5 Wrist Posture (E) & Duration (J) E1 E J1 2 4 J2 4 6 J3 6 8 Score 1 Height (C) & Weight (H) C1 C2 C H1 2 4 6 H2 4 6 8 H3 6 8 10 H4 8 10 12 Score 4 Frequency (D) & Weight (H) D1 D2 D H1 2 4 6 H2 4 6 8 H3 6 8 10 H4 8 10 12 Score 3 Duration (J) & Weight (H) J1 J2 J H1 2 4 6 H2 4 6 8 H3 6 8 10 H4 8 10 12 Score 2 Height (C) & Duration (J) C1 C2 C J1 2 4 6 J2 4 6 8 J3 6 8 10 Score 5 Frequency (D) & Duration (J) D1 D2 D J1 2 4 6 J2 4 6 8 J3 6 8 10 N1 N2 N 1 4 9 M1 M2 M 1 4 9 P1 P2 P 1 4 9 Q1 Q2 Q3 Q 1 4 9 16 Total for Stress Total for Work pace Total for Vibration Total for Driving Total score for Back Sum of scores 1 to 4 OR Scores 1 to 3 plus 5 and 6

Now do ONLY 4 if static

OR 5 and 6 if manual handling
