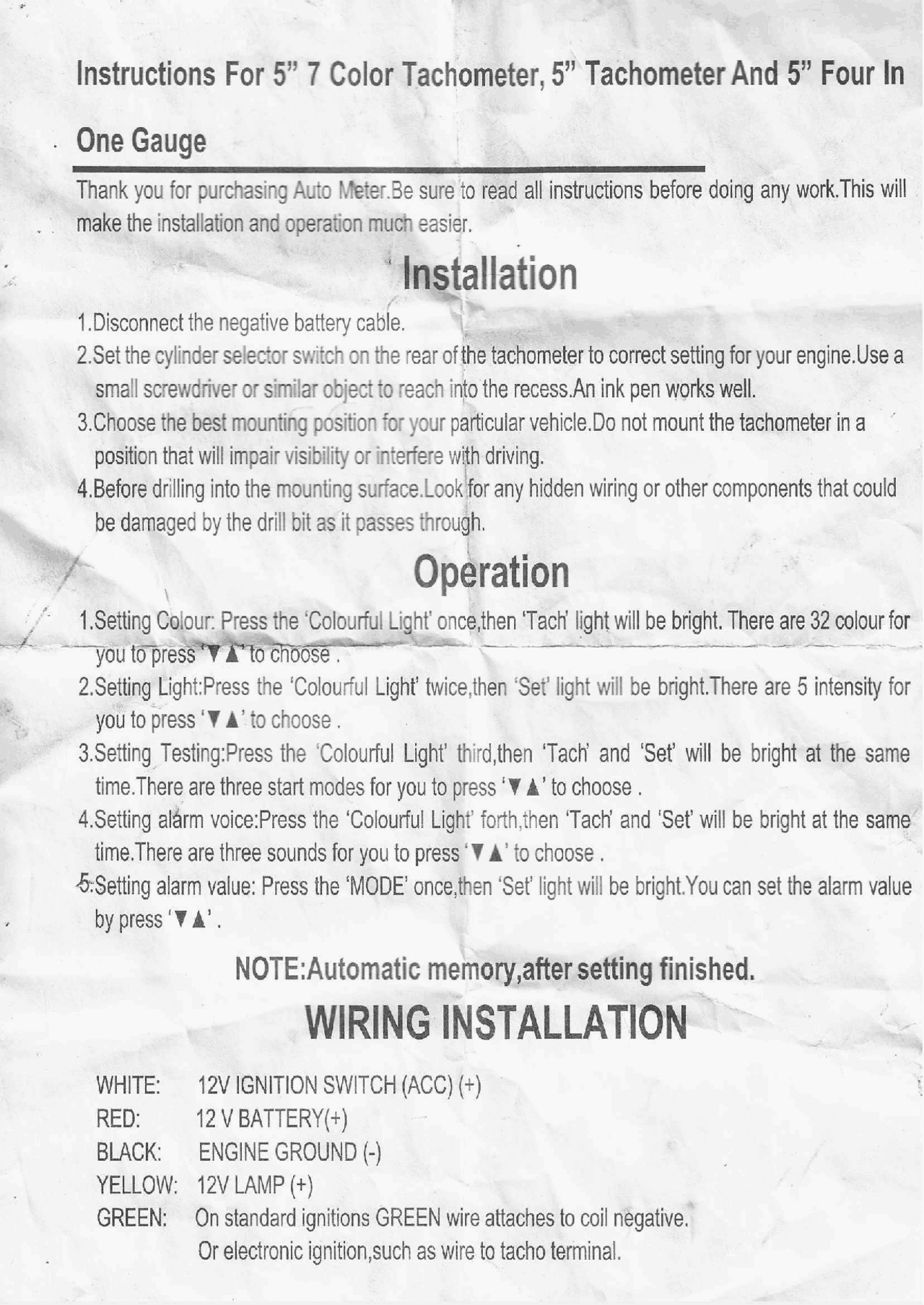

Instructions For 5” 7 Color Tachometer, 5” Tachometer And 5” Four In - One Gauge Thank you for purchasing Auto Meter. Be sure to read all instructions before doing any work.This will make the installation and operation much easier. “Installation 1.Disconnect the negative battery cable. 2.Set the cylinder selector switch on the rear of the tachometer to correct setting for your engine.Use a small screwdriver or similar object to reach into the recess.An ink pen works well. 3.Choose the best mounting position for your particular vehicle.Do not mount the tachometer in a position that will impair visibility or interfere with driving. 4 Before drilling into the mounting surface.Look for any hidden wiring or other components that could be damaged by the drill bit as it passes through. / Operation 1.Setting Colour: Press the 'Colourful Light once, then Tach light will be bright. There ai are a colour for —youtopress PATOS. DD O 2.Setting Light:Press the 'Colourful Light twice,then Set light will be bright.There are 5 intensity for you to press 'Y À" to choose. 3.Setting Testing:Press the 'Colourtul Light third then 'Tach' and “Set will be bright at the same time.There are three start modes for you to press 'Y A" to choose . 4.Setting alárm voice:Press the 'Colourtul Light forth.then Tach' and 'Set will be bright at the same time.There are three sounds for you to press 'Y A'to choose. S:Setting alarm value: Press the MODE" once then “Set light will be bright. You can set the alarm value by press VA”. NOTE:Automatic memory after setting finished. WIRING INSTALLATION WHITE: 12 IGNITION SWITCH (ACC) (+) RED: 12V BATTERY(+) BLACK: ENGINE GROUND (-) YELLOW: 124 LAMP (+) GREEN: On standard ignitions GREEN wire attaches to coil negative. Or electronic ignition,such as wire to tacho terminal.
