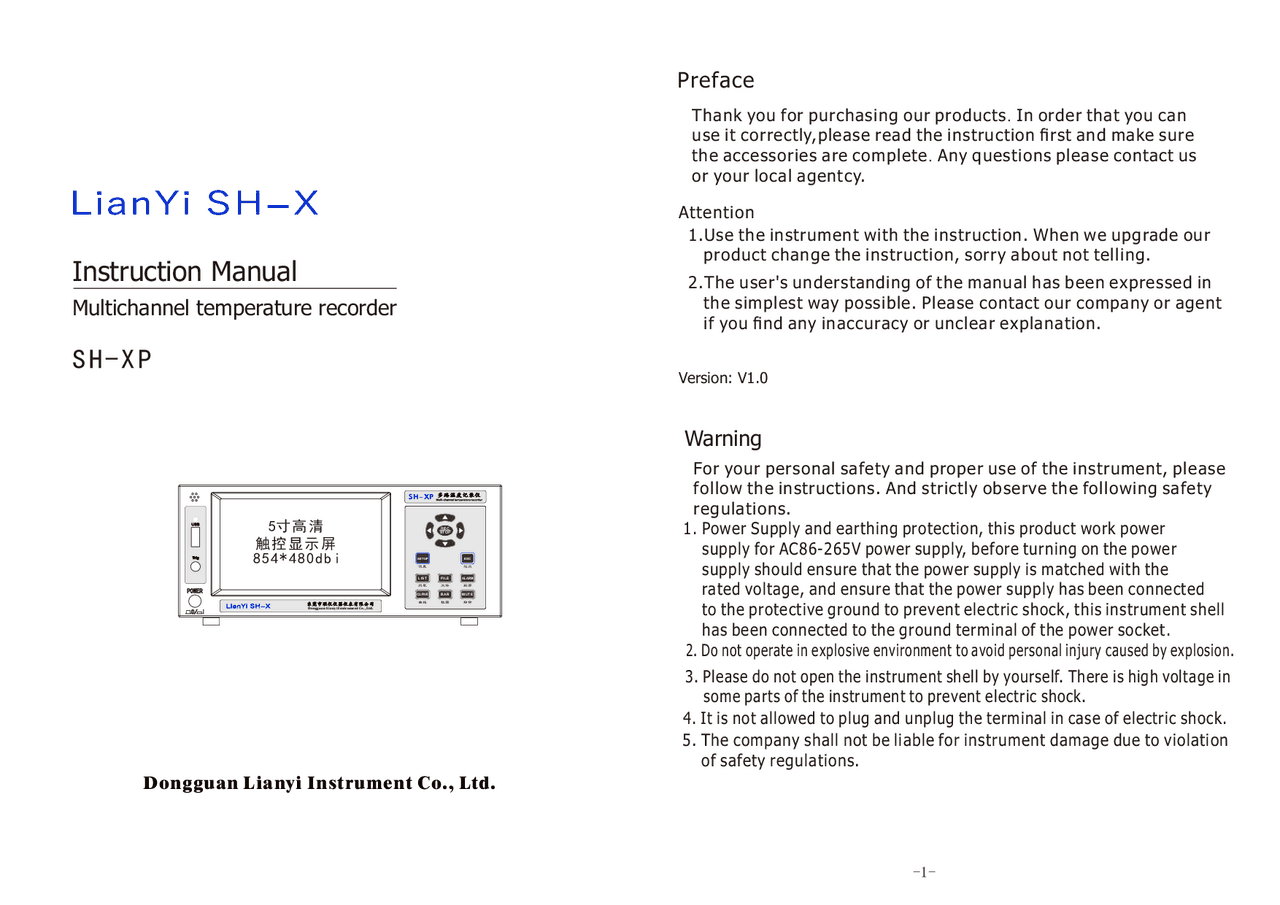

Instruction Manual
Multichannel temperature recorder
Preface
Version: V1.
Attention
Warning
Thank you for purchasing our products. In order that you can
use it correctly,please read the instruction first and make sure the accessories are complete. Any questions please contact us or your local agentcy.
1.Use the instrument with the instruction. When we upgrade our product change the instruction, sorry about not telling.
2.The user's understanding of the manual has been expressed in
the simplest way possible. Please contact our company or agent if you find any inaccuracy or unclear explanation.
For your personal safety and proper use of the instrument, please follow the instructions. And strictly observe the following safety regulations.
- Power Supply and earthing protection, this product work power
supply for AC86-265V power supply, before turning on the power supply should ensure that the power supply is matched with the rated voltage, and ensure that the power supply has been connected to the protective ground to prevent electric shock, this instrument shell
has been connected to the ground terminal of the power socket.
- Do not operate in explosive environment to avoid personal injury caused by explosion.
- Please do not open the instrument shell by yourself. There is high voltage in
some parts of the instrument to prevent electric shock.
- It is not allowed to plug and unplug the terminal in case of electric shock.
- The company shall not be liable for instrument damage due to violation
of safety regulations.
LianYi SH-X
SH-XP
SH-XP
LianYi SH-X 东莞市联仪仪器仪表有限公司 Dongguan Lianyi Instrument Co., Ltd.
Trig
USB
柱图 静音
设置 退出
SETUP ESC LIST FILE ALARM 列表 文件 报警 CURVE BAR MUTE 曲线
STOP^ REC
854*480dbi
Dongguan Lianyi Instrument Co., Ltd.
Light relay
Single Chip Microcomputer
cold junction compensation
As the picture shows, the instrument consists of thermocouple, Light relay, Signal amplifier, A/D, Single Chip Microcomputer, keyboard, screen, communication port, data storage, cold junction compensation.
The corresponding channel signal is selected by the photoelectric switch selector, amplified by the signal amplifier, and then converted into data signal by the analog signal through the AD converter to the single chip microcomputer for data processing, the temperature of the cold end is measured by the compensation circuit of the Cold End, and the measured signal and the temperature of the cold end are processed by the single chip microcomputer.
The keyboard, communication and data storage can set and store the data on the display screen. Data analysis can also be performed directly from the computer through a communication interface to the computer.
2..Fundamental
keyboard
Display Unit Signal amplifier (^) A/D
Basic Block Diagram
commu nicate
memory
1.Thermocouple 2.Thermocouple
THERMOCOUPLE N
▲ HD 5 inch IPS touch screen, 854X480 resolution..
▲ Support 4/8/16/32 multi-interface real-time value display.
▲ Support a variety of thermocouples : K-type J-type E –type T-type N-type S-type
▲ Each channel can be set with different types of thermocouples
▲ The name of each channel can be changed. Can be exported to EXCEL sheet.
▲ Each channel can set high and low alarm value with sound and light alarm function.
Each channel can modify the error value according to the formula” Y=KX+B”.
▲ Standard configuration is USB, you can choose RS232 or RS485.
▲ 8 channels per module, maximum support 64, identified by connecting.
1.Description
SH-XP Multiplex temperature recorder has the following characteristics:
▲ 32-bit high-speed MCU, 24-bit high-speed AD, fast response, high precision
and stability.
▲ Contains the file list, real-time list, bar graph, real-time recording, curve ,
alarm function,etc.
R-type and B-type
The voltage between each channel can be as high as AC/DC 350V, Strong anti-interference ability.
▲ 8G memory, file list display, up to 64 temperature data can be recorded at one
time, each file can store 130,000 sets of data, record every 1 second can record up to 97 days.
▲ Record files can be single-or multi-select delete and export, U Disk and PC directly
export EXCEL files.
▲ With USB, 485 interface, relay output, alarm function.
▲ With communication address code setting, machines can be connected to each
other, we can provide communication protocol.
▲ Multi-level alarm instruction, HH, H, L, LL alarm setting and alarm instruction
(with relay output) , and can view historical alarm record function.
The machine use 32-bit cpu to collect data, 5 inch screen to display. Support K-type J-type E –type T-type N-type S-type R-type and B-type thermocouple,Multiple display modes, perfect functions, and simple operation suitable for production and R&D needs.
Widely used in lighting appliances, power tools, household appliances, motors, electric heating appliances, medical, petroleum, chemical, metallurgical and electric.
We can customize more functions for more applications according to your requirements.
通道数量(CH)： 08
多路温度记录仪多路温度记录仪 Multi-channel temperature recorder
型号( Name)：SH-XP
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12:
01 K
K
K
K
04 ⾃定义温度名称^8
K
J
E
T
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12:
Press to turn page; Press to switch between 4 / 8 / 16 / 32 pages;
k
MAX: 33.8 M I N:31.
MAX: 33.8 M I N:31.
K
k
MAX: 33.8 M I N:31.
MAX: 33.8 M I N:31.
K
LIST ℃ 000-00:00:00INT:0001! 2017-02-2812:12: 自定义名称
6.1.3 real time parameter list display
Use Key can switch 4/8/16/32 channel display page.Use
Press to turn page; Press to switch between 4 / 8 / 16 / 32 pages;
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12: 01 K 32.
K 32.
K 32.
K 32.
K 32.
K 32.
K 32.
K 32.
K 32. 03 K 32.
K 32.
K (^) 32.8 K 32. 04 K 32.
K 32.
K 32.
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12: (^01) k 32. 02 k 32. 03 k 32. 04 k 32. 05 k 32. 06 k 32. 07 k 32. 08 k 32.
(^09) k 32. 10 k 32. 11 k 32. 12 k 32. 13 k 32. 14 k 32. 15 k 32. 16 k 32.
(^17) k 32. 18 k 32. 19 k 32. 20 k 32. 21 k 32. 22 k 32. 23 k 32. 24 k 32.
(^25) k 32. 26 k 32. 27 k 32. 28 k 32. 29 k 32. 30 k 32. 31 k 32. 32 k 32.
Menu key
Brand information (^) Unit
Record symbol
Record the cumulative time
Perpetual calendar
On the record
Stop Recording
Record interval Flash drive instructions
Alarm instruction
Channel number Thermocouple type
Alarm instruction
Alarm instruction
Operation area
Real-time parameter list, can display multiple measurement parameters at the same time, the display interface is divided into 4 channels data display, 8 channels data display, 16 channels data display, 32 channels data display, can turn pages to show the data of each channel.
Key to turn the page can be displayed. Where the 4-channel page can display the maximum and minimum values.
Key can enter the menu selection, press the keyboard shortcut key can
quickly enter the corresponding interface.
Page name
Custom name
From top to bottom: HH H L LL
When you go over the limit, turn red
Page number/total number of pages
LIST
LIST
LIST
Press to turn page; Press to switch between 4 / 8 / 16 / 32 pages;
Press to turn page; Press to switch between 4 / 8 / 16 / 32 pages;
X= 30 秒/格
Y
Y ~
SET
2017-02-2810:12:12 2017-02-2812:12: (^01) 390.2 (^02) 500.2 (^03) 750.2 (^04) 600.2 (^05) 640.2 (^06) 690.2 (^07) 480.2 (^08) 850.
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12:
6.Display and instructions
6.1 display the interface description
6.1.1 interface icon description
Perpetual calendar
Real-time measurements show
6.1.2 BOOT interface
The curve moves up
The curve moves down
Curve parameter setting
Curve to the left
Fine Rough Curve moves to the right
The length of each gear
Brand information Page name Unit
Record symbol
Record the cumulative time
On the record
Stop Recording
Record interval
Alarm instruction Flash drive instructions
Menu Button
Fine Rough
When the power-on display boot interface, display the company LOGO, company name, product model information.
联仪仪器 REC CURVE
Press to turn page;
Analysis
REC
FILE LIST
Delete
Export
INT:
NO. File Start Time File Size
Export File
Export file to USB flash disk
Save file as local file disk
记录USB COPY记录
NO. File Start Time File Size
!^ Warning: the file cannot be recovered afterdeletion, please be careful!!
Delete selected files
Press to turn page;
FILE LIST
REC
Delete
Export
INT:
YES NO
Analysis
6.1.5 real time bar charts
Real-time bar graph
Use
6.1.7 file list page
750.2^03 600.2^04 640.2^05 690.2^06 480.2^07 850.2^08
00.0 01 390.2 500.2^02
℃℃ 000-00:00:00^ 000-00:00:00INT:0001INT:0001 !!^ 2017-02-282017-02-2812:12:1212:12:
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12:
390.2^01 500.2^02 750.2^03 600.2^04 640.2^05 690.2^06 480.2^07 850.2^08 390.2^09 500.2^10 750.2^11 600.2^12 13 640.2^ 690.2^14 480.2^15 850.2^16
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12:
The ratio of each channel can be compared by column graph. Note: The Y axis shows the same temperature range as the curve setting, set only in the curve setting.
Button can switch 8/16 channels
to display the page, Use The key can turn the page display.
File list Provides Record Start and stop buttons, File History View, file export and delete functions. Click on the corresponding location can be single-or multi-select, also can be the current page quickly select all for export and delete.
The machine can cycle through 64 CSV files (which can be opened directly using EXCEL) , and each file can record up to 130000 pieces of data (regardless of the number of channels). Files can be directly exported to the U Disk (support only under 32 g/FAT32) , or transferred to the internal U Disk space, using the "second variable U Disk" function (set page) , PC connected to the front panel u disk interface, directly read the recorded files.
FILE LIST
FILE LIST
BAR
BAR
Press to turn page;
Press to turn page; Press to switch between 8 / 16 pages;
Press to turn page; Press to switch between 8 / 16 pages;
TES FILE LIST ℃ 000-00:00:00!^ 2017-02-2812:12:12 ℃ 000-00:00:00!^ 2017-02-2812:12:
历史曲线Analysis
REC
Delete
Export
NO. File Start Time File Size
6.1.4 the curve shows
Real-time curve
Key into the curve settings page.
Recording curve
Historical curve
Curve setting
Curve setting
返 回
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12:
00.02017-02-2810:12:12^ 2017-02-2812:12:
X= 秒/格
Y
~
Y (^) ~
SET
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12:
X= 30 秒/格
2017-02-2810:12:12 2017-02-2812:12: (^01) 390.2 (^02) 500.2 (^03) 750.2 (^04) 600.2 (^05) 640.2 (^06) 690.2 (^07) 480.2 (^08) 850.
X= 30 秒/格
Y
~
Y (^) ~
SET
2017-02-2810:12:12 2017-02-2812:12: (^01) 390.2 (^02) 500.2 (^03) 750.2 (^04) 600.2 (^05) 640.2 (^06) 690.2 (^07) 480.2 (^08) 850.
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12:
Y
~ Y ~
SET
℃ 000-00:00:00INT:0001!^ 2017-02-2812:12:
Real-time curve only for real-time view display. Only 8-channel curves can be displayed per page. And can display real-time measurement value.
Touch control The key may cause the curve to move up or down.
Touch control
Record curve is a real-time curve that is displayed when record is started, or you can use left and right moving keys in touch screen to move to see the curve change. On multiple pages,Use The key can turn the page display.
The history curve is can turn
the page, but can not be set,
can only show the overall curve
of the entire file screen.
The curve setting bounds include
the range in which the y-axis curve
is displayed, and whether the curve
for each channel is displayed or masked.
ANALYSIS
CURVE
REC CURVE
SET CURVE
Press to turn page;
Y： -
CH01-08 CH09-
Click the display position to change the setting;
CH17-24 CH25-
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
CH
SET Range
Group 33-
0.0 100.0^ EXIT
联仪仪器 联仪仪器
- Software instructions
Find the file on the disc (^) Run the installation directly as follows.
Go to the start screen
After the installation is complete, install the USB driver again
Until after the installation, on the desktop to see A ICON, Click this icon to run the software program.
SH-X多路温度记录仪
Multi-channel temperature recorder
Dongguan Lianyi Instrument Co., Ltd.^ 东莞市联仪仪器仪表有限公司
联仪仪器 LIANYI YIQI
电话:QQ:3890689030769-
http://www.lianyi17.com
In this to first computer and instrument connection, in the file list after the installation of drivers, and then in the soft interface to select the correct COM port, in the lower left corner of the main interface display communication connection success.
Computer interface provides a rich display and analysis functions, can display file list, curve analysis display, data list, real-time temperature list, instrument operation button function. It can also print graphs and curves.
FILE LIST: serial number, record time, file name, data number, file size. Directly Click on the file can open the corresponding file data.
The curve label can analyze all the data in the file in detail, can directly use the mouse to zoom in and out of the curve and move left, right, up and down.
You can change the display color for each channel of the curve.
A real-time data list displays the current measurement in real time.
You can customize the name for each channel.
The data list can be displayed for each channel and each time interval. Users can directly in the installation file directly with EXCEL software open. The suffix is called *. CSV.
The instrument can be operated remotely directly by using the instrument key page.
Product Warranty Card
Certificate of conformity
Product name:
Product Code:
Inspector:
Multichannel temperature recorder
Name
Telephone
Address
Maintenance record Maintenance man
Verification Conclusion:
●Warranty: 1.The warranty period is within 24 months from the date of purchase.
●Maintenance is not free of charge in the following cases.
- Products by the company's non-technical personnel repair, modification, modification, users to replace any internal parts. 2.The airframe number has been altered or is not in accordance with this certificate. 3.Damage is caused by water or other substances seeping into the machine.
Product model:
Date:
- During the warranty period, in the normal use and maintenance of equipment, equipment problems, after verification, the company will provide free repair and replacement parts.
●The company may also provide maintenance services for equipment exceeding the free warranty and not covered by the Free Warranty Ordinance, subject to the charging of accessories and maintenance fees as appropriate. Model number
Maintenance date
Date of purchase Serial number
