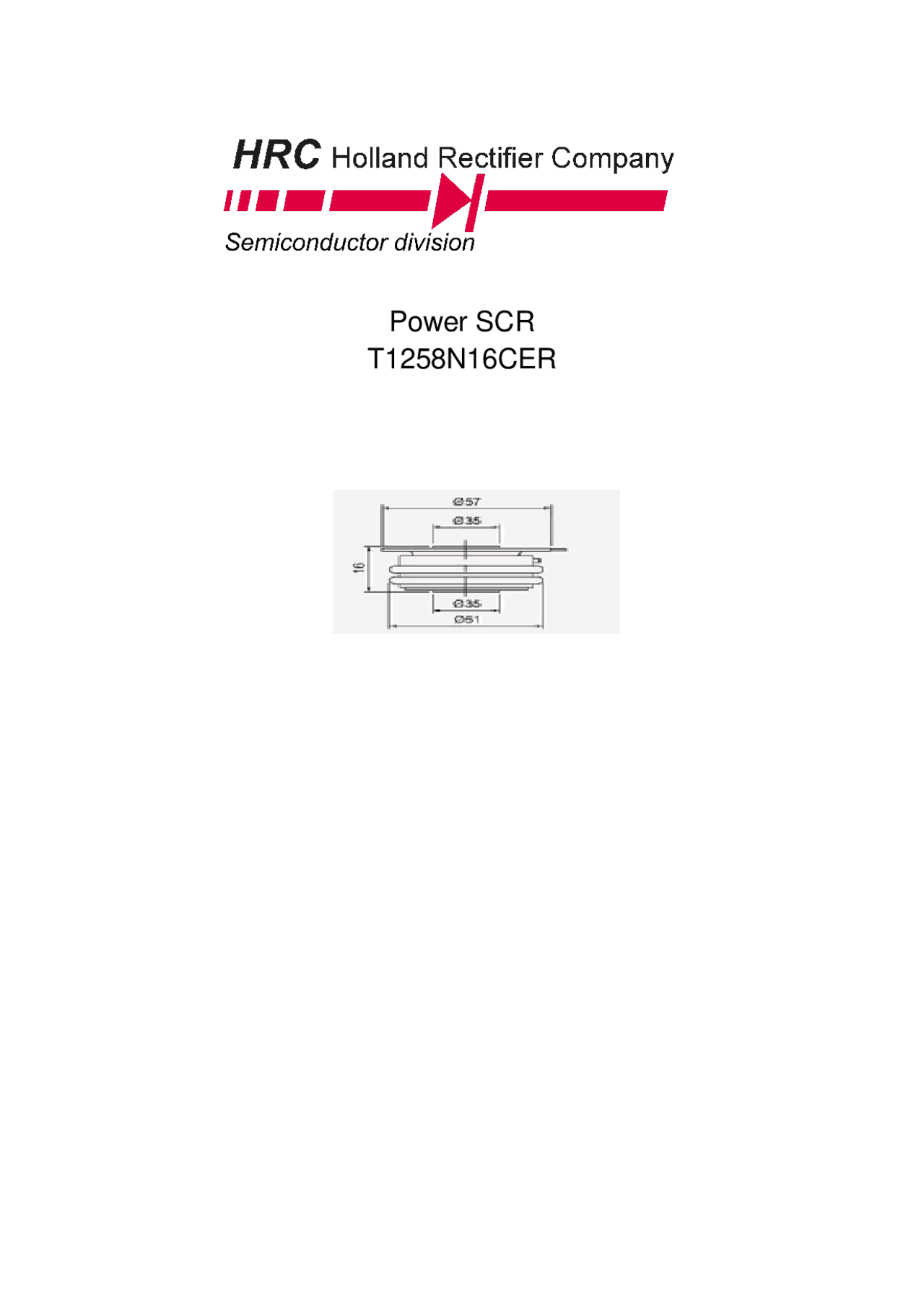

Power SCR

T1258N16CER

Electrical properties

Maximum rated values

Repetitive peak reverse voltage tvj=-40oC…tvjm max VRRM 1600 V Non repetitive peak reverse voltage tvj=+25oC…tvjm max VRSM=VRRM +100 V RMS forward current IFRMSM 2,5 kA Mean forward current tc=85oC ITAV 1,258 kA Surge forward current tvj=25oC, tp=10ms ITSM 23 kA tvj=25oC, tp=8,3ms ITSM 20 kA I^2 t value tvj=25oC, tp=10ms I^2 t 2650 A^2 s tvj=25oC, tp=8,3ms I^2 t 2000 A^2 s Max on-state or forward voltage t=125oC Ipk 4500A 10ms VTM 1,5 V

Characteristic values

On-state voltage tvj=tvj max, IF=1kA VT max 1,15 V Treshold voltage tvj=tvj max VT(TO) 0,9 V Slope resistance tvj=tvj max rT 0,10 mΩ

Thermal Properties

Thermal resistance junction to case one-sided DC RthJC max 0.060 oC/W two-sided DC RthJC max 0.030 oC/W one-sided DC RthCH max 0.010 oC/W two-sided DC RthCH max 0.005 oC/W Maximum junction temperature tvj max 125 oC Operating temperature tc op -40…+125 oC Storage temperature tstg -40…+150 oC

Mechanical properties

Si pellet with pressure contact Ø=47mm Clamping force F 12…24 kN Weight G typ. 160 g

Fig. 3 Gate characteristic VG=f(iG) with triggering area VD=12V Maximum rated peak gate power dissipation PGM=f(tG)
