f i n e i m p a c t m i l l s u g a r p l e x 3 1 5 s x

PROCESS TECHNOLOGIES FOR TOMORROWSM

sugarplex 06.2009/1(

en

)

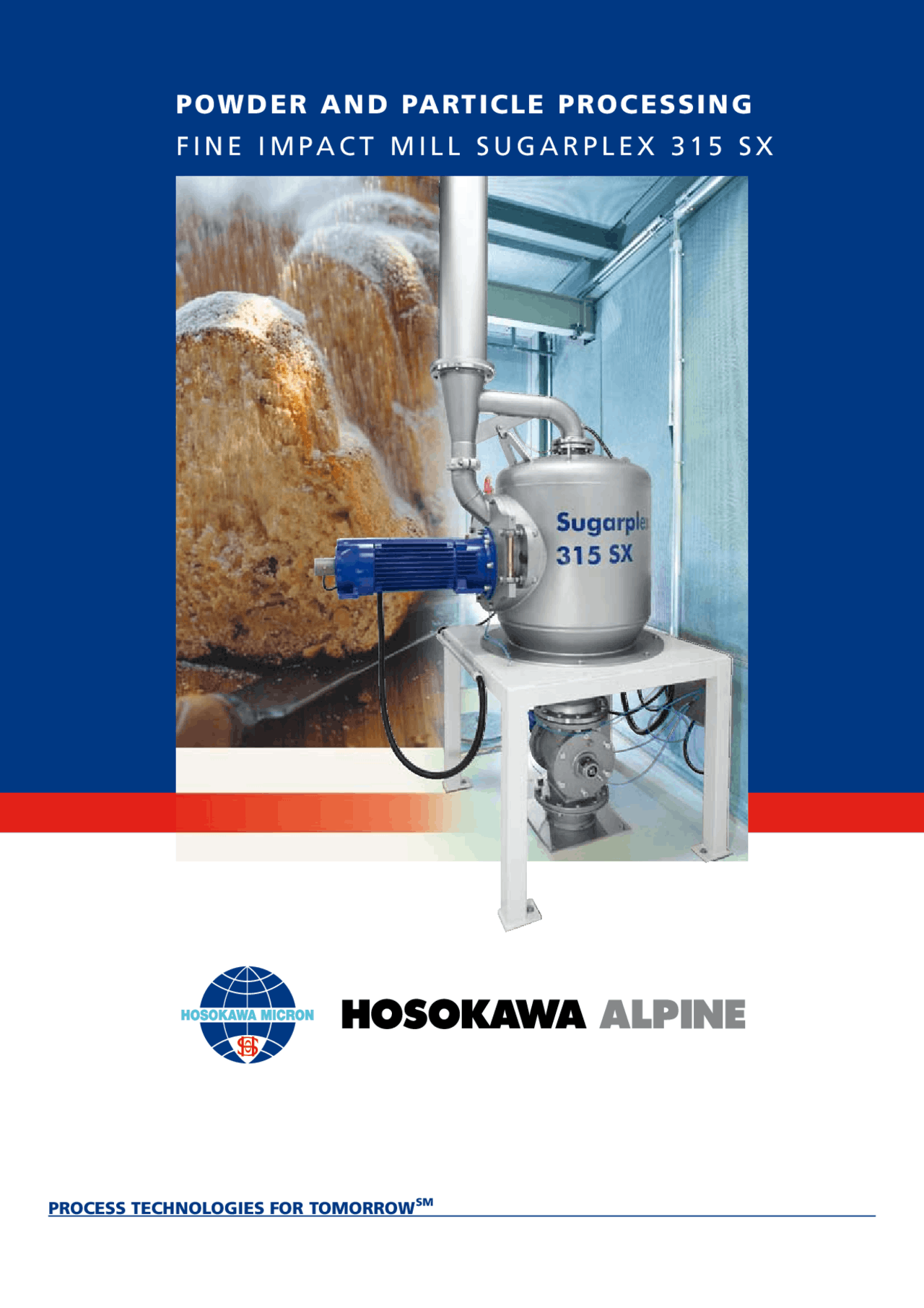

the new alpine sugarplex 315 sx is an extremely compact system that needs neither the additional filters, fan nor air cooling units that are usual with traditional system designs for sugar milling. that means that the plant operator gains through lower investment costs, reduced space requirement and lower cleaning and maintenance costs. the cylindrical design of the mill includes an 800mm-diameter container with a conical product discharge and can be excellently integrated into an existing system.

the coarse sugar is fed via a rotary valve through the mill door directly into the centre of the milling mechanism. the milling mecha- nism, consisting of 2 pin discs, is completely integrated into the mill door. the door can be opened quickly and easily and can be swung wide open so that the user can inspect or clean the milling tools at any time with no problem. the sugarplex 315 sx achieves through- puts of 3 t/h at a finenesses of 99% < 450 μm or 1.5 t/h at a finenesses of 99% < 150 μm.

FINE IMPaCT MILL SuGaRPLEx 315 Sx

A pin mill that is based on the tried and tested milling principle of the Alpine fine impact mill UPZ and has been specially tailored to the needs of the sugar industry.

the mill is driven by an 18.5 kW three-phase motor that is suitable for atex zone 22. the inner pin disc sits directly on the motor shaft and rotates with speeds of up to 145 m/sec. a special seal prevents oil from penetrating the product area and no sugar or washing water going the other way into the motor. Via a frequency inverter the rpm of the motor is steplessly variable and the desired fineness can be set.

as the sugarplex was developed exclusively for the food industry, it meets all basic safety and health regulations of the ec machine Directive 98/37 ec annex ii and all safety and accident prevention regulations of the federal republic of germany. the design and construction of the mill corresponds to all harmonised ec standards to be taken into consideration and the applicable national german Din standards. the sugarplex conforms to atex and is suited for internal zone 20 and external zone 22.

HOsOKaWa alpine aktiengesellschaft p. O. Box 10 11 51 86001 augsburg, germany Delivery address: peter-Doerfler-straße 13 - 25 86199 augsburg, germany

tel.: + 49 821 59 06- fax: + 49 821 59 06- e-mail: [email protected] www.alpinehosokawa.com

Hosokawa alpine© 2009. printed in germany.

Sugar grinding with the alpine Sugarplex 315 Sx energy consumption throughput rate curve fineness kWh/t kg/h no. 1 99% < 90 μm 27.3 500 no. 2 99% < 130 μm 19.3 1, no. 3 99% < 150 μm 16.5 1, no. 4 99% < 215 μm 10.2 2, no. 5 99% < 315 μm 7.7 2, no. 6 99% < 450 μm 5.8 3,

Subject to change without notice.All information in this brochure is purely informative and non-binding.Our quotations are authoritative with regard to orders.

1 2 3 4 5 6

Particle size x [μm]

Undersize D [%]
