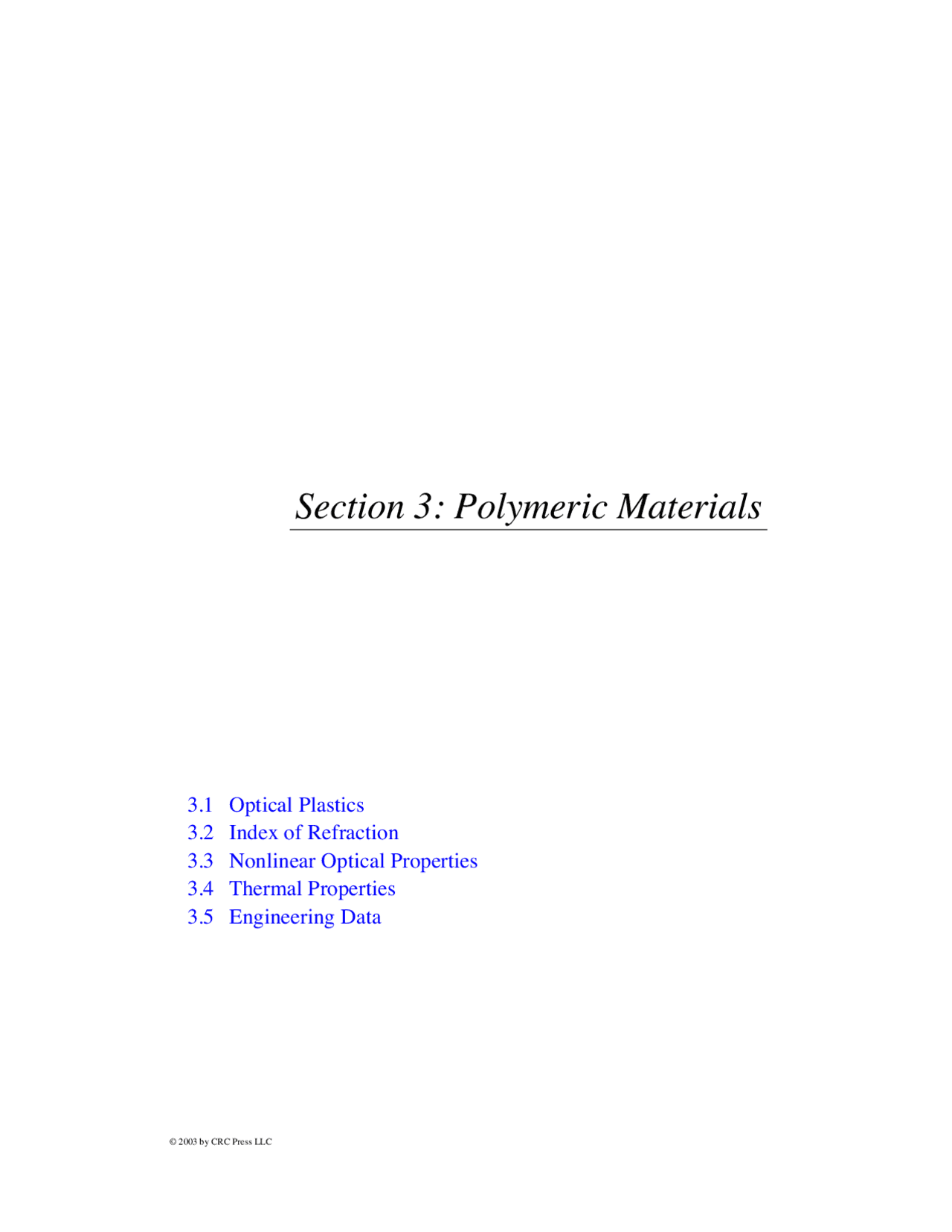

Section 3: Polymeric Materials

3.1 Optical Plastics

3.2 Index of Refraction

3.3 Nonlinear Optical Properties

3.4 Thermal Properties

3.5 Engineering Data

Section 3: Polymeric Materials 295

Section 3

POLYMERIC MATERIALS

Of the large number of known polymers, several exhibit useful optical properties. Various

properties of optical plastics are compared with those of glasses below. The documentation

of optical properties and the accuracy of data on plastics are generally not comparable to

that of optical glasses. In addition, mechanical and chemical resistance properties should be

checked with the material supplier because they may vary widely within a polymer group.

Numerous caveats about the use and application of plastics in optical systems are noted in

reference 1.

Property Plastic Glass

Optical

Refractive index (n d ) 1.31–1.65 1.28–1.

Abbe number (vd ) 92–20 91–

Index homogeneity ±1 x 10 -^4 ± 1 x 10 -^6

Index change with temperature (10−^6 K−^1 ) −143 to − 100 −8.5 to 6.

Birefringence (nm/cm) 60–80,000 5

Transmission range (nm) 200–2500 150–

Mechanical

Density (g/cm 3 ) 0.83–1.46 2.3–6.

Young modulus (10^3 N/mm 2 ) 1–10 46–

Poisson’s ratio 0.192–0.

Thermal

Expansion coefficient (10−^6 K−^1 ) 25–130 3.7–14.

Heat capacity (J g−^1 K−^1 ) 1–2 0.31–0.

Thermal conductivity (W m−^1 K−^1 ) 0.1–0.3 0.51–1.

Softening temperature (°C) 360–430 750–

From Cook, L. M. and Stokowski, S. E., Filter materials, Handbook of Laser Science and Technology,

Volume IV: Optical Materials, Part 2 (CRC Press, Boca Raton, FL, 1995), p. 151.

Common optical plastics include:

polymethyl methacrylate (PMMA) (acrylic)

polystyrene (styrene) (PS)

methyl methacrylate styrene copolymer (NAS)

stryrene acrylonitrile (SAN), acrylic/styrene copolymer

polycarbonate (PC)

polymethylpentene (TPX)

acrylonitrile, butadienne, and styrene terpolymer (ABS)

nylon, amorphous polyamide

polyetherimide (PEI)

polysulfone

allyl diglycol carbonate (CR-39)

Telfon (Telfon AF® ) (TPFE), fluorinated-(ethylenic-cyclo oxyaliphatic substituted

ethylenic) copolymer

In the following tables properties of these and other optical plastics are given in order of

decreasing index of refraction.

Section 3: Polymeric Materials 297

Properties of optical plastics–I— continued

Polymer Trade name Manufacturer

Density

(g/cm^3 )

Index

n D

Abbe

ν D

Dicyclopolyolefin Telene B F Goodrich 1.0 1.52855.

Epoxy molding compound MG-18Dexter Corp. (Hysol) 1.35 1

Tricyclodecyl

co-methacrylate (TCDMA)

OZ-1000 Hitachi Chemical 1.16 1.500 57

Low moisture acrylic WF-201 Mitsubishi Rayon 1.495 58

Allyl diglycol carbonate CR-39 PPG Industries 1.32 1.49859.

Polymethylmethacrylate Plexiglas Rohm and Haas 1.19 1.491 57.

PMMA, acrylic Acrylite Cyro 1.19 1.491 57.

CP ICI 1.181.491 57. Perspex ICI 1.181.491 57. Shinkolite P Mitsubishi Rayon 1.19 1.491 57.

Polymethylmethacrylate

impact modified, 20% MI-7 Rohm and Haas 1.17 1. impact modified, 40% DR-G Rohm and Haas 1.15 1.

Poly(4-methylpentene-1) TPX RT-18Mitsui Plastics 33 0.8 1.463 56.

Cellulose acetate butyrate Tenite Eastman 1.15–1.2 1.46–1.49 51.

(CAB)

Fluoropolymer (TPFE) Teflon AF 1600 DuPont 1.81.32 9

Optical Transmission

Optical plastics transmit well in the visible and the near infrared, but absorb strongly in the

ultraviolet (fluoropolymers are an exception) and throughout the infrared. Most plastics

degrade somewhat both in physical and optical properties when exposed to ultraviolet

radiation.

Transmission spectra of optical plastics. sample thickness: 3.2 mm.

298 Handbook of Optical Materials

Properties of Optical Plastics–II

Polymer

Relative

haze a^ Hue b

Deflect.c

temp. ( ˚ C) Comments

Polyetherimide (PEI) light amber 200 Good thermal/chemical resistance, high color but good in near IR

Polyarylsulfone light yellow 204 Tough Polyurethane light colorless 88 Can be custom tailored, good chemical resistance

Polysulfone light yellow 174 Good thermal and moisture stability, high temperature

Polyarylate noticeable light straw 158 High temperature, good UV resistance

Poly α-methylstyrene slight colorless n/a Brittle, can be modifier for K resin

Polyamide, amorphous nylon slight light straw 110 Tough, hard

Polystyrene (PS) low colorless 82110 Low haze grades available

Polyamide, amorphous nylon noticeable colorless 123 Good abrasion resistance, moisture sensitive

Polycarbonate (PC) slight light straw 123129 Very tough, high impact Polystyrene co-maleic anhydride (SMA)

slight colorless 96 Brittle

Modified polyestercarbonate slight light straw 107 Processes at lower temperature Polystyrene-butadiene copolymer

noticeable light straw 76 Tough

Polystyrene-coacrylonitrile ∂ 8 (SAN)

slight light straw 93104 Tougher than polystyrene

Polyester (PETG) slight light straw 70 Film extruding Polyamide, amorphous (nylon type 6/3)

noticeable straw 124 Good abrasion resistance

Polystyrene co-methyl- methacrylate (2:1) (SMMA)

slight colorless 98Optical quality

Amorphous polyolefin from dicyclopentadiene

n/a n/a (^) Tg = 141 Optical quality, very low moisture

Acrylonitrile-butadiene- styrene terpolymer (ABS)

noticeable yellow 79 Tough

Polyamide, amorphous (nylon type 12)

noticeable straw 150 Good abrasion resistance

Polystyrene co-methyl- ethacrylate (1:2) (SMMA)

slight colorless 99 Optical quality

Amorphous polyolefin (APO) slight light straw 123 Optical quality

Dicyclopolyolefin slight light straw 107 Very low moisture (0.01%)

Epoxy molding compound slight colorless 120 Semiconductor embedment

Epoxy casting resin (^) Tg = 110 Two-part casting resin Tricyclodecyl co-methacrylate (TCDMA)

low colorless Lower moisture than PMMA (1.2%)

Low moisture acrylic sligth light straw 103 Optical quality

Allyl diglycol carbonate low light straw 91 Cast thermoset, hard

55–65 Ophthalmic use

300 Handbook of Optical Materials

3.2 Index of Refraction

Index of Refraction of Common Optical Plastics

Wavelength

(nm) PMMA

Poly-

styrene

Poly-

carb. SAN PEI NAS TPFE

Abbe number 57.4 30.9 29.9 .334.818 34.7 92

Adapted from a table of J. D. Lytle, Handbook of Optics , Vol. II (McGraw-Hill, New York, 1995),

Chapter 34 ( with additions).

Being carbon-based materials, the index of refraction and dispersion of polymers differ

significantly from those of glasses and crystals. The locations of optical plastics relative to

optical glasses are shown in the refractive index–Abbe number diagram below.

LaSK

TaSF LaSF

LaF

TaF NbF (^) SFS BaSF BaF

KzFS

LaK

PSK

PK FK

FZ FP

BaK BK K^

KF

LLF

LF

F

SF

SK

SSK

100 80 60 40 20 Abbe number ν d

1.

1.

1.

1.

1.

1.

1.

2.

Refractive index n

d

BaLF

PMMA

p-styrene p-carbonate SAN CR-

NAS-55 ABS

p-sulfone

fluoropolymer (TPFE)

PEI

TPX

CR-

Section 3: Polymeric Materials 301

3.3 Nonlinear Optical Properties

Abbreviations Material

3-BCMUr Red form of poly-3-BCMU

3-DDCTP Poly(3-dodecylthiophene)

4-BCMUr Red form of poly-4-BCMU

4-BCMUy Yellow form of poly-4-BCMU

AO Acridine orange

AY Acridine yellow

BBB Poly(6,9-dihydro-6,9-dioxobisbenzimidazo[2,1 b :1',2' j ]benzo[1 mn ]

[3,8]phenanthroline-3,12-diyl)

BBL Poly{(7-oxo-7,10H-benz[de]imidazo[4',5':5,6]benzimidazo[2,1-

a ]isoquinoline 3,4:10,11-tetrayl)-10-carbonyl}

BBPEN Bis[ n -butyl, 2-phenyl-1,2-ethenedithiolato(2-)- S , S '] nickel

BSQ 1,3-Bis(4'- N , N -dibutylamino-2'-hydroxyphenyl)-cyclobutene-2,4-dione

DCV 4- N , N -Diethylamino-4'- b,b -dicyanovinyl (azobenzene)

DEANS 4-Diethylamino-4'-nitrostilbene

DNBA 4-Nitrobenzylidenyl (4'- N , N -dimethylaminoanilide)

DNTA 4-Nitrothenylidenyl (4'- N , N -dimethylaminoanilide)

DR1Disperse red 1

ISQ 1,3-Bis(3',3'-dimethyl-2'-indoleninylidenyl)-cyclobutene-2,4-dione

LTFPG Lead-tin fluorophosphate glass

MDCB m -Dicyanobenzene

MDNB m -Dinitrobenzene

Mg:OPTAP Magnesium octaphenyl tetra-azaporphyrin

MNA 2-Methyl-4-nitroaniline

MV757 MV757 commercial epoxy resin

NFAI 5-Nitro(2-furanacroleindenyl (4'- N , N -dimethylaminoanilide)

NPCV 4- N , N -Dibutylamino-4'-(b-cyano-b-(4≤-nitrophenyl) vinyl) (azobenzene)

OMPS Poly( n -octylmethylpolysilane

PBT Poly- p -phenylenebenzobisthiazole

PC Polycarbonate

PDES Polydiethynylsilane

PDTT Polydithieno(3,2- b ,2',3'- b )thiophene

PMMA Poly(methyl) methacrylate

PPMS Polyphenylmethylsilane

PPV Poly ( p -phenylene vinylene)

PS Polysilane

PT Polythiophene

PTS Bis-( p -toluene sulfonate) of 2,4-hexadiyne-1,6 diol (polydiacetylene)

PTS-PDA Single crystal poly PTS polydiacetylene

PVK Poly- N -ninyl carbazole

rB Rhodamine B

SiNc Silicon naphthalocyanine

SiPc Silicon phthalocyanine

TCDU: Bis-(phenylurethane) of 5,7-dodecadiyne-1,2-diol (polydiacetylene)

TCV 4- N , N -Diethylamino-4'-tricyanovinyl (azobenzene)

TNF 2,4,7-Trinitrofluorenone

TPO-N Thiophene oligomer with N units

Nonlinear Refraction Data for Polymers

M a t e r i a l M e t h.

P u l s e duration ( n s ) W a v e - l e n g t h ( n m ) Linear index n c m 3 /erg)

• Section 3: Polymeric Materials
  • (10 – χχ 1111 (^3 )
    • (10 – χχ 1111 (^3 ) −χχ 1122 (^3 )
• 3-DDCTP DFWM 0.0004 c m 3 /erg) R e f
• 3-DDCTP DFWM 0.00006
• 3-DDCTP a DFWM 0.00035 590 1.585
• 3-DDCTP a DFWM 0.00035 602 1.585
• 3-DDCTP a DFWM 0.00035 705 1.585
• 3-DDCTP b DFWM 0.00035 590 1.61
• 3-DDCTP b DFWM 0.00035 602 1.61
• 3-DDCTP b DFWM 0.00035 705 1.61
• 4-BCMUr DFWM 0.0005
• 4-BCMUy DFWM 0.0005
• 4-BCMUy DFWM 0.033 1064 χ 1212 ( )^3 = 1 4.
• 4-BCMUy DFWM 0.033 1064 χ 1212 (^3 ) = 9 0.
• 4-BCMUy DFWM 0.033 1064 χ 1212 (^3 ) =
• BBB DFWM 0.035 1064 5.5 3.7
• BBL DFWM 0.025
• BBL DFWM 0.035
• BBL c DFWM 0.035
• OMPS DFWM 10 532 2.9
• PBT DFWM 0.0005 585–604
• PDES DFWM 0.00009
• PDTT DFWM 0.008 530 2 11,400
• PDTT DFWM 0.008 585 2 7,700
• PDTT DFWM 0.008 605 2 5,500
• PDTT DFWM 0.008 630 2 1,300
• PDTT DFWM 0.008
• Poly(4-BCMU) TRI 0.06 1319 0.456
• PPMS OKE 0.003 1060,532 2.0
• PS OKE 0.008 1060,532
• PT DFWM 0.008 530 2 6,680
• PT DFWM 0.008 585 2 5,000
• PT DFWM 0.008 605 2 3,000
• PT DFWM 0.008
• PT DFWM 0.008
• PTS-PDA DFWM 0.006 651.5 3 9,000
• PTS-PDA DFWM 0.006 661 3 7,275
• PTS-PDA DFWM 0.006 671 3 2,317
• PTS-PDA DFWM 0.006 681 3 1,025
• PTS-PDA DFWM 0.006
• PTS-PDA DFWM 0.006 701.5
• PTS-PDA MSI 0.06
• PTS-PDA a TRI 0.1
• TPO-1 DFWM 0.0004 602 1.529 0.14
• TPO-2 DFWM 0.0004 602 0.50
• TPO-3 DFWM 0.0004 602 1.562 2.6
• TPO-4 DFWM 0.0004 602 1.581
• TPO-5 DFWM 0.0004 602 1.600
• TPO-6 DFWM 0.0004 602 1.623

304 Handbook of Optical Materials

Nonlinear Refraction Data for Solid Solutions and Copolymers

D y e H o s t

D y e

d e n s i t y

( 1 0 2 2^ cm – 3^ ) M e t h.

P u l s e

( n s )

W a v e -

l e n g t h

( n m )

Linear

i n d e x

χχ 1111 (3)

c m 3 / e r g ) R e f.

AO LTFPG 0.00008 SA 15,000 514 1.77 3 x 10^10 AO LTFPG 0.00008 TBC 15,000 514 1.77 4 x 10 10 22 AY LTFPG 0.000077 SA 15,000 514 1.77 6 x 10 10 22 AY LTFPG 0.000077 TBC 15,000 514 1.77 2 x 10 10 22 BBPEN PMMA saturation DFWM 0.1 1064 1.49 29.9 23 BEPEN PMMA saturation DFWM 0.1 1064 1.49 131 23 BSQ PMMA 0.0028 MSI b^ 0.06 1064 1.48 2.8 24 BSQ PMMA 0.0028 KE 8 kHz 799 1.5 0.97 a^ 25 DCV PMMA 0.0148 KE 8 kHz 632.8 1.5 1.8 a^ 26 DCV PMMA 0.0148 KE 8 kHz 676 1.5 0.53 a^ 26 DCV PMMA 0.0148 KE 8 kHz 799 1.5 0.156 a^ 26 DEANS PC 17 KE 500 Hz 597 6 27 DNBA PMMA 0.0137 KE 8 kHz 632.8 1.5 0.093 a^ 26 DNTA PMMA 0.0276 KE 8 kHz 632.8 1.5 0.282 a^ 26 DR1 PMMA 0.01 KE 8 kHz 632.8 1.5 0.23 a^ 26 DR1 PMMA 0.0244 KE 8 kHz 632.8 1.5 0.51 a^ 26 DR1 PMMA 0.04 KE 8 kHz 632.8 1.5 0.84 a^ 26 ISQ PMMA 0.0019 KE 8 kHz 479 1.5 0.263 a^ 26 ISQ PMMA 0.0019 KE 8 kHz 570 1.5 0.341 a^ 26 ISQ PMMA 0.0019 KE 8 kHz 632.8 1.5 0.155 a^ 26 ISQ PMMA 0.0019 KE 8 kHz 680 1.5 0.418 a^ 26 ISQ PMMA 0.0019 KE 8 kHz 799 1.5 0.387 a^ 26 MDCB PMMA 0.109 KE 8 kHz 632.8 1.5 0.0274 a^ 26 MDNB PMMA 0.124 KE 8 kHz 632.8 1.5 0.0205 a^ 26 Mg:OPTAP PMMA 5 wt% DFWM 0.001 598 1.48 11.7 28 MNA PMMA 0.143 OKE b^ 1064 1.5 2.08 29 NFAI PMMA 0.0240 KE 8 kHz 632.8 1.5 0.471 a^ 26 NPCV PMMA 0.0119 KE 8 kHz 632.8 1.5 0.315 a^ 26 PPV Sol-gel silica

1:1 by weight DFWM 0.00006 620 45 30

PPV Sol-gel silica

1:1 by weight DFWM 0.0004 608 91 30

PPV Sol-gel silica

1:1 by weight OKE 0.00006 620 38 30

rB MV757 0.0077 M/l DFWM 0.00035 595 1.81 10.7 31 SiNc PMMA 30 wt% DFWM 0.001 598 1.434 20.9 28 SiPc c^ PMMA 10 wt% DFWM 0.001 598 1.42 94 28 TCV PMMA 0.0218 KE 8 kHz 632.8 1.5 3.9 a^ 26 TNF PVK 1:2 molar ratio DFWM 0.002 602 20 32 TNF PVK 1:4 molar ratio DFWM 0.002 602 12 32 TNF PVK 1:8 molar ratio DFWM 0.002 602 7.4 32 TNF PVK 1:16 molar ratio^ DFWM 0.002 602 3.4 32 TNF PVK 1:32 molar ratio^ DFWM 0.002 602 2.0 32

a Assumes χ(3) 1111 = 3 χ(3) 1133. b Waveguide measurement; c Copolymer.

From Garito, A. E. And Kuzyk, M. G., Nonlinear refractive index: organic materials, Handbook o f

Laser Science and Technology, Suppl. 2 (CRC Press, Boca Raton, FL 1995), p. 289.

306 Handbook of Optical Materials

19. Carter, G. M., Thakur, M. K., Chen, Y. J., and Hryniewicz, J. V., Time and wavelength resolved

nonlinear optical spectroscopy of a polydiacetylene in the solid state using picosecond

dye laser pulses, Appl. Phys. Lett. 47 (5), 457 (1986).

20. Krol, D. M., and Thakur, M., Measurement of the nonlinear refractive index of single-crystal

polydiacetylene channel waveguides, Appl. Phys. Lett. 56(15), 1406 (1990).

21. Zhao, M.-T., Singh, B. P., and Prasad, P. N., A systematic study of polarizability and

microscopic third-order optical nonlinearity in thiophene oligomers, J. Chem. Phys. 89 (9),

22. Tompkin, W. R., Boyd, R. W., Hall , D. W., Tick, P. A., J. Opt. Soc. Am. B 4, 1030 (1987).

23. Winter, C. S., Oliver, S. N., Rush, J. D., Hill, C. A. S., and Underhill, A. E., Large third-order

optical nonlinearities of nickel-dithiolene-doped polymethylmethacrylate, J. Appl. Phys.

24. Gabriel, M. C., Whitaker, Jr., N. A., Dirk, C. W., Kuzyk, M. G., and Thakur, M., Measurement of

ultrafast optical nonlinearities using a modified Sagnac Interferometer, Opt. Lett. 16(17),

25. Kuzyk, M. G., Paek, U. C., and Dirk, C. W., Appl. Phys. Lett. 59(8), 902 (1991).

26. Kuzyk, M. G., Sohn, J. E., and Dirk, C. W., Mechanisms of quadratic electrooptic modulation

of dye-doped polymer systems, J. Opt. Soc. Am. B 5(5), 842 (1990).

27. Uchiki, H., and Kobayashi, T., New determination method of electro-optic constants and

relevant nonlinear susceptibilities and its application to doped polymer, J. Appl. Phys

28. Norwood, R. A., and Sounik, J. R., Third-order nonlinear-optical response in polymer thin

films incorporating porphyrin derivatives, Appl. Phys. Lett. 60(3), 295 (1992).

29. Goodwin, M. J., Edge, C., Trundle, C., and Bennion, I., Intensity-dependent birefringence i n

nonlinear organic polymer waveguides, J. Opt. Soc. Am. B 5(2), 419 (1988).

30. Pang, Y., Samoc, M., and Prasad, P. N., Third-order nonlinearity and two-photon-ionduced

molecular dynamics: femtosecond time-resolved transient absorption, Kerr gate, and

degenerate four-wave mixing studies in poly ( p -phenylene vinylene)/sol-gel silica film, J.

Chem. Phys. 94(8), 5282 (1991).

31. Rossi, B., Byrne, H. J., and Blau, W., Degenerate four-wave mixing in rhodamine doped

epoxy waveguides, Appl. Phys. Lett. 58(16), 1712 (1991).

32. Ghoshal, S. K., Chopra, P. C., Singh, B. P., Swiatkiewicz, J., and Prasad, P. N., Picosecond

degenerate four-wave mixing study of nonlinear optical properties of the poly- N -vinyl

carbazole: 2,4,7-trinitrofluorenone composite polymer photoconductor, J. Chem. Phys.

33. Nunzi, J. M., and Grec, D., Picosecond phase conjugation in polydiacetylene gels, J. Appl.

Phys. 62(6), 2198 (1987).

34. Rockford, K., Zanoni, R., Stegeman, G. I., Krug, W., Miao, E., and Beranek, M. W.,

Measurement of nonlinear refractive index and transmission in polydiacetylene

waveguides, Appl. Phys. Lett. 58(1), 13 (1991).

35. Pang, Y., Samoc, M., and Prasad, P. N., Third-order nonlinearity and two-photon-induced

molecular dynamics: femtosecond time-resolved transient absorption, Kerr gate, and

degenerate four-wave mixing studies in poly( p -phenylene vinylene)/sol-gel silica film, J.

Chem. Phys. 94(8), 5282 (1991).

36. Lequime, M. and Hermann, J. P., Reversible creation of defects by light in one dimensional

conjugated polymers, Chem. Phys. 26, 431 (1977).

Section 3: Polymeric Materials 307

3.4 Thermal Properties

Thermal Properties of Common Plastics

M a t e r i a l

Thermal

c o n d u c t i v i t y

(W m – 1^ K – 1^ )

Linear

t h e r m a l

e x p a n s i o n

( 1 0 – 5^ K – 1^ )

R e f r a c t i v e

i n d e x

dn/dT

K – 1^ )

Maximum

s e r v i c e

t e m p.

(K)

polymethylmethacrylate 0.16–0.24 3.6–6.5 –1.05 360

polystyrene 0.10–0.13 6.0–8.0 –1.2– –1.4 350

NAS 0.18 5.6–6.5 360

styrene acrylonitrile (SAN) 0.11 6.4–6.7 –1.1 350

polycarbonate 0.19 6.6–7.0 –1.07– –1.43 390

polymethyl pentene (TPX) 0.16 11.7 385

polyamide (Nylon) 0.2–0.23 8.2 350

polyarylate 0.28 6.

polysulfone 0.11 2.5 430

polystyrene co-butadiene 7.8–

polyallyl diglycol carbonate 0.20 12.0 370

cellulose acetate butyrate 0.16–0.

polyethersulfone 0.13–0.17 5.5 470

polychloro-trifluoroethelyne 0.25 4.7 470

polyvinylidene fluoride 7.4–13 420

polyetherimide 5.6 440

From a table of J. D. Lytle, Handbook of Optics, Vol. II (McGraw-Hill, New York, 1995), Chapter

34 (with additions).

3.5 Engineering Data

Engineering Data for Transparent Polymers–I

G e n e r i c

f a m i l y

Trade

n a m e Manufacturer

T e n s i l e

s t r e n g t h

yield psi

T e n s i l e

modulus

1 0 5 , psi

F l e x u r a l

modulus

1 0 5 , psi

Impact

s t r e n g t h

( I z o d )

Transparent ABS Magnum Dow 7300 3.8 4.2 2

Cycolac GE Plastics

Acrylic (PMMA) Plexiglas Rohm & Haas 9400–10800 4.5–4.7 2.5–4.5 0.4–1.

CP ICI Acrylite CYRO Lucite Dupont

Allyl diglycol carbonate CR-39 PPG 5500 3 2.5–3.3 0.2–0. Cellulosics (acetate, butyrate, proponiate)

Tenite Eastman 2000–7800 0.6–2.15 1.5–3.4 1.5–7.

Nylon, amorphous Zytel 330 Dupont 9800–11000 4. 05 3.86 1.8–2.

Grilamid EMS Trogamid T Huls America

Section 3: Polymeric Materials 309

Engineering Data for Transparent Polymers–II

Chemical resistance

G e n e r i c

f a m i l y

Trade

n a m e

A l i p h.

HC

A r o m.

HC

C o n c.

b a s e

D i l u t e

b a s e

C o n c.

i n o r g.

a c i d

D i l u t e

i n o r g.

a c i d

Transparent ABS Magnum F P G G P G

Cycolac

Acrylic (PMMA) Plexiglas G P F/P G P G

CP Acrylite Lucite

Allyl diglycol carbonate CR-39 G G G G G G Cellulosics (acetate, butyrate, proponiate)

Tenite F P P F P F

Nylon, amorphous Zytel 330 EX EX G EX P F

Grilamid Trogamid T

PET Kodapak G P/F P F G/F G

Petlon Selar

PETG Kodar G P/F P F G/F G

Polyarylate Durel P/F P P N/A F G

Arylon Ardel

Polycarbonate Calibre F P P P/F F G

Markrolon Lexan

Polyetherimide Ultem EX EX N/A N/A EX EX

Polyester (polypthalate)

carbonate

Lexan PPC F F/P P F F G

Polyethersulfone Victrex G F G G G G

Poly-4-methylpentene-1 TPX F P EX EX EX EX

Polyphenylsulfone Radel G P G G N/A N/A

Polystyrene Styron P P G G EX G

Polystyrol Hostyren Bapolan polystyrene

Polysulfone Udel P/F P EX EX EX EX

PVC, rigid Geon G P EX EX G EX

Oxyblend Unichem

310 Handbook of Optical Materials

Engineering Data for Transparent Polymers–II— continued

Chemical resistance

G e n e r i c

f a m i l y

Trade

n a m e

A l i p h.

HC

A r o m.

HC

C o n c.

b a s e

D i l u t e

b a s e

C o n c.

i n o r g.

a c i d

D i l u t e

i n o r g.

a c i d

Polyarylate Durel P/F P P N/A F G

Arylon Ardel

Polycarbonate Calibre F P P P/F F G

Markrolon Lexan

Polyetherimide Ultem EX EX N/A N/A EX EX

Polyester (polypthalate)

carbonate

Lexan PPC F F/P P F F G

Polyethersulfone Victrex G F G G G G

Poly-4-methylpentene-1 TPX F P EX EX EX EX

Polyphenylsulfone Radel G P G G N/A N/A

Polystyrene Styron P P G G EX G

Polystyrol Hostyren Bapolan polystyrene

Polysulfone Udel P/F P EX EX EX EX

PVC, rigid Geon G P EX EX G EX

PVC, rigid Oxyblend Unichem

Styrene acronylitrile (SAN) Tyril G P G G G G

Lustran Luran Blendex

Styrene butadiene K Resin P P P F/G P F/G Styrene maleic anhydride (SMA)

Dylark F/G P G P F G

Styrene methylmethacrylate

(SMMA)

NAS F/P P F G F G

Thermoplastic polyurethane, rigid

Isoplast 301 EX EX EX EX F/G EX

Chemical resistance codes: Aliphatic hydrocarbons; aromatic hydrocarbons; concentrated base; dilute base; concentrated inorganic acid; dilute inorganic acid. Excellent; Good; Fair; Poor.

The above tables are from Keyes, D., Optical plastics, Handbook of Laser Science and Technology,

Suppl. 2: Optical Materials (CRC Press, Boca Raton, FL, 1995), pp. 85–94.
