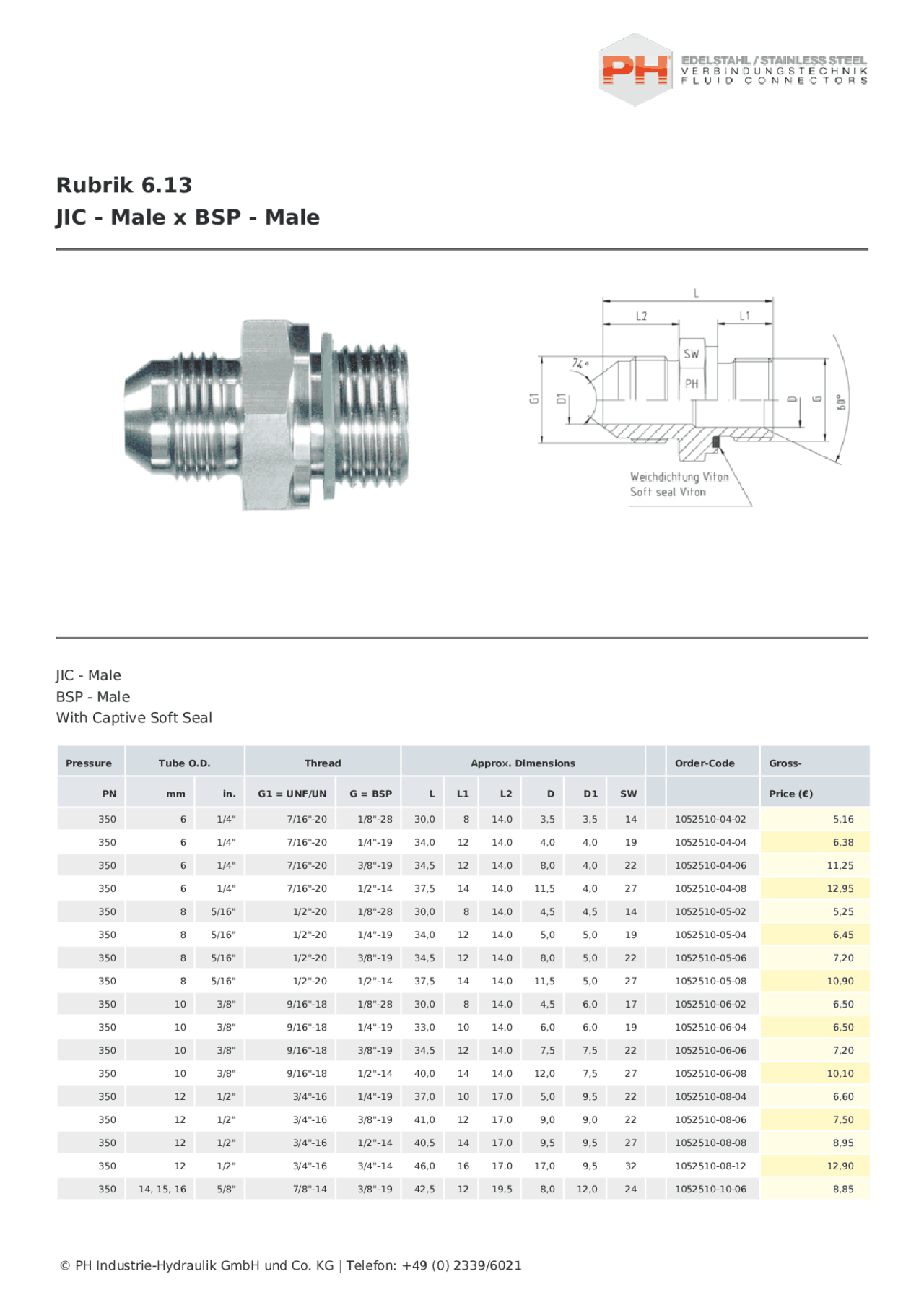

Rubrik 6.13
JIC - Male x BSP - Male
JIC - Male
BSP - Male
With Captive Soft Seal
Pressure Tube O.D. Thread Approx. Dimensions Order-Code Gross-
PN mm in. G1 = UNF/UN G = BSP L L1 L2 D D1 SW Price (€)
350 6 1/4" 7/16"-20 1/8"-28 30,0 8 14,0 3,5 3,5 14 1052510-04-02 5,16
350 6 1/4" 7/16"-20 1/4"-19 34,0 12 14,0 4,0 4,0 19 1052510-04-04 6,38
350 6 1/4" 7/16"-20 3/8"-19 34,5 12 14,0 8,0 4,0 22 1052510-04-06 11,25
350 6 1/4" 7/16"-20 1/2"-14 37,5 14 14,0 11,5 4,0 27 1052510-04-08 12,95
350 8 5/16" 1/2"-20 1/8"-28 30,0 8 14,0 4,5 4,5 14 1052510-05-02 5,25
350 8 5/16" 1/2"-20 1/4"-19 34,0 12 14,0 5,0 5,0 19 1052510-05-04 6,45
350 8 5/16" 1/2"-20 3/8"-19 34,5 12 14,0 8,0 5,0 22 1052510-05-06 7,20
350 8 5/16" 1/2"-20 1/2"-14 37,5 14 14,0 11,5 5,0 27 1052510-05-08 10,90
350 10 3/8" 9/16"-18 1/8"-28 30,0 8 14,0 4,5 6,0 17 1052510-06-02 6,50
350 10 3/8" 9/16"-18 1/4"-19 33,0 10 14,0 6,0 6,0 19 1052510-06-04 6,50
350 10 3/8" 9/16"-18 3/8"-19 34,5 12 14,0 7,5 7,5 22 1052510-06-06 7,20
350 10 3/8" 9/16"-18 1/2"-14 40,0 14 14,0 12,0 7,5 27 1052510-06-08 10,10
350 12 1/2" 3/4"-16 1/4"-19 37,0 10 17,0 5,0 9,5 22 1052510-08-04 6,60
350 12 1/2" 3/4"-16 3/8"-19 41,0 12 17,0 9,0 9,0 22 1052510-08-06 7,50
350 12 1/2" 3/4"-16 1/2"-14 40,5 14 17,0 9,5 9,5 27 1052510-08-08 8,95
350 12 1/2" 3/4"-16 3/4"-14 46,0 16 17,0 17,0 9,5 32 1052510-08-12 12,90
350 14, 15, 16 5/8" 7/8"-14 3/8"-19 42,5 12 19,5 8,0 12,0 24 1052510-10-06 8,85
© PH Industrie-Hydraulik GmbH und Co. KG | Telefon: +49 (0) 2339/6021
pf2
Discount

Em oferta

Pré-visualização parcial do texto

Baixe Rosca JIC x Rosca BSP e outras Manuais, Projetos, Pesquisas em PDF para Mecânica, somente na Docsity!

JIC - Male x BSP - Male

JIC - Male

BSP - Male

With Captive Soft Seal

Pressure Tube O.D. Thread Approx. Dimensions Order-Code Gross-

  • Rubrik 6. - 350 6 1/4" 7/16"-20 1/8"-28 30,0 8 14,0 3,5 3,5 14 1052510-04-02 5, PN mm in. G1 = UNF/UN G = BSP L L1 L2 D D1 SW Price (€) - 350 6 1/4" 7/16"-20 1/4"-19 34,0 12 14,0 4,0 4,0 19 1052510-04-04 6, - 350 6 1/4" 7/16"-20 3/8"-19 34,5 12 14,0 8,0 4,0 22 1052510-04-06 11, - 350 6 1/4" 7/16"-20 1/2"-14 37,5 14 14,0 11,5 4,0 27 1052510-04-08 12, - 350 8 5/16" 1/2"-20 1/8"-28 30,0 8 14,0 4,5 4,5 14 1052510-05-02 5, - 350 8 5/16" 1/2"-20 1/4"-19 34,0 12 14,0 5,0 5,0 19 1052510-05-04 6, - 350 8 5/16" 1/2"-20 3/8"-19 34,5 12 14,0 8,0 5,0 22 1052510-05-06 7, - 350 8 5/16" 1/2"-20 1/2"-14 37,5 14 14,0 11,5 5,0 27 1052510-05-08 10, - 350 10 3/8" 9/16"-18 1/8"-28 30,0 8 14,0 4,5 6,0 17 1052510-06-02 6, - 350 10 3/8" 9/16"-18 1/4"-19 33,0 10 14,0 6,0 6,0 19 1052510-06-04 6, - 350 10 3/8" 9/16"-18 3/8"-19 34,5 12 14,0 7,5 7,5 22 1052510-06-06 7, - 350 10 3/8" 9/16"-18 1/2"-14 40,0 14 14,0 12,0 7,5 27 1052510-06-08 10, - 350 12 1/2" 3/4"-16 1/4"-19 37,0 10 17,0 5,0 9,5 22 1052510-08-04 6, - 350 12 1/2" 3/4"-16 3/8"-19 41,0 12 17,0 9,0 9,0 22 1052510-08-06 7, - 350 12 1/2" 3/4"-16 1/2"-14 40,5 14 17,0 9,5 9,5 27 1052510-08-08 8, - 350 12 1/2" 3/4"-16 3/4"-14 46,0 16 17,0 17,0 9,5 32 1052510-08-12 12, - 350 14, 15, 16 5/8" 7/8"-14 3/8"-19 42,5 12 19,5 8,0 12,0 24 1052510-10-06 8,
    • © PH Industrie-Hydraulik GmbH und Co. KG | Telefon: +49 (0) 2339/
    • 350 14, 15, 16 5/8" 7/8"-14 1/2"-14 43,0 14 19,5 12,0 12,0 27 1052510-10-08 9,
    • 350 14, 15, 16 5/8" 7/8"-14 5/8"-14 44,5 16 19,5 14,5 12,0 30 1052510-10-10 14,
    • 350 14, 15, 16 5/8" 7/8"-14 3/4"-14 46,0 16 19,5 17,0 12,0 32 1052510-10-12 14,
    • 350 14, 15, 16 5/8" 7/8"-14 1"-11 50,0 18 19,5 22,5 12,0 41 1052510-10-16 29,
    • 350 18, 20 3/4" 1 1/16"-12 3/8"-19 44,5 12 22,0 8,0 15,0 27 1052510-12-06 12,
    • 350 18, 20 3/4" 1 1/16"-12 1/2"-14 50,0 14 22,0 11,5 15,0 27 1052510-12-08 12,
    • 350 18, 20 3/4" 1 1/16"-12 3/4"-14 51,0 16 22,0 15,0 15,0 32 1052510-12-12 12,
    • 350 18, 20 3/4" 1 1/16"-12 1"-11 53,0 18 22,0 22,5 15,0 41 1052510-12-16 28,
    • 350 18, 20 3/4" 1 1/16"-12 1 1/4"-11 56,5 20 22,0 29,0 15,0 50 1052510-12-20 45,
    • 280 25 1" 1 5/16"-12 1/2"-14 51,0 14 23,0 11,5 21,5 36 1052510-16-08 29,
    • 280 25 1" 1 5/16"-12 3/4"-14 53,0 16 23,0 17,5 21,5 36 1052510-16-12 22,
    • 280 25 1" 1 5/16"-12 1"-11 53,5 18 23,0 21,5 21,5 41 1052510-16-16 22,
    • 280 25 1" 1 5/16"-12 1 1/4"-11 57,5 20 23,0 29,0 21,5 50 1052510-16-20 45,
    • 210 25 1" 1 5/16"-12 1 1/2"-11 59,5 22 23,0 33,5 21,0 55 1052510-16-24 69,
    • 210 28, 30, 32 1 1/4" 1 5/8"-12 3/4"-14 56,7 16 24,3 17,0 26,5 46 1052510-20-12 41,
    • 210 28, 30, 32 1 1/4" 1 5/8"-12 1"-11 55,0 18 24,3 23,0 26,5 46 1052510-20-16 41,
    • 210 28, 30, 32 1 1/4" 1 5/8"-12 1 1/4"-11 59,0 20 24,3 29,0 26,5 50 1052510-20-20 41,
    • 210 28, 30, 32 1 1/4" 1 5/8"-12 1 1/2"-11 61,0 22 24,3 33,5 26,5 55 1052510-20-24 62,
    • 150 28, 30, 32 1 1/4" 1 5/8"-12 2"-11 64,3 25 24,3 46,0 26,5 70 1052510-20-32 148,
    • 210 35, 38 1 1/2" 1 7/8"-12 1"-11 60,0 18 27,5 22,5 32,0 50 1052510-24-16 52,
    • 210 35, 38 1 1/2" 1 7/8"-12 1 1/4"-11 62,0 20 27,5 29,0 32,0 50 1052510-24-20 52,
    • 210 35, 38 1 1/2" 1 7/8"-12 1 1/2"-11 64,0 22 27,5 33,5 32,0 55 1052510-24-24 50,
    • 150 35, 38 1 1/2" 1 7/8"-12 2"-11 67,5 23 27,5 46,0 32,0 70 1052510-24-32 129,
    • 150 50 2" 2 1/2"-12 2"-11 76,0 23 33,9 45,0 45,0 70 1052510-32-32 115,
  • © PH Industrie-Hydraulik GmbH und Co. KG | Telefon: +49 (0) 2339/
