bg1
P1: PBY/PBR P2: PBY/PBR QC: PBY/PBR T1: PBY
GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20:47
2nd Confirming Pages

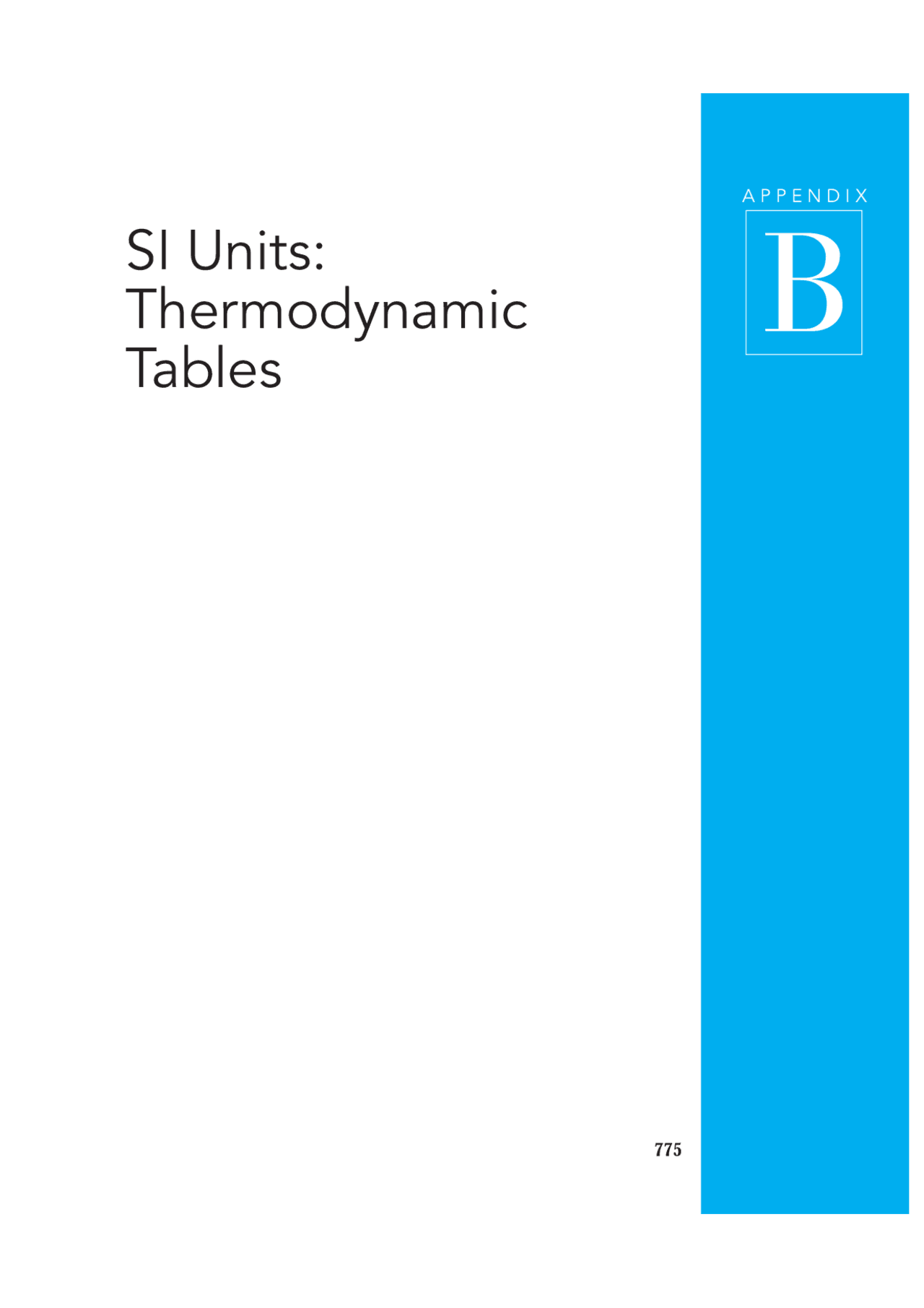

A P P E N D I X
B
SI Units:
Thermodynamic
Tables
775
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d
pf2e
pf2f
pf30
pf31
pf32

Pré-visualização parcial do texto

Baixe Tabelas Termo e outras Notas de estudo em PDF para Cultura, somente na Docsity!

GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20:

A P P E N D I X

B

SI Units:

Thermodynamic

Tables

776 ¥ APPENDIX B SI UNITS: THERMODYNAMIC TABLES

Saturated Water

Specific Volume, m^3 /kg Internal Energy, kJ/kg Temp. Press. Sat. Liquid Evap. Sat. Vapor Sat. Liquid Evap. Sat. Vapor

778 ¥ APPENDIX B SI UNITS: THERMODYNAMIC TABLES

TABLE B.1.1 (continued ) Saturated Water

Specific Volume, m^3 /kg Internal Energy, kJ/kg Temp. Press. Sat. Liquid Evap. Sat. Vapor Sat. Liquid Evap. Sat. Vapor

TABLE B.1.1 (continued ) Saturated Water

Enthalpy, kJ/kg Entropy, kJ/kg-K Temp. Press. Sat. Liquid Evap. Sat. Vapor Sat. Liquid Evap. Sat. Vapor

TABLE B.1.2 (continued ) Saturated Water Pressure Entry

Enthalpy, kJ/kg Entropy, kJ/kg-K Press. Temp. Sat. Liquid Evap. Sat. Vapor Sat. Liquid Evap. Sat. Vapor

782 ¥ APPENDIX B SI UNITS: THERMODYNAMIC TABLES

TABLE B.1.2 (continued ) Saturated Water Pressure Entry

Specific Volume, m^3 /kg Internal Energy, kJ/kg Press. Temp. Sat. Liquid Evap. Sat. Vapor Sat. Liquid Evap. Sat. Vapor

Superheated Vapor Water

Temp. v u h s v u h s (◦C) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K)

TABLE B.1.3 (continued ) Superheated Vapor Water

Temp. v u h s v u h s (◦C) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K)

TABLE B.1.3 (continued ) Superheated Vapor Water

Temp. v u h s v u h s (◦C) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K)

788 ¥ APPENDIX B SI UNITS: THERMODYNAMIC TABLES

TABLE B.1.3 (continued ) Superheated Vapor Water

Temp. v u h s v u h s (◦C) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K)

Compressed Liquid Water

Temp. v u h s v u h s (◦C) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K)

TABLE B.1.4 (continued ) Compressed Liquid Water

Temp. v u h s v u h s (◦C) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K) (m^3 /kg) (kJ/kg) (kJ/kg) (kJ/kg-K)

TABLE B.1.5 (continued ) Saturated Solid-Saturated Vapor, Water

Enthalpy, kJ/kg Entropy, kJ/kg-K Temp. Press. Sat. Solid Evap. Sat. Vapor Sat. Solid Evap. Sat. Vapor

Saturated Ammonia Specific Volume, m^3 /kg Internal Energy, kJ/kg Temp. Press. Sat. Liquid Evap. Sat. Vapor Sat. Liquid Evap. Sat. Vapor

  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20:
    • TABLE B.
    • TABLE B.1. Thermodynamic Properties of Water
      • 0.01 0.6113 0.001000 206.131 206.132 0 2375.33 2375. (◦C) (kPa) v f v f g vg u f u f g ug - 5 0.8721 0.001000 147.117 147.118 20.97 2361.27 2382. - 10 1.2276 0.001000 106.376 106.377 41.99 2347.16 2389. - 15 1.705 0.001001 77.924 77.925 62.98 2333.06 2396. - 20 2.339 0.001002 57.7887 57.7897 83.94 2318.98 2402. - 25 3.169 0.001003 43.3583 43.3593 104.86 2304.90 2409. - 30 4.246 0.001004 32.8922 32.8932 125.77 2290.81 2416. - 35 5.628 0.001006 25.2148 25.2158 146.65 2276.71 2423. - 40 7.384 0.001008 19.5219 19.5229 167.53 2262.57 2430. - 45 9.593 0.001010 15.2571 15.2581 188.41 2248.40 2436. - 50 12.350 0.001012 12.0308 12.0318 209.30 2234.17 2443. - 55 15.758 0.001015 9.56734 9.56835 230.19 2219.89 2450. - 60 19.941 0.001017 7.66969 7.67071 251.09 2205.54 2456. - 65 25.03 0.001020 6.19554 6.19656 272.00 2191.12 2463. - 70 31.19 0.001023 5.04114 5.04217 292.93 2176.62 2469. - 75 38.58 0.001026 4.13021 4.13123 313.87 2162.03 2475. - 80 47.39 0.001029 3.40612 3.40715 334.84 2147.36 2482. - 85 57.83 0.001032 2.82654 2.82757 355.82 2132.58 2488. - 90 70.14 0.001036 2.35953 2.36056 376.82 2117.70 2494. - 95 84.55 0.001040 1.98082 1.98186 397.86 2102.70 2500.
        • 100 101.3 0.001044 1.67185 1.67290 418.91 2087.58 2506.
        • 105 120.8 0.001047 1.41831 1.41936 440.00 2072.34 2512.
        • 110 143.3 0.001052 1.20909 1.21014 461.12 2056.96 2518.
        • 115 169.1 0.001056 1.03552 1.03658 482.28 2041.44 2523.
        • 120 198.5 0.001060 0.89080 0.89186 503.48 2025.76 2529.
        • 125 232.1 0.001065 0.76953 0.77059 524.72 2009.91 2534.
        • 130 270.1 0.001070 0.66744 0.66850 546.00 1993.90 2539.
        • 135 313.0 0.001075 0.58110 0.58217 567.34 1977.69 2545.
        • 140 361.3 0.001080 0.50777 0.50885 588.72 1961.30 2550.
        • 145 415.4 0.001085 0.44524 0.44632 610.16 1944.69 2554.
        • 150 475.9 0.001090 0.39169 0.39278 631.66 1927.87 2559.
        • 155 543.1 0.001096 0.34566 0.34676 653.23 1910.82 2564.
        • 160 617.8 0.001102 0.30596 0.30706 674.85 1893.52 2568.
        • 165 700.5 0.001108 0.27158 0.27269 696.55 1875.97 2572.
        • 170 791.7 0.001114 0.24171 0.24283 718.31 1858.14 2576.
        • 175 892.0 0.001121 0.21568 0.21680 740.16 1840.03 2580.
        • 180 1002.2 0.001127 0.19292 0.19405 762.08 1821.62 2583.
        • 185 1122.7 0.001134 0.17295 0.17409 784.08 1802.90 2586.
        • 190 1254.4 0.001141 0.15539 0.15654 806.17 1783.84 2590.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - APPENDIX B SI UNITS: THERMODYNAMIC TABLES ¥
    • 0.01 0.6113 0.00 2501.35 2501.35 0 9.1562 9. (◦C) (kPa) h f h f g hg s f s f g sg - 5 0.8721 20.98 2489.57 2510.54 0.0761 8.9496 9. - 10 1.2276 41.99 2477.75 2519.74 0.1510 8.7498 8. - 15 1.705 62.98 2465.93 2528.91 0.2245 8.5569 8. - 20 2.339 83.94 2454.12 2538.06 0.2966 8.3706 8. - 25 3.169 104.87 2442.30 2547.17 0.3673 8.1905 8. - 30 4.246 125.77 2430.48 2556.25 0.4369 8.0164 8. - 35 5.628 146.66 2418.62 2565.28 0.5052 7.8478 8. - 40 7.384 167.54 2406.72 2574.26 0.5724 7.6845 8. - 45 9.593 188.42 2394.77 2583.19 0.6386 7.5261 8. - 50 12.350 209.31 2382.75 2592.06 0.7037 7.3725 8. - 55 15.758 230.20 2370.66 2600.86 0.7679 7.2234 7. - 60 19.941 251.11 2358.48 2609.59 0.8311 7.0784 7. - 65 25.03 272.03 2346.21 2618.24 0.8934 6.9375 7. - 70 31.19 292.96 2333.85 2626.80 0.9548 6.8004 7. - 75 38.58 313.91 2321.37 2635.28 1.0154 6.6670 7. - 80 47.39 334.88 2308.77 2643.66 1.0752 6.5369 7. - 85 57.83 355.88 2296.05 2651.93 1.1342 6.4102 7. - 90 70.14 376.90 2283.19 2660.09 1.1924 6.2866 7. - 95 84.55 397.94 2270.19 2668.13 1.2500 6.1659 7.
      • 100 101.3 419.02 2257.03 2676.05 1.3068 6.0480 7.
      • 105 120.8 440.13 2243.70 2683.83 1.3629 5.9328 7.
      • 110 143.3 461.27 2230.20 2691.47 1.4184 5.8202 7.
      • 115 169.1 482.46 2216.50 2698.96 1.4733 5.7100 7.
      • 120 198.5 503.69 2202.61 2706.30 1.5275 5.6020 7.
      • 125 232.1 524.96 2188.50 2713.46 1.5812 5.4962 7.
      • 130 270.1 546.29 2174.16 2720.46 1.6343 5.3925 7.
      • 135 313.0 567.67 2159.59 2727.26 1.6869 5.2907 6.
      • 140 361.3 589.11 2144.75 2733.87 1.7390 5.1908 6.
      • 145 415.4 610.61 2129.65 2740.26 1.7906 5.0926 6.
      • 150 475.9 632.18 2114.26 2746.44 1.8417 4.9960 6.
      • 155 543.1 653.82 2098.56 2752.39 1.8924 4.9010 6.
      • 160 617.8 675.53 2082.55 2758.09 1.9426 4.8075 6.
      • 165 700.5 697.32 2066.20 2763.53 1.9924 4.7153 6.
      • 170 791.7 719.20 2049.50 2768.70 2.0418 4.6244 6.
      • 175 892.0 741.16 2032.42 2773.58 2.0909 4.5347 6.
      • 180 1002.2 763.21 2014.96 2778.16 2.1395 4.4461 6.
      • 185 1122.7 785.36 1997.07 2782.43 2.1878 4.3586 6.
      • 190 1254.4 807.61 1978.76 2786.37 2.2358 4.2720 6.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20:
    • 195 1397.8 0.001149 0.13990 0.14105 828.36 1764.43 2592. (◦C) (kPa) v f v f g vg u f u f g ug
    • 200 1553.8 0.001156 0.12620 0.12736 850.64 1744.66 2595.
    • 205 1723.0 0.001164 0.11405 0.11521 873.02 1724.49 2597.
    • 210 1906.3 0.001173 0.10324 0.10441 895.51 1703.93 2599.
    • 215 2104.2 0.001181 0.09361 0.09479 918.12 1682.94 2601.
    • 220 2317.8 0.001190 0.08500 0.08619 940.85 1661.49 2602.
    • 225 2547.7 0.001199 0.07729 0.07849 963.72 1639.58 2603.
    • 230 2794.9 0.001209 0.07037 0.07158 986.72 1617.17 2603.
    • 235 3060.1 0.001219 0.06415 0.06536 1009.88 1594.24 2604.
    • 240 3344.2 0.001229 0.05853 0.05976 1033.19 1570.75 2603.
    • 245 3648.2 0.001240 0.05346 0.05470 1056.69 1546.68 2603.
    • 250 3973.0 0.001251 0.04887 0.05013 1080.37 1522.00 2602.
    • 255 4319.5 0.001263 0.04471 0.04598 1104.26 1496.66 2600.
    • 260 4688.6 0.001276 0.04093 0.04220 1128.37 1470.64 2599.
    • 265 5081.3 0.001289 0.03748 0.03877 1152.72 1443.87 2596.
    • 270 5498.7 0.001302 0.03434 0.03564 1177.33 1416.33 2593.
    • 275 5941.8 0.001317 0.03147 0.03279 1202.23 1387.94 2590.
    • 280 6411.7 0.001332 0.02884 0.03017 1227.43 1358.66 2586.
    • 285 6909.4 0.001348 0.02642 0.02777 1252.98 1328.41 2581.
    • 290 7436.0 0.001366 0.02420 0.02557 1278.89 1297.11 2575.
    • 295 7992.8 0.001384 0.02216 0.02354 1305.21 1264.67 2569.
    • 300 8581.0 0.001404 0.02027 0.02167 1331.97 1230.99 2562.
    • 305 9201.8 0.001425 0.01852 0.01995 1359.22 1195.94 2555.
    • 310 9856.6 0.001447 0.01690 0.01835 1387.03 1159.37 2546.
    • 315 10547 0.001472 0.01539 0.01687 1415.44 1121.11 2536.
    • 320 11274 0.001499 0.01399 0.01549 1444.55 1080.93 2525.
    • 325 12040 0.001528 0.01267 0.01420 1474.44 1038.57 2513.
    • 330 12845 0.001561 0.01144 0.01300 1505.24 993.66 2498.
    • 335 13694 0.001597 0.01027 0.01186 1537.11 945.77 2482.
    • 340 14586 0.001638 0.00916 0.01080 1570.26 894.26 2464.
    • 345 15525 0.001685 0.00810 0.00978 1605.01 838.29 2443.
    • 350 16514 0.001740 0.00707 0.00881 1641.81 776.58 2418.
    • 355 17554 0.001807 0.00607 0.00787 1681.41 707.11 2388.
    • 360 18651 0.001892 0.00505 0.00694 1725.19 626.29 2351.
    • 365 19807 0.002011 0.00398 0.00599 1776.13 526.54 2302.
    • 370 21028 0.002213 0.00271 0.00493 1843.84 384.69 2228.
    • 374.1 22089 0.003155 0 0.00315 2029.58 0 2029.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - APPENDIX B SI UNITS: THERMODYNAMIC TABLES ¥
    • 195 1397.8 829.96 1959.99 2789.96 2.2835 4.1863 6. (◦C) (kPa) h f h f g hg s f s f g sg
    • 200 1553.8 852.43 1940.75 2793.18 2.3308 4.1014 6.
    • 205 1723.0 875.03 1921.00 2796.03 2.3779 4.0172 6.
    • 210 1906.3 897.75 1900.73 2798.48 2.4247 3.9337 6.
    • 215 2104.2 920.61 1879.91 2800.51 2.4713 3.8507 6.
    • 220 2317.8 943.61 1858.51 2802.12 2.5177 3.7683 6.
    • 225 2547.7 966.77 1836.50 2803.27 2.5639 3.6863 6.
    • 230 2794.9 990.10 1813.85 2803.95 2.6099 3.6047 6.
    • 235 3060.1 1013.61 1790.53 2804.13 2.6557 3.5233 6.
    • 240 3344.2 1037.31 1766.50 2803.81 2.7015 3.4422 6.
    • 245 3648.2 1061.21 1741.73 2802.95 2.7471 3.3612 6.
    • 250 3973.0 1085.34 1716.18 2801.52 2.7927 3.2802 6.
    • 255 4319.5 1109.72 1689.80 2799.51 2.8382 3.1992 6.
    • 260 4688.6 1134.35 1662.54 2796.89 2.8837 3.1181 6.
    • 265 5081.3 1159.27 1634.34 2793.61 2.9293 3.0368 5.
    • 270 5498.7 1184.49 1605.16 2789.65 2.9750 2.9551 5.
    • 275 5941.8 1210.05 1574.92 2784.97 3.0208 2.8730 5.
    • 280 6411.7 1235.97 1543.55 2779.53 3.0667 2.7903 5.
    • 285 6909.4 1262.29 1510.97 2773.27 3.1129 2.7069 5.
    • 290 7436.0 1289.04 1477.08 2766.13 3.1593 2.6227 5.
    • 295 7992.8 1316.27 1441.78 2758.05 3.2061 2.5375 5.
    • 300 8581.0 1344.01 1404.93 2748.94 3.2533 2.4511 5.
    • 305 9201.8 1372.33 1366.38 2738.72 3.3009 2.3633 5.
    • 310 9856.6 1401.29 1325.97 2727.27 3.3492 2.2737 5.
    • 315 10547 1430.97 1283.48 2714.44 3.3981 2.1821 5.
    • 320 11274 1461.45 1238.64 2700.08 3.4479 2.0882 5.
    • 325 12040 1492.84 1191.13 2683.97 3.4987 1.9913 5.
    • 330 12845 1525.29 1140.56 2665.85 3.5506 1.8909 5.
    • 335 13694 1558.98 1086.37 2645.35 3.6040 1.7863 5.
    • 340 14586 1594.15 1027.86 2622.01 3.6593 1.6763 5.
    • 345 15525 1631.17 964.02 2595.19 3.7169 1.5594 5.
    • 350 16514 1670.54 893.38 2563.92 3.7776 1.4336 5.
    • 355 17554 1713.13 813.59 2526.72 3.8427 1.2951 5.
    • 360 18651 1760.48 720.52 2481.00 3.9146 1.1379 5.
    • 365 19807 1815.96 605.44 2421.40 3.9983 0.9487 4.
    • 370 21028 1890.37 441.75 2332.12 4.1104 0.6868 4.
    • 374.1 22089 2099.26 0 2099.26 4.4297 0 4.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20:
    • TABLE B.1. 780 ¥ APPENDIX B SI UNITS: THERMODYNAMIC TABLES - 0.6113 0.01 0.001000 206.131 206.132 0 2375.3 2375. (kPa) (◦C) v f u f g vg u f u f g ug - 1 6.98 0.001000 129.20702 129.20802 29.29 2355.69 2384. - 1.5 13.03 0.001001 87.97913 87.98013 54.70 2338.63 2393. - 2 17.50 0.001001 67.00285 67.00385 73.47 2326.02 2399. - 2.5 21.08 0.001002 54.25285 54.25385 88.47 2315.93 2404. - 3 24.08 0.001003 45.66402 45.66502 101.03 2307.48 2408. - 4 28.96 0.001004 34.79915 34.80015 121.44 2293.73 2415. - 5 32.88 0.001005 28.19150 28.19251 137.79 2282.70 2420. - 7.5 40.29 0.001008 19.23674 19.23775 168.76 2261.74 2430. - 10 45.81 0.001010 14.67254 14.67355 191.79 2246.10 2437. - 15 53.97 0.001014 10.02117 10.02218 225.90 2222.83 2448. - 20 60.06 0.001017 7.64835 7.64937 251.35 2205.36 2456. - 25 64.97 0.001020 6.20322 6.20424 271.88 2191.21 2463. - 30 69.10 0.001022 5.22816 5.22918 289.18 2179.22 2468. - 40 75.87 0.001026 3.99243 3.99345 317.51 2159.49 2477. - 50 81.33 0.001030 3.23931 3.24034 340.42 2143.43 2483. - 75 91.77 0.001037 2.21607 2.21711 394.29 2112.39 2496.
      • 100 99.62 0.001043 1.69296 1.69400 417.33 2088.72 2506.
      • 125 105.99 0.001048 1.37385 1.37490 444.16 2069.32 2513.
      • 150 111.37 0.001053 1.15828 1.15933 466.92 2052.72 2519.
      • 175 116.06 0.001057 1.00257 1.00363 486.78 2038.12 2524.
      • 200 120.23 0.001061 0.88467 0.88573 504.47 2025.02 2529.
      • 225 124.00 0.001064 0.79219 0.79325 520.45 2013.10 2533.
      • 250 127.43 0.001067 0.71765 0.71871 535.08 2002.14 2537.
      • 275 130.60 0.001070 0.65624 0.65731 548.57 1991.95 2540.
      • 300 133.55 0.001073 0.60475 0.60582 561.13 1982.43 2543.
      • 325 136.30 0.001076 0.56093 0.56201 572.88 1973.46 2546.
      • 350 138.88 0.001079 0.52317 0.52425 583.93 1964.98 2548.
      • 375 141.32 0.001081 0.49029 0.49137 594.38 1956.93 2551.
      • 400 143.63 0.001084 0.46138 0.46246 604.29 1949.26 2553.
      • 450 147.93 0.001088 0.41289 0.41398 622.75 1934.87 2557.
      • 500 151.86 0.001093 0.37380 0.37489 639.66 1921.57 2561.
      • 550 155.48 0.001097 0.34159 0.34268 655.30 1909.17 2564.
      • 600 158.85 0.001101 0.31457 0.31567 669.88 1897.52 2567.
      • 650 162.01 0.001104 0.29158 0.29268 683.55 1886.51 2570.
      • 700 164.97 0.001108 0.27176 0.27286 696.43 1876.07 2572.
      • 750 167.77 0.001111 0.25449 0.25560 708.62 1866.11 2574.
      • 800 170.43 0.001115 0.23931 0.24043 720.20 1856.58 2576.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - APPENDIX B SI UNITS: THERMODYNAMIC TABLES ¥ - 0.6113 0.01 0.00 2501.3 2501.3 0 9.1562 9. (kPa) (◦C) h f h f g hg s f s f g sg - 1.0 6.98 29.29 2484.89 2514.18 0.1059 8.8697 8. - 1.5 13.03 54.70 2470.59 2525.30 0.1956 8.6322 8. - 2.0 17.50 73.47 2460.02 2533.49 0.2607 8.4629 8. - 2.5 21.08 88.47 2451.56 2540.03 0.3120 8.3311 8. - 3.0 24.08 101.03 2444.47 2545.50 0.3545 8.2231 8. - 4.0 28.96 121.44 2432.93 2554.37 0.4226 8.0520 8. - 5.0 32.88 137.79 2423.66 2561.45 0.4763 7.9187 8. - 7.5 40.29 168.77 2406.02 2574.79 0.5763 7.6751 8. - 10 45.81 191.81 2392.82 2584.63 0.6492 7.5010 8. - 15 53.97 225.91 2373.14 2599.06 0.7548 7.2536 8. - 20 60.06 251.38 2358.33 2609.70 0.8319 7.0766 7. - 25 64.97 271.90 2346.29 2618.19 0.8930 6.9383 7. - 30 69.10 289.21 2336.07 2625.28 0.9439 6.8247 7. - 40 75.87 317.55 2319.19 2636.74 1.0258 6.6441 7. - 50 81.33 340.47 2305.40 2645.87 1.0910 6.5029 7. - 75 91.77 384.36 2278.59 2662.96 1.2129 6.2434 7.
    • 100 99.62 417.44 2258.02 2675.46 1.3025 6.0568 7.
    • 125 105.99 444.30 2241.05 2685.35 1.3739 5.9104 7.
    • 150 111.37 467.08 2226.46 2693.54 1.4335 5.7897 7.
    • 175 116.06 486.97 2213.57 2700.53 1.4848 5.6868 7.
    • 200 120.23 504.68 2201.96 2706.63 1.5300 5.5970 7.
    • 225 124.00 520.69 2191.35 2712.04 1.5705 5.5173 7.
    • 250 127.43 535.34 2181.55 2716.89 1.6072 5.4455 7.
    • 275 130.60 548.87 2172.42 2721.29 1.6407 5.3801 7.
    • 300 133.55 561.45 2163.85 2725.30 1.6717 5.3201 6.
    • 325 136.30 573.23 2155.76 2728.99 1.7005 5.2646 6.
    • 350 138.88 584.31 2148.10 2732.40 1.7274 5.2130 6.
    • 375 141.32 594.79 2140.79 2735.58 1.7527 5.1647 6.
    • 400 143.63 604.73 2133.81 2738.53 1.7766 5.1193 6.
    • 450 147.93 623.24 2120.67 2743.91 1.8206 5.0359 6.
    • 500 151.86 640.21 2108.47 2748.67 1.8606 4.9606 6.
    • 550 155.48 655.91 2097.04 2752.94 1.8972 4.8920 6.
    • 600 158.85 670.54 2086.26 2756.80 1.9311 4.8289 6.
    • 650 162.01 684.26 2076.04 2760.30 1.9627 4.7704 6.
    • 700 164.97 697.20 2066.30 2763.50 1.9922 4.7158 6.
    • 750 167.77 709.45 2056.98 2766.43 2.0199 4.6647 6.
    • 800 170.43 721.10 2048.04 2769.13 2.0461 4.6166 6.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - 850 172.96 0.001118 0.22586 0.22698 731.25 1847.45 2578. (kPa) (◦C) v f v f g vg u f u f g ug - 900 175.38 0.001121 0.21385 0.21497 741.81 1838.65 2580. - 950 177.69 0.001124 0.20306 0.20419 751.94 1830.17 2582. - 1000 179.91 0.001127 0.19332 0.19444 761.67 1821.97 2583. - 1100 184.09 0.001133 0.17639 0.17753 780.08 1806.32 2586. - 1200 187.99 0.001139 0.16220 0.16333 797.27 1791.55 2588. - 1300 191.64 0.001144 0.15011 0.15125 813.42 1777.53 2590. - 1400 195.07 0.001149 0.13969 0.14084 828.68 1764.15 2592. - 1500 198.32 0.001154 0.13062 0.13177 843.14 1751.3 2594. - 1750 205.76 0.001166 0.11232 0.11349 876.44 1721.39 2597. - 2000 212.42 0.001177 0.09845 0.09963 906.42 1693.84 2600. - 2250 218.45 0.001187 0.08756 0.08875 933.81 1668.18 2601. - 2500 223.99 0.001197 0.07878 0.07998 959.09 1644.04 2603. - 2750 229.12 0.001207 0.07154 0.07275 982.65 1621.16 2603. - 3000 233.90 0.001216 0.06546 0.06668 1004.76 1599.34 2604. - 3250 238.38 0.001226 0.06029 0.06152 1025.62 1578.43 2604. - 3500 242.60 0.001235 0.05583 0.05707 1045.41 1558.29 2603. - 4000 250.40 0.001252 0.04853 0.04978 1082.28 1519.99 2602. - 5000 263.99 0.001286 0.03815 0.03944 1147.78 1449.34 2597. - 6000 275.64 0.001319 0.03112 0.03244 1205.41 1384.27 2589. - 7000 285.88 0.001351 0.02602 0.02737 1257.51 1322.97 2580. - 8000 295.06 0.001384 0.02213 0.02352 1305.54 1264.25 2569. - 9000 303.40 0.001418 0.01907 0.02048 1350.47 1207.28 2557.
    • 10000 311.06 0.001452 0.01657 0.01803 1393.00 1151.40 2544.
    • 11000 318.15 0.001489 0.01450 0.01599 1433.68 1096.06 2529.
    • 12000 324.75 0.001527 0.01274 0.01426 1472.92 1040.76 2513.
    • 13000 330.93 0.001567 0.01121 0.01278 1511.09 984.99 2496.
    • 14000 336.75 0.001611 0.00987 0.01149 1548.53 928.23 2476.
    • 15000 342.24 0.001658 0.00868 0.01034 1585.58 869.85 2455.
    • 16000 347.43 0.001711 0.00760 0.00931 1622.63 809.07 2431.
    • 17000 352.37 0.001770 0.00659 0.00836 1660.16 744.80 2404.
    • 18000 357.06 0.001840 0.00565 0.00749 1698.86 675.42 2374.
    • 19000 361.54 0.001924 0.00473 0.00666 1739.87 598.18 2338.
    • 20000 365.81 0.002035 0.00380 0.00583 1785.47 507.58 2293.
    • 21000 369.89 0.002206 0.00275 0.00495 1841.97 388.74 2230.
    • 22000 373.80 0.002808 0.00072 0.00353 1973.16 108.24 2081.
    • 22089 374.14 0.003155 0 0.00315 2029.58 0 2029.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - APPENDIX B SI UNITS: THERMODYNAMIC TABLES ¥ - 850 172.96 732.20 2039.43 2771.63 2.0709 4.5711 6. (kPa) (◦C) h f h f g hg s f s f g sg - 900 175.38 742.82 2031.12 2773.94 2.0946 4.5280 6. - 950 177.69 753.00 2023.08 2776.08 2.1171 4.4869 6. - 1000 179.91 762.79 2015.29 2778.08 2.1386 4.4478 6. - 1100 184.09 781.32 2000.36 2781.68 2.1791 4.3744 6. - 1200 187.99 798.64 1986.19 2784.82 2.2165 4.3067 6. - 1300 191.64 814.91 1972.67 2787.58 2.2514 4.2438 6. - 1400 195.07 830.29 1959.72 2790.00 2.2842 4.1850 6. - 1500 198.32 844.87 1947.28 2792.15 2.3150 4.1298 6. - 1750 205.76 878.48 1917.95 2796.43 2.3851 4.0044 6. - 2000 212.42 908.77 1890.74 2799.51 2.4473 3.8935 6. - 2250 218.45 936.48 1865.19 2801.67 2.5034 3.7938 6. - 2500 223.99 962.09 1840.98 2803.07 2.5546 3.7028 6. - 2750 229.12 985.97 1817.89 2803.86 2.6018 3.6190 6. - 3000 233.90 1008.41 1795.73 2804.14 2.6456 3.5412 6. - 3250 238.38 1029.60 1774.37 2803.97 2.6866 3.4685 6. - 3500 242.60 1049.73 1753.70 2803.43 2.7252 3.4000 6. - 4000 250.40 1087.29 1714.09 2801.38 2.7963 3.2737 6. - 5000 263.99 1154.21 1640.12 2794.33 2.9201 3.0532 5. - 6000 275.64 1213.32 1571.00 2784.33 3.0266 2.8625 5. - 7000 285.88 1266.97 1505.10 2772.07 3.1210 2.6922 5. - 8000 295.06 1316.61 1441.33 2757.94 3.2067 2.5365 5. - 9000 303.40 1363.23 1378.88 2742.11 3.2857 2.3915 5.
    • 10000 311.06 1407.53 1317.14 2724.67 3.3595 2.2545 5.
    • 11000 318.15 1450.05 1255.55 2705.60 3.4294 2.1233 5.
    • 12000 324.75 1491.24 1193.59 2684.83 3.4961 1.9962 5.
    • 13000 330.93 1531.46 1130.76 2662.22 3.5604 1.8718 5.
    • 14000 336.75 1571.08 1066.47 2637.55 3.6231 1.7485 5.
    • 15000 342.24 1610.45 1000.04 2610.49 3.6847 1.6250 5.
    • 16000 347.43 1650.00 930.59 2580.59 3.7460 1.4995 5.
    • 17000 352.37 1690.25 856.90 2547.15 3.8078 1.3698 5.
    • 18000 357.06 1731.97 777.13 2509.09 3.8713 1.2330 5.
    • 19000 361.54 1776.43 688.11 2464.54 3.9387 1.0841 5.
    • 20000 365.81 1826.18 583.56 2409.74 4.0137 0.9132 4.
    • 21000 369.89 1888.30 446.42 2334.72 4.1073 0.6942 4.
    • 22000 373.80 2034.92 124.04 2158.97 4.3307 0.1917 4.
    • 22089 374.14 2099.26 0 2099.26 4.4297 0 4.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20:
    • TABLE B.1. 784 ¥ APPENDIX B SI UNITS: THERMODYNAMIC TABLES
      • Sat. 14.67355 2437.89 2584.63 8.1501 3.24034 2483.85 2645.87 7. P = 10 kPa (45.81◦C) P = 50 kPa (81.33◦C)
        • 100 17.19561 2515.50 2687.46 8.4479 3.41833 2511.61 2682.52 7. 50 14.86920 2443.87 2592.56 8.1749 — — — —
        • 150 19.51251 2587.86 2782.99 8.6881 3.88937 2585.61 2780.08 7.
        • 200 21.82507 2661.27 2879.52 8.9037 4.35595 2659.85 2877.64 8.
        • 250 24.13559 2735.95 2977.31 9.1002 4.82045 2734.97 2975.99 8.
        • 300 26.44508 2812.06 3076.51 9.2812 5.28391 2811.33 3075.52 8.
        • 400 31.06252 2968.89 3279.51 9.6076 6.20929 2968.43 3278.89 8.
        • 500 35.67896 3132.26 3489.05 9.8977 7.13364 3131.94 3488.62 9.
        • 600 40.29488 3302.45 3705.40 10.1608 8.05748 3302.22 3705.10 9.
        • 700 44.91052 3479.63 3928.73 10.4028 8.98104 3479.45 3928.51 9.
        • 800 49.52599 3663.84 4159.10 10.6281 9.90444 3663.70 4158.92 9.
        • 900 54.14137 3855.03 4396.44 10.8395 10.82773 3854.91 4396.30 10.
      • 1000 58.75669 4053.01 4640.58 11.0392 11.75097 4052.91 4640.46 10.
      • 1100 63.37198 4257.47 4891.19 11.2287 12.67418 4257.37 4891.08 10.
      • 1200 67.98724 4467.91 5147.78 11.4090 13.59737 4467.82 5147.69 10.
      • 1300 72.60250 4683.68 5409.70 14.5810 14.52054 4683.58 5409.61 10.
      • Sat. 1.69400 2506.06 2675.46 7.3593 0.88573 2529.49 2706.63 7. 100 kPa (99.62◦C) 200 kPa (120.23◦C)
        • 150 1.93636 2582.75 2776.38 7.6133 0.95964 2576.87 2768.80 7.
        • 200 2.17226 2658.05 2875.27 7.8342 1.08034 2654.39 2870.46 7.
        • 250 2.40604 2733.73 2974.33 8.0332 1.19880 2731.22 2970.98 7.
        • 300 2.63876 2810.41 3074.28 8.2157 1.31616 2808.55 3071.79 7.
        • 400 3.10263 2967.85 3278.11 8.5434 1.54930 2966.69 3276.55 8.
        • 500 3.56547 3131.54 3488.09 8.8341 1.78139 3130.75 3487.03 8.
        • 600 4.02781 3301.94 3704.72 9.0975 2.01297 3301.36 3703.96 8.
        • 700 4.48986 3479.24 3928.23 9.3398 2.24426 3478.81 3927.66 9.
        • 800 4.95174 3663.53 4158.71 9.5652 2.47539 3663.19 4158.27 9.
        • 900 5.41353 3854.77 4396.12 9.7767 2.70643 3854.49 4395.77 9.
      • 1000 5.87526 4052.78 4640.31 9.9764 2.93740 4052.53 4640.01 9.
      • 1100 6.33696 4257.25 4890.95 10.1658 3.16834 4257.01 4890.68 9.
      • 1200 6.79863 4467.70 5147.56 10.3462 3.39927 4467.46 5147.32 10.
      • 1300 7.26030 4683.47 5409.49 10.5182 3.63018 4683.23 5409.26 10.
      • Sat. 0.60582 2543.55 2725.30 6.9918 0.46246 2553.55 2738.53 6. 300 kPa (133.55◦C) 400 kPa (143.63◦C)
        • 150 0.63388 2570.79 2760.95 7.0778 0.47084 2564.48 2752.82 6.
        • 200 0.71629 2650.65 2865.54 7.3115 0.53422 2646.83 2860.51 7.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - APPENDIX B SI UNITS: THERMODYNAMIC TABLES ¥ - 250 0.79636 2728.69 2967.59 7.5165 0.59512 2726.11 2964.16 7. 300 kPa (133.55◦C) 400 kPa (143.63◦C) - 300 0.87529 2806.69 3069.28 7.7022 0.65484 2804.81 3066.75 7. - 400 1.03151 2965.53 3274.98 8.0329 0.77262 2964.36 3273.41 7. - 500 1.18669 3129.95 3485.96 8.3250 0.88934 3129.15 3484.89 8. - 600 1.34136 3300.79 3703.20 8.5892 1.00555 3300.22 3702.44 8. - 700 1.49573 3478.38 3927.10 8.8319 1.12147 3477.95 3926.53 8. - 800 1.64994 3662.85 4157.83 9.0575 1.23722 3662.51 4157.40 8. - 900 1.80406 3854.20 4395.42 9.2691 1.35288 3853.91 4395.06 9.
    • 1000 1.95812 4052.27 4639.71 9.4689 1.46847 4052.02 4639.41 9.
    • 1100 2.11214 4256.77 4890.41 9.6585 1.58404 4256.53 4890.15 9.
    • 1200 2.26614 4467.23 5147.07 9.8389 1.69958 4466.99 5146.83 9.
    • 1300 2.42013 4682.99 5409.03 10.0109 1.81511 4682.75 5408.80 9.
    • Sat. 0.37489 2561.23 2748.67 6.8212 0.31567 2567.40 2756.80 6. 500 kPa (15 1.86◦C) 600 kPa (158.85◦C)
      • 200 0.42492 2642.91 2855.37 7.0592 0.35202 2638.91 2850.12 6.
      • 250 0.47436 2723.50 2960.68 7.2708 0.39383 2720.86 2957.16 7.
      • 300 0.52256 2802.91 3064.20 7.4598 0.43437 2801.00 3061.63 7.
      • 350 0.57012 2882.59 3167.65 7.6328 0.47424 2881.12 3165.66 7.
      • 400 0.61728 2963.19 3271.83 7.7937 0.51372 2962.02 3270.25 7.
      • 500 0.71093 3128.35 3483.82 8.0872 0.59199 3127.55 3482.75 8.
      • 600 0.80406 3299.64 3701.67 8.3521 0.66974 3299.07 3700.91 8.
      • 700 0.89691 3477.52 3925.97 8.5952 0.74720 3477.08 3925.41 8.
      • 800 0.98959 3662.17 4156.96 8.8211 0.82450 3661.83 4156.52 8.
      • 900 1.08217 3853.63 4394.71 9.0329 0.90169 3853.34 4394.36 8.
    • 1000 1.17469 4051.76 4639.11 9.2328 0.97883 4051.51 4638.81 9.
    • 1100 1.26718 4256.29 4889.88 9.4224 1.05594 4256.05 4889.61 9.
    • 1200 1.35964 4466.76 5146.58 9.6028 1.13302 4466.52 5146.34 9.
    • 1300 1.45210 4682.52 5408.57 9.7749 1.21009 4682.28 5408.34 9.
    • Sat. 0.24043 2576.79 2769.13 6.6627 0.19444 2583.64 2778.08 6. 800 kPa (170.43◦C) 1000 kPa (179.91◦C)
      • 200 0.26080 2630.61 2839.25 6.8158 0.20596 2621.90 2827.86 6.
      • 250 0.29314 2715.46 2949.97 7.0384 0.23268 2709.91 2942.59 6.
      • 300 0.32411 2797.14 3056.43 7.2327 0.25794 2793.21 3051.15 7.
      • 350 0.35439 2878.16 3161.68 7.4088 0.28247 2875.18 3157.65 7.
      • 400 0.38426 2959.66 3267.07 7.5715 0.30659 2957.29 3263.88 7.
      • 500 0.44331 3125.95 3480.60 7.8672 0.35411 3124.34 3478.44 7.
      • 600 0.50184 3297.91 3699.38 8.1332 0.40109 3296.76 3697.85 8.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - 700 0.56007 3476.22 3924.27 8.3770 0.44779 3475.35 3923.14 8. 800 kPa (170.43◦C) 1000 kPa (179.91◦C) - 800 0.61813 3661.14 4155.65 8.6033 0.49432 3660.46 4154.78 8. - 900 0.67610 3852.77 4393.65 8.8153 0.54075 3852.19 4392.94 8.
    • 1000 0.73401 4051.00 4638.20 9.0153 0.58712 4050.49 4637.60 8.
    • 1100 0.79188 4255.57 4889.08 9.2049 0.63345 4255.09 4888.55 9.
    • 1200 0.84974 4466.05 5145.85 9.3854 0.67977 4465.58 5145.36 9.
    • 1300 0.90758 4681.81 5407.87 9.5575 0.72608 4681.33 5407.41 9.
    • Sat. 0.16333 2588.82 2784.82 6.5233 0.14084 2592.83 2790.00 6. 1200 kPa (187.99◦C) 1400 kPa (195.07◦C)
      • 200 0.16930 2612.74 2815.90 6.5898 0.14302 2603.09 2803.32 6.
      • 250 0.19235 2704.20 2935.01 6.8293 0.16350 2698.32 2927.22 6.
      • 300 0.21382 2789.22 3045.80 7.0316 0.18228 2785.16 3040.35 6.
      • 350 0.23452 2872.16 3153.59 7.2120 0.20026 2869.12 3149.49 7.
      • 400 0.25480 2954.90 3260.66 7.3773 0.21780 2952.50 3257.42 7.
      • 500 0.29463 3122.72 3476.28 7.6758 0.25215 3121.10 3474.11 7.
      • 600 0.33393 3295.60 3696.32 7.9434 0.28596 3294.44 3694.78 7.
      • 700 0.37294 3474.48 3922.01 8.1881 0.31947 3473.61 3920.87 8.
      • 800 0.41177 3659.77 4153.90 8.4149 0.35281 3659.09 4153.03 8.
      • 900 0.45051 3851.62 4392.23 8.6272 0.38606 3851.05 4391.53 8.
    • 1000 0.48919 4049.98 4637.00 8.8274 0.41924 4049.47 4636.41 8.
    • 1100 0.52783 4254.61 4888.02 9.0171 0.45239 4254.14 4887.49 8.
    • 1200 0.56646 4465.12 5144.87 9.1977 0.48552 4464.65 5144.38 9.
    • 1300 0.60507 4680.86 5406.95 9.3698 0.51864 4680.39 5406.49 9.
    • Sat. 0.12380 2595.95 2794.02 6.4217 0.11042 2598.38 2797.13 6. 1600 kPa (201.40)◦C) 1800 kPa (207.15◦C)
      • 250 0.14184 2692.26 2919.20 6.6732 0.12497 2686.02 2910.96 6.
      • 300 0.15862 2781.03 3034.83 6.8844 0.14021 2776.83 3029.21 6.
      • 350 0.17456 2866.05 3145.35 7.0693 0.15457 2862.95 3141.18 7.
      • 400 0.19005 2950.09 3254.17 7.2373 0.16847 2947.66 3250.90 7.
      • 500 0.22029 3119.47 3471.93 7.5389 0.19550 3117.84 3469.75 7.
      • 600 0.24998 3293.27 3693.23 7.8080 0.22199 3292.10 3691.69 7.
      • 700 0.27937 3472.74 3919.73 8.0535 0.24818 3471.87 3918.59 7.
      • 800 0.30859 3658.40 4152.15 8.2808 0.27420 3657.71 4151.27 8.
      • 900 0.33772 3850.47 4390.82 8.4934 0.30012 3849.90 4390.11 8.
    • 1000 0.36678 4048.96 4635.81 8.6938 0.32598 4048.45 4635.21 8.
    • 1100 0.39581 4253.66 4886.95 8.8837 0.35180 4253.18 4886.42 8.
    • 1200 0.42482 4464.18 5143.89 9.0642 0.37761 4463.71 5143.40 9.
    • 1300 0.45382 4679.92 5406.02 9.2364 0.40340 4679.44 5405.56 9.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - APPENDIX B SI UNITS: THERMODYNAMIC TABLES ¥
    • Sat. 0.09963 2600.26 2799.51 6.3408 0.07998 2603.13 2803.07 6. 2000 kPa (212.42◦C) 2500 kPa (223.99◦C)
      • 250 0.11144 2679.58 2902.46 6.5452 0.08700 2662.55 2880.06 6.
      • 300 0.12547 2772.56 3023.50 6.7663 0.09890 2761.56 3008.81 6.
      • 350 0.13857 2859.81 3136.96 6.9562 0.10976 2851.84 3126.24 6.
      • 400 0.15120 2945.21 3247.60 7.1270 0.12010 2939.03 3239.28 7.
      • 450 0.16353 3030.41 3357.48 7.2844 0.13014 3025.43 3350.77 7.
      • 500 0.17568 3116.20 3467.55 7.4316 0.13998 3112.08 3462.04 7.
      • 600 0.19960 3290.93 3690.14 7.7023 0.15930 3287.99 3686.25 7.
      • 700 0.22323 3470.99 3917.45 7.9487 0.17832 3468.80 3914.59 7.
      • 800 0.24668 3657.03 4150.40 8.1766 0.19716 3655.30 4148.20 8.
      • 900 0.27004 3849.33 4389.40 8.3895 0.21590 3847.89 4387.64 8.
    • 1000 0.29333 4047.94 4634.61 8.5900 0.23458 4046.67 4633.12 8.
    • 1100 0.31659 4252.71 4885.89 8.7800 0.25322 4251.52 4884.57 8.
    • 1200 0.33984 4463.25 5142.92 8.9606 0.27185 4462.08 5141.70 8.
    • 1300 0.36306 4678.97 5405.10 9.1328 0.29046 4677.80 5403.95 9.
    • Sat. 0.06668 2604.10 2804.14 6.1869 0.04978 2602.27 2801.38 6. 3000 kPa (233.90◦C) 4000 kPa (250.40◦C)
      • 300 0.08114 2750.05 2993.48 6.5389 0.05884 2725.33 2960.68 6. 250 0.07058 2644.00 2855.75 6.2871 — — — —
      • 350 0.09053 2843.66 3115.25 6.7427 0.06645 2826.65 3092.43 6.
      • 400 0.09936 2932.75 3230.82 6.9211 0.07341 2919.88 3213.51 6.
      • 450 0.10787 3020.38 3344.00 7.0833 0.08003 3010.13 3330.23 6.
      • 500 0.11619 3107.92 3456.48 7.2337 0.08643 3099.49 3445.21 7.
      • 600 0.13243 3285.03 3682.34 7.5084 0.09885 3279.06 3674.44 7.
      • 700 0.14838 3466.59 3911.72 7.7571 0.11095 3462.15 3905.94 7.
      • 800 0.16414 3653.58 4146.00 7.9862 0.12287 3650.11 4141.59 7.
      • 900 0.17980 3846.46 4385.87 8.1999 0.13469 3843.59 4382.34 8.
    • 1000 0.19541 4045.40 4631.63 8.4009 0.14645 4042.87 4628.65 8.
    • 1100 0.21098 4250.33 4883.26 8.5911 0.15817 4247.96 4880.63 8.
    • 1200 0.22652 4460.92 5140.49 8.7719 0.16987 4458.60 5138.07 8.
    • 1300 0.24206 4676.63 5402.81 8.9442 0.18156 4674.29 5400.52 8.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20:
    • Sat. 0.03944 2597.12 2794.33 5.9733 0.03244 2589.69 2784.33 5. 5000 kPa (263.99◦C) 6000 kPa (275.64◦C)
      • 300 0.04532 2697.94 2924.53 6.2083 0.03616 2667.22 2884.19 6.
      • 350 0.05194 2808.67 3068.39 6.4492 0.04223 2789.61 3042.97 6.
      • 400 0.05781 2906.58 3195.64 6.6458 0.04739 2892.81 3177.17 6.
      • 450 0.06330 2999.64 3316.15 6.8185 0.05214 2988.90 3301.76 6.
      • 500 0.06857 3090.92 3433.76 6.9758 0.05665 3082.20 3422.12 6.
      • 550 0.07368 3181.82 3550.23 7.1217 0.06101 3174.57 3540.62 7.
      • 600 0.07869 3273.01 3666.47 7.2588 0.06525 3266.89 3658.40 7.
      • 700 0.08849 3457.67 3900.13 7.5122 0.07352 3453.15 3894.28 7.
      • 800 0.09811 3646.62 4137.17 7.7440 0.08160 3643.12 4132.74 7.
      • 900 0.10762 3840.71 4378.82 7.9593 0.08958 3837.84 4375.29 7.
    • 1000 0.11707 4040.35 4625.69 8.1612 0.09749 4037.83 4622.74 8.
    • 1100 0.12648 4245.61 4878.02 8.3519 0.10536 4243.26 4875.42 8.
    • 1200 0.13587 4456.30 5135.67 8.5330 0.11321 4454.00 5133.28 8.
    • 1300 0.14526 4671.96 5398.24 8.7055 0.12106 4669.64 5395.97 8.
    • Sat. 0.02352 2569.79 2757.94 5.7431 0.01803 2544.41 2724.67 5. 8000 kPa (295.06◦C) 10000 kPa (311.06◦C)
      • 350 0.02995 2747.67 2987.30 6.1300 0.02242 2699.16 2923.39 5. 300 0.02426 2590.93 2784.98 5.7905 — — — —
      • 400 0.03432 2863.75 3138.28 6.3633 0.02641 2832.38 3096.46 6.
      • 450 0.03817 2966.66 3271.99 6.5550 0.02975 2943.32 3240.83 6.
      • 500 0.04175 3064.30 3398.27 6.7239 0.03279 3045.77 3373.63 6.
      • 550 0.04516 3159.76 3521.01 6.8778 0.03564 3144.54 3500.92 6.
      • 600 0.04845 3254.43 3642.03 7.0205 0.03837 3241.68 3625.34 6.
      • 700 0.05481 3444.00 3882.47 7.2812 0.04358 3434.72 3870.52 7.
      • 800 0.06097 3636.08 4123.84 7.5173 0.04859 3628.97 4114.91 7.
      • 900 0.06702 3832.08 4368.26 7.7350 0.05349 3826.32 4361.24 7.
    • 1000 0.07301 4032.81 4616.87 7.9384 0.05832 4027.81 4611.04 7.
    • 1100 0.07896 4238.60 4870.25 8.1299 0.06312 4233.97 4865.14 8.
    • 1200 0.08489 4449.45 5128.54 8.3115 0.06789 4444.93 5123.84 8.
    • 1300 0.09080 4665.02 5391.46 8.4842 0.07265 4660.44 5386.99 8.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - APPENDIX B SI UNITS: THERMODYNAMIC TABLES ¥
    • Sat. 0.01034 2455.43 2610.49 5.3097 0.00583 2293.05 2409.74 4. 15000 kPa (342.24◦C) 20000 kPa (365.81◦C)
      • 400 0.01565 2740.70 2975.44 5.8810 0.00994 2619.22 2818.07 5. 350 0.01147 2520.36 2692.41 5.4420 — — — —
      • 450 0.01845 2879.47 3156.15 6.1403 0.01270 2806.16 3060.06 5.
      • 500 0.02080 2996.52 3308.53 6.3442 0.01477 2942.82 3238.18 6.
      • 550 0.02293 3104.71 3448.61 6.5198 0.01656 3062.34 3393.45 6.
      • 600 0.02491 3208.64 3582.30 6.6775 0.01818 3174.00 3537.57 6.
      • 650 0.02680 3310.37 3712.32 6.8223 0.01969 3281.46 3675.32 6.
      • 700 0.02861 3410.94 3840.12 6.9572 0.02113 3386.46 3809.09 6.
      • 800 0.03210 3610.99 4092.43 7.2040 0.02385 3592.73 4069.80 7.
      • 900 0.03546 3811.89 4343.75 7.4279 0.02645 3797.44 4326.37 7.
    • 1000 0.03875 4015.41 4596.63 7.6347 0.02897 4003.12 4582.45 7.
    • 1100 0.04200 4222.55 4852.56 7.8282 0.03145 4211.30 4840.24 7.
    • 1200 0.04523 4433.78 5112.27 8.0108 0.03391 4422.81 5100.96 7.
    • 1300 0.04845 4649.12 5375.94 8.1839 0.03636 4637.95 5365.10 8.
      • 375 0.001789 1737.75 1791.43 3.9303 0.001641 1677.09 1742.71 3. 30000 kPa 40000 kPa
      • 400 0.002790 2067.34 2151.04 4.4728 0.001908 1854.52 1930.83 4.
      • 425 0.005304 2455.06 2614.17 5.1503 0.002532 2096.83 2198.11 4.
      • 450 0.006735 2619.30 2821.35 5.4423 0.003693 2365.07 2512.79 4.
      • 500 0.008679 2820.67 3081.03 5.7904 0.005623 2678.36 2903.26 5.
      • 550 0.010168 2970.31 3275.36 6.0342 0.006984 2869.69 3149.05 5.
      • 600 0.011446 3100.53 3443.91 6.2330 0.008094 3022.61 3346.38 6.
      • 650 0.012596 3221.04 3598.93 6.4057 0.009064 3158.04 3520.58 6.
      • 700 0.013661 3335.84 3745.67 6.5606 0.009942 3283.63 3681.29 6.
      • 800 0.015623 3555.60 4024.31 6.8332 0.011523 3517.89 3978.80 6.
      • 900 0.017448 3768.48 4291.93 7.0717 0.012963 3739.42 4257.93 6.
    • 1000 0.019196 3978.79 4554.68 7.2867 0.014324 3954.64 4527.59 7.
    • 1100 0.020903 4189.18 4816.28 7.4845 0.015643 4167.38 4793.08 7.
    • 1200 0.022589 4401.29 5078.97 7.6691 0.016940 4380.11 5057.72 7.
    • 1300 0.024266 4615.96 5343.95 7.8432 0.018229 4594.28 5323.45 7.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20:
    • TABLE B.1. 790 ¥ APPENDIX B SI UNITS: THERMODYNAMIC TABLES
      • Sat. 0.001093 639.66 640.21 1.8606 0.001177 906.42 908.77 2. 500 kPa (151.86◦C) 2000 kPa (212.42◦C) - 0.01 0.000999 0.01 0.51 0.0000 0.000999 0.03 2.03 0.
        • 20 0.001002 83.91 84.41 0.2965 0.001001 83.82 85.82.
        • 40 0.001008 167.47 167.98 0.5722 0.001007 167.29 169.30.
        • 60 0.001017 251.00 251.51 0.8308 0.001016 250.73 252.77.
        • 80 0.001029 334.73 335.24 1.0749 0.001028 334.38 336.44 1.
      • 100 0.001043 418.80 419.32 1.3065 0.001043 418.36 420.45 1.
      • 120 0.001060 503.37 503.90 1.5273 0.001059 502.84 504.96 1.
      • 140 0.001080 588.66 589.20 1.7389 0.001079 588.02 590.18 1.
      • 160 — — — — 0.001101 674.14 676.34 1.
      • 180 — — — — 0.001127 761.46 763.71 2.
      • 200 — — — — 0.001156 850.30 852.61 2.
      • Sat 0.001286 1147.78 1154.21 2.9201 0.001452 1393.00 1407.53 3. 5000 kPa (263.99◦C) 10000 kPa (311.06◦C) - 0 0.000998 0.03 5.02 0.0001 0.000995 0.10 10.05 0.
        • 20 0.001000 83.64 88.64 0.2955 0.000997 83.35 93.32 0.
        • 40 0.001006 166.93 171.95 0.5705 0.001003 166.33 176.36 0.
        • 60 0.001015 250.21 255.28 0.8284 0.001013 249.34 259.47 0.
        • 80 0.001027 333.69 338.83 1.0719 0.001025 332.56 342.81 1.
      • 100 0.001041 417.50 422.71 1.3030 0.001039 416.09 426.48 1.
      • 120 0.001058 501.79 507.07 1.5232 0.001055 500.07 510.61 1.
      • 140 0.001077 586.74 592.13 1.7342 0.001074 584.67 595.40 1.
      • 160 0.001099 672.61 678.10 1.9374 0.001195 670.11 681.07 1.
      • 180 0.001124 759.62 765.24 2.1341 0.001120 756.63 767.83 2.
      • 200 0.001153 848.08 853.85 2.3254 0.001148 844.49 855.97 2.
      • 220 0.001187 938.43 944.36 2.5128 0.001181 934.07 945.88 2.
      • 240 0.001226 1031.34 1037.47 2.6978 0.001219 1025.94 1038.13 2.
      • 260 0.001275 1127.92 1134.30 2.8829 0.001265 1121.03 1133.68 2.
      • 280 0.001322 1220.90 1234.11 3.
      • 300 0.001397 1328.34 1342.31 3.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - APPENDIX B SI UNITS: THERMODYNAMIC TABLES ¥
    • Sat. 0.001658 1585.58 1610.45 3.6847 0.002035 1785.47 1826.18 4. 15000 kPa (342.24◦C) 20000 kPa (365.81◦C) - 0 0.000993 0.15 15.04 0.0004 0.000990 0.20 20.00 0.
      • 20 0.000995 83.05 97.97 0.2934 0.000993 82.75 102.61 0.
      • 40 0.001001 165.73 180.75 0.5665 0.000999 165.15 185.14 0.
      • 60 0.001011 248.49 263.65 0.8231 0.001008 247.66 267.82 0.
      • 80 0.001022 331.46 346.79 1.0655 0.001020 330.38 350.78 1.
    • 100 0.001036 414.72 430.26 1.2954 0.001034 413.37 434.04 1.
    • 120 0.001052 498.39 514.17 1.5144 0.001050 496.75 517.74 1.
    • 140 0.001071 582.64 598.70 1.7241 0.001068 580.67 602.03 1.
    • 160 0.001092 667.69 684.07 1.9259 0.001089 665.34 687.11 1.
    • 180 0.001116 753.74 770.48 2.1209 0.001112 750.94 773.18 2.
    • 200 0.001143 841.04 858.18 2.3103 0.001139 837.70 860.47 2.
    • 220 0.001175 929.89 947.52 2.4952 0.001169 925.89 949.27 2.
    • 240 0.001211 1020.82 1038.99 2.6770 0.001205 1015.94 1040.04 2.
    • 260 0.001255 1114.59 1133.41 2.8575 0.001246 1108.53 1133.45 2.
    • 280 0.001308 1212.47 1232.09 3.0392 0.001297 1204.69 1230.62 3.
    • 300 0.001377 1316.58 1337.23 3.2259 0.001360 1306.10 1333.29 3.
    • 320 0.001472 1431.05 1453.13 3.4246 0.001444 1415.66 1444.53 3.
    • 340 0.001631 1567.42 1591.88 3.6545 0.001568 1539.64 1571.01 3.
    • 360 0.001823 1702.78 1739.23 3. - 0 0.000986 0.25 29.82 0.0001 0.000977 0.20 49.03 −0. 30000 kPa 50000 kPa
      • 20 0.000989 82.16 111.82 0.2898 0.000980 80.98 130.00 0.
      • 40 0.000995 164.01 193.87 0.5606 0.000987 161.84 211.20 0.
      • 60 0.001004 246.03 276.16 0.8153 0.000996 242.96 292.77 0.
      • 80 0.001016 328.28 358.75 1.0561 0.001007 324.32 374.68 1.
    • 100 0.001029 410.76 441.63 1.2844 0.001020 405.86 456.87 1.
    • 120 0.001044 493.58 524.91 1.5017 0.001035 487.63 539.37 1.
    • 140 0.001062 576.86 608.73 1.7097 0.001052 569.76 622.33 1.
    • 160 0.001082 660.81 693.27 1.9095 0.001070 652.39 705.91 1.
    • 180 0.001105 745.57 778.71 2.1024 0.001091 735.68 790.24 2.
    • 200 0.001130 831.34 865.24 2.2892 0.001115 819.73 875.46 2.
    • 220 0.001159 918.32 953.09 2.4710 0.001141 904.67 961.71 2.
    • 240 0.001192 1006.84 1042.60 2.6489 0.001170 990.69 1049.20 2.
    • 260 0.001230 1097.38 1134.29 2.8242 0.001203 1078.06 1138.23 2.
    • 280 0.001275 1190.69 1228.96 2.9985 0.001242 1167.19 1229.26 2.
    • 300 0.001330 1287.89 1327.80 3.1740 0.001286 1258.66 1322.95 3.
    • 320 0.001400 1390.64 1432.63 3.3538 0.001339 1353.23 1420.17 3.
    • 340 0.001492 1501.71 1546.47 3.5425 0.001403 1451.91 1522.07 3.
    • 360 0.001627 1626.57 1675.36 3.7492 0.001484 1555.97 1630.16 3.
    • 380 0.001869 1781.35 1837.43 4.0010 0.001588 1667.13 1746.54 3.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20:
    • TABLE B.1. 792 ¥ APPENDIX B SI UNITS: THERMODYNAMIC TABLES
      • 0.01 0.6113 0.0010908 206.152 206.153 −333.40 2708.7 2375. (◦C) (kPa) vi vi g vg ui ui g ug - 0 0.6108 0.0010908 206.314 206.315 −333.42 2708.7 2375.
        • − 2 0.5177 0.0010905 241.662 241.663 −337.61 2710.2 2372.
        • − 4 0.4376 0.0010901 283.798 283.799 −341.78 2711.5 2369.
        • − 6 0.3689 0.0010898 334.138 334.139 −345.91 2712.9 2367.
        • − 8 0.3102 0.0010894 394.413 394.414 −350.02 2714.2 2364.
      • − 10 0.2601 0.0010891 466.756 466.757 −354.09 2715.5 2361.
      • − 12 0.2176 0.0010888 553.802 553.803 −358.14 2716.8 2358.
      • − 14 0.1815 0.0010884 658.824 658.824 −362.16 2718.0 2355.
      • − 16 0.1510 0.0010881 785.906 785.907 −366.14 2719.2 2353.
      • − 18 0.1252 0.0010878 940.182 940.183 −370.10 2720.4 2350.
      • − 20 0.10355 0.0010874 1128.112 1128.113 −374.03 2721.6 2347.
      • − 22 0.08535 0.0010871 1357.863 1357.864 −377.93 2722.7 2344.
      • − 24 0.07012 0.0010868 1639.752 1639.753 −381.80 2723.7 2342.
      • − 26 0.05741 0.0010864 1986.775 1986.776 −385.64 2724.8 2339.
      • − 28 0.04684 0.0010861 2415.200 2415.201 −389.45 2725.8 2336.
      • − 30 0.03810 0.0010858 2945.227 2945.228 −393.23 2726.8 2333.
      • − 32 0.03090 0.0010854 3601.822 3601.823 −396.98 2727.8 2330.
      • − 34 0.02499 0.0010851 4416.252 4416.253 −400.71 2728.7 2328.
      • − 36 0.02016 0.0010848 5430.115 5430.116 −404.40 2729.6 2325.
      • − 38 0.01618 0.0010844 6707.021 6707.022 −408.06 2730.5 2322.
      • − 40 0.01286 0.0010841 8366.395 8366.396 −411.70 2731.3 2319.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20: - APPENDIX B SI UNITS: THERMODYNAMIC TABLES ¥
    • 0.01 0.6113 −333.40 2834.7 2501.3 −1.2210 10.3772 9. (◦C) (kPa) hi hi g hg si si g sg - 0 0.6108 −333.42 2834.8 2501.3 −1.2211 10.3776 9.
      • − 2 0.5177 −337.61 2835.3 2497.6 −1.2369 10.4562 9.
      • − 4 0.4376 −341.78 2835.7 2494.0 −1.2526 10.5358 9.
      • − 6 0.3689 −345.91 2836.2 2490.3 −1.2683 10.6165 9.
      • − 8 0.3102 −350.02 2836.6 2486.6 −1.2839 10.6982 9.
    • − 10 0.2601 −354.09 2837.0 2482.9 −1.2995 10.7809 9.
    • − 12 0.2176 −358.14 2837.3 2479.2 −1.3150 10.8648 9.
    • − 14 0.1815 −362.16 2837.6 2475.5 −1.3306 10.9498 9.
    • − 16 0.1510 −366.14 2837.9 2471.8 −1.3461 11.0359 9.
    • − 18 0.1252 −370.10 2838.2 2468.1 −1.3617 11.1233 9.
    • − 20 0.10355 −374.03 2838.4 2464.3 −1.3772 11.2120 9.
    • − 22 0.08535 −377.93 2838.6 2460.6 −1.3928 11.3020 9.
    • − 24 0.07012 −381.80 2838.7 2456.9 −1.4083 11.3935 9.
    • − 26 0.05741 −385.64 2838.9 2453.2 −1.4239 11.4864 10.
    • − 28 0.04684 −389.45 2839.0 2449.5 −1.4394 11.5808 10.
    • − 30 0.03810 −393.23 2839.0 2445.8 −1.4550 11.6765 10.
    • − 32 0.03090 −396.98 2839.1 2442.1 −1.4705 11.7733 10.
    • − 34 0.02499 −400.71 2839.1 2438.4 −1.4860 11.8713 10.
    • − 36 0.02016 −404.40 2839.1 2434.7 −1.5014 11.9704 10.
    • − 38 0.01618 −408.06 2839.0 2431.0 −1.5168 12.0714 10.
    • − 40 0.01286 −411.70 2838.9 2427.2 −1.5321 12.1768 10.
  • GTBL057-appb GTBL057-Borgnakke-v7 June 2, 2008 20:
    • TABLE B. 794 ¥ APPENDIX B SI UNITS: THERMODYNAMIC TABLES
    • TABLE B.2. Thermodynamic Properties of Ammonia
      • − 50 40.9 0.001424 2.62557 2.62700 −43.82 1309.1 1265. (◦C) (kPa) v f v f g vg u f u f g ug
      • − 45 54.5 0.001437 2.00489 2.00632 −22.01 1293.5 1271.
      • − 40 71.7 0.001450 1.55111 1.55256 −0.10 1277.6 1277.
      • − 35 93.2 0.001463 1.21466 1.21613 21.93 1261.3 1283.
      • − 30 119.5 0.001476 0.96192 0.96339 44.08 1244.8 1288.
      • − 25 151.6 0.001490 0.76970 0.77119 66.36 1227.9 1294.
      • − 20 190.2 0.001504 0.62184 0.62334 88.76 1210.7 1299.
      • − 15 236.3 0.001519 0.50686 0.50838 111.30 1193.2 1304.
      • − 10 290.9 0.001534 0.41655 0.41808 133.96 1175.2 1309. - − 5 354.9 0.001550 0.34493 0.34648 156.76 1157.0 1313. - 0 429.6 0.001566 0.28763 0.28920 179.69 1138.3 1318. - 5 515.9 0.001583 0.24140 0.24299 202.77 1119.2 1322. - 10 615.2 0.001600 0.20381 0.20541 225.99 1099.7 1325. - 15 728.6 0.001619 0.17300 0.17462 249.36 1079.7 1329. - 20 857.5 0.001638 0.14758 0.14922 272.89 1059.3 1332. - 25 1003.2 0.001658 0.12647 0.12813 296.59 1038.4 1335. - 30 1167.0 0.001680 0.10881 0.11049 320.46 1016.9 1337. - 35 1350.4 0.001702 0.09397 0.09567 344.50 994.9 1339. - 40 1554.9 0.001725 0.08141 0.08313 368.74 972.2 1341. - 45 1782.0 0.001750 0.07073 0.07248 393.19 948.9 1342. - 50 2033.1 0.001777 0.06159 0.06337 417.87 924.8 1342. - 55 2310.1 0.001804 0.05375 0.05555 442.79 899.9 1342. - 60 2614.4 0.001834 0.04697 0.04880 467.99 874.2 1342. - 65 2947.8 0.001866 0.04109 0.04296 493.51 847.4 1340. - 70 3312.0 0.001900 0.03597 0.03787 519.39 819.5 1338. - 75 3709.0 0.001937 0.03148 0.03341 545.70 790.4 1336. - 80 4140.5 0.001978 0.02753 0.02951 572.50 759.9 1332. - 85 4608.6 0.002022 0.02404 0.02606 599.90 727.8 1327. - 90 5115.3 0.002071 0.02093 0.02300 627.99 693.7 1321. - 95 5662.9 0.002126 0.01815 0.02028 656.95 657.4 1314.
        • 100 6253.7 0.002188 0.01565 0.01784 686.96 618.4 1305.
        • 105 6890.4 0.002261 0.01337 0.01564 718.30 575.9 1294.
        • 110 7575.7 0.002347 0.01128 0.01363 751.37 529.1 1280.
        • 115 8313.3 0.002452 0.00933 0.01178 786.82 476.2 1263.
        • 120 9107.2 0.002589 0.00744 0.01003 825.77 414.5 1240.
        • 125 9963.5 0.002783 0.00554 0.00833 870.69 337.7 1208.
        • 130 10891.6 0.003122 0.00337 0.00649 929.29 226.9 1156.
        • 132.3 11333.2 0.004255 0 0.00426 1037.62 0 1037.
