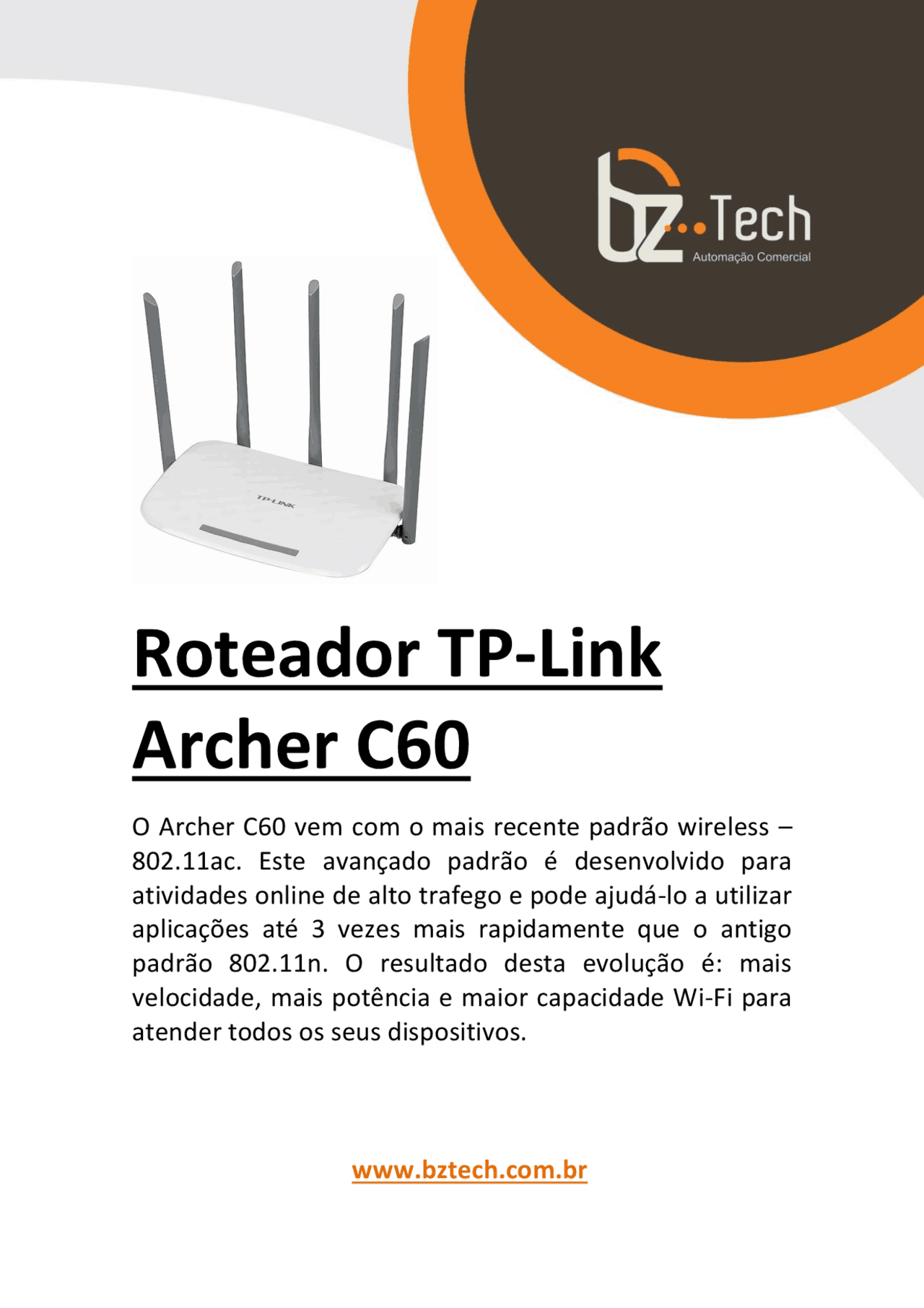

Roteador TP-Link
Archer C
O Archer C60 vem com o mais recente padrão wireless –
802.11ac. Este avançado padrão é desenvolvido para
atividades online de alto trafego e pode ajudá-lo a utilizar
aplicações até 3 vezes mais rapidamente que o antigo
padrão 802.11n. O resultado desta evolução é: mais
velocidade, mais potência e maior capacidade Wi-Fi para
atender todos os seus dispositivos.
www.bztech.com.br
REV2.0.0 1910012074 User Guide
AC1350 Wireless Dual Band Router
Archer C
- About This Guide
- Chapter 1. Get to Know About Your Router
- Product Overview.
- Panel Layout.
- The Front Panel
- The Back Panel.
- Chapter 2. Connect the Hardware
- Position Your Router
- Connect Your Router.
- Chapter 3. Log In to Your Router.
- Chapter 4. Set Up Internet Connection
- Use Quick Setup Wizard
- Manually Set Up Your Internet Connection
- Set Up an IPv6 Internet Connection
- Chapter 5. TP-Link Cloud Service
- Register a TP-Link ID.
- Change Your TP-Link ID Information.
- Manage the User TP-Link IDs
- Add TP-Link ID to Manage the Router
- Remove TP-Link ID(s) from Managing the Router
- Manage the Router via the TP-Link Tether App
- Install the Tether App on Your Smartphones or Tablets.
- Locally Manage Your Router Using the Tether App
- Remotely Manage Your Router Using the Tether App
- Chapter 6. Guest Network.
- Create a Network for Guests
- Customize Guest Network Options.
- Chapter 7. Parental Controls
- Chapter 8. QoS.
- Prioritize Internet Traffic with QoS
- Chapter 9. Network Security
- Protect the Network from Cyber Attacks
- Access Control
- IP & MAC Binding
- Chapter 10. NAT Forwarding.
- Share Local Resources on the Internet by Virtual Servers.
- Open Ports Dynamically by Port Triggering
- Make Applications Free from Port Restriction by DMZ
- Make Xbox Online Games Run Smoothly by UPnP
- Chapter 11. VPN Server
- Use OpenVPN to Access Your Home Network
- Step1. Set up OpenVPN Server on Your Router
- Step 2. Configure OpenVPN Connection on Your Remote Device
- Use PPTP VPN to Access Your Home Network
- Step 1. Set up PPTP VPN Server on Your Router
- Step 2. Configure PPTP VPN Connection on Your Remote Device.
- Chapter 12. Customize Your Network Settings.
- Change the LAN Settings
- Configure to Support IPTV Service.
- Specify DHCP Server Settings
- Set Up a Dynamic DNS Service Account
- Create Static Routes.
- Specify Wireless Settings.
- Use WPS for Wireless Connection
- Set the Router’s PIN.
- Use the WPS Wizard for Wi-Fi Connections.
- Chapter 13. Manage the Router
- Set Up System Time
- Control LEDs
- Test the Network Connectivity
- Upgrade the Firmware
- Online Upgrade
- Manual Upgrade
- Restore Interrupted Upgrade After Power Failure
- Backup and Restore Configuration Settings
- Change the Administrator Account.
- Password Recovery.
- Local Management
- Remote Management
- System Log.
- Monitor the Internet Traffic Statistics.
- FAQ
Chapter 1 Get to Know About Your Router This chapter introduces what the router can do and shows its appearance. It contains the following sections:
- Product Overview
- Panel Layout
3
Chapter 1. Get to Know About Your Router
- Product Overview The TP-Link router is designed to fully meet the need of Small Office/Home Office (SOHO) networks and users demanding higher networking performance. The powerful antennas ensure continuous Wi-Fi signal to all your devices while boosting widespread coverage throughout your home, and the built-in Ethernet ports supply high-speed connection to your wired devices. Moreover, it is simple and convenient to set up and use the TP-Link router due to its intuitive web interface and the powerful Tether app.
- Panel Layout
1. 2. 1. The Front Panel
The router’s LEDs (view from left to right) are located on the front. You can check the router’s working status by following the LED Explanation table.
LED Explanation
Name Status Indication (Power) On The system has started up successfully. Flashing The system is starting up or the firmware is being upgraded. Do not disconnect or power off your router. Off Power is off.
5 Chapter 1 Get to Know About Your Router Item Description WPS/Wi-Fi On/Off Button Press this button, and immediately press the WPS button on your device. The WPS LED of the router should change from flashing to solid on, indicating successful WPS connection. Press and hold the Wi-Fi button for about 2 seconds to turn on or off the wireless function of your router. Reset Button Press and hold this button for about 5 seconds to reset the router to its factory default settings. Internet Port For connecting to a DSL/Cable modem, or an Ethernet jack. Ethernet Ports (1/2/3/4) For connecting your PC or other wired devices to the router. Antennas Used for wireless operation and data transmit. Upright them for the best Wi-Fi performance.
Chapter 2 Connect the Hardware This chapter contains the following sections:
- Position Your Router
- Connect Your Router
8 Chapter 2 Connect the Hardware
- Connect the modem to your router’s Internet port with an Ethernet cable.
- Turn on the modem, and then wait about 2 minutes for it to restart.
- Connect the power adapter to the router and turn on the router.
- Verify that the following LEDs are on and solid to confirm the harware is connected correctly. 2.4G On 5G On On Power Internet On Note: If the 2.4G LED and 5G LED are off, press and hold the WPS/Wi-Fi On/Off button on the back panel for about 2 seconds. Within a few seconds, both the LEDs shoud turn solid on.
- Connect your computer to the router.
- Method 1: Wired Turn off the Wi-Fi on your computer and connect the devices as shown below. Ethernet cable
- Method 2: Wirelessly 1 ) Find the SSID (Network Name) and Wireless Password printed on the label at the bottom of the router. 2 ) Click the network icon of your computer or go to Wi-Fi Settings of your smart device, and then select the SSID to join the network. Connections are available Wireless Network Connection √ Connect automatically Connect TP-Link_XXXX TP-Link_XXXX_5G Wi-Fi Wi-Fi TP-Link_XXXX TP-Link_XXXX_5G CHOOSE A NETWORK... Other... < Settings
or
Computer Smart Device
9 Chapter 2 Connect the Hardware
- Method 3: Use the WPS button Wireless devices that support WPS, including Android phones, tablets, and most USB network adapters, can be connected to your router through this method. Note:
- WPS is not supported by iOS devices.
- The WPS function cannot be configured if the wireless function of the router is disabled. Also, the WPS function will be disabled if your wireless encryption is WEP. Please make sure the wireless function is enabled and is configured with the appropriate encryption before configuring the WPS. 1 ) Tab the WPS icon on the device’s screen. Here we take an Android phone for instance. 2 ) Within two minutes, press the WPS/Wi-Fi On/Off button on your router.
close to
11
Chapter 3. Log In to Your Router.
With a web-based utility, it is easy to configure and manage the router. The web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari. Follow the steps below to log in to your router.
- Set up the TCP/IP Protocol in Obtain an IP address automatically mode on your computer.
- Visit http://tplinkwifi.net, and create a login password for secure management purposes. Then click Let’s Get Started to log in. Note:
- If the login window does not appear, please refer to the FAQ Section.
- If you have registered a TP-Link ID and bound your cloud router to it, the login password you created here will be ineffective. Please log in to the cloud router using your TP-Link ID.
Chapter 4 Set Up Internet Connection This chapter introduces how to connect your router to the internet. The router is equipped with a web-based Quick Setup wizard. It has necessary ISP information built in, automates many of the steps and verifies that those steps have been successfully completed. Furthermore, you can also set up an IPv6 connection if your ISP provides IPv6 service. It contains the following sections:
- Use Quick Setup Wizard
- Manually Set Up Your Internet Connection
- Set Up an IPv6 Internet Connection
14
4. 2. Manually Set Up Your Internet Connection
Note: If you are unsure of what your connection type is, click Auto Detect. Since different connection types require different cables and connection information, you can also refer to the demonstrations in Step 4 to determine your connection type.
- Follow the instructions on the page to continue the configuration. Parameters on the figures are just used for demonstration. 1 ) If you choose Dynamic IP, you need to select whether to clone the MAC address. Dynamic IP users are usually equipped with a cable TV or fiber cable. 2 ) If you choose Static IP, enter the information provided by your ISP in the corresponding fields.
15
4. 3. Set Up an IPv6 Internet Connection
3 ) If you choose PPPoE, enter the username and password provided by your ISP. PPPoE users usually have DSL cable modems. 4 ) If you choose L2TP, enter the username and password and choose the Secondary Connection provided by your ISP. Different parameters are needed according to the Secondary Connection you have chosen.
