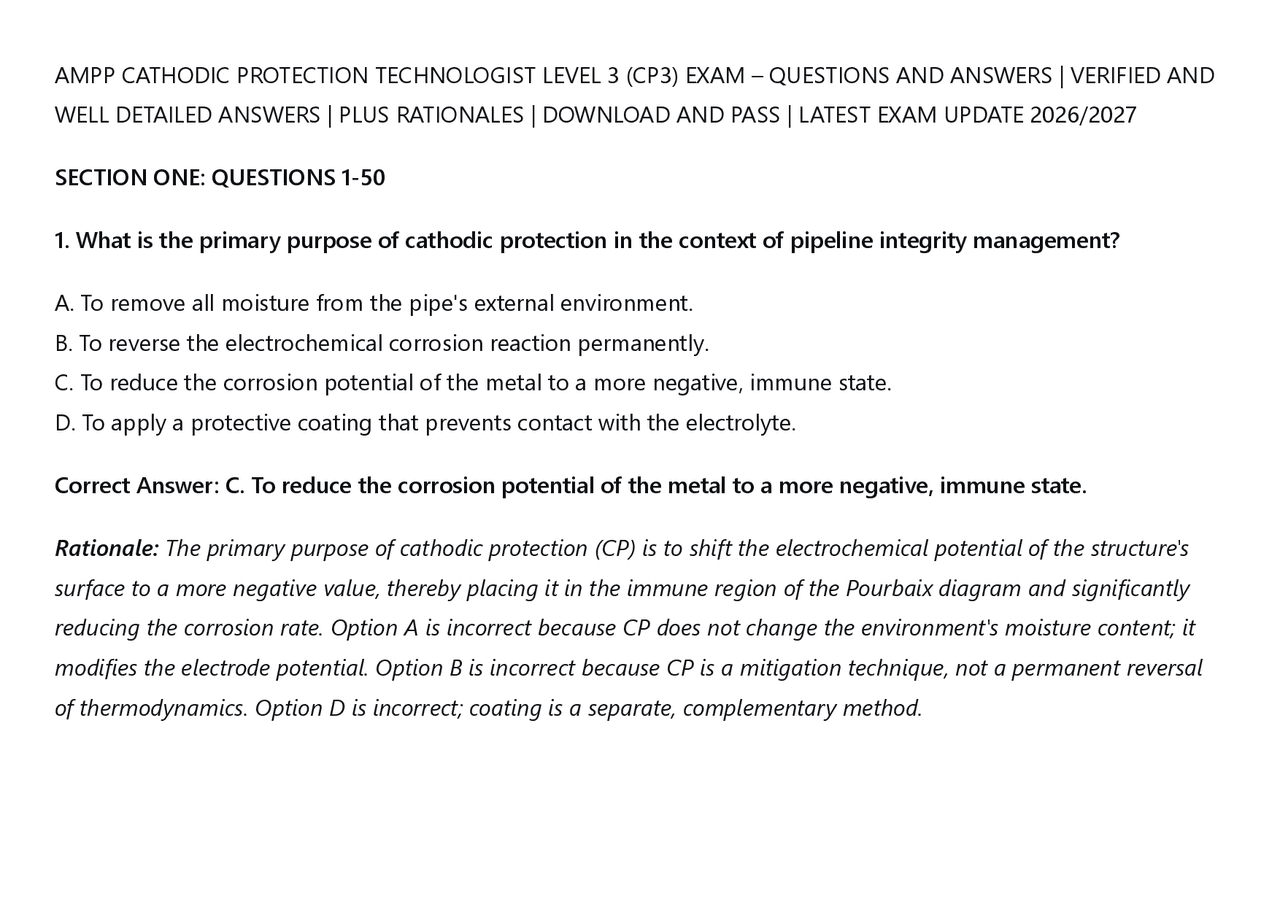

AMPP CATHODIC PROTECTION TECHNOLOGIST LEVEL 3 (CP3) EXAM – QUESTIONS AND ANSWERS | VERIFIED AND
WELL DETAILED ANSWERS | PLUS RATIONALES | DOWNLOAD AND PASS | LATEST EXAM UPDATE 2026/
SECTION ONE: QUESTIONS 1-
1. What is the primary purpose of cathodic protection in the context of pipeline integrity management?
A. To remove all moisture from the pipe's external environment. B. To reverse the electrochemical corrosion reaction permanently. C. To reduce the corrosion potential of the metal to a more negative, immune state. D. To apply a protective coating that prevents contact with the electrolyte.
Correct Answer: C. To reduce the corrosion potential of the metal to a more negative, immune state.
Rationale: The primary purpose of cathodic protection (CP) is to shift the electrochemical potential of the structure's surface to a more negative value, thereby placing it in the immune region of the Pourbaix diagram and significantly reducing the corrosion rate. Option A is incorrect because CP does not change the environment's moisture content; it modifies the electrode potential. Option B is incorrect because CP is a mitigation technique, not a permanent reversal of thermodynamics. Option D is incorrect; coating is a separate, complementary method.
2. For a galvanic (sacrificial) anode cathodic protection system on a buried pipeline, which of the following material properties is the most critical factor in selecting the anode material?
A. The anode's tensile strength to withstand soil stresses. B. The anode's density to ensure it remains buried. C. The difference between the anode's closed-circuit potential and the structure's potential. D. The anode's ability to form a passive oxide film.
Correct Answer: C. The difference between the anode's closed-circuit potential and the structure's potential.
Rationale: The driving force for a galvanic system is the potential difference between the anode and the cathode (the protected structure). A more negative closed-circuit potential in the anode is essential to provide this driving potential. Option A is incorrect; while physical strength is relevant, the electrochemical driving force is primary. Option B is incorrect as density is not the most critical design parameter. Option D is the opposite of what is desired; anodes are meant to corrode preferentially and should not form a passive film.
3. During a structure-to-electrolyte potential survey on a cathodically protected pipeline, you measure a potential of -0.85 V vs. Cu/CuSO4. This reading is considered the standard criterion for adequate protection. Under what specific conditions is this criterion generally considered sufficient?
Correct Answer: D. The elimination of IR drop error.
Rationale: CIPS is designed to identify coating defects by measuring potential gradients. The primary challenge is mitigating IR drop, which can obscure the true polarized potential. While options A, B, and C are all factors to consider, the elimination of IR drop (often achieved with interrupted current) is the most critical factor for ensuring the data accurately represents the level of protection, making D the correct answer.
5. In a cathodic protection system, what is the function of a reference electrode?
A. To provide the current necessary to protect the structure. B. To measure the potential of the structure with a stable, known standard. C. To isolate the protected structure from other metallic structures. D. To convert AC voltage to a stable DC voltage for the system.
Correct Answer: B. To measure the potential of the structure with a stable, known standard.
Rationale: A reference electrode, such as a Cu/CuSO4 or Ag/AgCl, is a half-cell with a stable and well-known electrode potential. It is used as a benchmark to measure the potential of the structure being protected. Option A describes the anode. Option C describes a decoupler or insulating joint. Option D describes a rectifier in an impressed current system.
6. Which type of anode is most suitable for a high-resistivity soil environment in an impressed current cathodic protection system?
A. Magnesium anode. B. Zinc anode. C. High-silicon cast iron anode. D. Aluminum anode.
Correct Answer: C. High-silicon cast iron anode.
Rationale: High-silicon cast iron anodes have a low consumption rate and can perform well in high-resistivity soils when used in deep anode beds or with carbonaceous backfill. Magnesium (A) and Zinc (B) are galvanic anodes and lack the driving voltage for high-resistivity soils. Aluminum (D) is more commonly used in marine environments.
7. A pipeline operator notices that the rectifier current output on an impressed current system has decreased steadily over several months with no change in the voltage setting. What is the most likely cause of this issue?
A. The anode bed has become wetter, decreasing its resistance. B. A portion of the pipeline coating has failed, drawing more current.
and it eliminates the IR drop component, providing a more accurate assessment of protection level.
9. A technician is performing a DC voltage gradient survey (also known as a "CIPS" type survey) to locate coating holidays. What is the characteristic signal they are looking for?
A. A uniform potential across the entire pipe. B. A localized increase in the negative potential over a coating holiday. C. A localized decrease in the negative potential over a coating holiday. D. A repetitive AC signal indicating a foreign line.
Correct Answer: B. A localized increase in the negative potential over a coating holiday.
Rationale: At a coating holiday, the CP current leaves the pipe to the soil, creating a localized voltage gradient. The potential of the pipe becomes more negative (more active) directly over the holiday due to this current flow. A uniform potential (A) indicates intact coating. A decrease in negative potential (C) would be observed over shielded areas. An AC signal (D) is typically for ACVG surveys.
10. In a galvanic cathodic protection system, what is the primary role of the sacrificial anode's backfill material?
A. To provide structural support to keep the anode in place. B. To act as a nutrient source to enhance the anode's electrochemical activity. C. To ensure a low-resistivity environment for the anode, improving current output. D. To serve as a barrier to prevent moisture from reaching the anode.
Correct Answer: C. To ensure a low-resistivity environment for the anode, improving current output.
Rationale: Backfill material, often composed of gypsum, bentonite, and sodium sulfate, creates a low-resistivity environment around the anode. This enhances the electrical contact with the surrounding soil and maximizes the anode's current output. Option A is a secondary benefit. Option B is incorrect; backfill does not act as a nutrient. Option D is counterproductive.
11. How does a cathodic protection system affect the bond between a pipeline and its protective coating?
A. It strengthens the adhesive bond of the coating. B. It causes the coating to become brittle and crack. C. It can cause the coating to disbond, particularly at holidays, due to hydrogen evolution. D. It has no effect on the coating whatsoever.
Correct Answer: C. It can cause the coating to disbond, particularly at holidays, due to hydrogen evolution.
13. What is a significant disadvantage of using a cathodic protection system in an environment with the potential for AC interference?
A. The AC current will cause the rectifier to fail. B. The AC current can cause rapid consumption of galvanic anodes. C. The AC current can cause fluctuations in potential readings and accelerate corrosion on the structure. D. The AC current will reduce the effectiveness of the pipe's coating.
Correct Answer: C. The AC current can cause fluctuations in potential readings and accelerate corrosion on the structure.
Rationale: AC interference can impose a voltage on the pipeline. This can result in safety hazards, interfere with CP measurements, and, in severe cases, cause accelerated corrosion at coating defects. Option A is not a primary disadvantage; rectifiers are designed with protection. Option B describes a situation where anodes might be consumed protecting against AC, but the main concern is the fluctuating potentials.
14. A pipe-to-soil potential reading of -1.20 V vs. Cu/CuSO4 is measured on a pipeline. What is the most likely implication of this reading?
A. The pipeline is adequately protected. B. The pipeline is under-protected. C. The pipeline is over-protected, which could lead to hydrogen embrittlement or coating disbondment. D. The reading is invalid due to an error in the reference electrode.
Correct Answer: C. The pipeline is over-protected, which could lead to hydrogen embrittlement or coating disbondment.
Rationale: While a more negative potential suggests protection, excessively negative potentials are considered overprotection. This can cause hydrogen embrittlement on high-strength steels and accelerate cathodic disbondment of the coating. Option A is correct in that it is protected, but the implication is the risk of over-protection. Option B is wrong; it is overprotected. Option D is a possibility, but overprotection is the standard professional assessment.
15. A pipeline traversing a rocky terrain requires the installation of a deep anode groundbed. Which backfill material is most commonly used to reduce the resistance in such an application?
A. Sand. B. Crushed rock. C. Calcined petroleum coke breeze. D. Native soil.
17. A technician uses a half-cell potential survey to map the potential profile of a pipeline. What does a sudden shift in potential over a short distance most likely indicate?
A. A change in soil type. B. A change in pipe diameter. C. A localized area of high current density, such as a coating defect. D. A change in the pipeline's operating pressure.
Correct Answer: C. A localized area of high current density, such as a coating defect.
Rationale: A voltage gradient, or a sharp change in potential over a short distance, is a hallmark of a coating defect or holiday. The CP current concentrated at this point creates a localized potential difference in the soil. Soil type changes (A) may cause gradual shifts. Pipe diameter (B) or pressure (D) are not primary factors influencing localized potential gradients.
18. In impressed current CP systems, the rectifier converts AC to DC. Which of the following is a characteristic of a rectifier's constant-current mode of operation?
A. The voltage output is adjusted to maintain a set current output. B. The current output is adjusted to maintain a set voltage output.
C. The rectifier turns off when a specific potential is reached. D. The rectifier operates solely based on a timer.
Correct Answer: A. The voltage output is adjusted to maintain a set current output.
Rationale: In constant-current mode, the rectifier's primary feedback loop is the current output. As the circuit resistance changes (e.g., due to soil resistivity), the rectifier will automatically adjust its voltage output up or down to maintain the pre-set current level. Option B describes constant-voltage mode. Option C describes potential-controlled operation, often used with a reference cell.
19. What is the primary mechanism by which magnesium anodes protect buried carbon steel?
A. By creating a barrier film of magnesium hydroxide on the steel surface. B. By providing a highly negative potential and consuming themselves preferentially. C. By altering the pH of the soil to a neutral value. D. By shielding the pipe from stray electrical currents.
Correct Answer: B. By providing a highly negative potential and consuming themselves preferentially.
Rationale: Magnesium anodes are highly active. In a galvanic cell, they are the anode and are consumed (oxidized) in place of the steel (cathode). The electron flow from the magnesium to the steel reduces the steel's potential, providing
A. It is the potential of the structure with the CP system operating at maximum output. B. It is the potential of the structure when it is completely free of any coating defects. C. It is the potential of the structure in the absence of any cathodic protection or external current. D. It is the potential required to achieve protection in a specific soil.
Correct Answer: C. It is the potential of the structure in the absence of any cathodic protection or external current.
Rationale: The native potential is the structure's natural corrosion potential measured when no CP current is applied and it is not influenced by stray currents. This baseline reading is critical for evaluating the effectiveness of a new CP system. Option A is the protected potential. Option B is an unrealistic hypothetical. Option D is the protection potential.
22. A pipeline is being cathodically protected using an impressed current system. A foreign structure is inadvertently connected to the protected pipeline. What is the most probable consequence?
A. The foreign structure will become negatively charged and also be protected. B. The foreign structure will act as a remote anode, depleting the protection on the pipeline. C. The foreign structure will become the anode and will be consumed. D. The foreign structure will have no effect on the CP system.
Correct Answer: B. The foreign structure will act as a remote anode, depleting the protection on the pipeline.
Rationale: When a foreign structure is connected, it presents a low-resistance path to ground. This structure often acts as a "remote anode," meaning the CP current from the pipeline's groundbed will flow to it, robbing the pipeline of protection current. This "current drain" can result in under-protection of the intended structure.
23. Which of the following best defines cathodic protection "shielding"?
A. The protection of a pipeline by a sacrificial anode. B. The inability of CP current to reach a specific area of the structure due to a physical barrier. C. The process of adding a chemical inhibitor to the electrolyte. D. The act of coating a pipeline to prevent corrosion.
Correct Answer: B. The inability of CP current to reach a specific area of the structure due to a physical barrier.
Rationale: Shielding occurs when a physical barrier, such as a disbonded coating, a rock resting against the pipe, or even a high-resistivity soil layer, prevents CP current from reaching the steel surface. This leaves the shielded area unprotected and susceptible to corrosion, even if the rest of the pipe meets the protection criterion.
C. The environment is irrelevant to the potential. D. It indicates that the steel is already fully protected and no CP is required.
Correct Answer: A. It makes the steel easier to protect because it is already closer to the protection potential.
Rationale: In anaerobic environments (e.g., deep, water-logged soils), the natural corrosion potential is often very negative, sometimes approaching the hydrogen electrode potential. Because the structure's native potential is already near the -0.85 V criterion, less current is typically required to shift it into the protected range. Option B is incorrect; passivity is less common in these environments.
26. A pipeline operator records a "polarized potential" of -950 mV vs. Cu/CuSO4. What is the most direct interpretation of this data point?
A. The structure is under-protected. B. The structure is protected, but over-protection is a concern. C. The structure is adequately protected with no IR drop component. D. The pipeline is not receiving any CP current.
Correct Answer: C. The structure is adequately protected with no IR drop component.
Rationale: The term "polarized potential" specifically refers to the structure's potential after the IR drop (ohmic voltage drop) has been removed, typically via an instantaneous-off reading. A polarized potential of -950 mV vs. Cu/CuSO4 is more negative than the -850 mV criterion and indicates adequate protection without the distortion of IR drop.
27. What is the primary limitation of a pipe-to-soil potential (P/S) measurement using a single reference electrode?
A. It requires expensive specialized equipment. B. It is extremely time-consuming to perform. C. It includes the IR drop error component in the reading. D. It cannot be performed on pipelines carrying AC current.
Correct Answer: C. It includes the IR drop error component in the reading.
Rationale: The fundamental limitation of the standard P/S measurement is that it includes the IR drop (voltage drop in the soil/electrolyte due to CP current). This can lead to a reading that appears protective (e.g., -0.85 V) but is actually due to a high voltage drop, not the true polarization at the metal surface.
