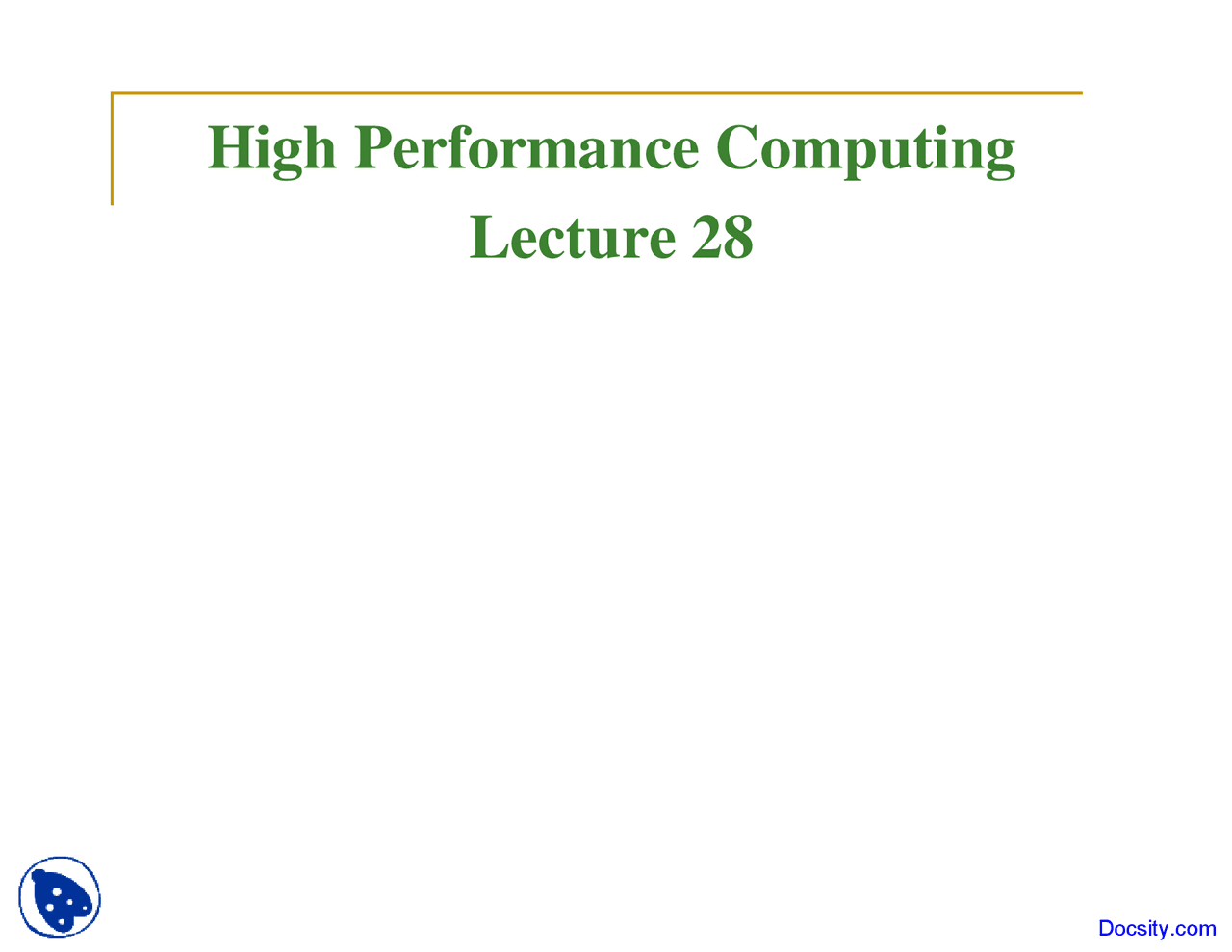

High Performance Computing

Lecture 28

2

Block Placement: Direct Mapping (DM)

 Suppose that the cache is large enough to hold

N blocks from main memory

 i.e., Cache size = N blocks

 Direct Mapping: Memory block M is placed

uniquely in cache block M mod N

Cache

Main Memory

4

Accessing Block in DM Cache

Tag V D

AND

Cache Hit

Data

Tag

18 bits

Index

9 bits

Offset

5 bits

5

Problem with Direct Mapping

 Main memory block M is uniquely mapped to

cache block M mod N

 Consider a program which accesses two

memory locations alternately

 A, B, A, B, A, B, A, B…

 Where both A and B map to the same cache

block

 Example: N = 8, A is in memory block 6 and B is

in memory block 14

 Every access will result in a cache miss

7

Identifying Block in Set Associative

Assume 32 bit address space, 16 KB cache, 32B

cache block size, 4-way set associative cache

Number of Sets = Cache blocks / 4 = 512/4 = 128

Index field: to identify unique cache set

log

2

(128) = 7 bits

Offset field: to identify desired byte in cache block

log

2

(32) = 5 bits

Tag field: to identify which memory block is currently

in this cache block

Tag Index Offset

(remaining 20 bits)

8

Accessing Block (2-way Set Associative)

OR

Cache Hit

Data

Tag

19 bits

Index

8 bits

Offset

5 bits

Tag V D

Tag V D

10

Block Replacement

 Under direct mapped placement

 No choice is possible: unique placement

 Under set associative placement

 One of the blocks within the unique set must be

selected for replacement

 First-In-First-Out (FIFO)

 Least Recently Used (LRU)

 Random

11

LRU Block Replacement…

Data

OR

Cache

Hit

Tag

19 bits

Index

8 bits

Offset

5 bits

Tag V

D

L

Tag

V

LD

4 bits

 Hardware must keep track of LRU information

 Within the cache directory

• Recall that LRU replacement was not considered

feasible for Virtual Memory

13

Write Policies

4A: When is Main Memory Updated on Write Hit?

 Write through: Writes are performed both in

cache and in Main Memory

+ Cache and memory copies are kept consistent

-- Multiple writes to the same location/block cause

higher memory traffic

-- Writes must wait for longer time (memory write)

Solution: Use a Write Buffer to hold these write

requests and allow processor to proceed

immediately

14

Write Policies…

 Write back: writes are performed only on

cache

 Modified blocks are written back to memory only

on replacement from the cache

o Need for dirty bit for each cache block

+ Writes will happen faster than with write through

+ Reduced traffic to memory

-- Cache & main memory copies are not always the

same

16

Putting it all together

 The computer you are using to run your

programs contains cache memory

 Cache organization and operation are

described by the terms we have seen

 Example: 32 KB 2-way set associative write-

back write-allocate LRU replacement cache

with block size of 32B

17

What Drives Computer Development?

Processor

60%/yr.

(2X/1.5yr)

Memory

9%/yr.

(2X/

yrs)

Processor-Memory

Performance Gap:

(grows 50% / year)

“Moore’s Law”

Year

Performance

DRAM

CPU
