ECE 3550 DIGITAL DESIGN

FALL 2008

Bonus Assignment to Project #2

Total: 16 pts. (4% of course grade)

Due 4:00pm, Tuesday, November 25, 2008

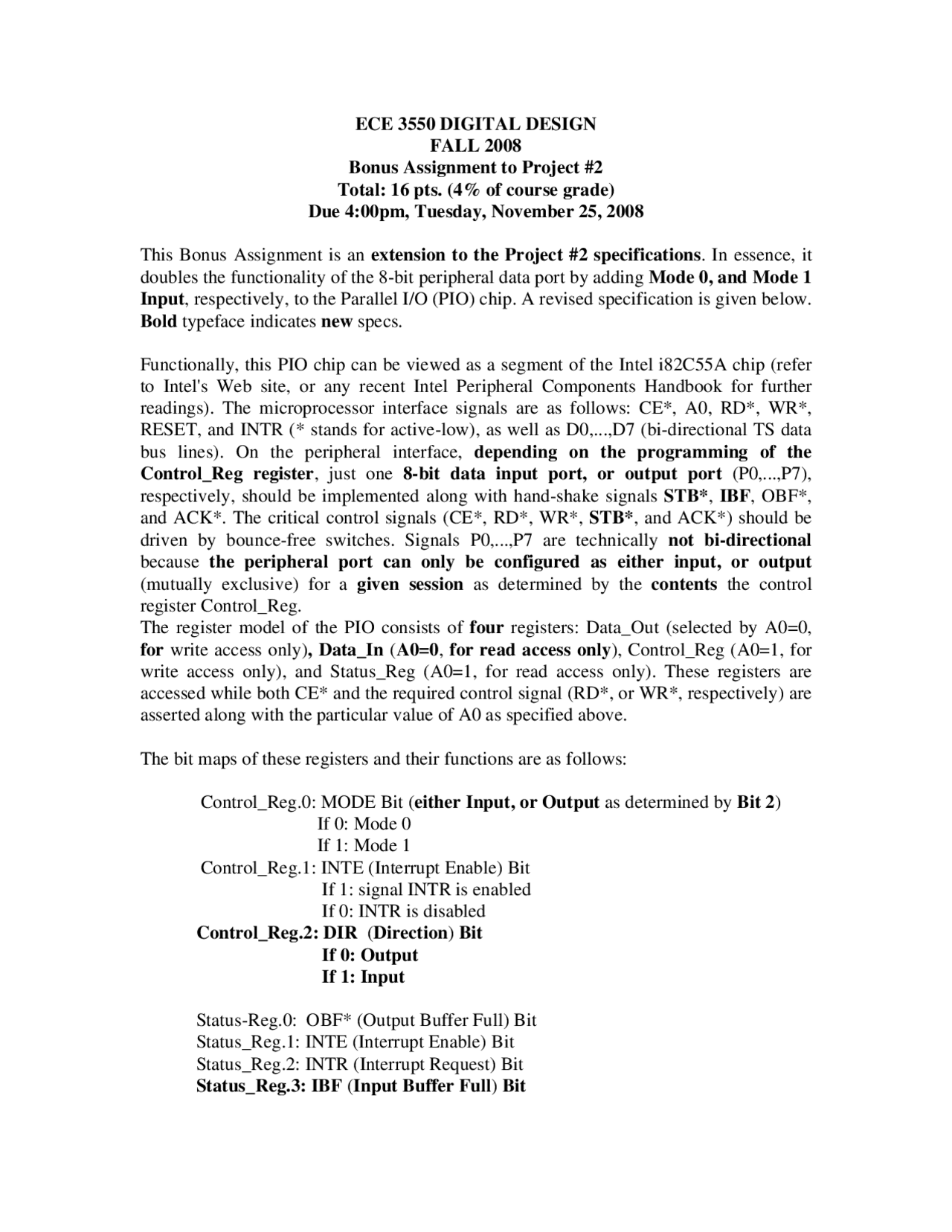

This Bonus Assignment is an extension to the Project #2 specifications. In essence, it

doubles the functionality of the 8-bit peripheral data port by adding Mode 0, and Mode 1

Input, respectively, to the Parallel I/O (PIO) chip. A revised specification is given below.

Bold typeface indicates new specs.

Functionally, this PIO chip can be viewed as a segment of the Intel i82C55A chip (refer

to Intel's Web site, or any recent Intel Peripheral Components Handbook for further

readings). The microprocessor interface signals are as follows: CE*, A0, RD*, WR*,

RESET, and INTR (* stands for active-low), as well as D0,...,D7 (bi-directional TS data

bus lines). On the peripheral interface, depending on the programming of the

Control_Reg register, just one 8-bit data input port, or output port (P0,...,P7),

respectively, should be implemented along with hand-shake signals STB*, IBF, OBF*,

and ACK*. The critical control signals (CE*, RD*, WR*, STB*, and ACK*) should be

driven by bounce-free switches. Signals P0,...,P7 are technically not bi-directional

because the peripheral port can only be configured as either input, or output

(mutually exclusive) for a given session as determined by the contents the control

The register model of the PIO consists of four registers: Data_Out (selected by A0=0,

for write access only), Data_In (A0=0, for read access only), Control_Reg (A0=1, for

write access only), and Status_Reg (A0=1, for read access only). These registers are

accessed while both CE* and the required control signal (RD*, or WR*, respectively) are

asserted along with the particular value of A0 as specified above.

The bit maps of these registers and their functions are as follows:

Control_Reg.0: MODE Bit (either Input, or Output as determined by Bit 2)

If 0: Mode 0

If 1: Mode 1

Control_Reg.1: INTE (Interrupt Enable) Bit

If 1: signal INTR is enabled

If 0: INTR is disabled

Control_Reg.2: DIR (Direction) Bit

If 0: Output

If 1: Input

Status-Reg.0: OBF* (Output Buffer Full) Bit

Status_Reg.1: INTE (Interrupt Enable) Bit

Status_Reg.2: INTR (Interrupt Request) Bit

Status_Reg.3: IBF (Input Buffer Full) Bit

Partial preview of the text

Download Bonus Assignment Project 2 - Digital Design | ECE 3550 and more Study Guides, Projects, Research Digital Systems Design in PDF only on Docsity!

ECE 3550 DIGITAL DESIGN

FALL 2008

Bonus Assignment to Project # Total: 16 pts. (4% of course grade) Due 4:00pm, Tuesday, November 25, 2008

This Bonus Assignment is an extension to the Project #2 specifications. In essence, it doubles the functionality of the 8-bit peripheral data port by adding Mode 0, and Mode 1 Input , respectively, to the Parallel I/O (PIO) chip. A revised specification is given below. Bold typeface indicates new specs.

Functionally, this PIO chip can be viewed as a segment of the Intel i82C55A chip (refer to Intel's Web site, or any recent Intel Peripheral Components Handbook for further readings). The microprocessor interface signals are as follows: CE, A0, RD, WR, RESET, and INTR ( stands for active-low), as well as D0,...,D7 (bi-directional TS data bus lines). On the peripheral interface, depending on the programming of the Control_Reg register , just one 8-bit data input port, or output port (P0,...,P7), respectively, should be implemented along with hand-shake signals STB* , IBF , OBF, and ACK. The critical control signals (CE, RD, WR, STB , and ACK) should be driven by bounce-free switches. Signals P0,...,P7 are technically not bi-directional because the peripheral port can only be configured as either input, or output (mutually exclusive) for a given session as determined by the contents the control register Control_Reg. The register model of the PIO consists of four registers: Data_Out (selected by A0=0, for write access only) , Data_In ( A0=0 , for read access only ), Control_Reg (A0=1, for write access only), and Status_Reg (A0=1, for read access only). These registers are accessed while both CE and the required control signal (RD, or WR, respectively) are asserted along with the particular value of A0 as specified above.

The bit maps of these registers and their functions are as follows:

Control_Reg.0: MODE Bit ( either Input, or Output as determined by Bit 2 ) If 0: Mode 0 If 1: Mode 1 Control_Reg.1: INTE (Interrupt Enable) Bit If 1: signal INTR is enabled If 0: INTR is disabled Control_Reg.2: DIR ( Direction ) Bit If 0: Output If 1: Input

Status-Reg.0: OBF* (Output Buffer Full) Bit Status_Reg.1: INTE (Interrupt Enable) Bit Status_Reg.2: INTR (Interrupt Request) Bit Status_Reg.3: IBF ( Input Buffer Full ) Bit

Signal RESET resets all control and status bits and the INTR signal to 0, and also sets bit DIR to 1 when it is asserted. RESET is active-high. The additional timing diagrams for the peripheral and microprocessor interface signals are given on Page 3, on the Class Web Page. You are not required to implement the exact delay times given in the i82C55A Data Sheets but the antecedent – consequent relationship between pairs of handshake signals, instead. For your orientation, research the Xilinx Web site for information on the SPARTAN-3E chips.

Tasks:

a) Give a narrative summary along with a detailed schematic diagram of your circuit. In the schematics, represent the SPARTAN-3E chip by a rectangular block with signal names assigned to the appropriate pins. Also show the detailed design steps (i.e., primitive flow map, reduced state table, assigned state table, logic functions) for the asynchronous sequential logic section of your circuit along with your comments. (4 pts.)

b) Design, simulate and implement the circuits that should be mapped to your SPARTAN-3E FPGA. You should design your circuits in VHDL and use the Xilinx Project Navigator to implement your chip. You should also carry on post- routing simulations using .do files to evaluate the real-time performance of your design. Comment on your simulation results. Attach hard copies of your .vhd, and .do files, your simulation timing diagrams with comments, as well as the pin assignment and the resource utilization sections of the Pad Report. (6 pts.)

c) Download your .bit file to the SPARTAN-3E chip on your Nexys 2 Board. Hook up the board to the rest of your circuit you have built on your Breadboard. Demonstrate the correct operation of your PIO chip. (6 pts.)

This Bonus Project can be demonstrated only after the basic one. Each team should submit a joint Project Report. In the report, you should have sections as follows: Introduction, Design, and Conclusion.
