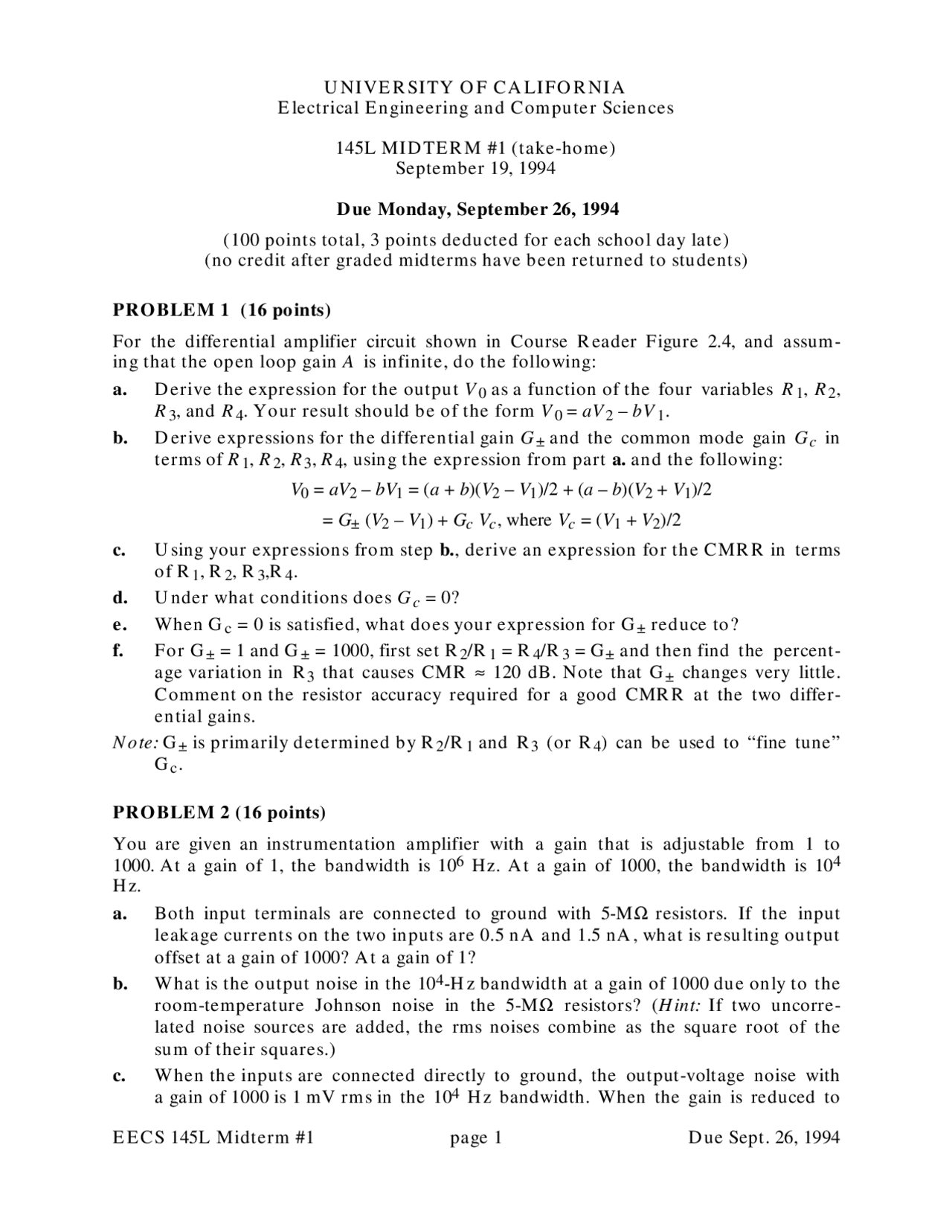

UNIVERSITY OF CALIFORNIA
Electrical Engineering and Computer Sciences
145L MIDTERM #1 (take-home)
September 19, 1994
Due Monday, September 26, 1994
(100 points total, 3 points deducted for each school day late)
(no credit after graded midterms have been returned to students)
PROBLEM 1 (16 points)
For the differential amplifier circuit shown in Course Reader Figure 2.4, and assum-
ing that the open loop gain A is infinite, do the following:
a. Derive the expression for the output V0 as a function of the four variables R1, R2,
R3, and R4. Your result should be of the form V0 = aV2bV1.
b. Derive expressions for the differential gain G± and the common mode gain Gc in
terms of R1, R2, R3, R4, using the expression from part a. and the following:
V0 = aV2bV1 = (a + b)(V2V1)/2 + (ab)(V2 + V1)/2
= G± (V2V1) + Gc Vc, where Vc = (V1 + V2)/2
c. Using your expressions from step b., derive an expression for the CMRR in terms
of R1, R2, R3,R4.
d. Under what conditions does Gc = 0?
e. When Gc = 0 is satisfied, what does your expression for G± reduce to?
f. For G± = 1 and G± = 1000, first set R2/R1 = R4/R3 = G± and then find the percent-
age variation in R3 that causes CMR 120 dB. Note that G± changes very little.
Comment on the resistor accuracy required for a good CMRR at the two differ-
ential gains.
Note: G± is primarily determined by R2/R1 and R3 (or R4) can be used to “fine tune”
Gc.
PROBLEM 2 (16 points)
You are given an instrumentation amplifier with a gain that is adjustable from 1 to
1000. At a gain of 1, the bandwidth is 106 Hz. At a gain of 1000, the bandwidth is 104
Hz.
a. Both input terminals are connected to ground with 5-M resistors. If the input
leakage currents on the two inputs are 0.5 nA and 1.5 nA, what is resulting output
offset at a gain of 1000? At a gain of 1?
b. What is the output noise in the 104-Hz bandwidth at a gain of 1000 due only to the
room-temperature Johnson noise in the 5-M resistors? (Hint: If two uncorre-
lated noise sources are added, the rms noises combine as the square root of the
sum of their squares.)
c. When the inputs are connected directly to ground, the output-voltage noise with
a gain of 1000 is 1 mV rms in the 104 Hz bandwidth. When the gain is reduced to
EECS 145L Midterm #1 page 1 Due Sept. 26, 1994
pf3

Partial preview of the text

Download UC Berkeley EECS Midterm 1 (Fall 1994) - Electrical Engineering Problems and more Exams Microcomputers in PDF only on Docsity!

UNIVERSITY OF CALIFORNIA

Electrical Engineering and Computer Sciences

145L MIDTERM #1 (take-home) September 19, 1994

Due Monday, September 26, 1994 (100 points total, 3 points deducted for each school day late) (no credit after graded midterms have been returned to students)

PROBLEM 1 (16 points)

For the differential amplifier circuit shown in Course Reader Figure 2.4, and assum- ing that the open loop gain A is infinite, do the following:

a. Derive the expression for the output V 0 as a function of the four variables R 1 , R 2 , R 3 , and R 4. Your result should be of the form V 0 = aV 2 – bV 1.

b. Derive expressions for the differential gain G ± and the common mode gain Gc in terms of R 1 , R 2 , R 3 , R 4 , using the expression from part a. and the following: V 0 = aV 2 – bV 1 = ( a + b )( V 2 – V 1 )/2 + ( ab )( V 2 + V 1 )/ = G ± ( V 2 – V 1 ) + Gc Vc , where Vc = ( V 1 + V 2 )/

c. Using your expressions from step b. , derive an expression for the CMRR in terms of R 1 , R 2 , R 3 ,R 4.

d. Under what conditions does Gc = 0?

e. When Gc = 0 is satisfied, what does your expression for G± reduce to?

f. For G± = 1 and G± = 1000, first set R 2 /R 1 = R 4 /R 3 = G± and then find the percent- age variation in R 3 that causes CMR ≈ 120 dB. Note that G± changes very little. Comment on the resistor accuracy required for a good CMRR at the two differ- ential gains.

Note: G± is primarily determined by R 2 /R 1 and R 3 (or R 4 ) can be used to “fine tune” Gc.

PROBLEM 2 (16 points)

You are given an instrumentation amplifier with a gain that is adjustable from 1 to

  1. At a gain of 1, the bandwidth is 10^6 Hz. At a gain of 1000, the bandwidth is 10^4 Hz.

a. Both input terminals are connected to ground with 5-MΩ resistors. If the input leakage currents on the two inputs are 0.5 nA and 1.5 nA, what is resulting output offset at a gain of 1000? At a gain of 1?

b. What is the output noise in the 10^4 -Hz bandwidth at a gain of 1000 due only to the room-temperature Johnson noise in the 5-MΩ resistors? ( Hint: If two uncorre- lated noise sources are added, the rms noises combine as the square root of the sum of their squares.)

c. When the inputs are connected directly to ground, the output-voltage noise with a gain of 1000 is 1 mV rms in the 10^4 Hz bandwidth. When the gain is reduced to

1, the output-voltage noise is 0.1 mV rms in the 10^6 Hz bandwidth. What is the amplifier noise with respect to the input ( D 1 ) and the output ( D 0 )? (Express the noise in units of nV Hz–1/2.)

PROBLEM 3 (10 points)

The classic instrumentation amplifier circuit is shown in figure 2.13 of the course reader (page 82).

Assume the following:

  • R 1 = 100 Ω, R 2 = 5 kΩ, R 3 = 1 kΩ, R 4 = 10 kΩ.
  • Input V+ = +1 volt d.c. plus 1 mV p-p (peak-to-peak) sine wave at 1 kHz
  • Input V– = +1 volt d.c. plus 1 mV p-p sine wave at 1 kHz
  • Differential input (V+ – V–) = 2 mV p-p sine wave at 1 kHz
  • Power supply voltages are –10V and + 10V

a. What are the amplitudes of the d.c. and 1 kHz components of V 3?

b. What are the amplitudes of the d.c. and 1 kHz components of V 4?

c. What are the amplitudes of the d.c. and 1 kHz components of V 4 – V 3?

d. What are the amplitudes of the d.c. and 1 kHz components of V 0?

PROBLEM 4 (16 points)

A new instrumentation amplifier circuit has been proposed, as shown below:

V (^1) R 2

V 2^ R 2

R 3

R 3

V 3 V 5

V (^4) V 6 R 4

R 4

V 0

V

V +

R 1 / 2

R 1 / 2

Assume the following (same values as Problem 3):

  • R 1 /2 = 50 Ω, R 2 = 5 kΩ, R 3 = 1 kΩ, R 4 = 10 kΩ.
  • Input V+ = +1 volt d.c. plus 1 mV p-p sine wave at 1 kHz
  • Input V– = +1 volt d.c. plus 1 mV p-p sine wave at 1 kHz
  • Differential input (V+ – V–) = 2 mV p-p sine wave at 1 kHz
  • Power supply voltages are –10V and + 10V

Answer the following:
